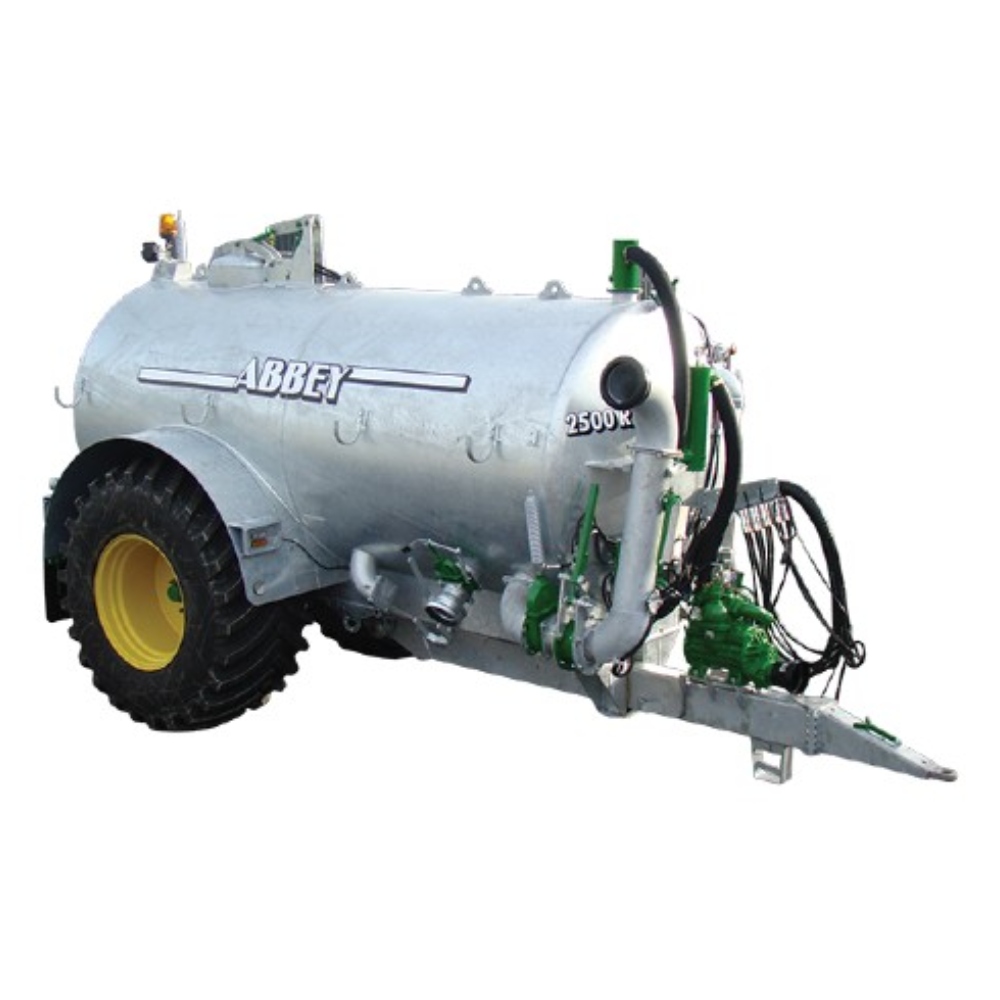

Abbey Recessed Axle Slurry Tankers 10,215L – AB2250R

Description

Abbey Recessed Axle Slurry Tankers 10,215L – AB2250R

Premium slurry tanker with recessed axle and tyres for where flotation is an issue and low ground pressure is needed. Ideal for contractors and large dairy farmers.

Specifications

• Overall Length: 666cm
• Unladen Weight: 3700kg
• Capacity: 10,215L

Features

• Parabolic leaf sprung drawbar.
• 28.1 R 26 flotation tyres.

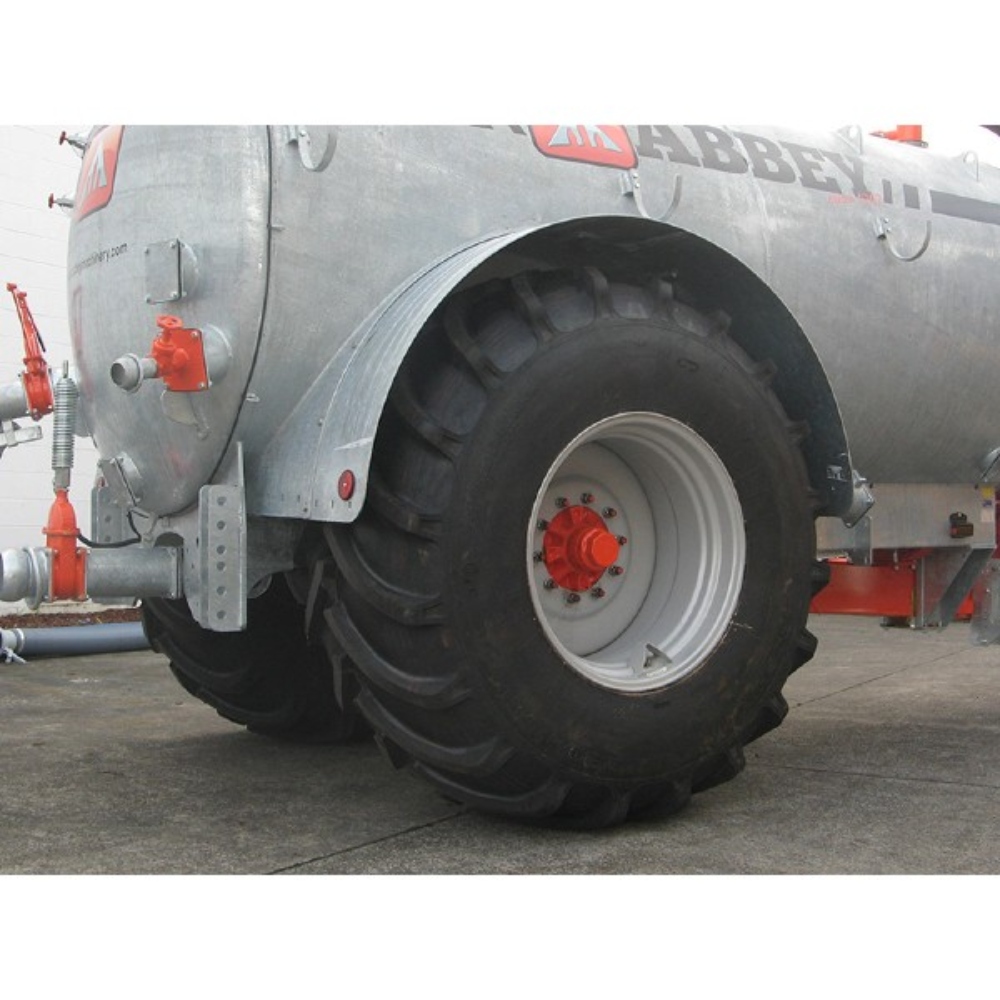

• 150×150 recessed axle.
• MEC 13,500 l/min ballast pump.
• Vacuum pump silence/exhaust.
• LED lights.
• Wide angle driveshaft.
• Double trap system.
• Relief valve.
• Pressure gauge.
• Front site tube.
• Rear sight glass.
• 4×6 inch filling points.
• 2×6 inch manual parallel quick coupler.
• Brackets to retrofit autofill (6 inch).
• Manual gate valve for filling.
• Hydraulic rear valve for emptying.
• Inverted splash plate.
• 12m of 6 inch hose with filter (2x6m lengths).
• Side hose carrying brackets.
• Rear inspection hatch (24 inch).
• 420×120 hydraulic brakes.
• Swivel hitch.
• Winding jack.
• Handbrake.
• Safety chains on drawbar.
• 6 inch bottom outlet.
• 50mm rear tap.
• Internal baffles.
• 10 year steel warranty.
• Pressed dome ends.
• 6mm EN42 high carbon steel.
• High gloss painted finish.

Autofill Options

• 6 inch autofill c/w docking station.
• 6 inch filler for autofill arm.

Options (In lieu of standard)

• Hydraulic remote control for pump.
• Galvanised tank.
• 8 inch hose and couplings in lieu of 6 inch.
• Extra 6m 6 inch hose c/w fittings.
• Extra 6m 8 inch hose c/w fittings.
