Silvan Casotti Linkage Sprayer 1100L – APS71 Pump, Casotti Kit – K11N-71WG
Silvan Casotti 1100ltr linkage sprayer with APS71, 71L/min pump and Casotti kit.
Model Specifications:
- Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. APS71: 71L/min. capacity 5000kPa pressure.

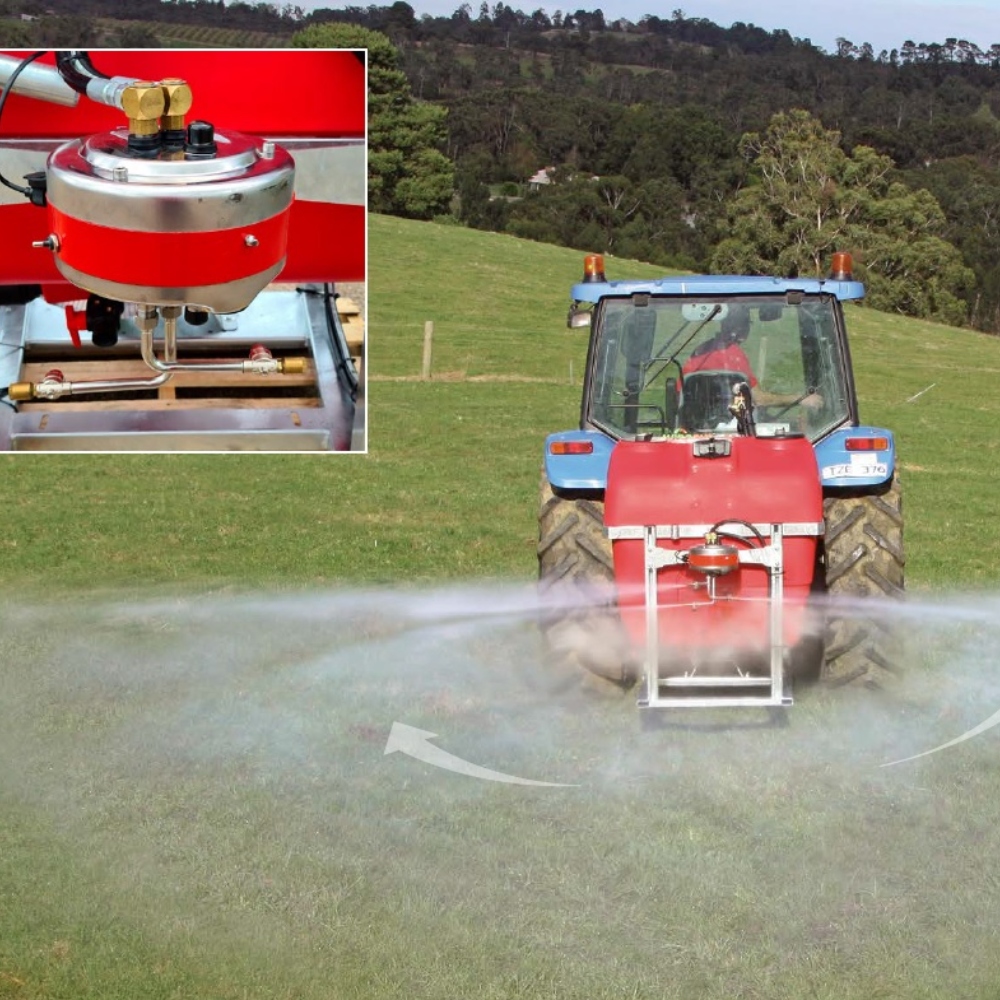

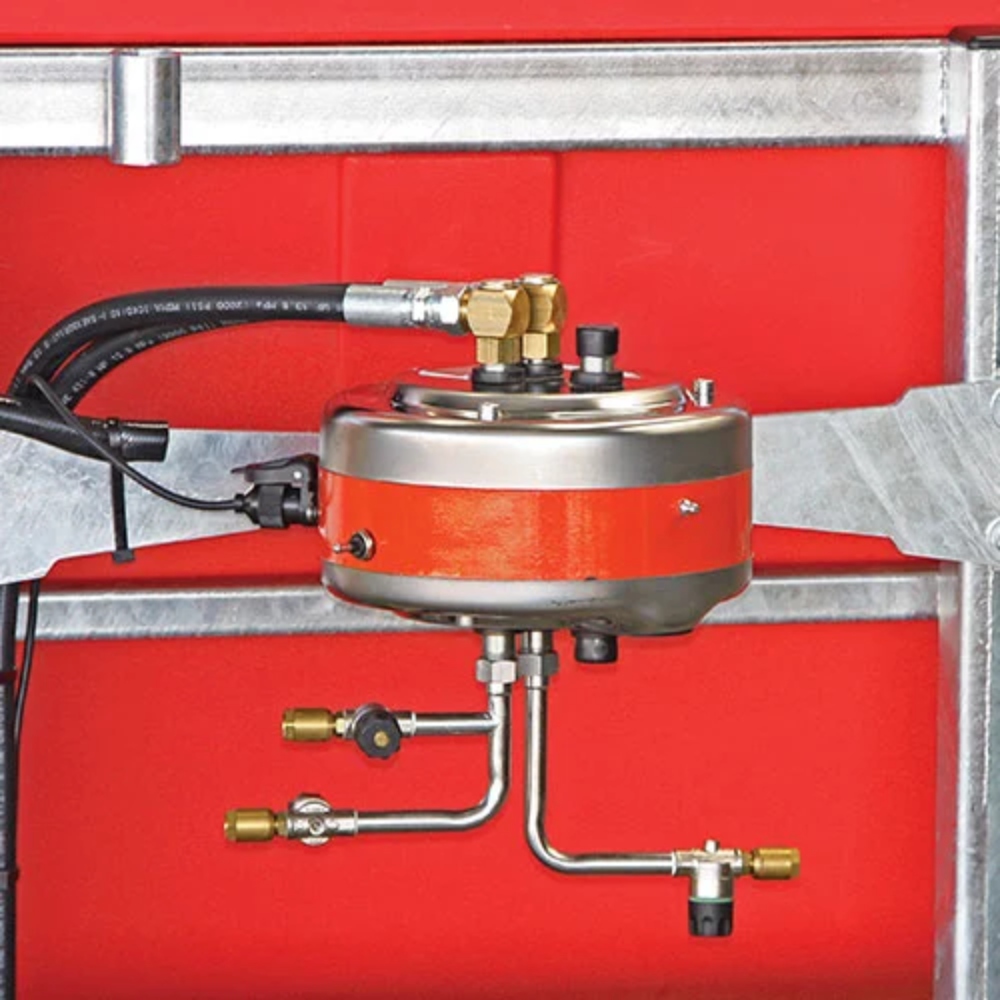

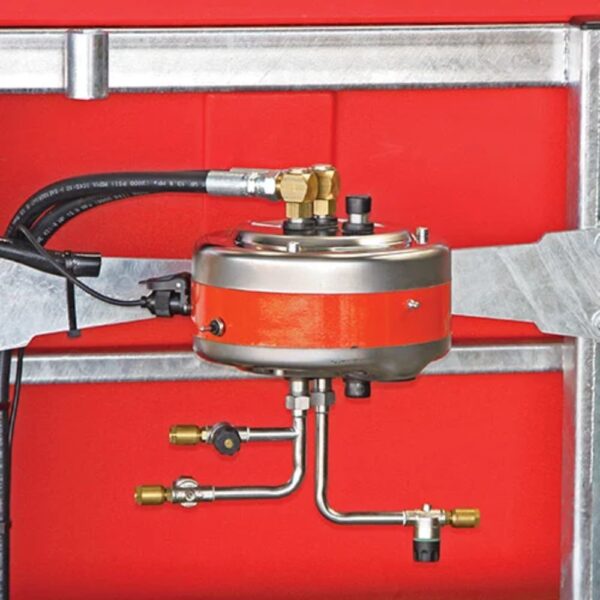

- Casotti Motor: An electric 12 volt motor is connected to the tractor battery which powers the oscillating movement of the nozzle arms. The arms swing 180. This movement is symmetrical to the tractors passage.
- Controls: 2 outlet brass manual control valve with pressure regulator. Mounted forward for easy access.
- Tank: Low profile 1100ltr Polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polythylene lid. 50mm camlock bottom fill.
- Frame: Fully galvanized steel, cat II linkage.
- Agitation: Bypass agitation.
- Spray Jets: 3 oscillating high pressure jets (20 bar) Up to 12m spray coverage.
- Pressure Gauge: 0-60 Bar dual stage glycerine filled gauge.
- Filtration: Lid strainer, suction line strainer with stop valve fitted at side of tank to enable ease of filter maintenance.
- PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Dimensions:
- Trailed/Linked: Linkage
- Tank Size: 1100.00 litres
- Pump Size: 71.00 L/min
- Length: 1350mm
- Width: 1395mm
- Height: 1610mm
- Product Weight: 160kg
Available Also
- Casotti Kit Only: With mounting brackets and hydraulic hoses.
