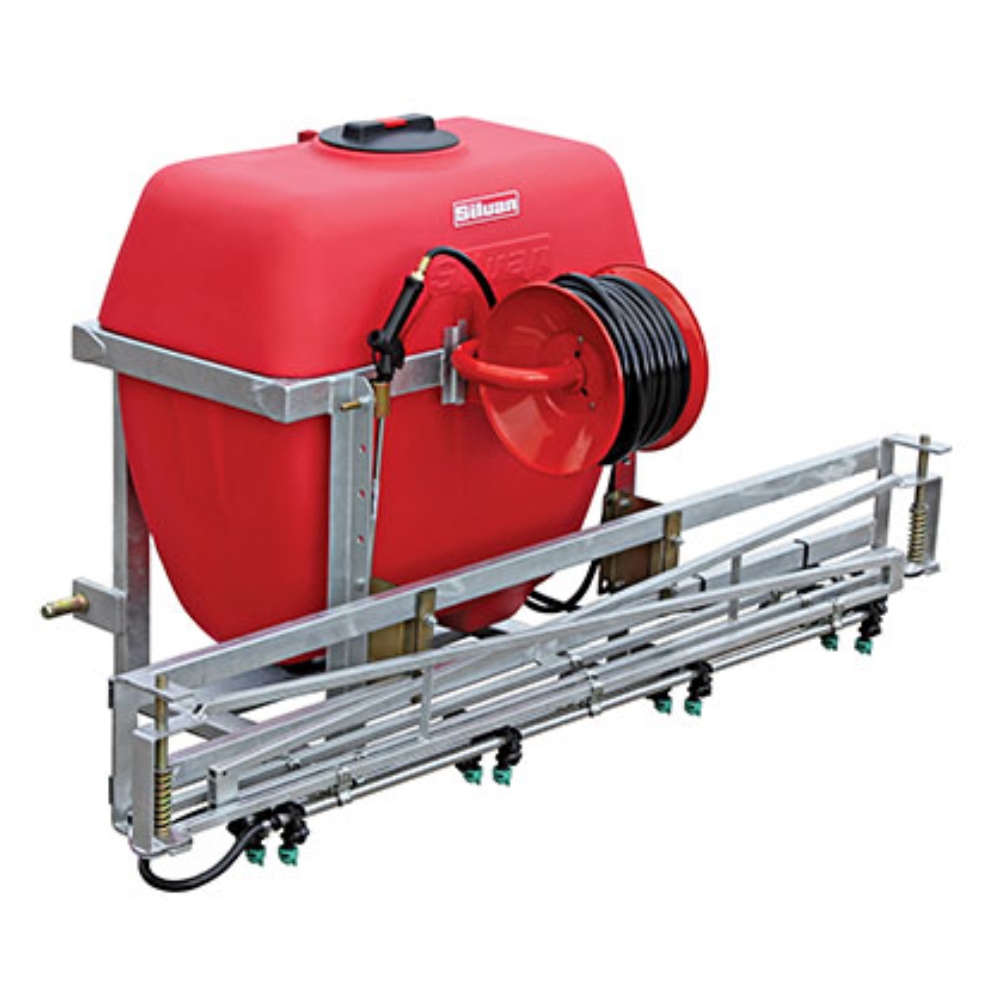

Silvan EconoPak Linkage Sprayer 300L – KBC300

Description

Silvan EconoPak Linkage Sprayer 300L – KBC300

Linkage Sprayer – Econopak – 300ltr with BP60/20, 58l/min Pump and 6m Field Boom.

Click Here for Instruction Manual

Model Specifications:

• Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and cast anodised aluminium body. BP60/20: 58 L/min. capacity 2000kPa pressure.
• Boom: Econopak boom, 6m with stainless steel spray lines, non-drip nozzle holders, fully galvanized frame and spring loaded safety break back/forward.
• Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacing.
• Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
• Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non-spill screw-down lid with single breather.
• Frame: Fully galvanized steel, cat I & II linkage.
• Agitation: Bypass agitation.
• Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
• Filtration: Lid strainer, suction line strainer and nozzle strainers.
• Hose Reel: Fitted with rear-mounted Eco hose reel, 30m of 10mm hose and Spotjet spray gun with adjustable spray nozzle.
• PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.

Dimensions: (with boom)

• Length: 1105mm
• Width: 2067mm
• Height: 1070mm
• Weight (DRY): 116kg

Options:

• 14L foam marker (single side).
• 16L foam marker (double side).
