FencePro Mule V Post Rammer – Mule V

Description

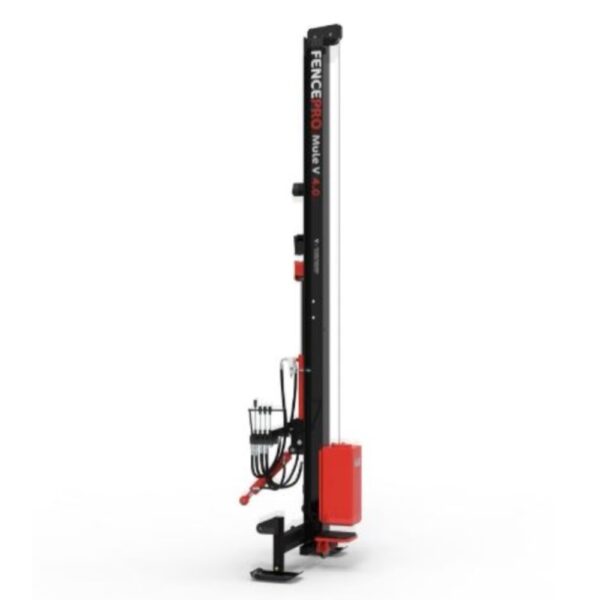

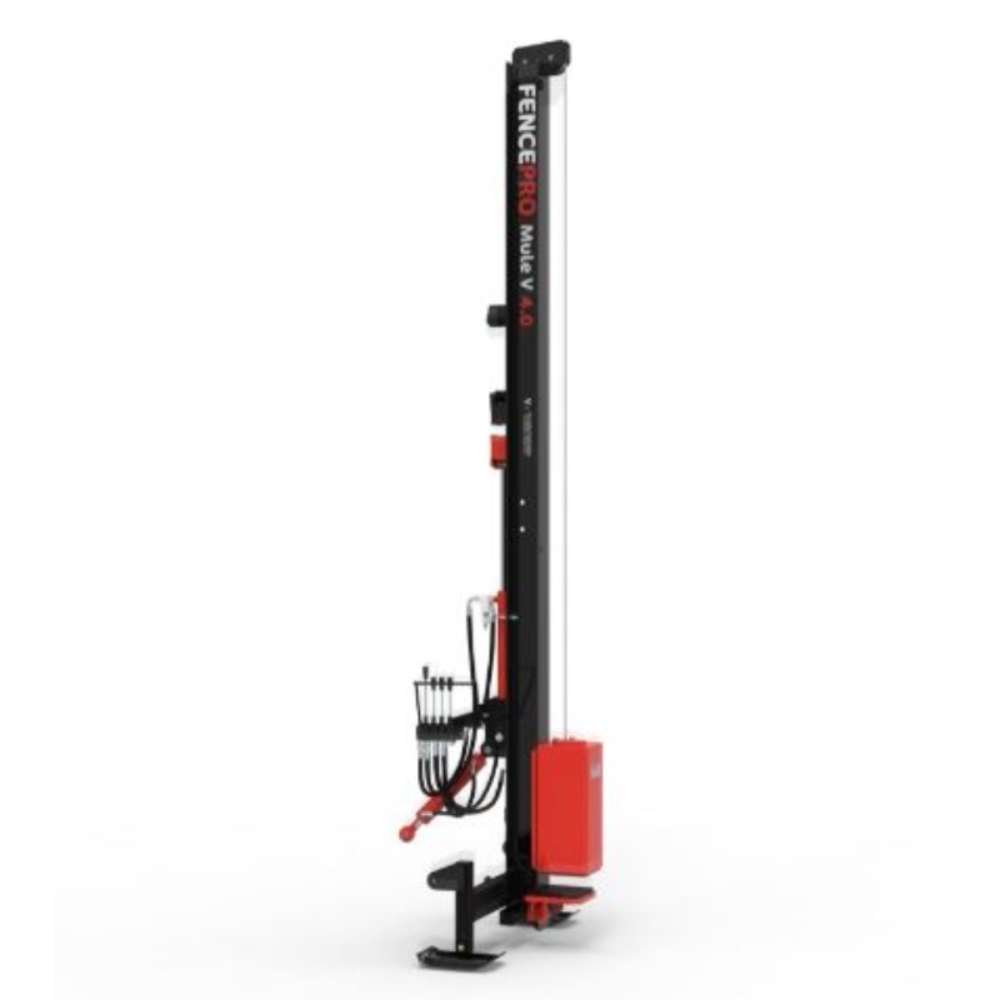

FencePro Mule V Post Rammer – Mule V

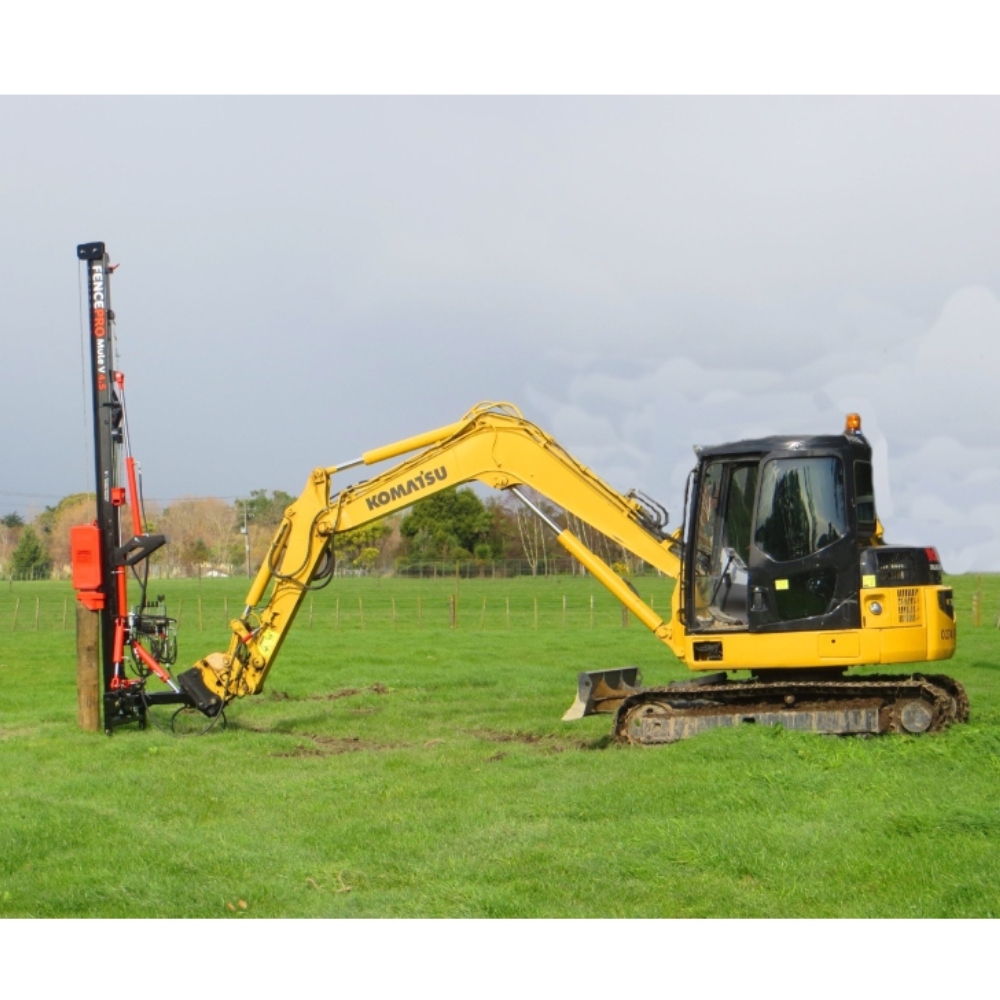

The new Mule V series with Activeblock heralds a major breakthrough in hydraulic circuits for post drivers. Traditional thinking has been set aside in view of high efficiency and usability. Maximum hit every time on any tractor, excavator or skid steer loader. Fast cycle times with no rope whip from the Activeblock. It gives operators a fast, safe and easy to use high performing post driver that will simply get the fences built faster. The V stands for versatile and this post driver is the most versatile machine on the market today.

Standard Specifications for Base Model

• Mast section – 150UC
• Mast Pivot Pin Size – 60mm
• Side Tilt Angle – 20 degrees/20 degrees
• Toplink – 35 degrees (Variable)
• Adjustable Height Feet – Standard
• Mastshift – Optional
• Pulleys/Rope – dia 140mm / 9mm
• Top Pulley – dia 140mm (x2)
• Mast Height (Height Under Post Cap) – 4m (3.3m)
• Block Weight/Type – 260kg/Std
• Postcap – Standard
• Valve Flow/Number of Functions – High x4 (1 Spare)
• Hydraulic Hinge – Optional
• Weight – 550kg

Options

• Mast Height:
  • FM45HH – 4.5m Hydraulic Hinge Mast
  • FU48E – 4.8m Hydraulic Hinge Mast 140
• Block Weight:
  • 270kg Ultra Activeblock
  • 300kg Ultra Activeblock
• Postcap:
  • FUHDPU – Heavy Duty Postcap Upgrade (30kg)
• Mast Base:
  • F250MS – 250mm Mastshift (90kg)
• Feet:
  • FULRK – Leg Roller Kit (43kg)
  • FHLR – Hydraulic Leg (200mm travel) (6kg each)
• Base:
  • FSM1000 – Sidemount 1000 (includes nylon slides)
  • FSM900 – Sidemount 900 (includes tool bin) (450kg)
  • FSM600 – Sidemount 600 (includes lockable toolbox) (415kg)
  • FSM420 – Sidemount 420 (includes lockable toolbox) (390kg)
  • FSMDL – Double Linkages
  • FST60LU – Single 60L Lockable Toolbox Upgrade
  • FST60U – Twin 60L Lockable Toolbox Upgrade (7kg)
  • FCH – Chainsaw Holder (6kg)
  • F300RUMP – Ultra Glide Rearshift (300mm travel c/w with Manual Leg) (120kg)
  • F300RULP – Ultra Glide Rearshift (c/w Hydraulic Leg, requires 2 valves) (120kg)
  • FRB800P – RB 800P (includes nylon slides, requires 5 valves) (655kg)
  • FDHC – Digger Hitch (120kg)
• Rockspike Extractor (RSE):
  • FRSENM – Nearside Manual Positioning (120kg)
  • FRSEFM – Farside Manual Positioning (120kg)
  • FRSENH – Nearside Hydraulic Positioning (requires 2 valves) (120kg)
  • FRSEFH – Farside Hydraulic Positioning (requires 2 valves) (120kg)
• Rockspike (1600mm Long):
  • FRS90 – Rockspike 90mm (85kg)
  • FRS120 – Rockspike 120mm (145kg)
• Rockdrill Planetary Drive (Requires RSE):
  • FRDME – Rockdrill Motor, Hoses & Extension Kit (45kg)
  • FRD100 – 100mm / 4 Inch RD Auger (18kg)
  • FRD150 – 150mm / 6 Inch RD Auger (24kg)
  • FRD200 – 200mm / 8 Inch RD Auger (25kg)
• Standard Auger:
  • FAUNK – Mast-mounting Auger Kit (requires 2 valves) (55kg)
  • FAARA – RSE Mounted Telescopic Extension Auger Kit
  • FARSAM – RSE Adaptor (5kg) + Auger Motor
  • FAU250E – 250mm Auger Extension (2kg)
  • FAU75 – 75mm / 3 Inch Auger (7kg)
  • FAU100 – 100mm / 4 Inch Auger (9kg)
  • FAU150 – 150mm / 6 Inch Auger (12kg)
  • FAU200 – 200mm / 8 Inch Auger (14kg)
• Postlifter:
  • FPL – Postlifter Kit (50kg)
• Extras:
  • FPStand – Stand
  • FEVF – Valve Function

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
