FencePro Ultra G3 Post Rammer – Ultra G3

Description

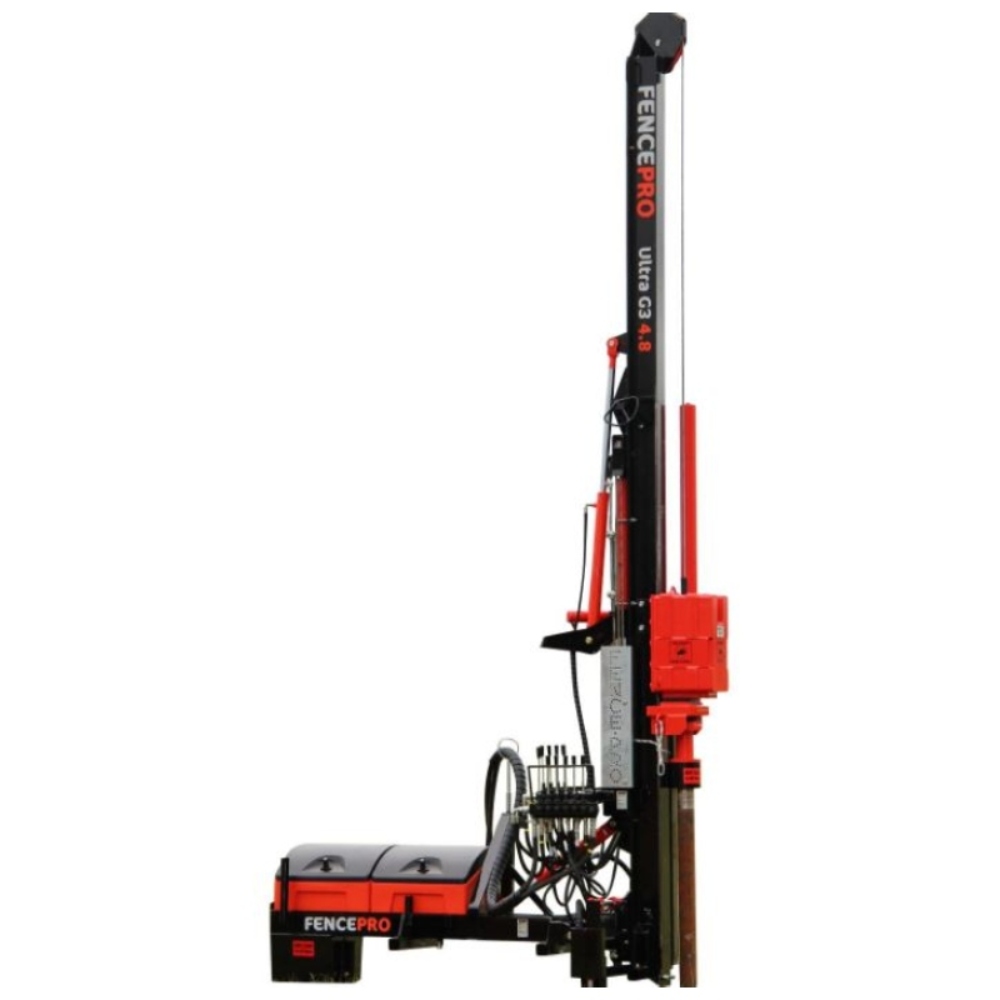

FencePro Ultra G3 Post Rammer – Ultra G3

The FencePro Ultra G3 is the ultimate fencing set up that is specifically designed to work in the most difficult conditions day in day out without missing a beat. Regardless of the soil type or substrate, the Ultra G3 can be kitted out with the gear to get the posts in the ground efficiently. The Rock drill is a good example of one of the options that the Ultra G3 has to tackle schist and other types of rock.

The Ultra G3 has everything the popular Ultra G2 has and more! With an 11mm rope instead of the normal 9 mm rope, the options open up for heavier blocks. A standard 4.8 m hydraulic hinging mast and 300 kg block ensure there is no shortage of hitting power. Extra weight can be added with a 350kg block.

Standard Specifications for Base Model

• Mast section – 150UC
• Mast Pivot Pin Size – 75mm
• Side Tilt Angle c/w Lock Valve – 27degrees/27degrees
• Toplink – 35 degree (Variable)
• Adjustable Height Feet – Standard
• Mastshift – 350mm
• Pulleys/Rope – dia 180mm / 11mm
• Top Pulley – dia 300mm (x1)
• Mast Height (Height Under Post Cap) – 4.8m (4m)
• Block Weight/Type – 300kg/HD
• Postcap – HD
• Valve Flow/Number of Functions – High x6 (3 Spare)
• Hydraulic Hinge – Standard
• Weight – 950kg

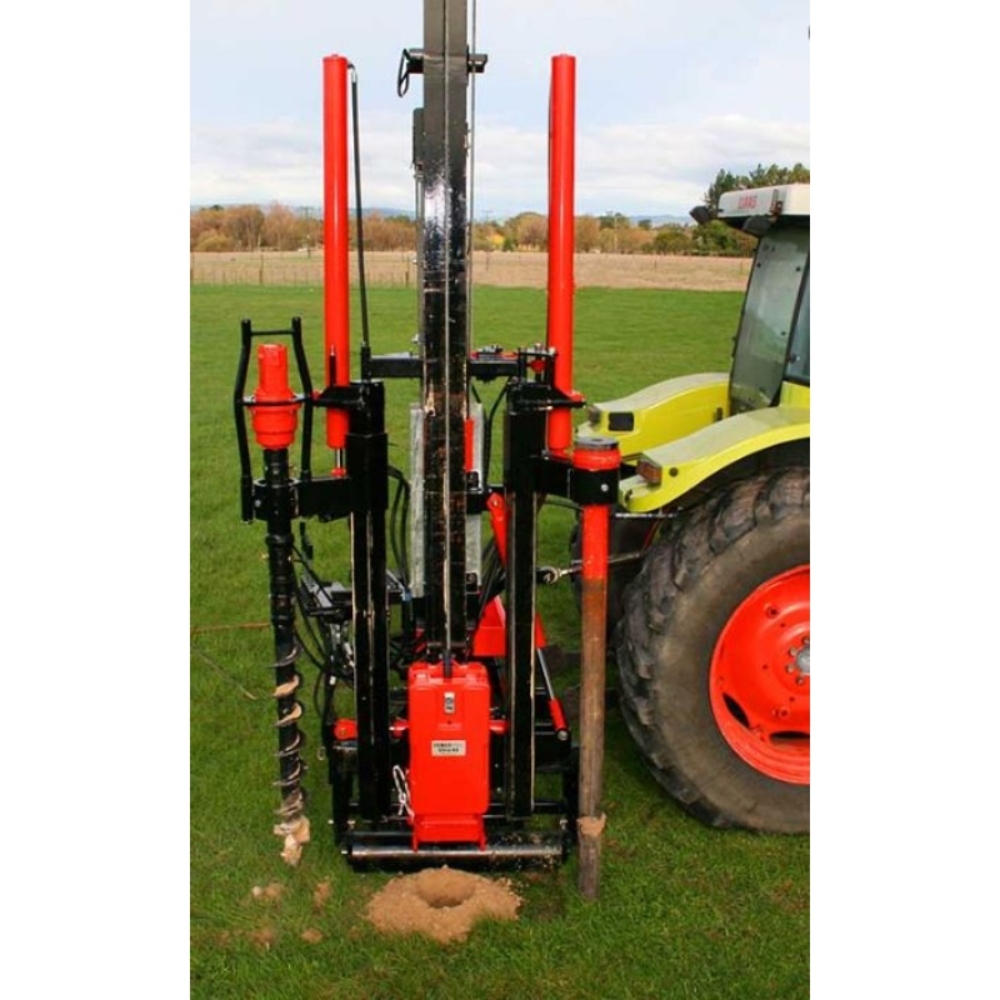

Options

• Mast Height:
  • FU45D – 4.5m Hydraulic Hinge Mast
  • FG340D – 4.0m Rigid Mast
  • FHMPA – Half Mast Pulley Adaptor
  • FPCK – Pin & Chain / Post steering kit c/w RSE Guide
  • FUPSK – Pin & Chain / Post steering kit
• Block Weight:
  • FU270G3 – 270kg Contractors Block
  • FU350G3 – 350kg Contractors Block
  • FU385G3 – 285kg Contractors Block
• Mast Base:
  • FUGMS – Ultra Glide Mastshift (includes nylon slides)
  • FUSBD – Standard Foot Base (32kg)
• Feet:
  • FULRK – Leg Roller Kit (43kg)
  • FHLR – Hydraulic Leg (200mm travel) (6kg each)
• Base:
  • FSM1000 – Sidemount 1000 (includes nylon slides)
  • FSM900 – Sidemount 900 (includes tool bin) (450kg)
  • FSM600 – Sidemount 600 (includes lockable toolbox) (415kg)
  • FSM420 – Sidemount 420 (includes lockable toolbox) (390kg)
  • FSMDL – Double Linkages
  • FST60LU – Single 60L Lockable Toolbox Upgrade
  • FST60U – Twin 60L Lockable Toolbox Upgrade (7kg)
  • FCH – Chainsaw Holder (6kg)
  • F300RUMP – Ultra Glide Rearshift (300mm travel c/w with Manual Leg) (120kg)
  • F300RULP – Ultra Glide Rearshift (c/w Hydraulic Leg, requires 2 valves) (120kg)
  • FRB800P – RB 800P (includes nylon slides, requires 5 valves) (655kg)
  • FDHC – Digger Hitch (120kg)
• Rockspike Extractor (RSE):
  • FRSENM – Nearside Manual Positioning (120kg)
  • FRSEFM – Farside Manual Positioning (120kg)
  • FRSENH – Nearside Hydraulic Positioning (requires 2 valves) (120kg)
  • FRSEFH – Farside Hydraulic Positioning (requires 2 valves) (120kg)
• Rockspike (1600mm Long):
  • FRS90 – Rockspike 90mm (85kg)
  • FRS120 – Rockspike 120mm (145kg)
• Rockdrill Planetary Drive (Requires RSE):
  • FRDME – Rockdrill Motor, Hoses & Extension Kit (45kg)
  • FRD100 – 100mm / 4 Inch RD Auger (18kg)
  • FRD150 – 150mm / 6 Inch RD Auger (24kg)
  • FRD200 – 200mm / 8 Inch RD Auger (25kg)
• Standard Auger (requires RSE):
  • FAARA – RSE Mounted Telescopic Extension Auger Kit
  • FAU75 – 75mm / 3 Inch Auger (7kg)
  • FAU100 – 100mm / 4 Inch Auger (9kg)
  • FAU150 – 150mm / 6 Inch Auger (12kg)
  • FAU200 – 200mm / 8 Inch Auger (14kg)
• Postlifter:
  • FPL – Postlifter Kit (50kg)
• Extras:
  • FPStand – Stand
  • FEVF – Valve Function
