GEN250 Seed Box – GEN250

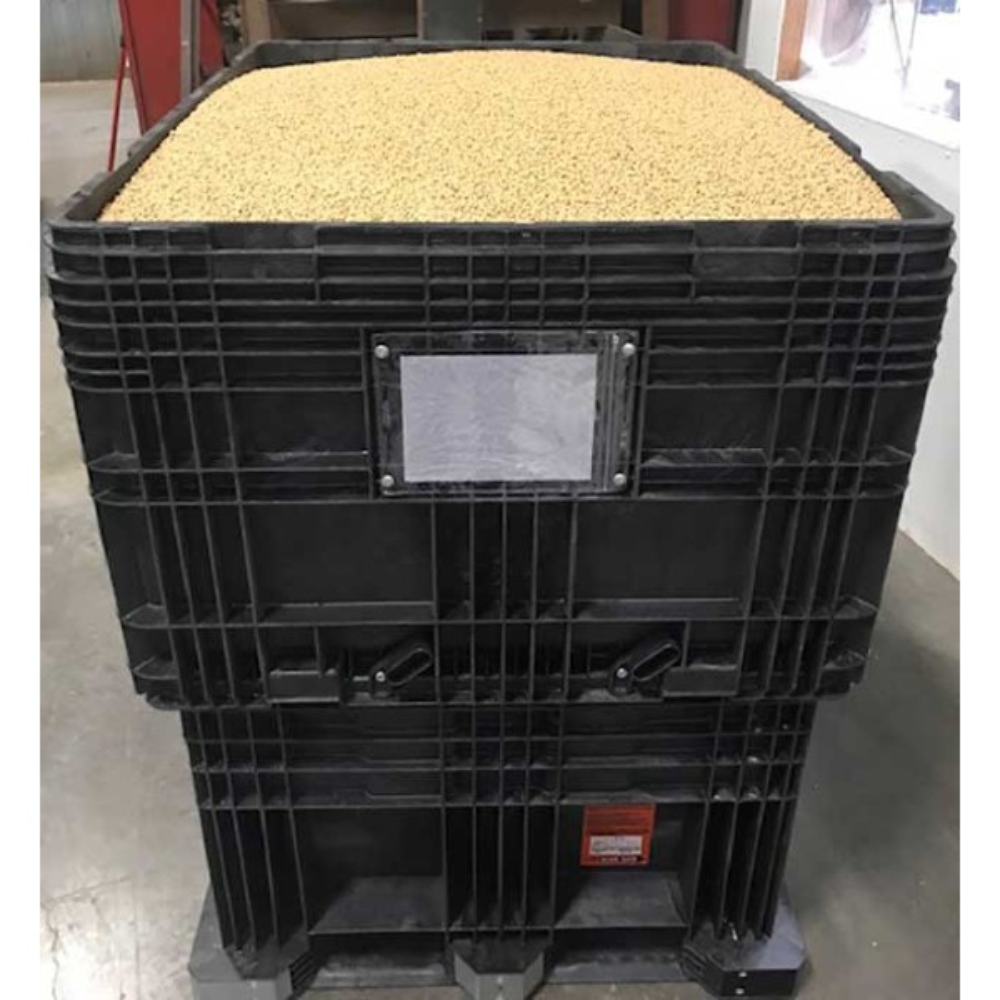

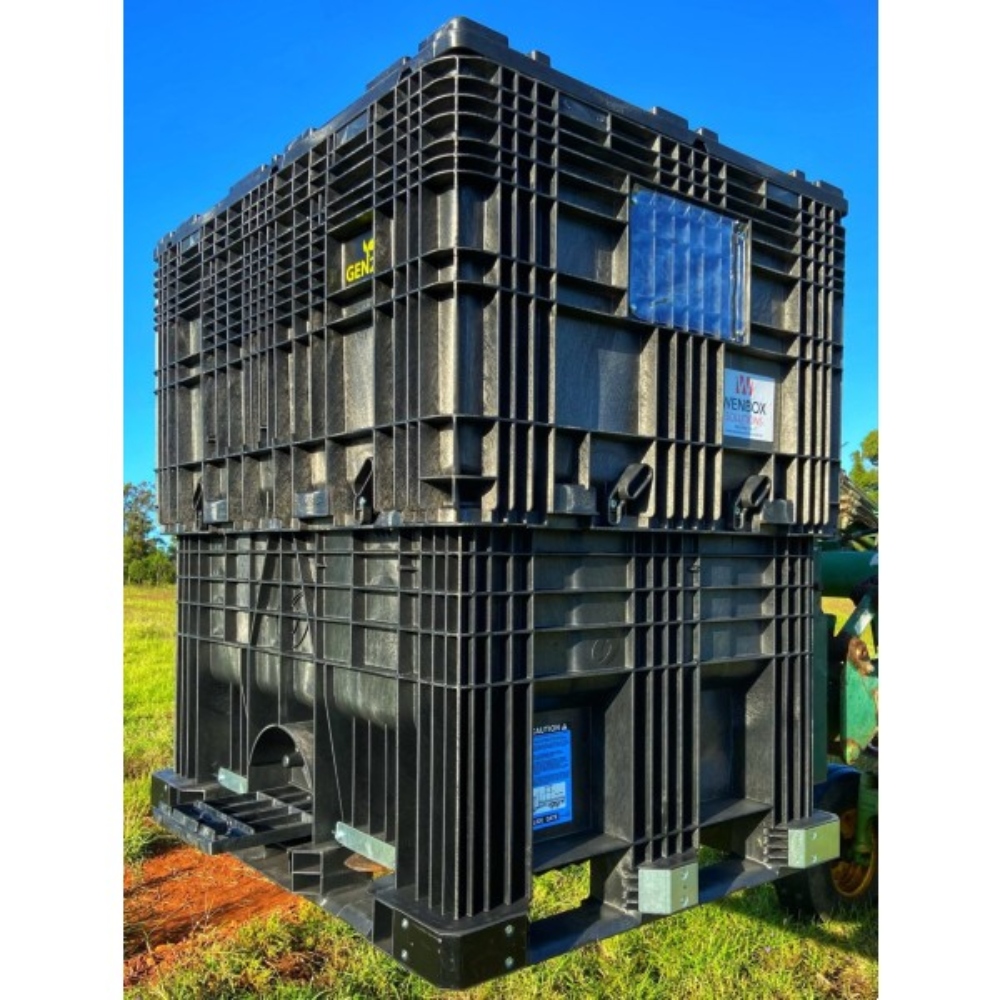

The GEN250® seed box has a robust, rigid design with a 1134 kg capacity. The fully reusable GEN250® will cut freight cost and interface seamlessly with your existing seed boxes. Its streamlined bin design holds a volume of 1.65m3 with a collapsed height of only 923 mm.

Manufactured from high-density polyethylene, GEN250® is built for a long service life and environmentally friendly seed handling. The GEN250® unit collapses and stacks securely together and is forklift and pallet-jack compatible.

Features

• A 1134kg / 1.65m3 capacity.
• A lid to reduce the risk of contamination from rodents and weather.

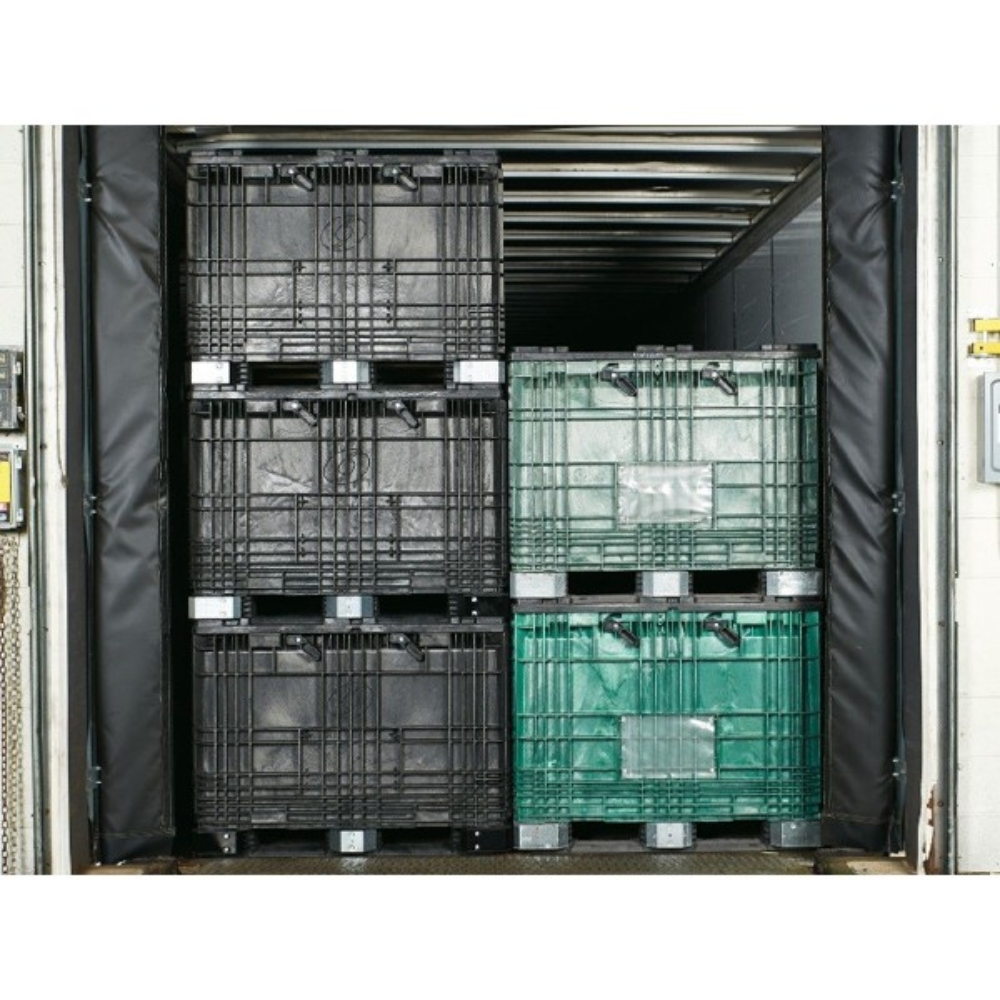

• The option to stack four high when full.
• A modular collapsible design, minimising storage needs and increasing transportation efficiency.

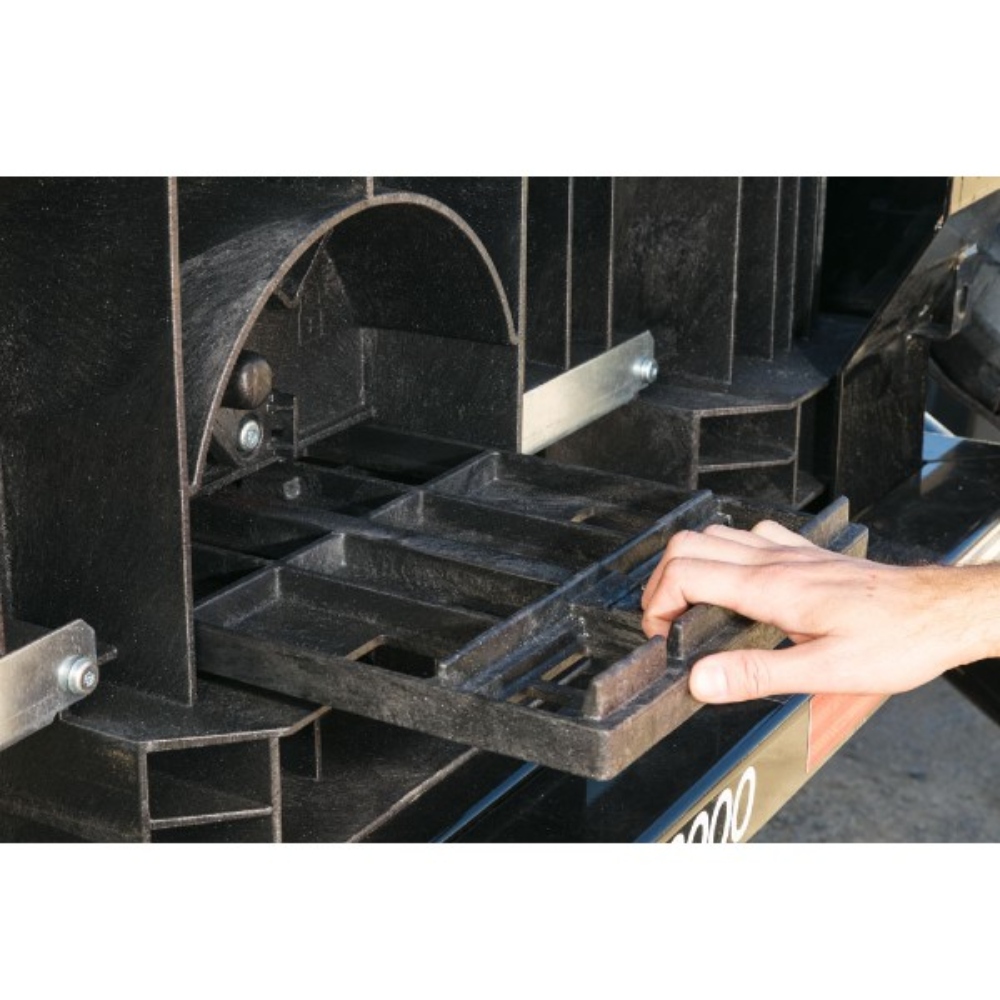

• A smooth funnel-shaped interior and bottom discharge port that allows the user to control the release of flowable contents.
• A long service life due to sturdy construction from UV-stabilised high density polyethylene.
• Angled supports to reduce screw bosses from cracking.
• Stronger four-hole hit plates less prone to breakage and easier replacement.
• One to two degree draft angled ribs to reduce pooling of water on ledges.
• Ergonomically designed ring latches with finger recesses and longer engagement tabs for better ring retention to base.

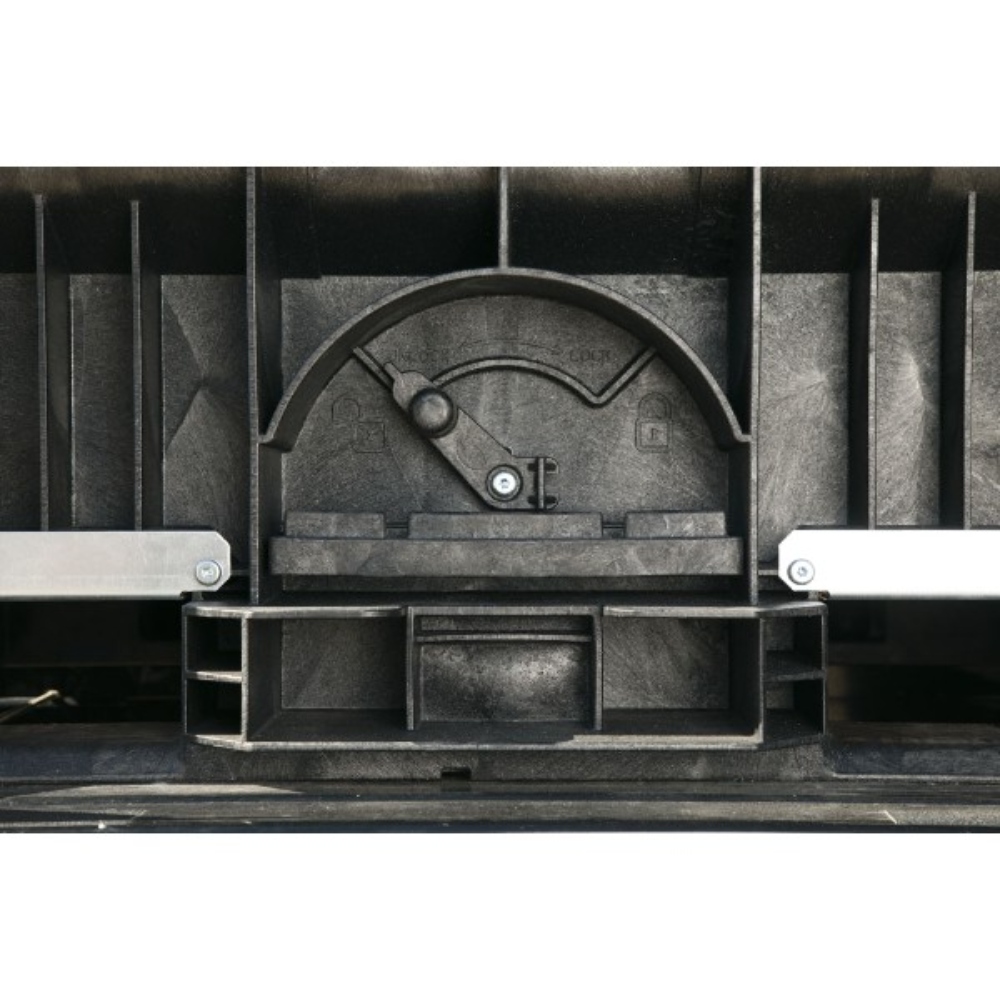

• Easy-to-identify slide gate side with new black powder coated four-hole corner hit plates.
• Metal plate behind the slide gate rails to prevent seed from sticking.
• Larger grid patterns on the bottom runners to reduce mud and rocks from sticking.
• Different document pouch choices from zipper-style to magnetic clasp.

Specifications

• Assembled:
  • Length: 1431.54mm
  • Width: 1139.95mm
  • Height: 1573.53mm
  • Weight: 137.44kg
• Collapsed:
  • Length: 1431.54mm
  • Width: 1139.95mm
  • Height: 923.5mm
  • Weight: 137.44kg

Options

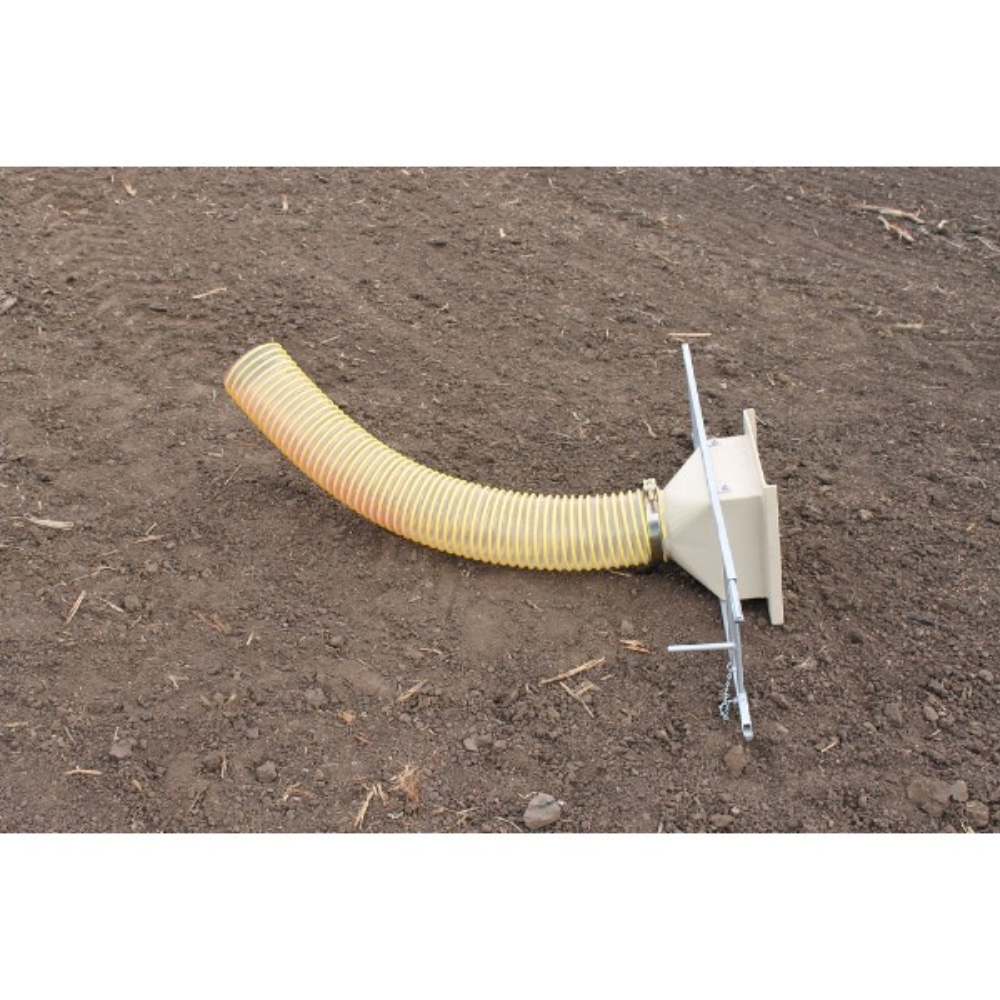

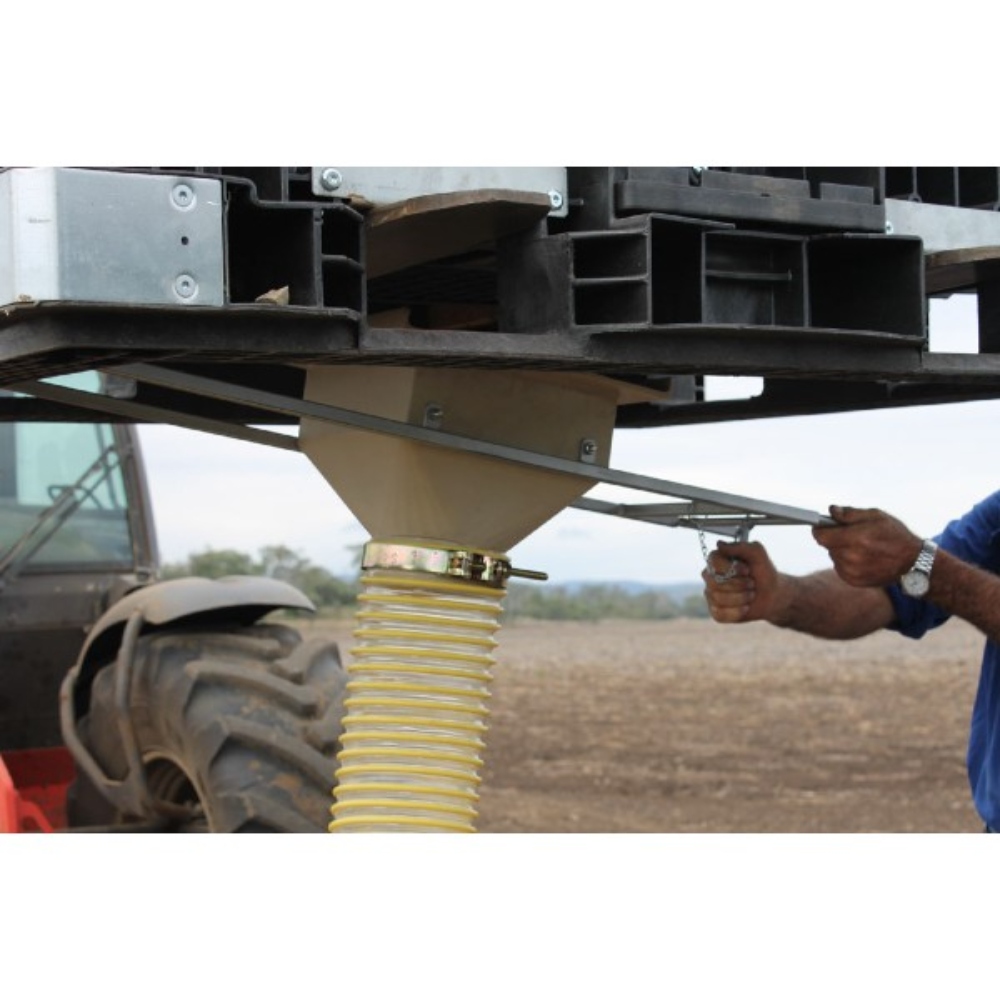

Delivery chute with optional hose attachment that allows seed and fertiliser to be transferred into farming plant, with more flexibility, is also available. This option is ideal for filling combines and bins with multiple openings. The delivery chute is manufactured locally by our supplier.

The following cautions should always be observed when using the GEN250®:

• Equipment used to lift or move seed box must exceed the loaded container weight when moving the seed box container.

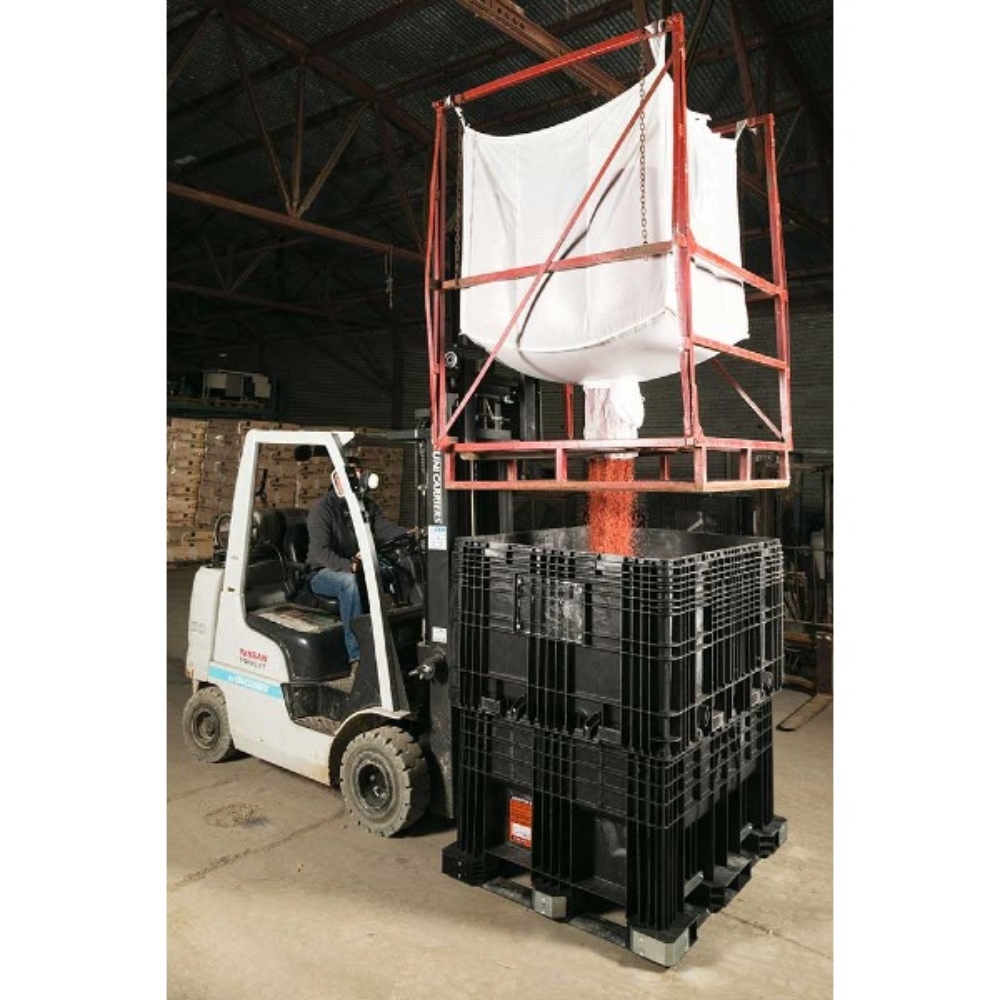

• Forklift tines need to be adjusted to appropriate width of the fork pockets on container. Minimum fork tine length is 42 inches (1066mm). Recommended movement of box on forklift is in the lowered position.
• Never allow people to be underneath raised seed box while on forklift. Reference proper forklift operating procedures when working with seed boxes.

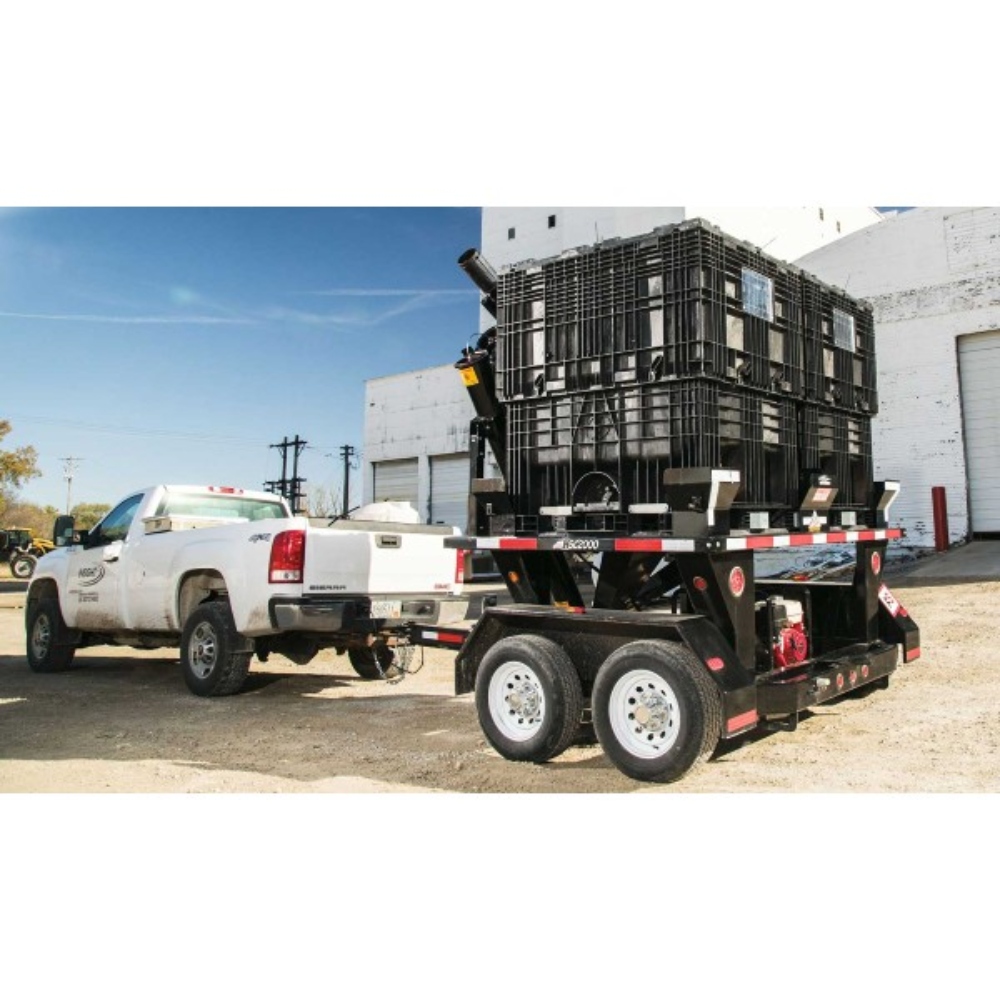

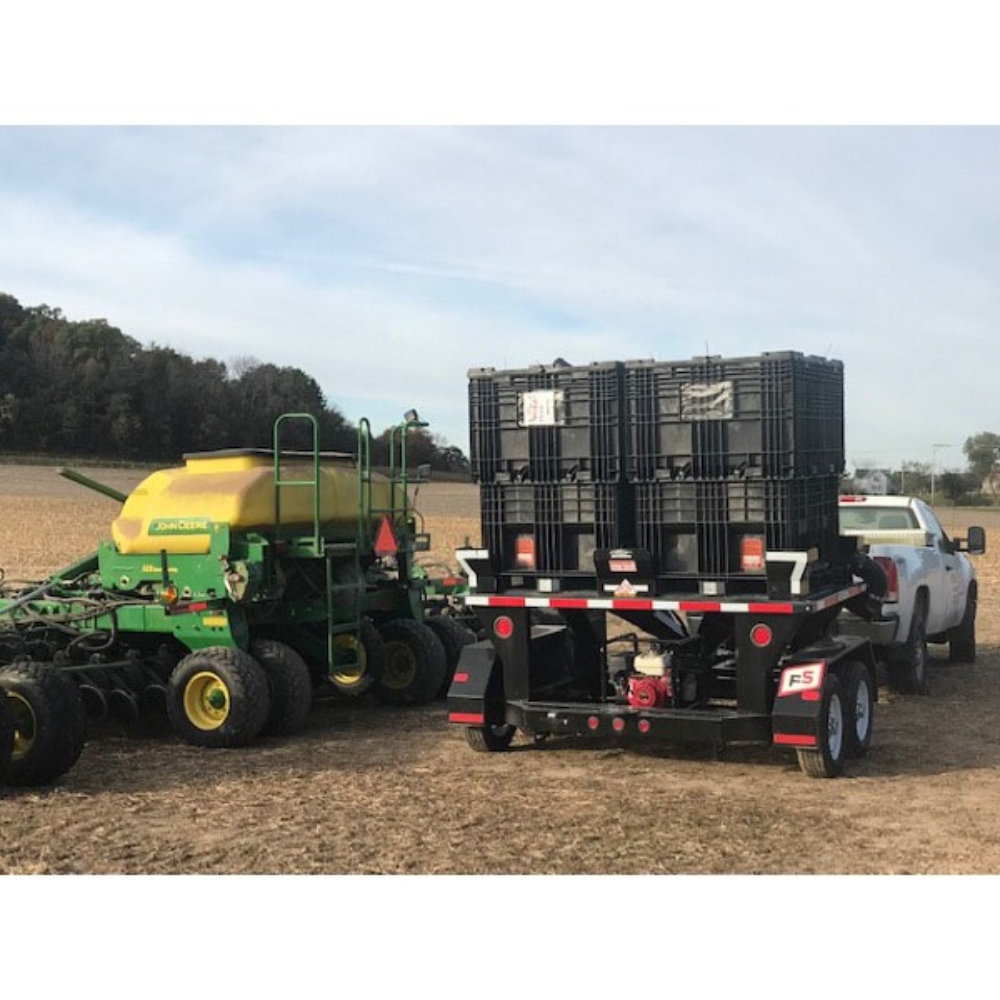

• Do not stack palletised product or non-seed box containers on top of seed box. Seed box is designed to only be stacked with another seed box. Seed box containers are designed to be stacked no more than four high per manufacturers specifications. Seed box containers are designed to be secured to a trailer, flat bed, open trailer, seed box tender or other transportation devices.
• Do not transport any seed box container without securing with tie-downs. A safety tie-down strap designed to secure the weight carried by the seed box should be used by placing two over the box and lid to prevent the lid, ring or entire box from blowing off during transport over the road.
