Description
Irtem FDD Double Disc Seed Drill – FDD2500

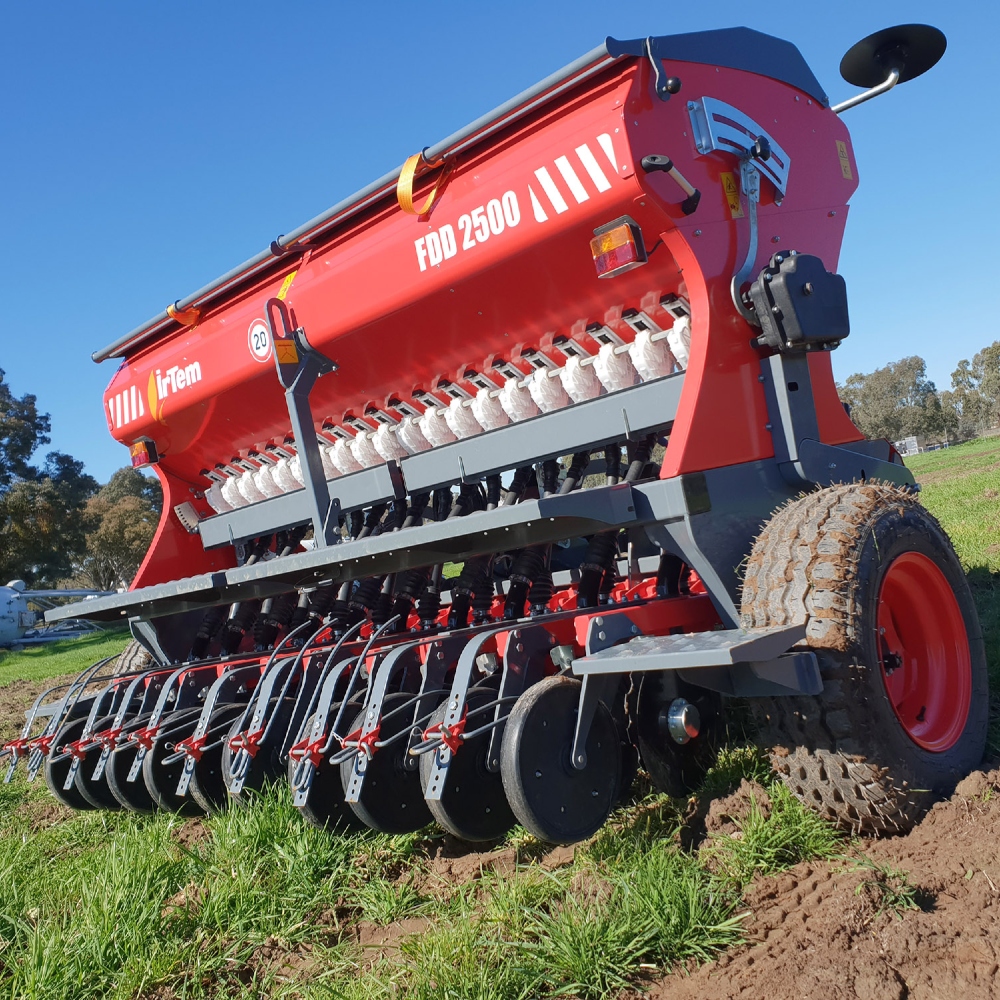

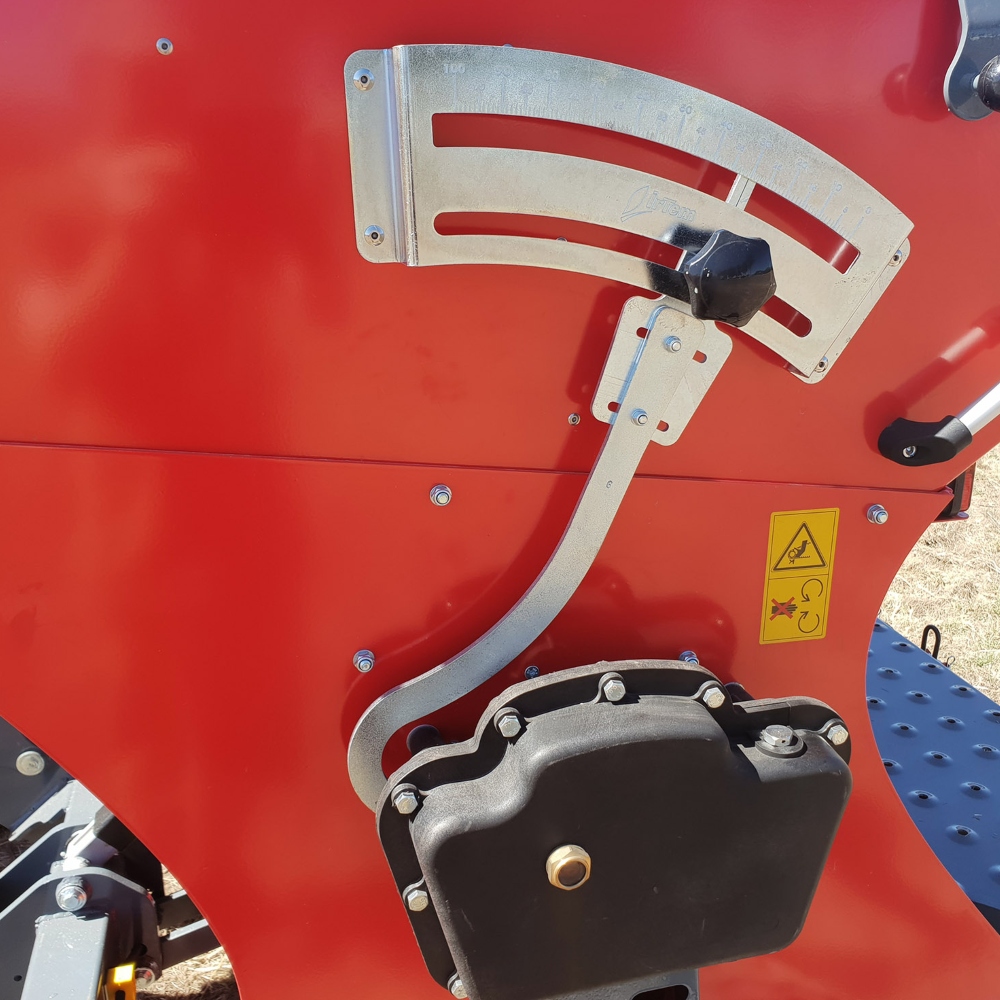

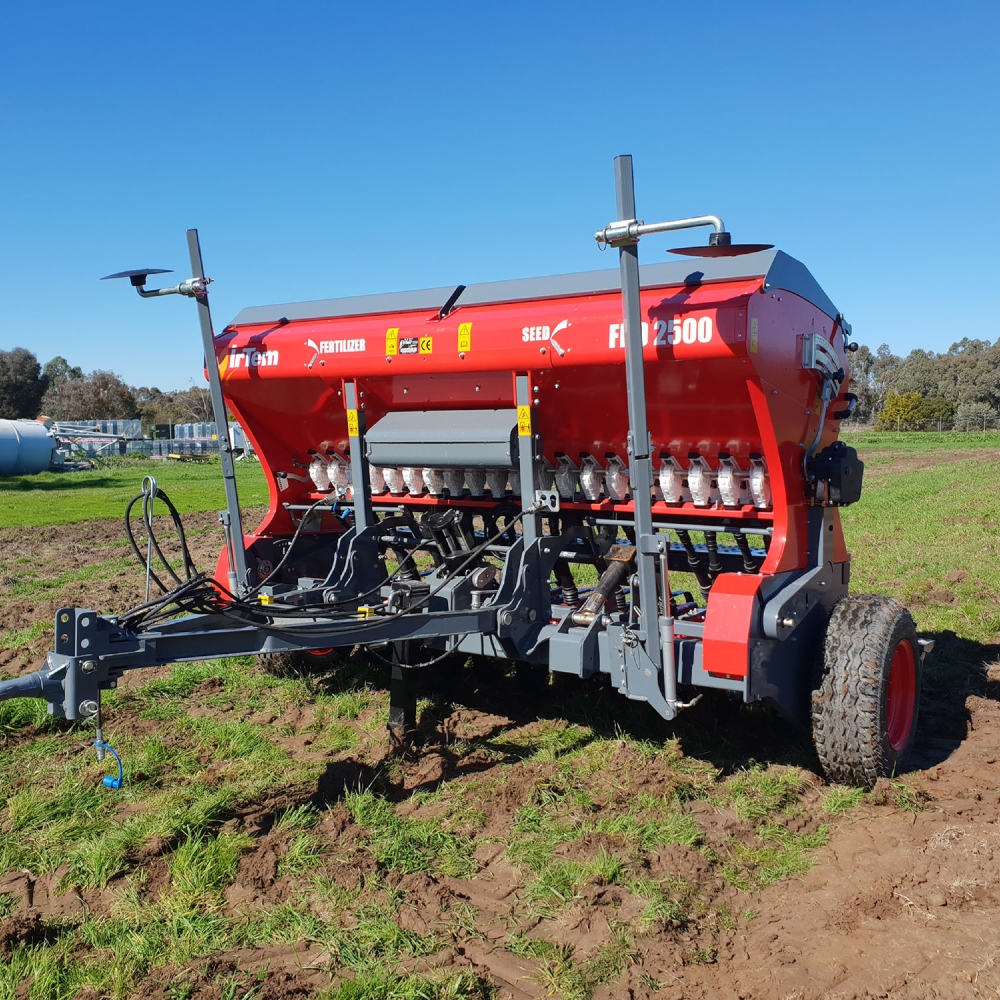

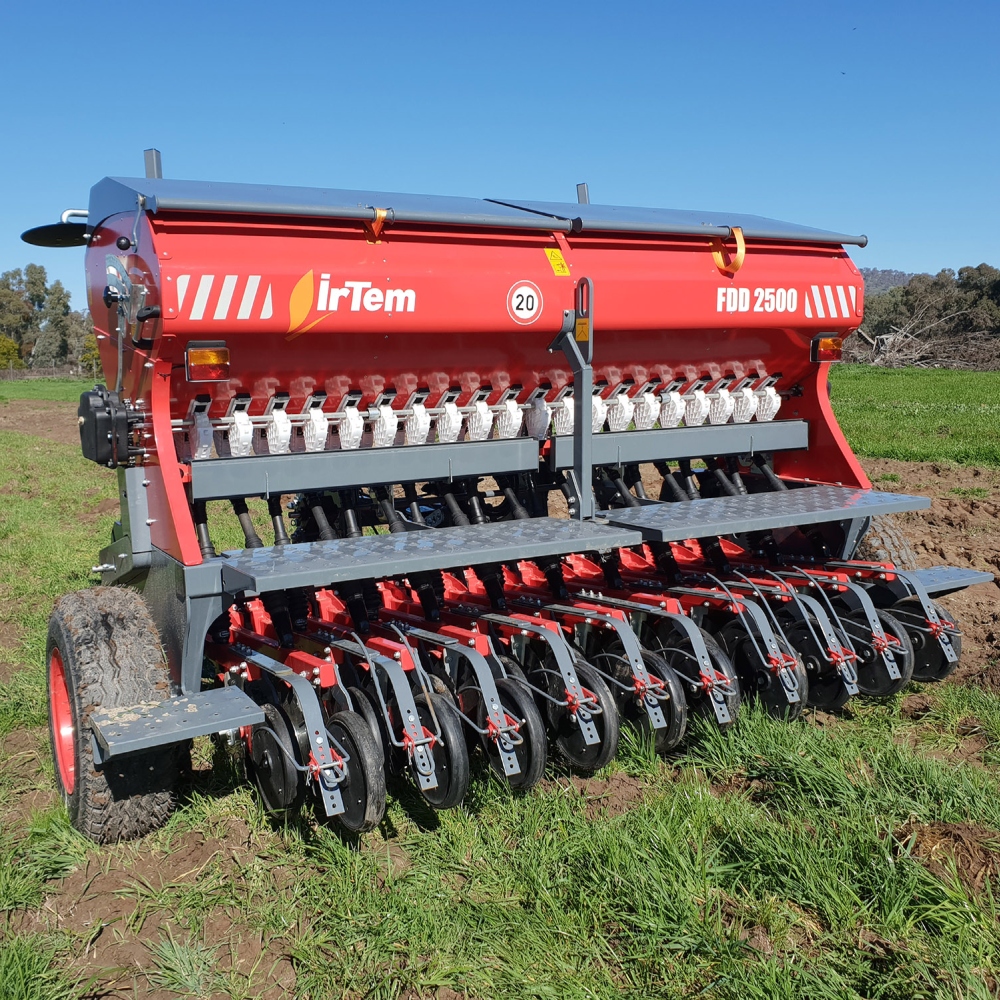

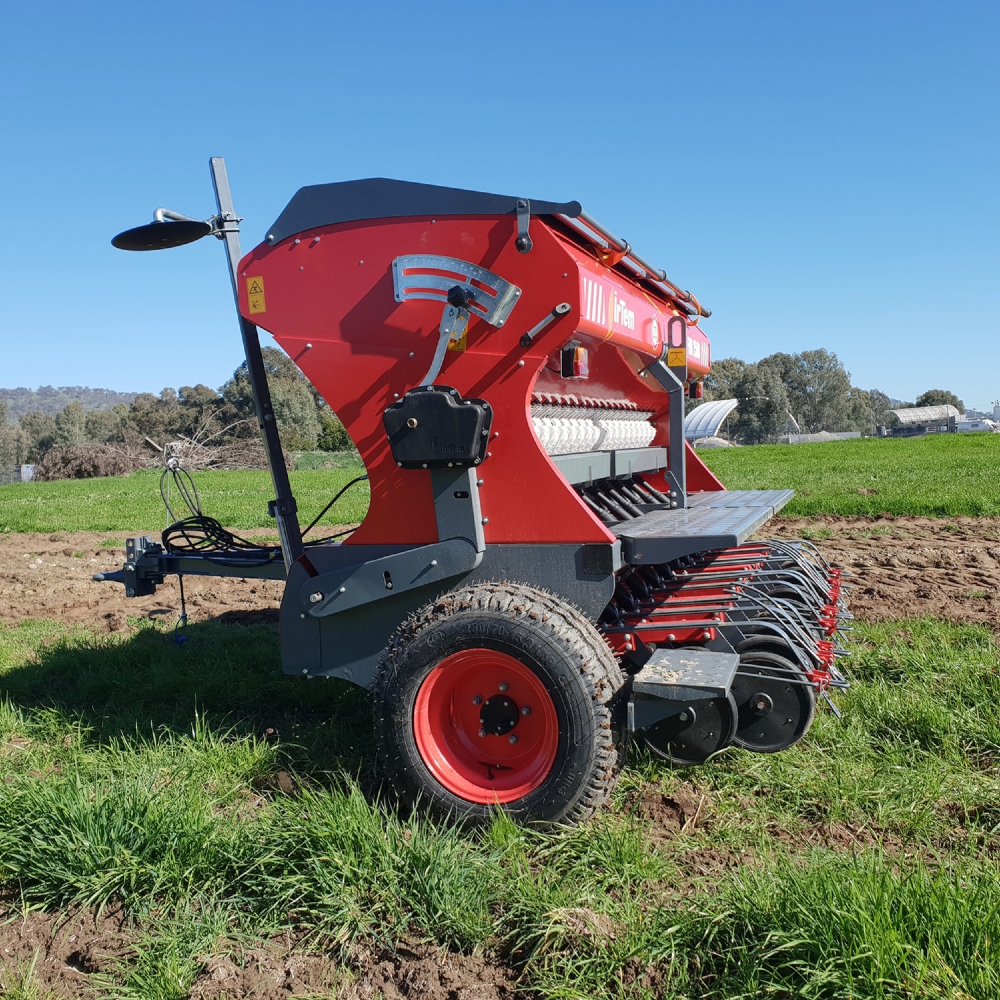

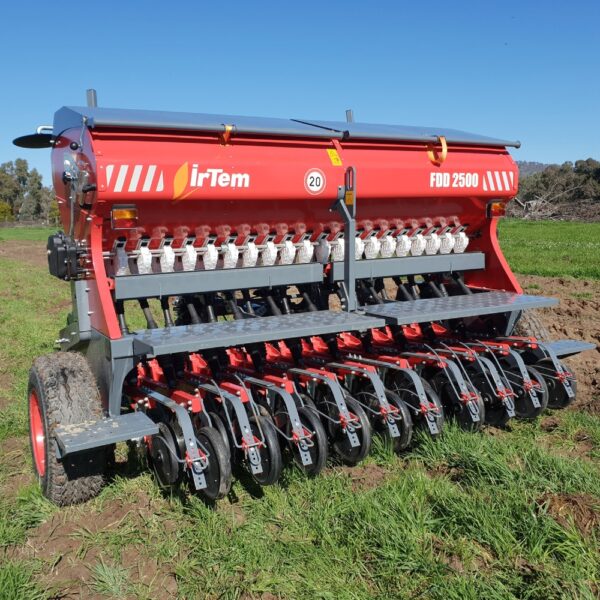

The Irtem FDD2500 is a trailing 20 row, double disc seed drill with press wheel, covering harrows and fertiliser box. Various seed sizes are usable due to the adjustable seed wheels. The drill features a 910L seed tank and a 590L fertiliser capacity. Two gearboxes are used in order to make dosage for seed and fertiliser infinitely adjustable and independent of each other.

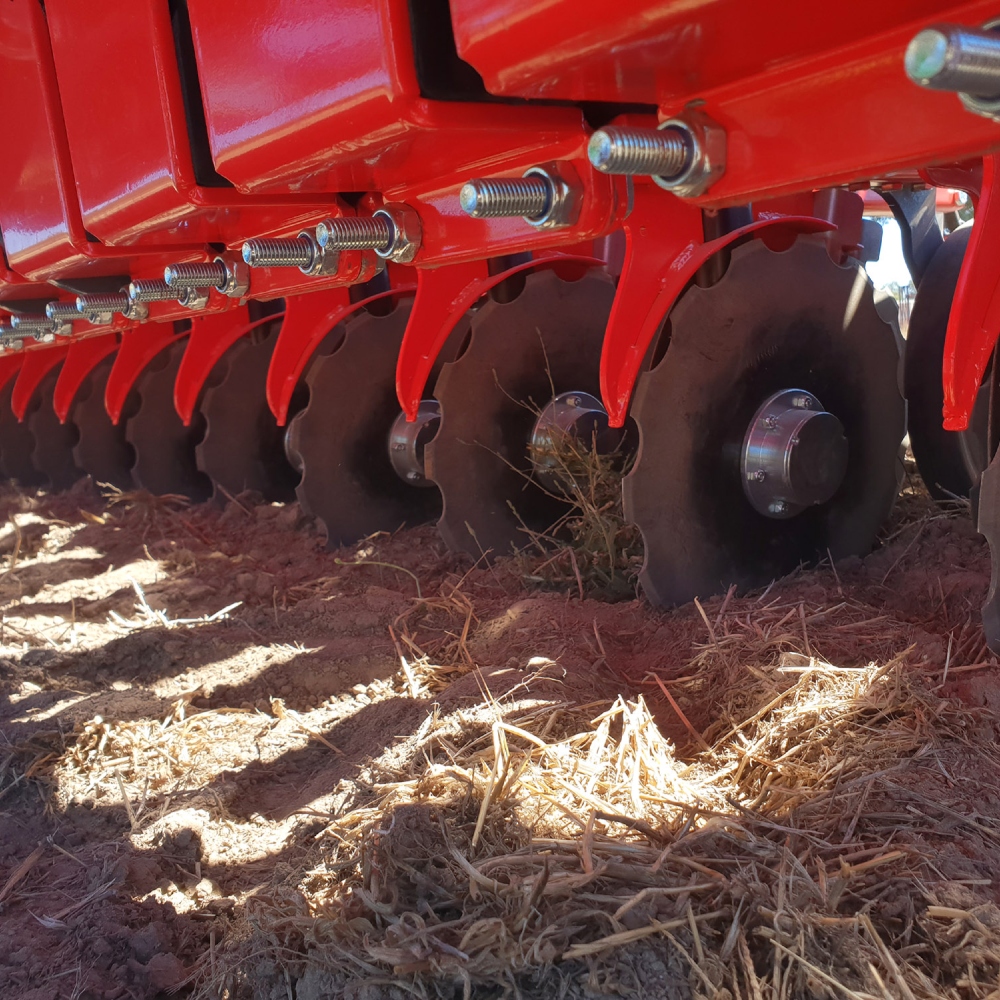

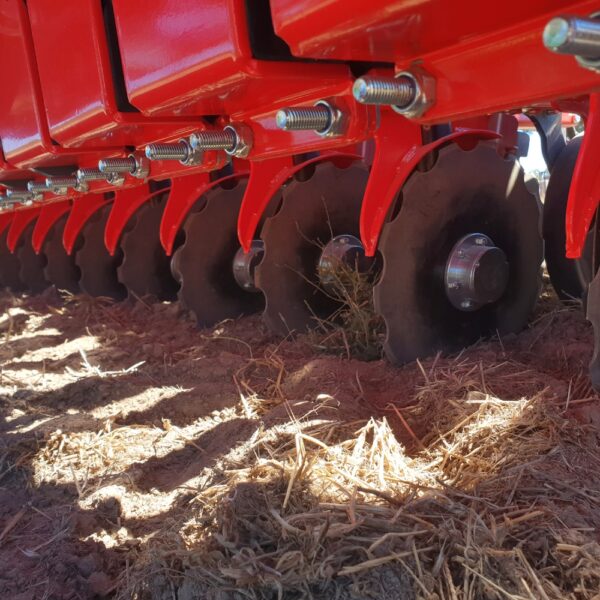

The FDD2500 features over sized bearings on each disc. Each double disc row arm is mounted to a 4x triangular rubber mounted block, reducing moving parts and increasing the life of the components.
See the FDD Series Seed Drill in Action – Click Here
Product Specifications
- Rows: 20
- Seed Spacing: 125mm
- Working width: 250cm
- Total Width: 341cm
- Total Height: 203cm
- Total Operating Length: 376 cm
- Weight: 2500kg ( empty )
- Seed Tank Capacity: 910L
- Fertiliser Tank Capacity: 590L
- Required Tractor Power: 70HP
- Discs Diameter: 320mm / 3mm ( Plain / Scallop )
Features
- Minimum seed sowing rate 2kg / Ha >
- Road light kit
- Rear Tow hitch fitted
- Loading Platform
- Adjustable seed covering Harrow tine
- Adjustable seed metering wheels, small/medium/large seeds
- Adjustable down pressure to Disc Assembly
- Adjustable drawbar height Tow Eye
- Ground drive engage/disengagement
- Seed Calibration Tray

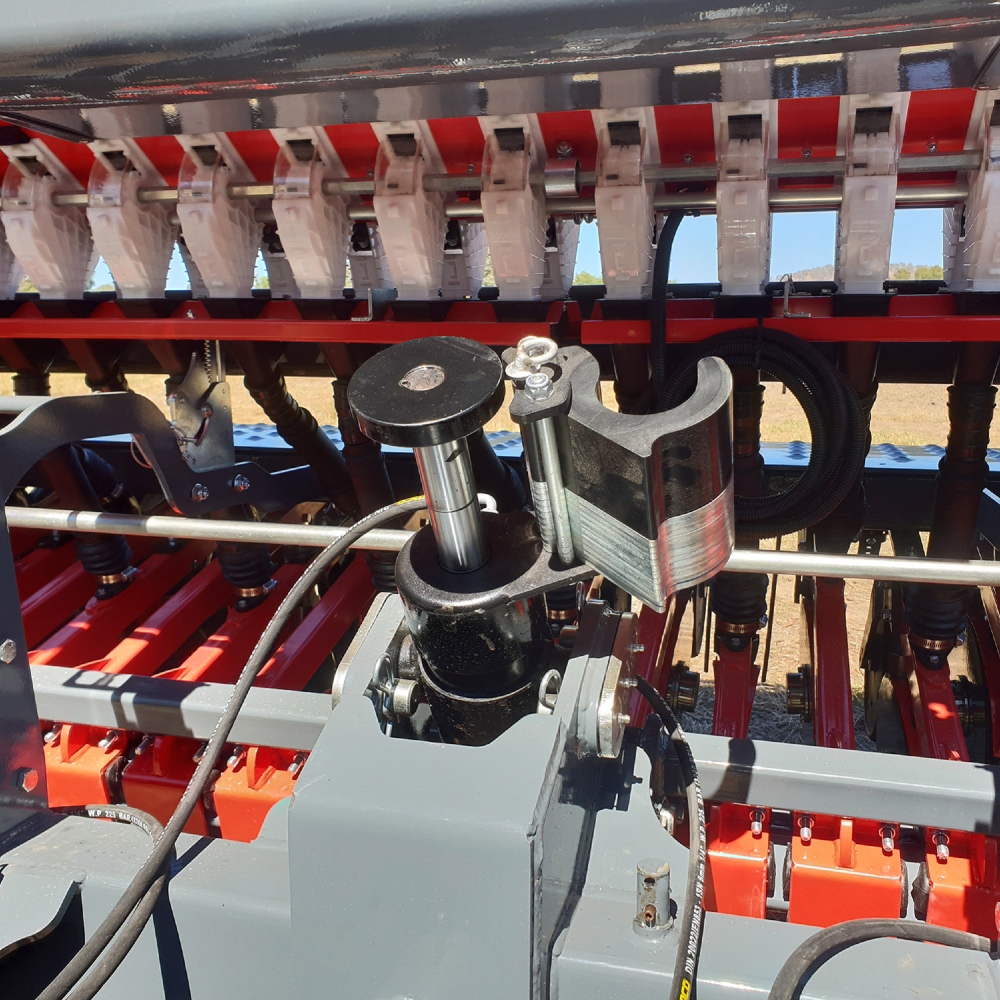

- Variable adjustable rate gearbox’s – seed / fertiliser
- ( No Ha. Metering Unit fitted as standard.)
