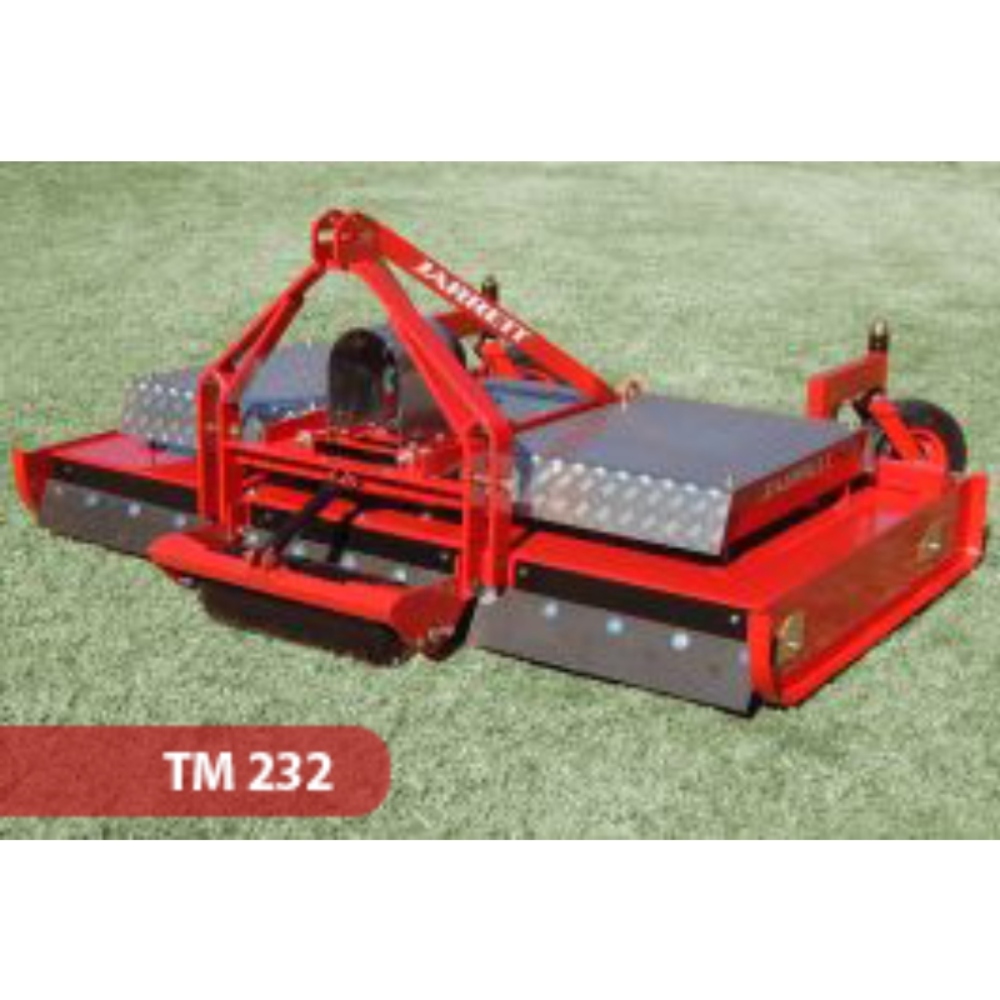

Jarrett 2.3m Finishing Mower Long Front and Rear Roller – TM232
The Jarrett TM Series range from a cutting width of 1.8m (6ft) to 4.3m (14ft) and, with various blade, roller and wheel options, gives you an extremely effective, efficient and versatile finishing park mower.
Specifications
- Width – 2.3m
- Weight – 650kg
- Gearbox – 75hp
- Min Power Required – 45hp
- Rollers (Standard) – Full width, front and rear.
General Construction
- RHS chassis fully welded and capped.
- 8mm steel spindle mounting plates.
- Spindle plates mounted between RHS chassis.
- A-frame bolted to main deck.
- Clean deck design for easy cleaning.
- Safety covers in heavy-duty Aluminium tread plate.
- 4-groove cast iron.
- One pulley suits all spindles.
- Tapered spline lock mounting to spindle shaft.
- Machined deep groove, B section belt profile.
- Twin belt drive to each spindle.
- Large wrap-around belt surface contact for superior grip and drive.
- Manufactured in Australia.
- Sealed oil bath lubrication for minimum maintenance.
- Precision machined heavy-duty cast iron housings.
- Internally mounted oil seals.
- Heavy-duty 6308 ball bearings.
- Precision machined 40mm dia Duraflex shaft.
- Tapered spline shaft for pulley and cutter base.
- Tapered spline lock mounting to spindle shaft.
- Std 4mm finishing tip blades.
- Optional 7mm pasture blades for most models.
- Quick & easy to change blade types.
- More flexibility for varying conditions.
- High tip speed ensures superior cut.
- Twin B section belts.
- Quick & easy belt replacement.
- Single-point tensioning (main deck).
- Solid rubber rear wheel kit.
- Short front roller in lieu of full width front roller.
