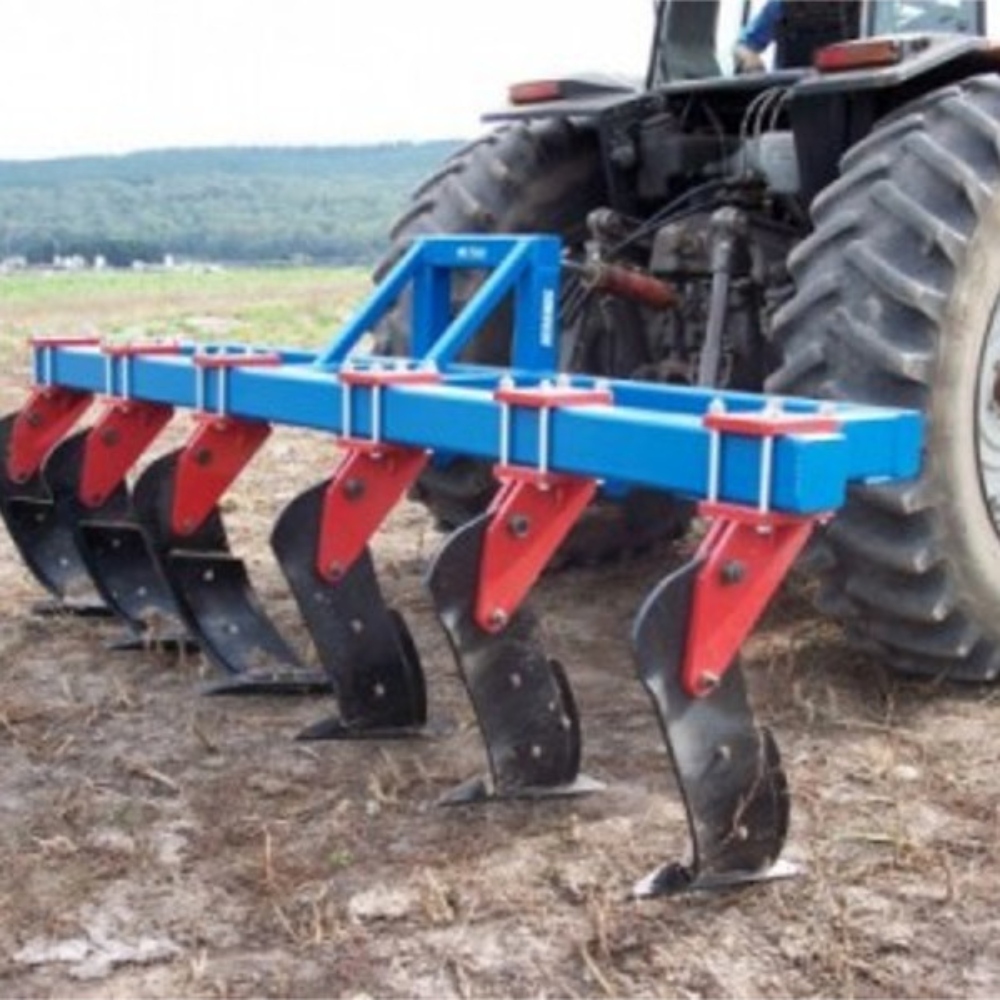

John Berends Ground Breakers 6 Tines – 0341

Description

John Berends Ground Breakers 6 Tines – 0341

The ultimate machine for breaking open compaction without destroying the soil structure.

The specially curved and twisted European Bellota tines are designed to loosen the soil more than the conventional straight shank tines by gently vibrating the hard pan from the bottom up. This produces more lateral fracturing between the tines without bringing the sub soil to the surface or burying residue.

All tine components are made from boron steel which provides great flexibility and long wear life. The special heat treatment process offers a surface hardness on HRc50. The components are then shot-peened and painted. Capable of digging down to 18 depth, depending on soil conditions.

Various tine configurations available. Standard in 4 and 6 tine models. Requires approximately 20-35HP per tine, depending on soil conditions.

Video – Berends Ground Breakers

Features:

• 15mm time shank provides 900mm under frame clearance.
• Reversable point is 40mm thick and angled for easy soil penetration.
• Replaceable 8mm shin guard prevents wear to tine.
• High tensile 20mm shear bolts.
• Cat 2 linkage with extremely strong 150 x 150 x 10mm main frame.
• Clamp brackets made from 32mm plate.
