John Berends Stick Rakes From 1.2m-4.15m

The ideal implement for raking up sticks, prunings and general trash.

Stock/Ref #: Stick Rakes Brand: John Berends

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

Need Finance
For This Asset?

Description

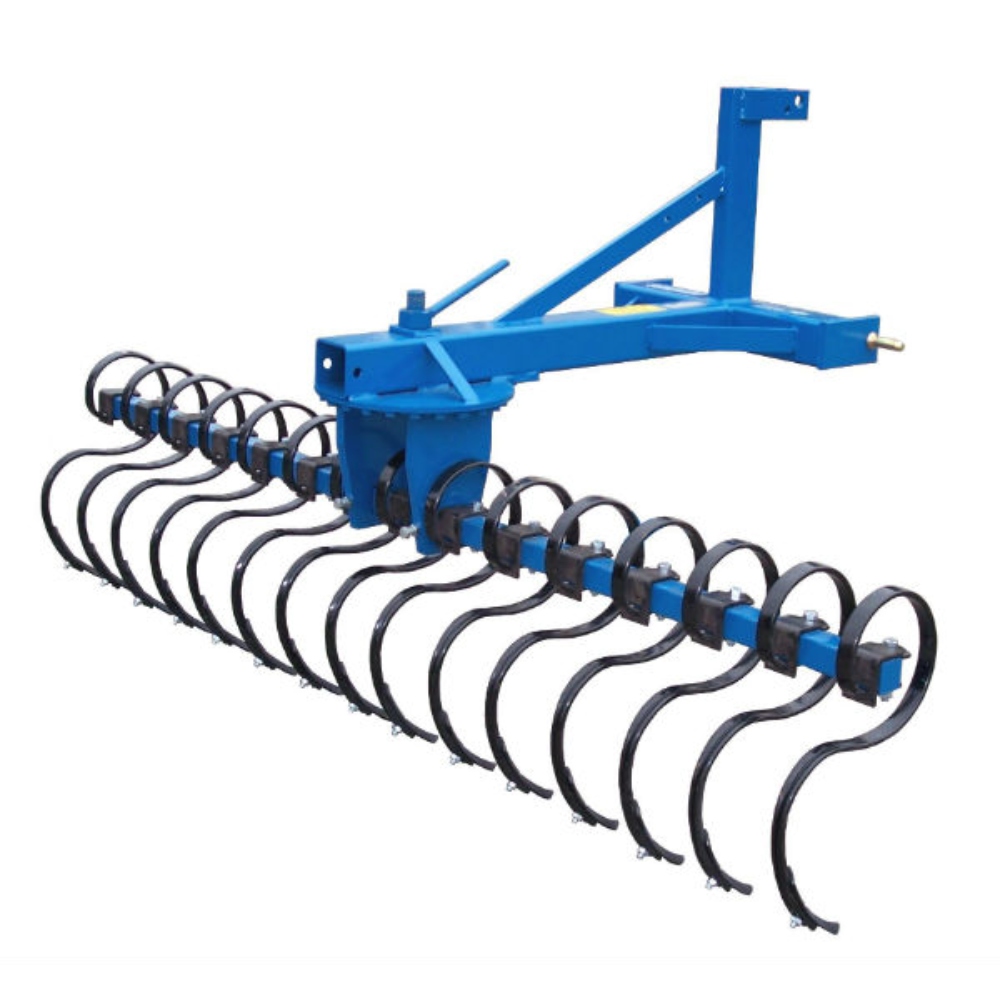

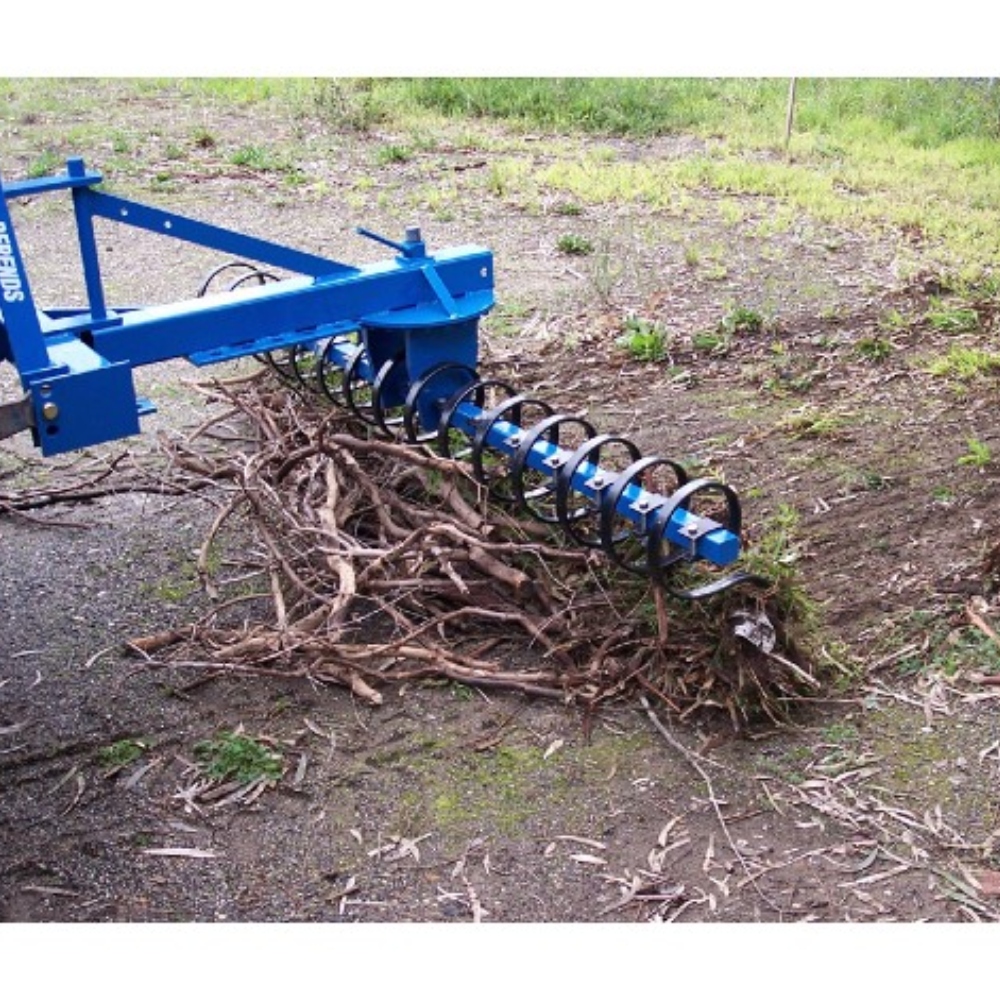

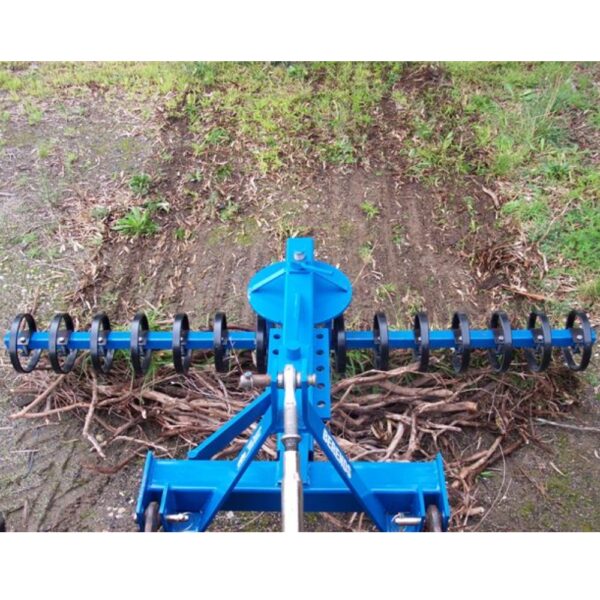

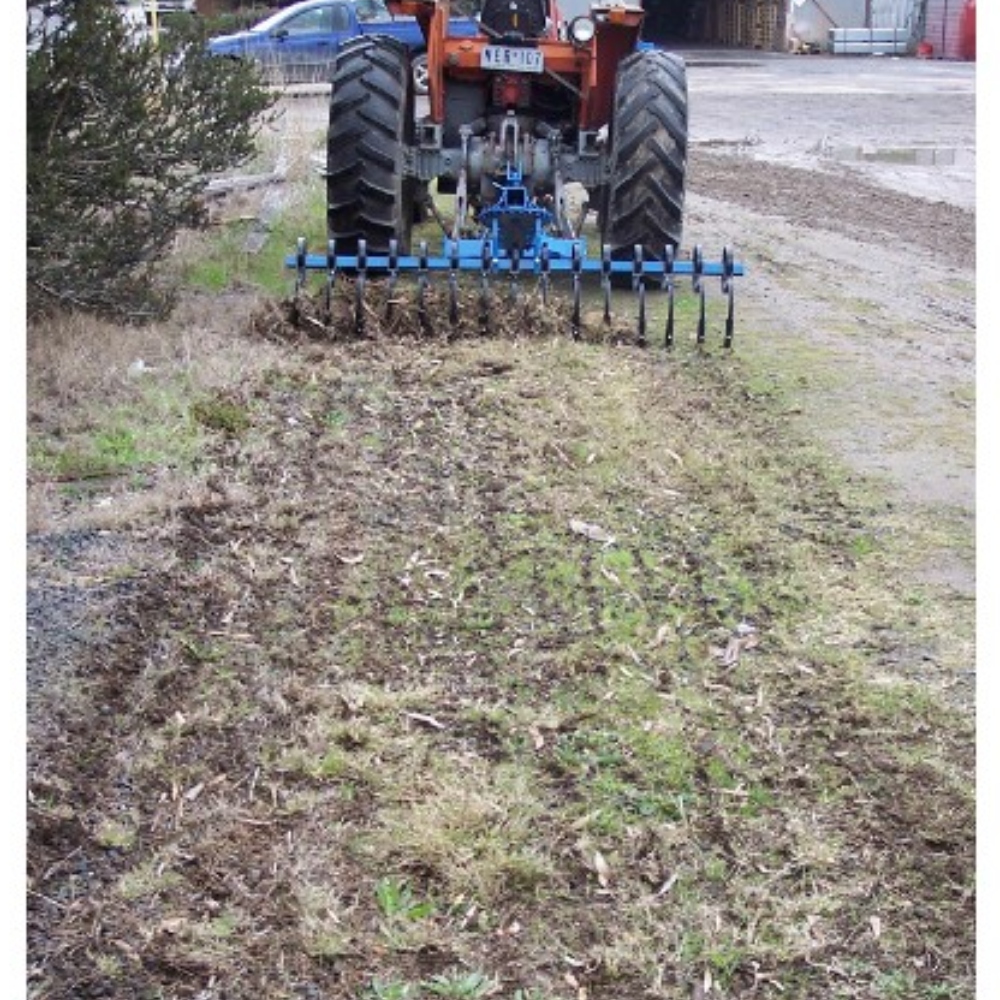

John Berends Stick Rakes From 1.2m to 4.15m

The ideal implement for raking up sticks, prunings and general trash.

  • Also suitable for pasture harrowing in some conditions.
  • Australian made and excellent value for money.
  • Underframe clearance of 400mm.
  • Adjustable 32x10mm ‘S’ tines mounted at 6 inch spacings. Tines are fitted with replaceable points. Grass points available for pasture harrowing.
  • Toolbar constructed from 2″ square K1045 (high tensile) solid bar.
  • Available as standard on toolbar linkage and can be made offset for getting closer to trees, fences and sheds. Supported by quick release clamp and wedge arrangement
  • Optional model can be made to fit to existing Berends Standard or Medium Duty Grader Blades. (Top and bottom halves are priced separately on this model).

The following units have been designed to suit the Std/MD grader blades and are not suited for compact tractors. When ordering as a complete stick rake a top and bottom needs to be ordered.

Models:

  • 0052 – 1.2m (4′) Stick rake (bottom only) – 9 tines
  • 0053 – 1.5m (5′) Stick rake (bottom only) – 11 tines
  • 0043 – 1.8m (6′) Stick rake (bottom only) – 13 tines
  • 0044 – 2.3m (7’6″) Stick rake (bottom only) – 15 tines
  • 0045 – 2.75m (9′) Stick rake (bottom only) – 19 tines
  • 0046 – 3.2m (10’6″) Stick rake (bottom only) – 21 tines

Options:

  • 0138 – Fixed top (no offset) sold separately
  • 0139 – Offset top (adjustable offset) sold separately

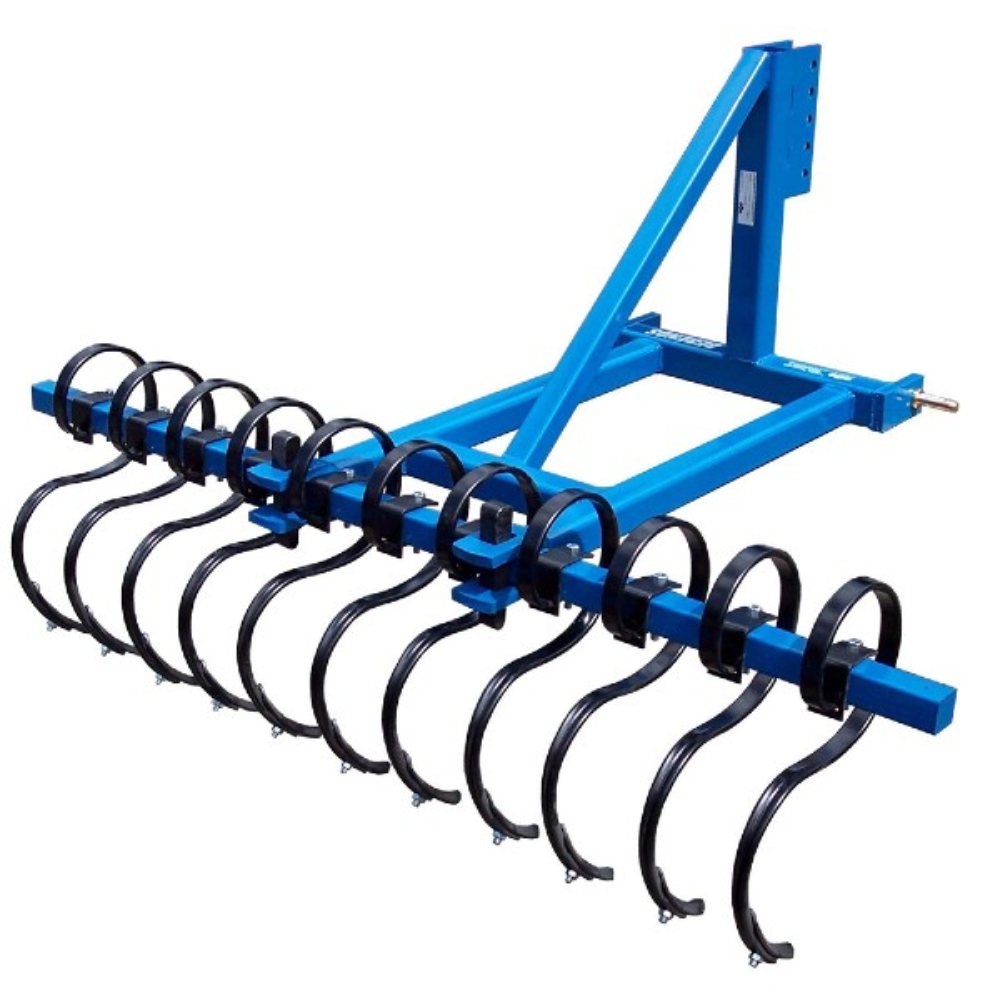

The following units are for a complete stick rake (toolbar type headstock).

Please specify if the unit is for a compact tractor as lower linkage models are available.

Models:

  • 0337 – 1.2m (4′) Stick rake complete with toolbar linkage – 9 tines
  • 0338 – 1.5m (5′) Stick rake complete with toolbar linkage – 11 tines
  • 0345 – 1.8m (6′) Stick rake complete with toolbar linkage – 13 tines
  • 0342 – 2.3m (7’6″) Stick rake complete with toolbar linkage – 15 tines
  • 0343 – 2.75m (9′) Stick rake complete with toolbar linkage – 19 tines
  • 0344 – 3.2m (10’6″) Stick rake complete with toolbar linkage – 21 tines
  • 0346 – 3.65m (12′) Stick rake complete with toolbar linkage – 23 tines
  • 0370 – 4.15m (13’6″) Stick rake complete with toolbar linkage – 26 tines

Options:

  • 0347 – Tool bar linkage top only
  • 0137 – Stick rake wheel kit (pair pneumatic wheels)

Contact us for pricing.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

Additional information

Weight 500 kg
Dimensions 500 × 500 × 500 cm
