Description

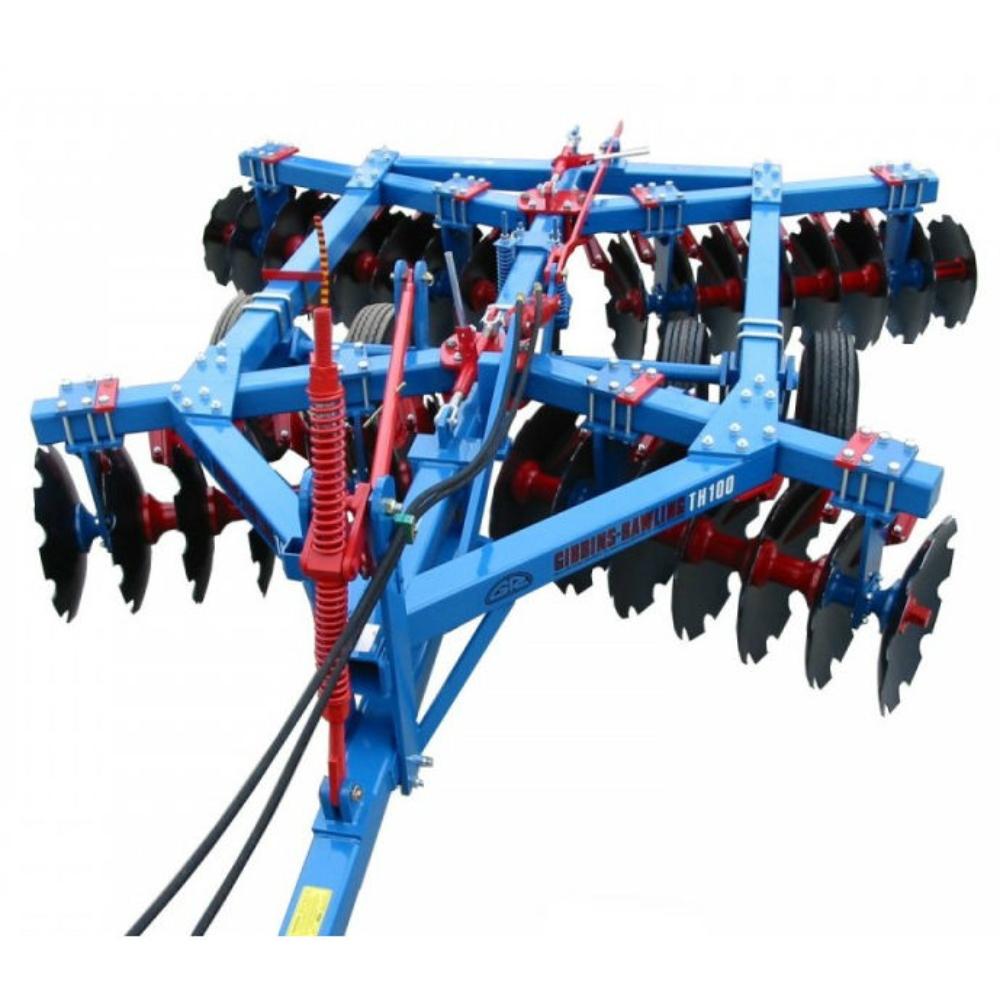

John Berends TH100 HD Trailing Tandem Discs – 32 Plate x 26 inch Discs – 0961
Heavy Duty, hydraulic folding tandem disc plough. Heavy duty trailing tandem disc plough designed for heavy cultivation in hard conditions. The angle is hydraulically adjusted and has a transport width of under 2.4m.
Features:
- Available in 28, 32, 36, 40, 44 and 48 plate models at 9 inch disc spacings.
- Fitted with 24 inch x 6mm or 26 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
- All models are fitted with hydraulic gang adjustment which allows the gangs to be folded parallel with the main frame, to be under 2.4m overall width.
- Gangs can also be opened right up to no angle at all when only a fine till of the topsoil is required.
- Solid cast of spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than in the main frame. Each is individually machined to suit the disc for extra strength.
- Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile ‘O’ rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
- Buster tine removes centre ridge to create a level finish.
- Integrated furrow fillers are standard.
- Fitted with four Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard.
- 40mm square high tensile gang bolts.
- Fully adjustable drawbar height with parallel lift for better transportation.
- Wheelkit locking arms reduce stress on the hydraulics when transporting.
- Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
- Australian made Eaton cylinders.
- Prong type scrapers are standard – formed scrapers on request.
- Parking jack is standard.
Specifications:
- Approx Weight: 3500kg
- No. of Bearings: 16
- No. of axles: 8
- Cutting width: 3.88m (12ft 9inch)
