Silvan Linkage Sprayer 1900L – BP130/20 Pump, No Boom – K19NH-125E

Silvan Linkage Sprayer – 1900ltr Tank with a BP130/20, 132l/min Diaphragm Pump.

Stock/Ref #: K19NH-125E Brand: Silvan

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

$31,020.00

Need Finance
For This Asset?

Description

Silvan Linkage Sprayer 1900L – BP130/20 Pump, No Boom – Silvan – K19NH-125E

Silvan Linkage Sprayer – 1900ltr Tank with a BP130/20, 132l/min Diaphragm Pump.

Click Here for Instruction Manual

Model Specifications:

  • Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP130/20: 132L/min. capacity 2000kPa pressure.
  • Controls: 3 section Silvamatic electric controls with pressure compensating direct acting valves. On/off and pressure adjustment in cab.
  • Tank: 1900ltr Polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 10L hand wash tank with screw-down lid and on/off tap. 150L flush tank with screw down lid and external sightline. 50mm Camlock bottom fill.
  • Frame: Galvanized steel, with adjustable cat II & cat III hitch. Vertical boom channel positions boom at optimum spray height.
  • Agitation: Bypass agitation.

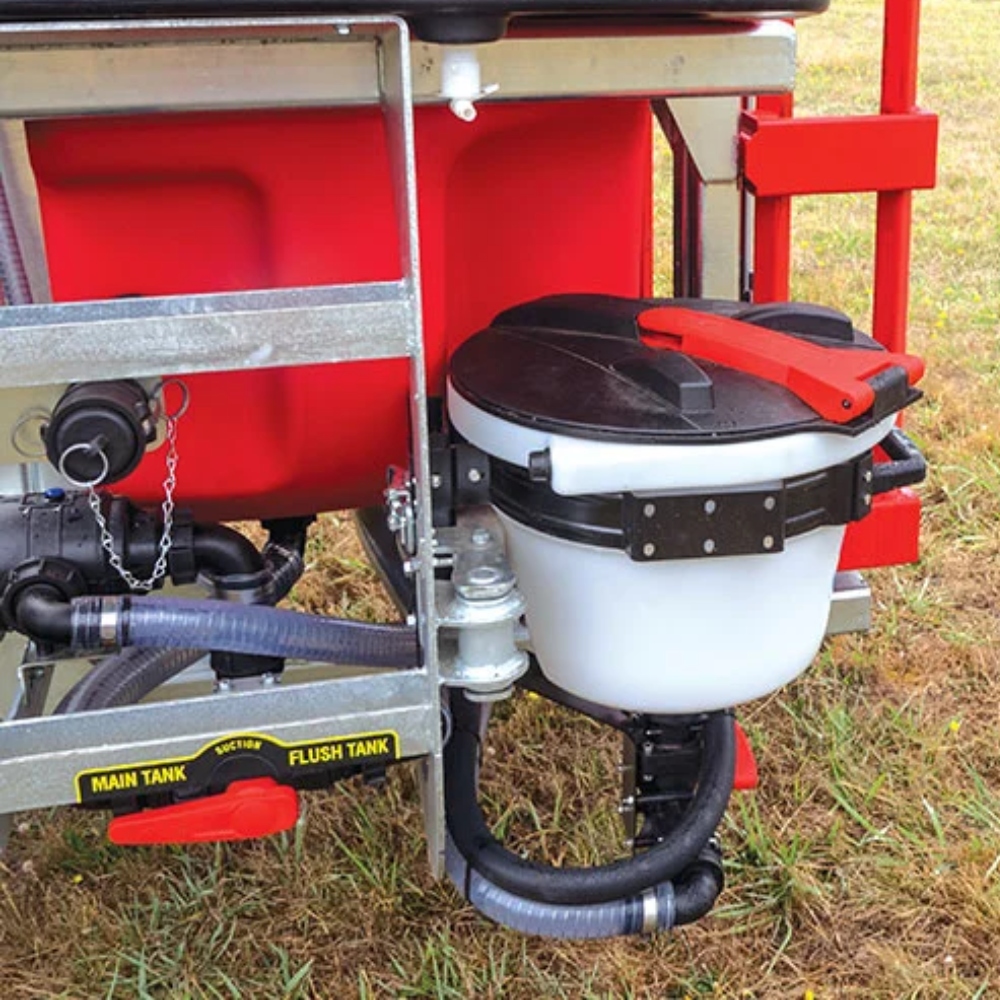

  • Chemical Induction: 30L Silmix chemical hopper mounted on side of tank.
  • Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
  • Filtration: Lid strainer, suction line strainer with stop valve fitted at the side of the tank to enable ease of filter maintenance.
  • PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.

Dimensions:

  • Trailed/Linked: Linkage.
  • Tank Size: 1900.00 litres.
  • Pump Size: 132.00 L/min.
  • length: 1480mm.
  • Width: 2300mm.
  • Height: 2570mm.
  • Product Weight: 665kg.

Factory Options:

  • 10m HD Devil boom with hydraulic fold.
  • 12m HD Devil boom with hydraulic fold.
  • 14m HD Devil boom with hydraulic fold.
  • 15m HD Devil boom with hydraulic fold.
  • Hydraulic lift with airbag suspension – 10, 12, 14 and 15m HD Devil Booms.
  • Parellelogram airbag suspension – 10, 12, 14 and 15m HD Devil Booms (no hydraulic lift).
  • 57L Paddock marker foam marker.
  • Bravo 180S automatic rate controller.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

Additional information

Weight 675 kg
Dimensions 150 × 230 × 270 cm
