Northstar 231L Tow Behind Sprayer – NUTB231

Description

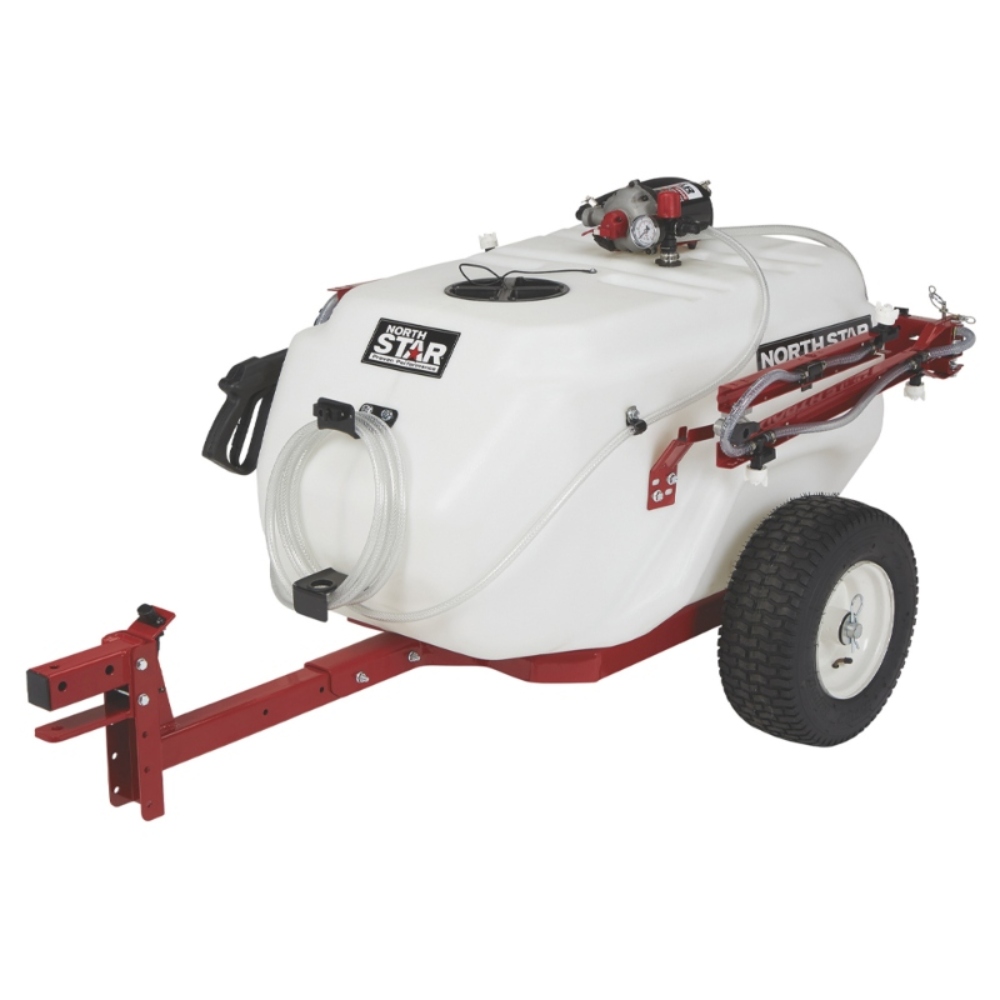

Northstar 231L Tow Behind Sprayer – NUTB231

The versatile, high-end NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer gives you the ability to do both precision and wide-coverage spraying. Equipped with a commercial-grade NorthStar NSQ Series pump, it provides easier priming, exceptional durability and superior resistance to harsh environments and corrosive chemicals. Completely redesigned, the over-sized tank is secured to a heavy-duty 100% steel cart that handles the roughest terrain. A retractable tow-bar, foldable boom arms and removable axle and wheels allow for ultra-compact storage. Litres marks are moulded into the tank for easy fluid level monitoring. Tow behind your ATV or lawn/garden tractor.

Features

• 12V, 70PSI max open flow NorthStar NSQ Series on-demand pump provides faster priming and longer life.
• 100% continuous duty rating.
• Honeywell MICRO SWITCH for enhanced durability and efficiency.
• Santoprene diaphragm and Viton valves for superior reliability and chemical resistance.
• Large-capacity proprietary tank design features extra-thick walls that are UV-resistant and compatible with virtually all pesticides.
• Boom arms fold up for easy storage.
• 1m boom width with 3m overall broadcast width.
• Spring-loaded, breakaway boom arms fold away for compact storage.
• Left and right boom nozzle control valves.
• Control system pressure and fluid agitation with regulator and pressure gauge.
• Approved for use with Roundup agricultural herbicide.
• Spot spray gun nozzle adjusts from cone to stream; shoots 5.7m vertically and 9.1m. horizontally.
• 5m clear PVC hose makes monitoring chemical flow simple.
• Rugged powder-coated steel cart with large 30cm pneumatic wheels.
• 19cm diameter tank lid for easy fills.
• Easy empty tank with bottom drain.
• Includes pressure gauge and remote switch with battery clips.
• Attaches to ATV or garden tractor.

Specifications:

• Tank size – 231L
• Pump flow – 20.8Lpm
• Pump pressure – 60psi
• Power supply – 12v
• Regulator/Agitator – Yes
• Pressure gauge – 51mm(Dry)
• Broadcast width – 3.57m
• Boom width – 3.05m
• Boom material – Steel
• Boom Control – Left/Centre/Right
• Boom Features – Folds for storage, spring breakaway, ball valve control.
• Nozzle Qty – 7
• Nozzle Type – Fan
• Spray Gun – Deluxe Spot
• Spray Height – 9.14m
• Gun Hose – 9.5mm x 3.35m
• Hose Wrap – Steel Brackets
• Suction Strainer – 19mm Mushroom
• Tank Cap – 178mm Tethered
• Wheels – 406mm
• Hub – Steel bearing
• Cart Material – Steel
• Axle – 16mm Loose
• Retractable Tow Bar – Yes
• Wire Harness – 2.44m
