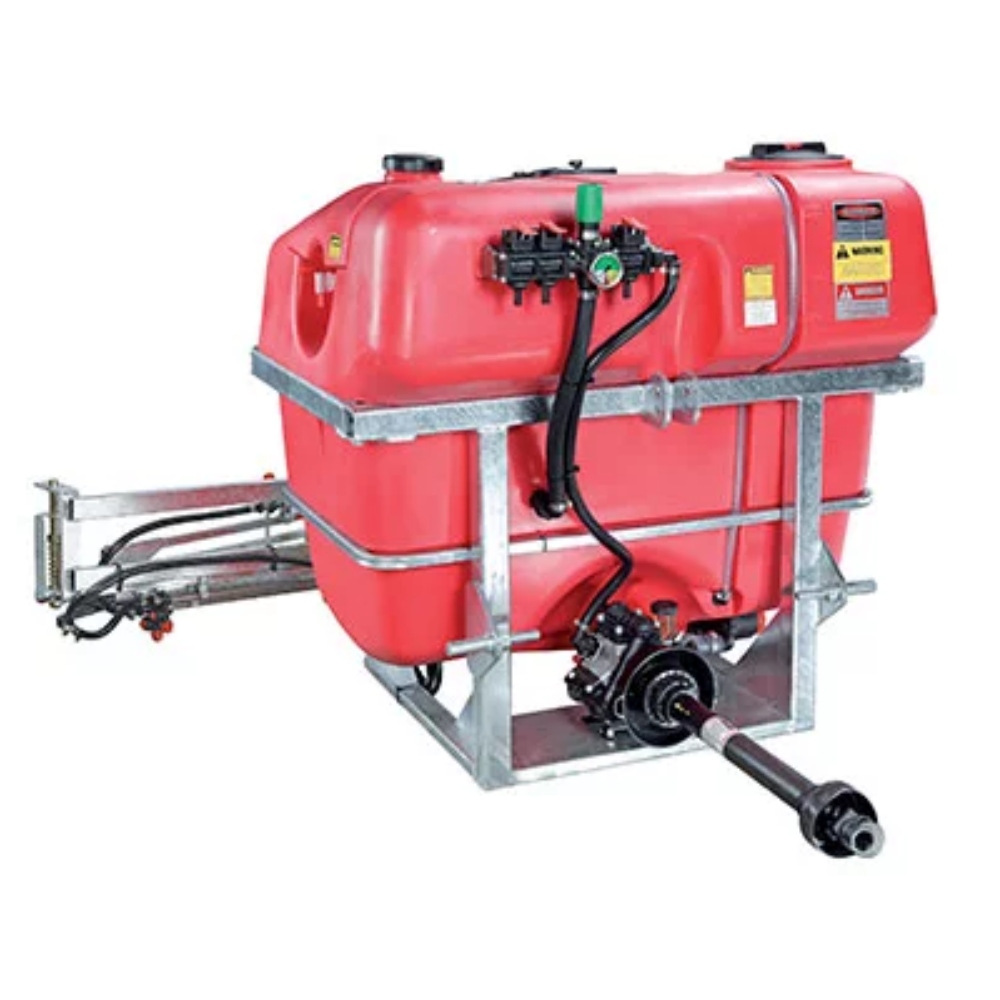

Silvan Pasturepak Linkage Sprayer 800L – BP75/20 Pump, 8m Field Boom – KBF800

Description

Silvan Pasturepak Linkage Sprayer 800L – BP75/20 Pump, 8m Field Boom – KBF800

Model Description:
Pasturepak series 800ltr Linkage sprayer with 8m Field boom, hose reel and spray gun, and BP75/20 diaphragm pump 71L/min. Unit is part of the Super series with low profile tank, external sightline with floating ball and 15L fresh water tank and 4L toolbox. Adjustable Cat I & II hitch system to suit a wide range of TPL mounting points. New vertical boom channel for positioning the boom at the optimum height.

Model Specifications:

• Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. BP75/20, 71 L/min. capacity 2000kPa pressure.
• Boom: Field boom: 8m with stainless steel spray lines, non-drip nozzle holders, fully galvanized frame and spring loaded safety break back/forward.
• Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacing.
• Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
• Tank: Low profile, 800l polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15l fresh water tank with closed lid and easy to handle on/off tap. 4l toolbox with polyethylene lid.
• Frame: Fully galvanized steel, cat II linkage.
• Agitation: Bypass agitation.
• Pressure Gauge: 1 x glycerine filled gauge.
• Filtration: Lid strainer, suction line strainer (with stop valve fitted at side of tank to enable ease of filter maintenance), and nozzle cup strainers.
• Hose Reel: Fitted with rear-mounted hose reel, including 20m of 12mm I.D quality pressure hose and Silvan Triam 44 spray gun with convenient trigger action and spray pattern adjustment.
• PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins & safety cover.

Dimensions: (with boom)

• Trailed/Linked: Linkage
• Tank Size: 800.00l
• Pump Size: 71.00 L/min
• Height/Width/Depth: 1315mm / 2067mm / 1460mm
• Product Weight: 210kg

Options:

• 14L foam marker (single side)
• 16L foam marker (double side)

Note Boom and Hose Reel Not Fitted.
