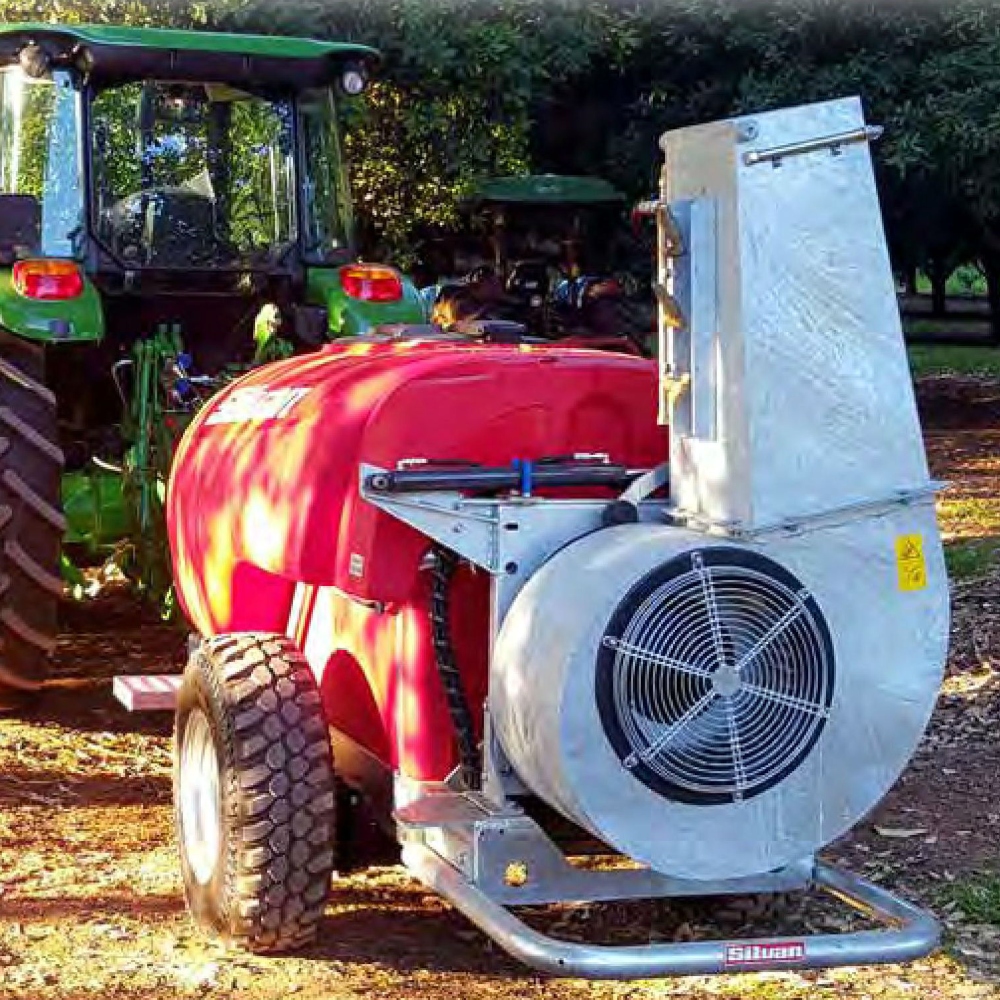

Silvan 2000L Trailed Cannon Jet Sprayer – D20JET-1701GL

Description

Silvan 2000L Trailed Cannon Jet Sprayer – D20JET-1701GL

Linkage air assist Cannon Jet 2000 litre sprayer with a 161L/min diaphragm pump, Cannon Jet single-sided conveyor with hydraulic tilt adjustment, electric valve controls and Glideflex axle.

Click here to see the Cannon Jet Sprayer in Action

Model Specifications:

• Pump – Silvan oil-backed diaphragm type with nitrile diaphragms, corrosion resistant, cast anodised aluminium body. IDS1701: 161L/min capacity, 5000kPa pressure.
• Fan Size – 450mm diameter twin turbine fan with galvanised frame and spray head. Hydraulic angle adjustment and manual top wing adjustment
• Nozzles – Flip-over type with ceramic hollow cone nozzles. 9 nozzles (6 in cannon head, 3 inside of cannon) with twist on/off.
• Gearbox – Two speed with neutral position, oil bath type.
• Controls – 40bar electric section valves, master valve, electric pressure regulator and in cab controls.
• Tank – Polytuff impact resistant polyethylene construction, calibrated sight line, non spill lid. 40 litre fresh water tank fitted to 2000L unit.
• Frame – Galvanised steel with jockey wheel and adjustable drawbar.
• Agitation – Pump bypass plus venturi agitator.
• Pressure Gauge – 100mm, 0-60 bar glycerine filled gauge with bar increments.
• Filtration – Lid strainer, suction line strainer and stainless steel nozzle filters.
• Wheel Equipment – Glideflex suspension axle, 2×15″ tubeless tyres on galvanised rims (max speed rating 30 km/h).
• PTO Driveshaft – Quality driveshaft with quick release pins and safety cover. Constant velocity shaft.
• HP Required – Minimum 75hp.
• Dimensions, Length measured with drawbar in shortest position (LxWxH) – 3750x1540x2500mm.
• Weight – 640kg (Dry)

Factory Options

• Bravo 180S automatic rate controller
