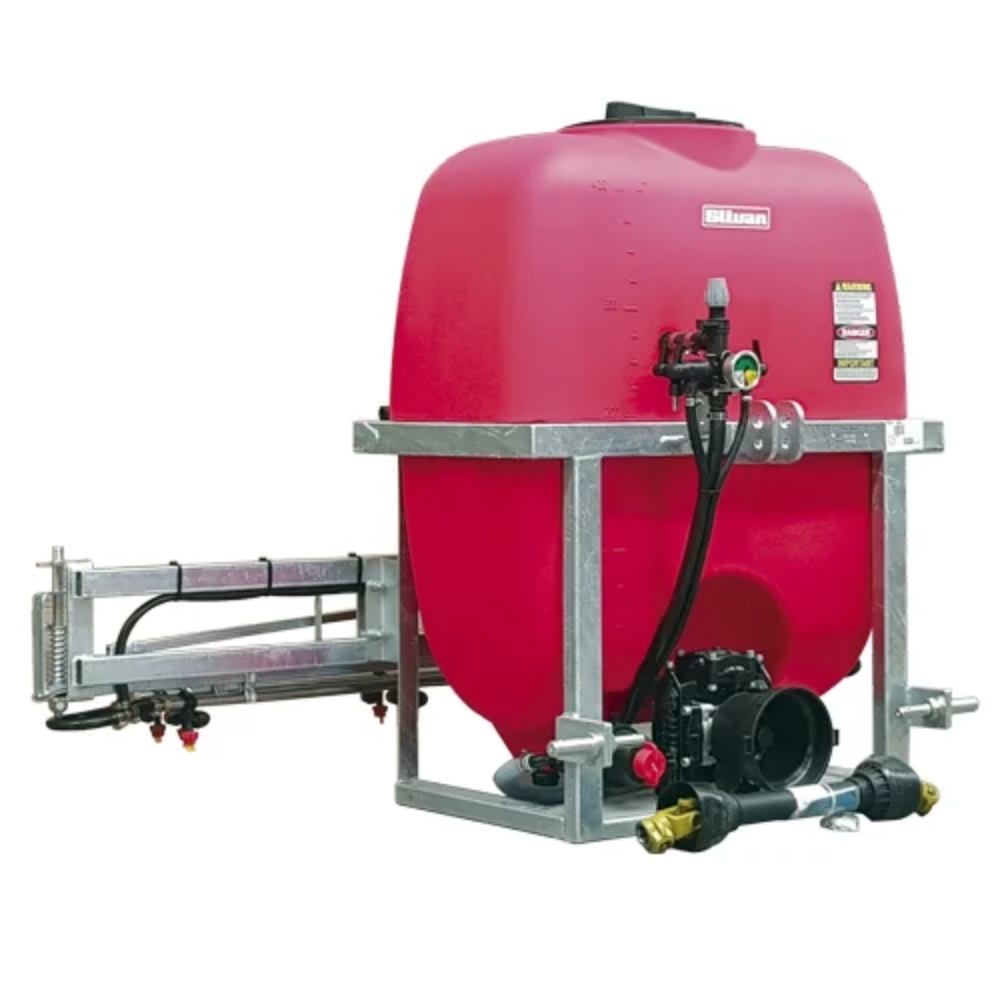

Silvan Redlink Linkage Sprayer 400L with 6m Boom – KBD400

Description

Silvan Redlink Linkage Sprayer 400L with 6m Boom – KBD400

400L Redlink Linkage Sprayer comes with BP60/20 pump, hose reel, 30m hose with Spotjet Spray Gun, and 6m Boom.

Click Here for Instruction Manual

Model Specifications

• Pump: Silvan self-priming oil backed diaphragm type with nitrile diaphragms and cast anodised aluminium body.
• Econopak boom: 6m with stainless steel spray lines, non-drip nozzle holders, fully galvanised frame and spring loaded safety break back/forward.
• Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacings.
• Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
• Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non-spill screw-down lid with single breather.
• Frame: Fully galvanised steel, cat 1 & 2 linkage.
• Agitation: Bypass agitation.
• Pressure Gauge: 0-25 Bar dual stage glycerine filled guage.
• Filtration: Lid strainer, suction line strainer and nozzle strainers.
• Hose Reel: Fitted with rear-mounted Eco hosereel, 30m of 10mm hose and Spotjet spray gun with adjustable spray nozzle.
• PTO Driveshaft: Quality driveshaft with quick release pins and safety cover.
• Dimensions (with Boom): 1200mm Long / 2060mm Wide / 1330mm High
• Weight: 121kg (Dry)

Options

• 14L Foam marker (single side).
• 16L foam marker (double side).
