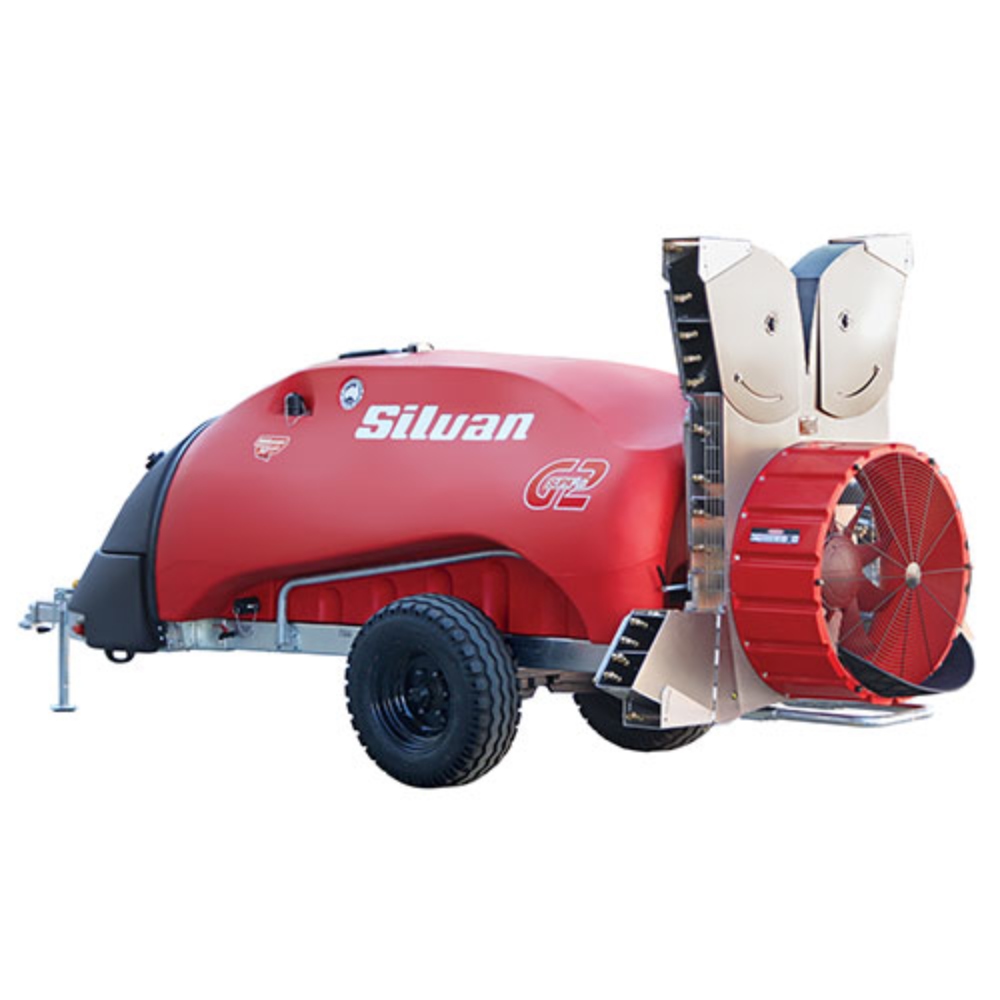

Silvan Supaflo G2 4000L Sprayer with Radak Fan – AB43RE2G

Description

Silvan Supaflo G2 4000L Sprayer with Radak Fan – AB43RE2G

Next generation trailed air assist 4000 litre G2 sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft, flush tank, chemical induction hopper and Radak conveyor with 920mm fan. Ideal for orchards with trees up to 5 metres high.

Click here to see the Supaflo Sprayer

Model Specifications:

• Pump – Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads and manifolds. IDS1701:161L/min. Capacity, 5000kPa pressure.
• Fan Size – 920mm axial flow type, 10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement/disengagement and protective mesh cover.
• Nozzles – 24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl plates per side. (16 per side with the Radak conveyor).
• Gearbox – 2-speed with neutral position, oil-bath type.
• Controls – 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.
• Main Tank – Polytuff impact resistant polyethylene construction with calibrated sight line. 50mm Camlock top & bottom fill.
• Flush Tank – 330L polytuff tank with top fill. Used to flush pump, filter, spray lines and nozzles.
• Hand Wash Tank – 60L polytuff tank filled through cap. Tap located next to chemical mixer hopper.
• Mixer Tank – Chemical mixer hopper with tap controls for rinse, transfer and main tank rinse. Venturi transfer back to main tank.
• Frame – Galvanised steel, heavy duty stand & adjustable drawbar.
• Agitation – Pump bypass plus venturi agitator.
• Pressure Gauge – Glycerine filled gauge located on valve bank.
• Filtration – Suction line filter, pressure filter, nozzle cup strainers.
• Wheel Equipment – Glideflex axle with 13.0/65 – 18″ implement tyres (speed rating 30km/h).
• PTO Driveshaft – Quality BOndioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.
• HP Required – Minimum 80 PTO HP.
• Dimensions (without Radak fan) Length measured with drawbar in shortest position. (LxWxH) – 5550x1880x2020mm
• Weight – 1400kg Dry

Factory Options:

• Hydraulic kit for Radak Conveyor (top wings)
• SCRAM Jet (to suit Radak conveyor)
• AVO Jet (to suit Radak conveyor)
• Leaf Guard
• Double spray lines
• Bravo 180S automatic rate controller
• Tandem suspension axle with 11.5/80 – 15.3 tyres
• Flotation tyres – 558-400/60 – 22.5 (in lieu of standard)
• IDS2001 pump, 182L/min. capacity, 5000kPa pressure
• IDS2600 pump, 249L/min. capacity, 5000kPa pressure
