Description

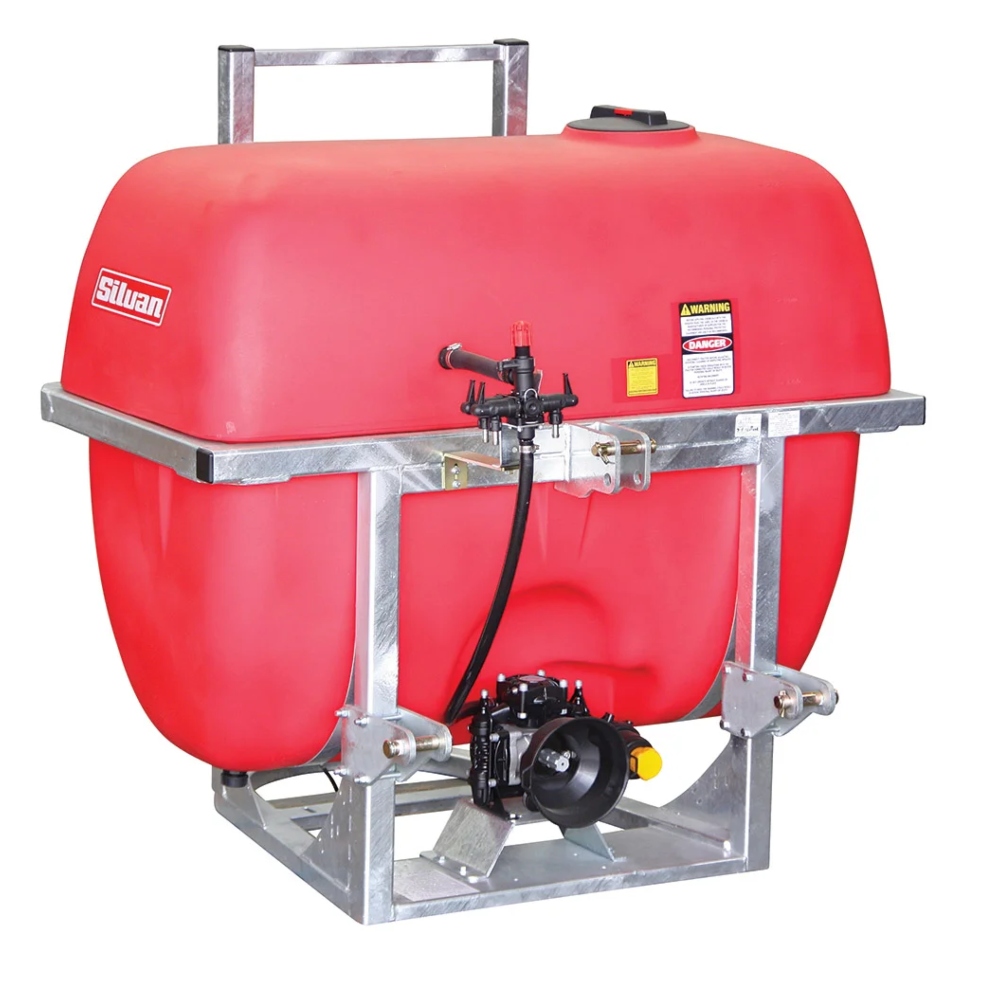

Slimline Linkage Sprayers 1000L – BP130/20 Pump, No Boom – Silvan – K10-105
Slimline Linkage Sprayer – 1000 litre Linkage sprayer with BP 130/20, 132ltr diaphragm pump.
Model Specifications:
- Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP130/20: 132L/min. capacity 2000kPa pressure.
- Controls: BP130/20: 1 lever, 4 outlet control valve with pressure regulation.
- Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and nonspill screw-down lid with single breather.
- Frame: Galvanised steel with adjustable cat II hitch system. Vertical boom channel for positioning the boom at the optimum spray height.
- Agitation: Bypass agitation.
- Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
- Filtration: Lid strainer, suction line strainer.
- PTO Drive shaft: Quality driveshaft with quick release pins & safety cover.
Specifications:
- Trailed/Linked: Linkage.
- Tank Size: 1000.00 litres.
- Pump Size: 132.00 L/min.
- Length: 1650mm.
- Width: 1250mm.
- Height: 1370mm.
- Product Weight: 170kg.
Options:
- 6m Field boom.
- 8m Field boom.
- 10m Field boom.
- 12m Fieldmaster Boom with Suspension.
- 6m Devil boom with hydraulic fold.
- 8m Devil boom with hydraulic fold.
- 10m Devil boom with hydraulic fold.
- 10m HD Devil boom with hydraulic fold.
- 12m HD Devil boom with hydraulic fold.
- 14m HD Devil boom with hydraulic fold.
- 15m HD Devil boom with hydraulic fold.
- Hydraulic lift, galvanised single hydraulic system – 6, 8m devil booms.
- Hydraulic lift, galvanised single hydraulic system – 10, 12, 14, 15m devil booms.
- Hydraulic lift, with airbag suspension – 10, 12, 14, 15m HD devil boom.
- 8 Jet vine boom.
- 10 Jet vine boom.
- Olive boom.
- Undervine and mid row boom.
- 70L flush tank kit to flush the filter, spraylines and nozzles.
- 16L foam marker (double side).
- 57L Paddock marker foam marker.
- Economy hosereel, 20m hose (12mm ID) & Triam spraygun.
- Electric control 3 section with in cab pressure adj.
- Bravo 180S automatic rate controller.
- Silmix chemical hopper.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
