Slimline Linkage Sprayers 800L – BP130/20 Pump, No Boom – Silvan – K08-105

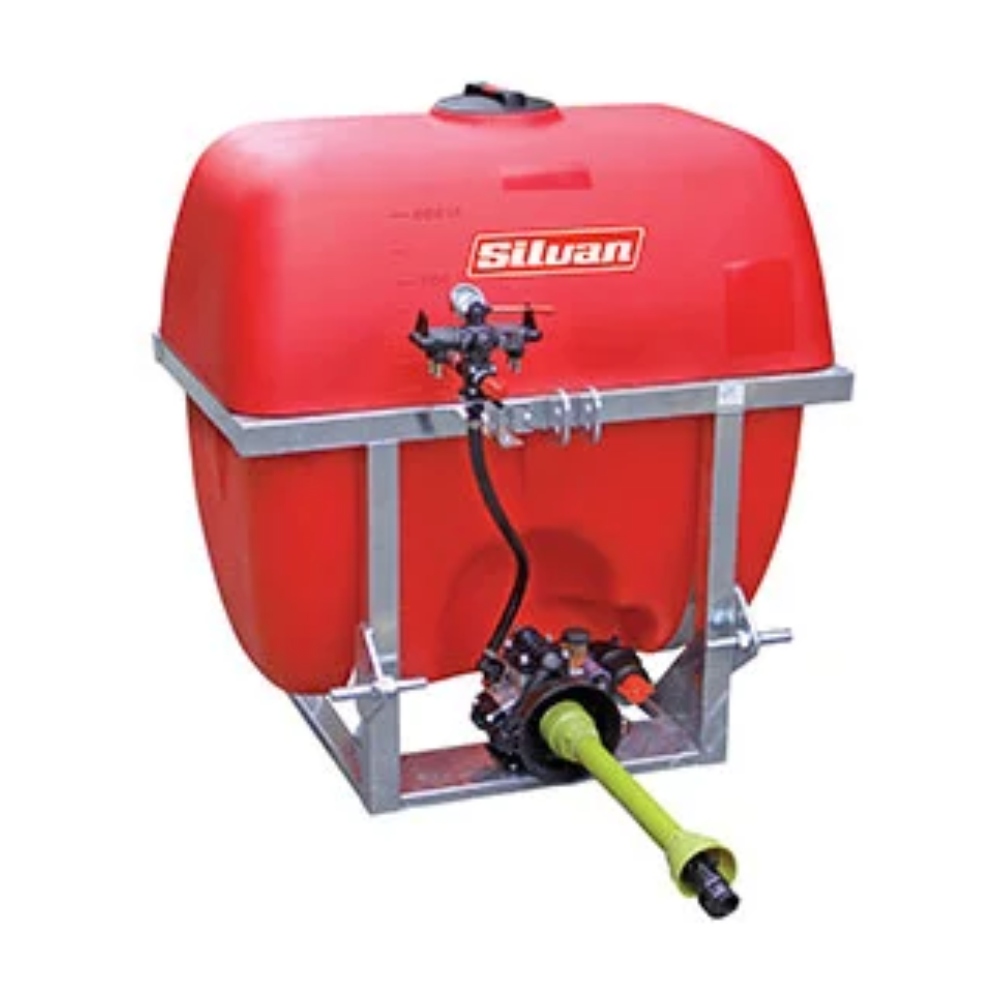

Slimline Linkage Sprayer – 800 litre Linkage sprayer with BP 130/20, 132ltr diaphragm pump.
Model Specifications:
- Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. BP130/20: 132L/min. capacity 2000kPa pressure.
- Controls: BP130/20: 1 lever, 4 outlet control valve with pressure regulation.
- Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and nonspill screw-down lid with single breather.
- Frame: Galvanised steel, cat. 1 & II linkage.
- Agitation: Bypass agitation.
- Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
- Filtration: Lid strainer, suction line strainer.
- PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Dimensions:
- Trailed/Linked: Linkage.
- Tank Size: 800.00 litres.
- Pump Size: 132.00 L/min.
- Length: 1330mm.
- Width: 980mm.
- Height: 1370mm.
- Product Weight: 120kg.
Options:
- 6m Field boom.
- 8m Field boom.
- 10m Field boom.
- 6m Devil boom with hydraulic fold.
- 8m Devil boom with hydraulic fold.
- 10m Devil boom with hydraulic fold.
- 10m HD Devil boom with hydraulic fold.
- Hydraulic lift, galvanised single hydraulic system – 6, 8m devil booms.
- Hydraulic lift, galvanised single hydraulic system – Both 10m devil booms.
- Hydraulic lift, with airbag suspension – 10m HD devil boom.
- 8 Jet vine boom.
- 10 Jet vine boom.
- Olive boom.
- Undervine and mid row boom.
- 16L foam marker (double side).
- 57L Paddock marker foam marker.
- Economy hosereel, 20m hose (12mm ID) & Triam spraygun.
- Electric control 3 section with in cab pressure adj.
- Bravo 180S automatic rate controller.
- Silmix chemical hopper.
