Valentini Diablo Folding Power Harrows 4.58m 120-220hp – DB4600

Description

Valentini Diablo Folding Power Harrows 4.58m 120-220hp – DB4600

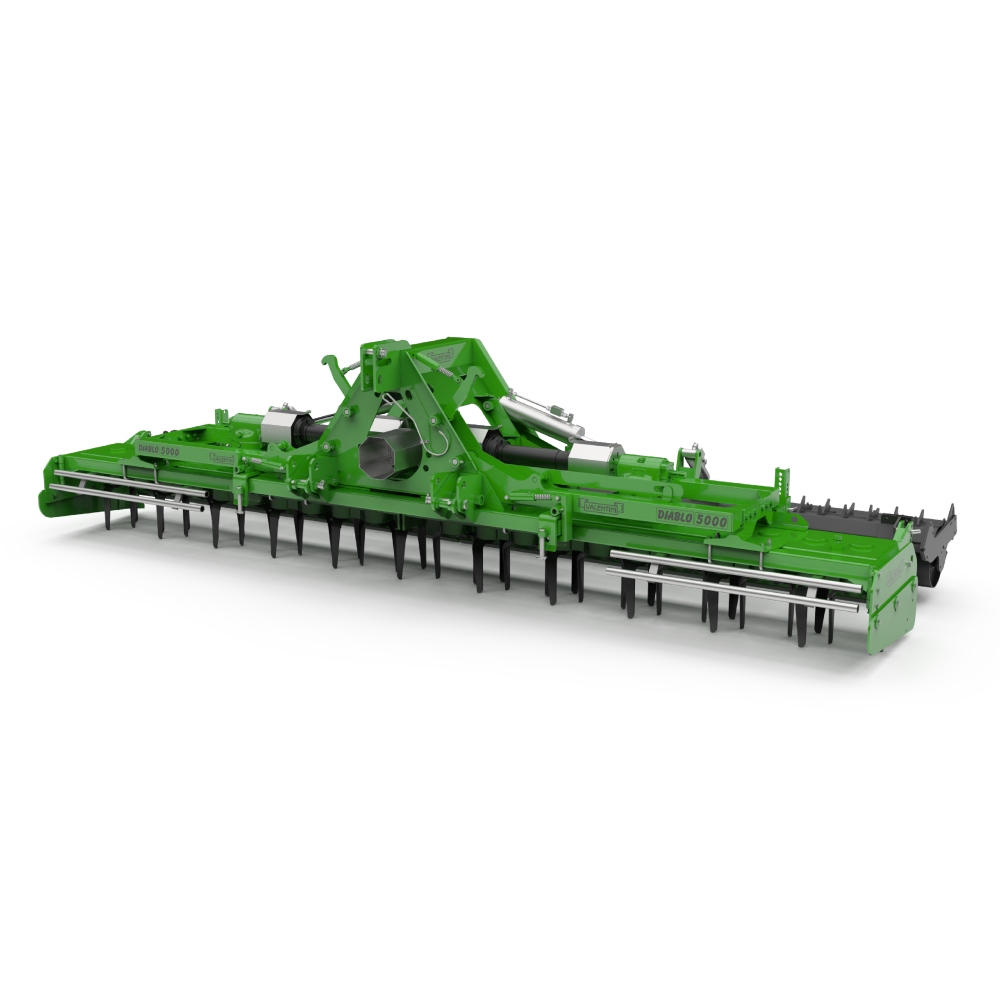

The Diablo Agricultural Rotary Harrow is designed to meet the needs of medium-sized farms working in open fields. It delivers excellent results on ploughed land with light crop residue, while refining soil previously worked with other equipment. Its blade-holder shafts, mounted on roller bearings below and ball bearings above the transmission body, ensure strength, precision, and long-lasting performance. Available in a folding version, the Diablo can be easily transported on public roads in compliance with regulations.

Features

• 3 point universal hitch (Category 3).
• Front oscillating bar hitch.
• Single speed unit, 1000 rpm.
• Central fixed cardan (tractor side fork 1 3/8inch Z6).
• Side cardan with safety bolt.
• Space between rotors, 22 cm.
• Circular blade holder shaft (with cementation treatment) “Heavy Duty” version.
• Central and side gears (with cementation treatment), “Heavy Duty” version.
• Transmission body in oil bath.
• Automatic hydraulic device with safety hooks for transport.
• Hydraulic opening and closing of the bodies with 2 jacks and controlled block valves.
• Adjustable height side skirting.
• Pin regulation of the levelling bar by height and distance from the blades.

In roller versions

• Pin regulation of the rear rollers.
• Automatic rear roller alignment device “by Valentini”.

Safety

• Rear light bar for road travel.
• Manual safety bar for transport.
• CE Safety protections.
• Anti-intrusion protections for transport.
• Road footprint 2400.

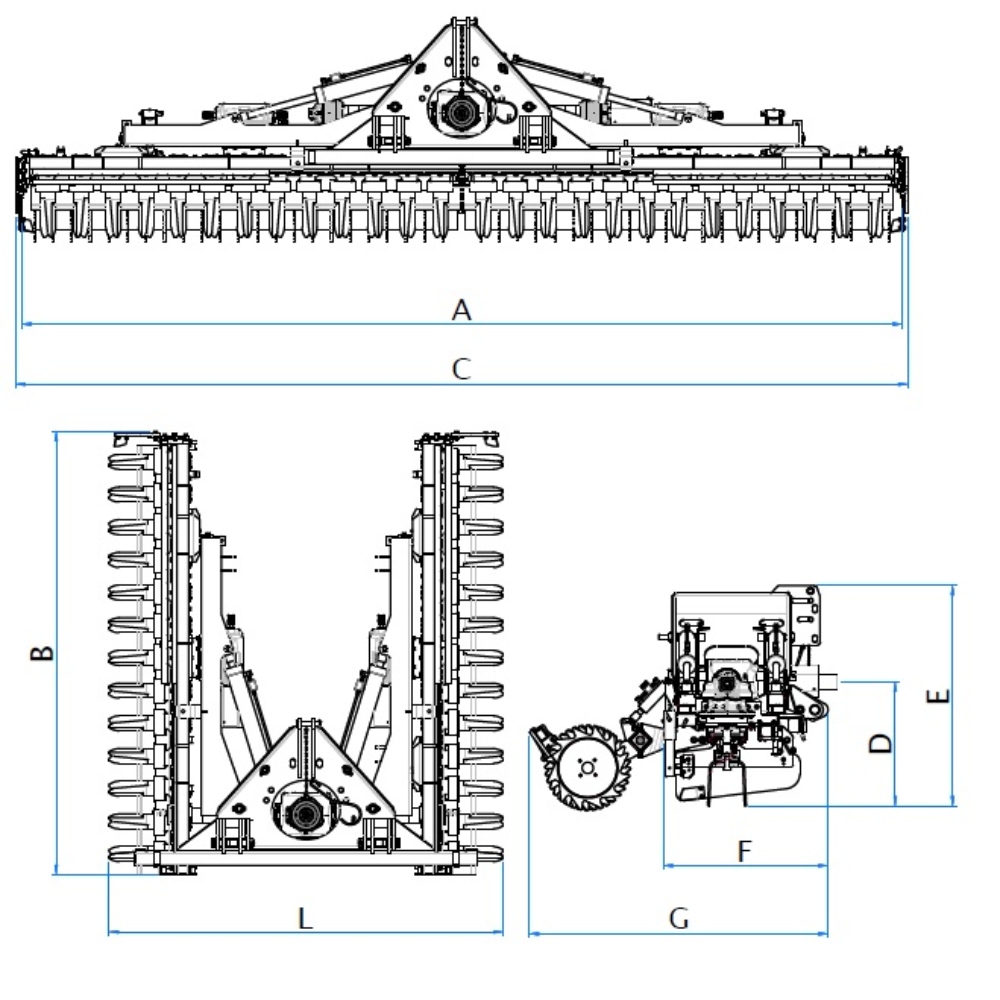

Specifications

• Power – 170/240hp
• Power – 125/176kW
• Working Width -4584mm
• Total Footprint – 4631mm
• Tools – 40
• Working Depth – 28cm
• Weight Cage Roller dia 510mm – 2150kg
