Valentini Maxi Diablo Folding Power Harrows 4.16m 130-300hp – MD4000

Description

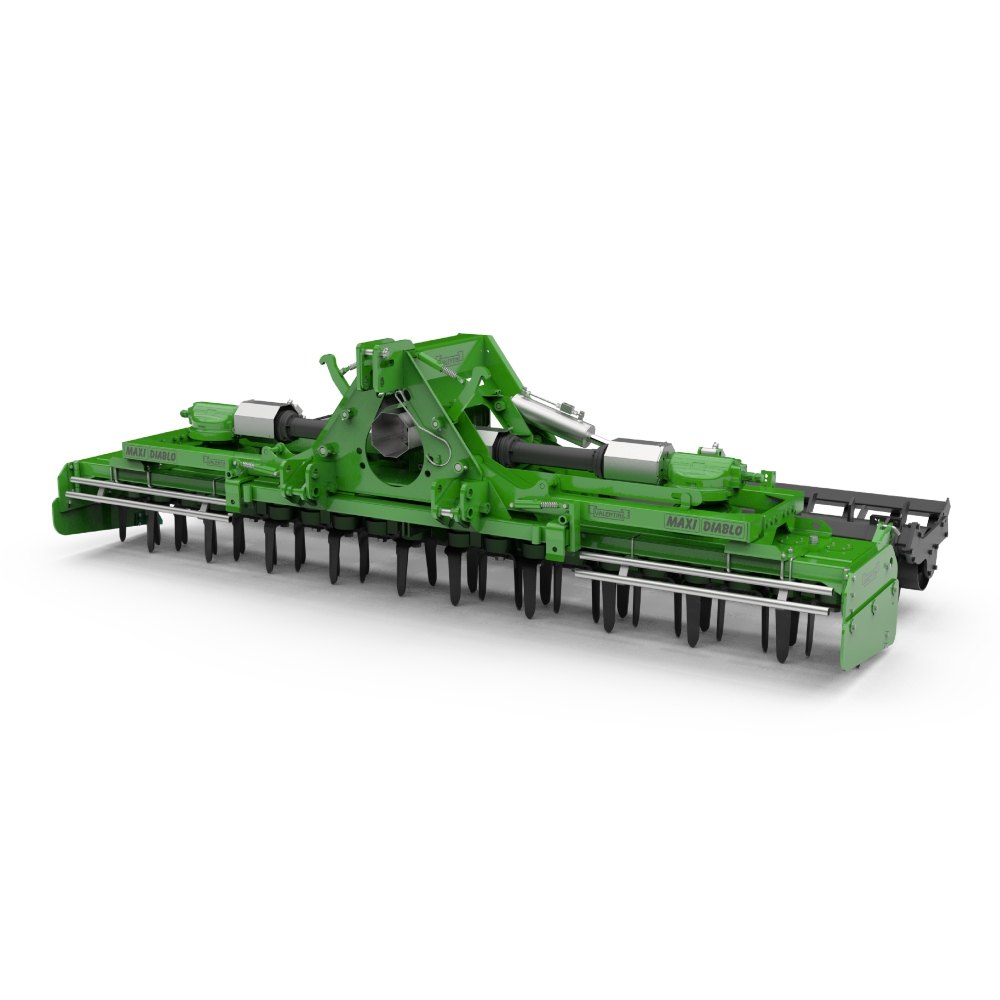

Valentini Maxi Diablo Folding Power Harrows 4.16m 130-300hp – MD4000

The Maxi Diablo Rotary Harrow has been designed for medium and large farms and agricultural contractors that need a robust, high-performance implement. It delivers excellent results on ploughed and unworked soils, even with light crop residue, ensuring uniform and precise soil preparation. Its blade-holder shafts, mounted on opposed tapered roller bearings at the lower transmission body, provide durability, stability, and reliable performance under demanding conditions. Thanks to its folding frame, the MAXI DIABLO can be safely transported on roads in compliance with regulations, combining practicality and safety.

Features

• 3 point universal hitch (Category 3).
• Front oscillating bar hitch.
• Single speed unit, 1000 rpm.
• Central fixed cardan (tractor side fork 1 3/8inch Z6).
• Side cardan with safety bolt.
• Space between rotors, 22 cm.
• Adjustable conical bearings.
• Quick blade release.
• Circular blade holder shaft “Heavy Duty” version.
• Central and side gears (with cementation treatment), “Heavy Duty” version.
• Transmission body in oil bath.
• Automatic hydraulic device with safety hooks for transport.
• Hydraulic opening and closing of the bodies with 2 jacks and controlled block valves.
• Adjustable height side skirting.
• Pin regulation of the levelling bar by height and distance from the blades.

In roller versions

• Pin regulation of the rear rollers.
• Automatic rear roller alignment device “by Valentini”.

Safety

• Rear light bar for road travel.
• Manual safety bar for transport.
• CE Safety protections.
• Anti-intrusion protections for transport.
• Road footprint 2400.

Specifications

• Power – 160/280hp
• Power – 118/206kW
• Working Width – 4164mm
• Total Footprint – 4211mm
• Tools – 36
• Working Depth – 30cm
• Weight Cage Roller dia 510mm – 2440kg
