Jacky 1730L Side Discharge Bins with Steel Frame – LA1500/8

Description

Jacky 1730L Side Discharge Bins with Steel Frame (Low Profile) – LA1500/8

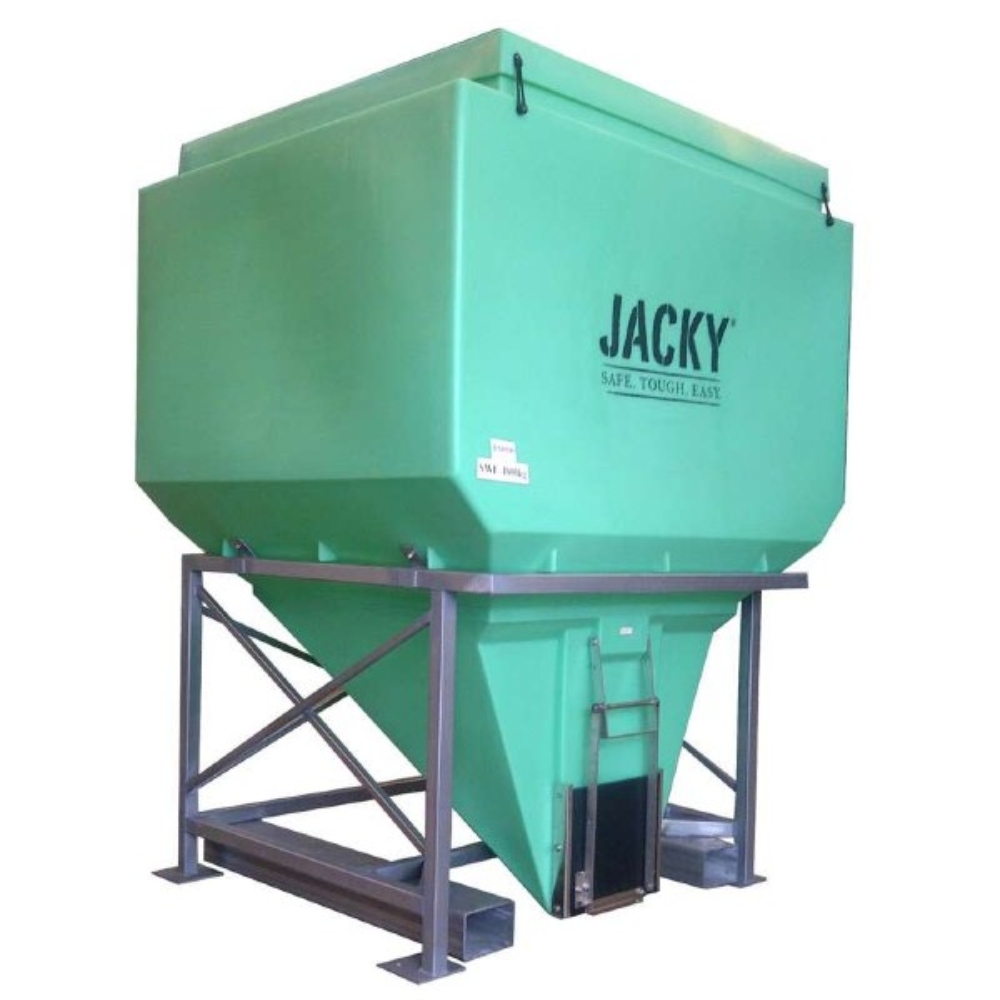

The LA1500/8 Side Discharge JACKY Hopper Bin design incorporates a poly hopper mounted in a fork-liftable steel stillage. The bin empties through a side opening at the base of the bin, with the slide-hatch mechanism allowing precise control of the discharge rate.

Video – Jacky Bins Features

Features

• 1730L capacity.
• Safe Working Load (SWL) – 1200kg.
• Very low profile bin for height critical applications.
• Ideal for feed and seed storage.
• Large top opening for easy filling and cleaning.
• All working parts are UV stabilised polyethylene or stainless steel for longevity.
• 40 degree run slope allows the discharge rate of most granular products to be easily controlled.
• Standard colour is Faint Green.
• Serial numbering and custom branding available to assist in tracking batch lots.

Specifications

• Length: 1400mm
• Width: 1200mm
• Height: 1860mm
• Capacity: 1730
• Opening size – base 295x245mm.
• Opening size – top 1000x1000mm.
• Fork Pocket size 150x100mm.
• Fork Pocket Centres 830mm.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
