Suitable for open country and lighter loamy soils, Murray Diamond Harrows are an effective implement used for weed control and final seedbed preparation.
Stock/Ref #: 4102 Brand: Murray
Can Transport Australia Wide!
Contact us today for sales or make enquiry below.
$1,656.60
Complete diamond harrow systems available from 6ft to 17ft configurations, drag or lift type, Extreme high quality Australian product, built for our harsh conditions!
Suitable for open country and lighter loamy soils, Murray Diamond Harrows are an effective implement used for weed control and final seedbed preparation. Specialising in shattering soil crusts allowing improved aeration and moisture penetration, it will give your crops every chance of reliable germination and subsequent vigour.

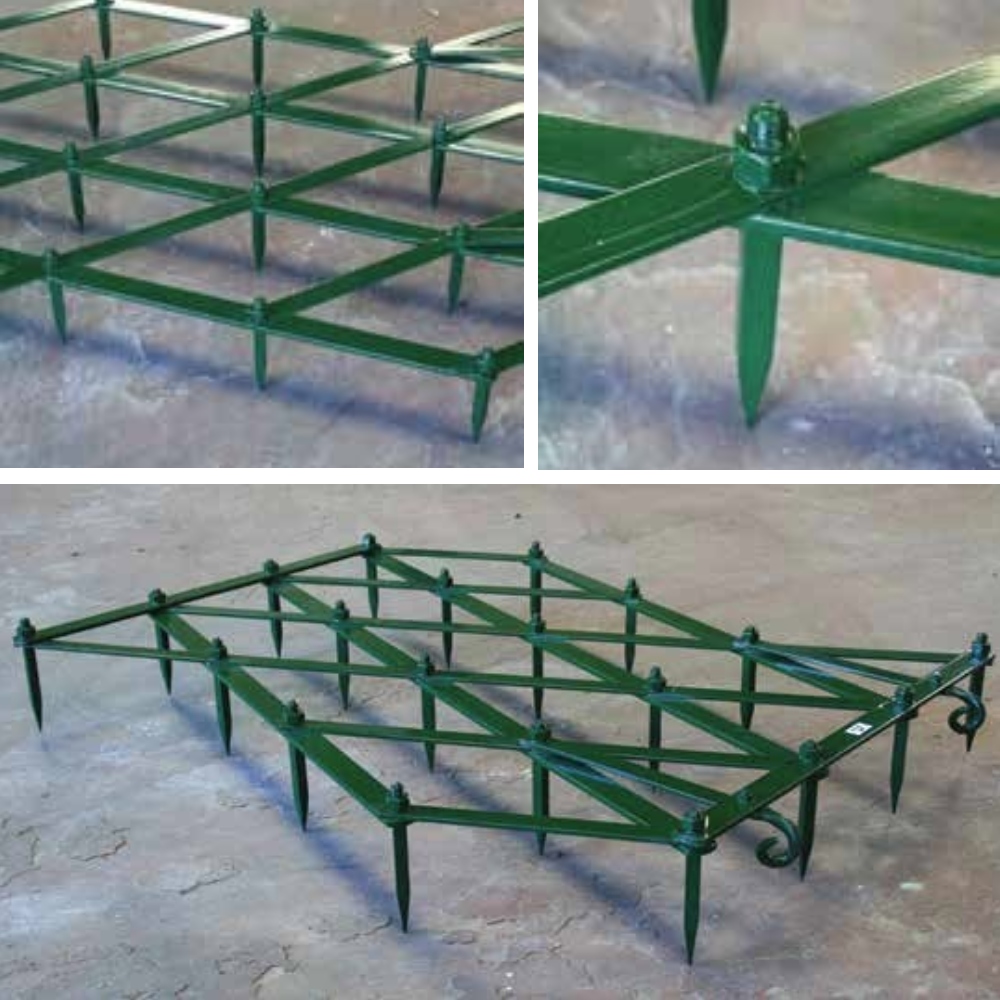

The Diamond frame design is constructed using flat bar material providing the Harrow with strength and rigidity. It features replaceable bolt-in 16mm square section High Carbon Steel tapered tines with a working depth between 50 to 80mm (2inch to 3inch).

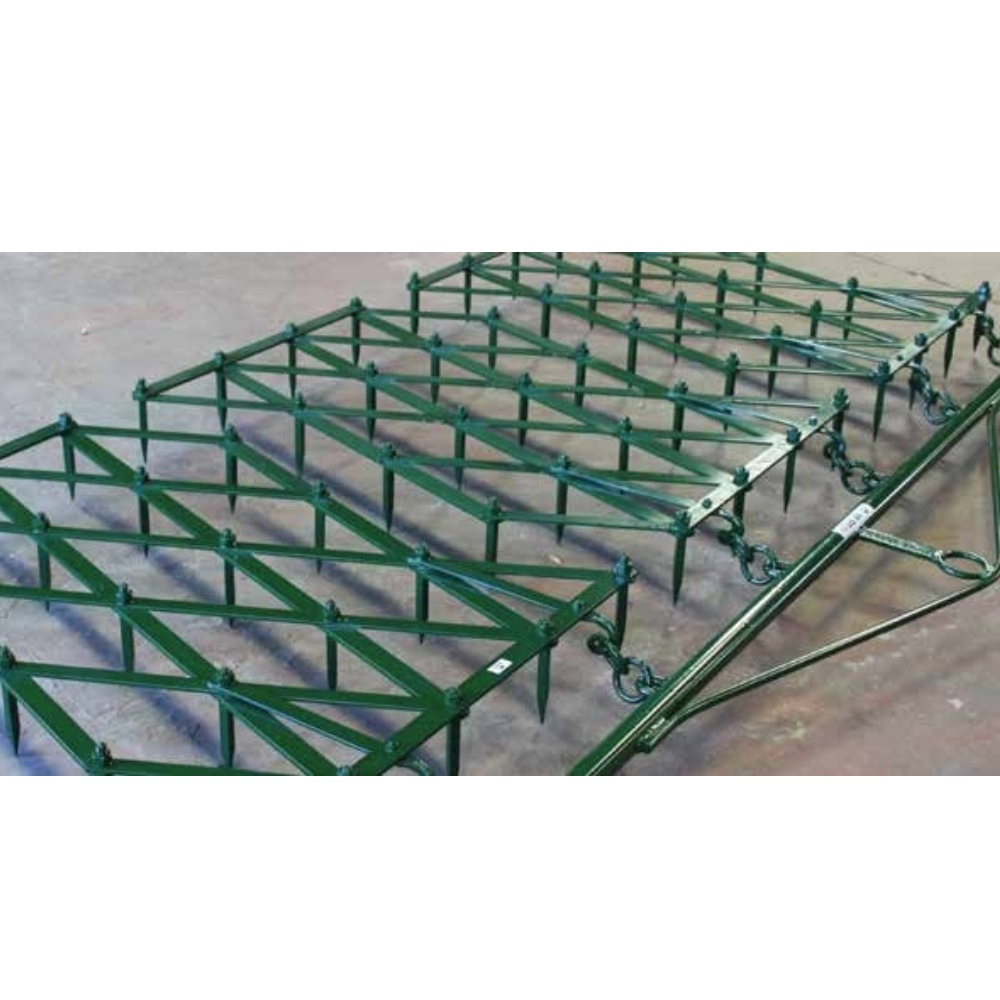

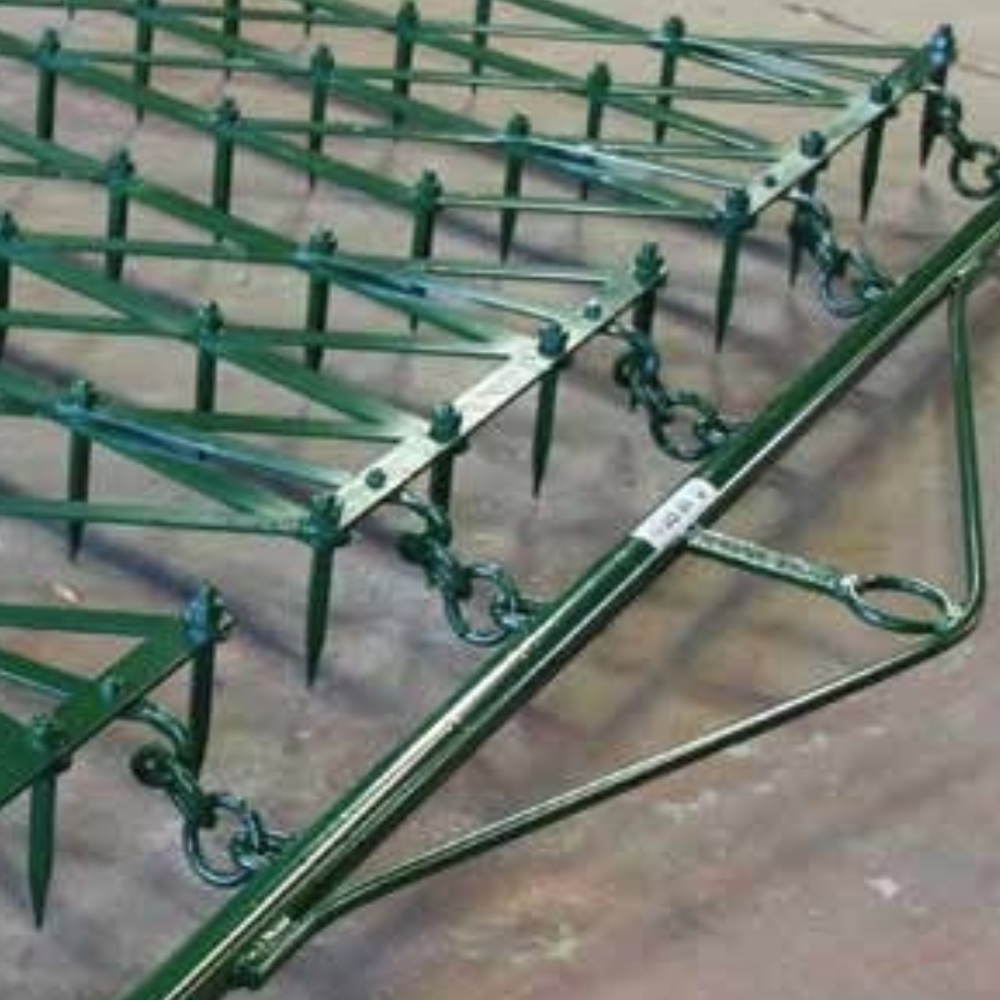

Murray Diamond Harrows are supplied in sets complete with drawbars, ranging from 2 sections 2.03m (68) to 10 sections 10.16m (334). Lift type sets using our 3 Point Linkage Hoist Frame (Series 21) are available, making transportation of your Harrows easy and convenient. The complete set is comprised of a Front Lift Drawbar, Harrow Sections, Rear Lift Drawbar and 3 Point Linkage Hoist Frame (Series 21).
100% Australian made and owned.
Features
* Two front hooks for simple and fast hitching
* Harrow section weight 30kg (66lb)
* Coverage 0.97m (3ft2inch)
* Tine Spacing 51mm (2inch)
* Tine Length 152mm (6inch) approx
* Centre to Centre of Front Hooks 508mm (20inch)
* 5 Ranks – 20 Tines
Model 4020 Section only price $673.20
Complete Sets with Standard Drawbar – Drag Type
4102 – 2 sections 1.93m (6ft4in) 70kg – $1,656.60
4103 – 3 sections 2.9m (9ft6in) 108kg – $2,450.80
4104 – 4 sections 3.86m (12ft8in) 146kg – $3,293.40
4105 – 5 sections 4.83 (15ft10in) 192kg – $4,312.00
4106 – 6 sections 5.79m (19ft) 240kg $5,553.90
4107 – 6 sections with 2 piece bars & master bar 5.79m (19ft) 252kg $5,886.10
4108 – 8 sections with 2 piece bars & master bar 7.72m (25ft4ft) 356kg $7,755.00
4110 – 10 sections with 2 piece bars & master bar 9.65m (31ft8in) 430kg $9,933.00
3-Point Linkage Hoist Lift Type Sets – Featuring Series 21 Hoist Frame
Model 4029* 2 sections 2.03m (6ft8in) 118kg $2,998.60
Model 4030 3 sections 3.04m (10ft) 164kg $4,106.30
Model 4031 4 sections 4.06m (13ft4in) 206kg $5,112.80
Model 4005** 5 sections 5.08m (16ft8in) 268kg $6,331.60
Model 4003 Diamond Section only – Lift Type – price $717.20
* Model No. 4029 2 section set Rear Lift connectors supplied in lieu of Rear Lift Drawbar.
** Features Model 21003 Hoist Frame
Complete Set Comprises – Front Lift Drawbar, Harrow sections, Rear Lift Drawbar and Series 21 3-Point Linkage Hoist Frame.
Individual panels, chains and parts also available for sale.
*Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
