Murray Series 05 Pastureland Light Duty Harrow Systems – 5020
Complete light duty harrow systems available from 5ft to 20ft configurations, drag or lift type. Extreme high quality Australian product, built for our harsh conditions!
The Murray Pastureland Harrow System is recommended for pasture establishment, maintenance and renovation applications. Ideal for breaking down and distributing animal manures and other organic matter evenly across the whole pasture, using a Series 05 will encourage pasture growth. This light duty harrow is suitable generally for pasture areas of less than 100 acres (40 hectares) and tows easily behind small and medium size tractors.

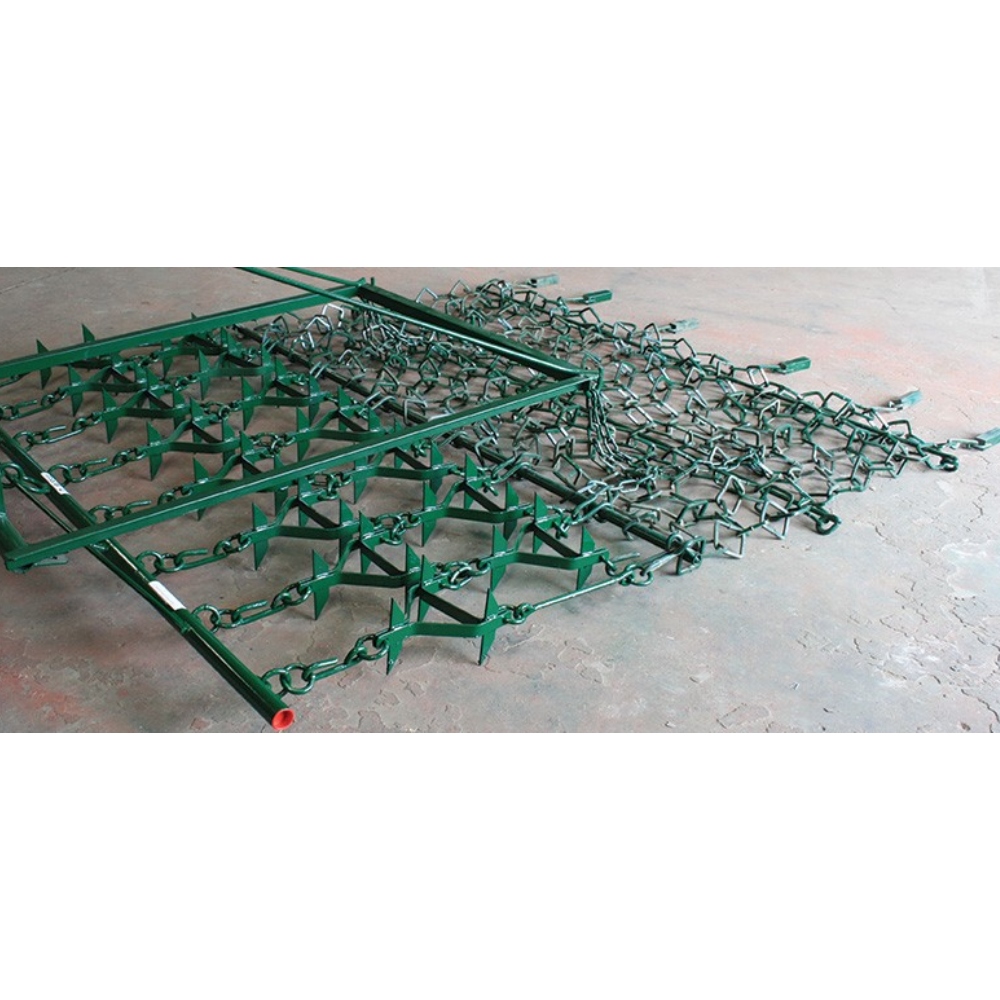

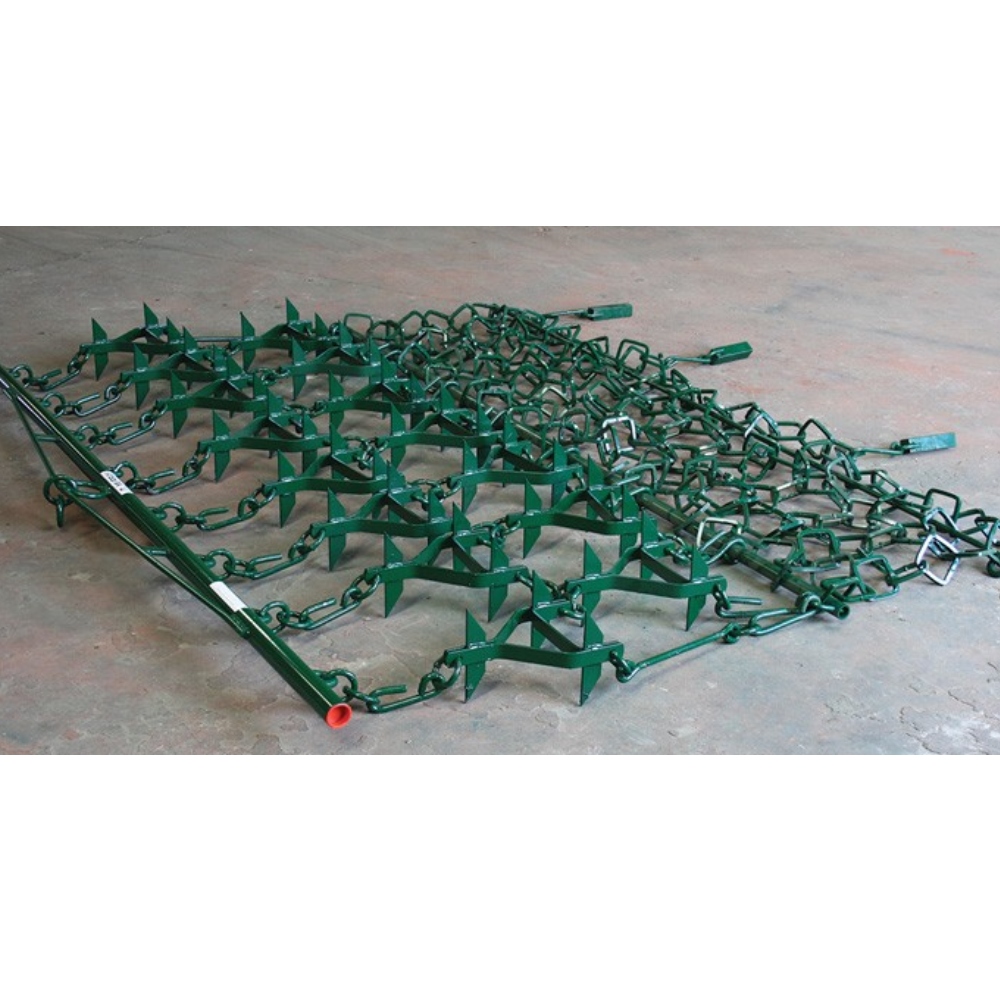

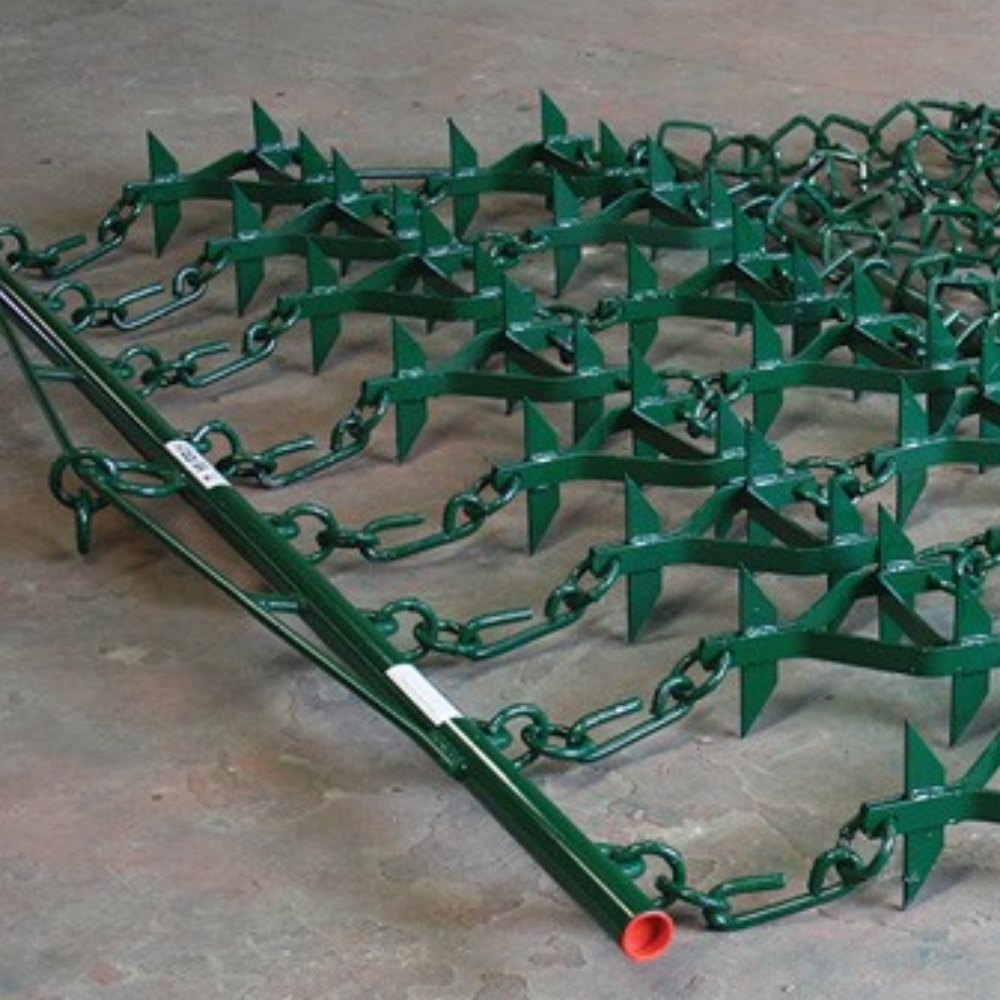

Murray Series 05 Pastureland Harrows utilise four rows of double-sided tripod tine units which slice through patts, clods and coarse vegetation. The tripod section is followed by heavy steel square chain mesh which further pulverises and spreads the manure and organic matter and revitalises the pasture. The standard single-mesh chain Murray Pastureland Harrow has 8 rows of chain complete with a spreader bar and drag weights. Where greater penetration and a more aggressive action is needed, the Murray super double-mesh chain Pastureland Harrow may be used, which has 15 rows of square chain mesh. The extra chain length and weight ensure a thorough processing of material.
The Murray Pastureland Harrow is available in six widths between 1.52 metres (5ft) and 6.1m (20ft) in standard/single-mesh and super/double mesh versions. Each set of Murray Pastureland Harrows is supplied complete with a steel drawbar.
The Series 05 Pastureland Harrows can be used in conjunction with the Murray Series 21 3-point linkage Harrow Hoist Frame for ease of transportation.
For larger field operations, Murray Agricultural Equipment manufactures the Series 20 Heavy Duty Pasture Harrow System.
100% Australian made and owned.
Tine Spacing 51mm (2in)
Tine Length 85mm (3 11/32in) approx
Centre to Centre of Front Hooks 305mm (12in)
Drag Type – Standard 0.76m (2ft6in) Deep Mesh Chain
Model 5020 Coverage: 1.52m (5ft) 82kg – $2,225.30
Model 5006 Coverage: 1.83m (6ft) 99kg – $2,686.20
Model 5021 Coverage: 2.44m (8ft) 129kg – $3,511.20
Model 5022 Coverage: 3.04m (10ft) 172kg – $4,526.50
Model 5023 Coverage: 3.65m (12ft) 213kg – $5,555.00
Model 5024 Coverage: 4.57m (15ft) 269kg – $6,898.10
Model 5003 Coverage: 6.09m (20ft) 380kg – $9,310.40
Hoist Lift Type (Series 21) Standard 0.76m (2ft6in) Deep Mesh Chain
Model 5025 Coverage: 5ft 132kg – $3,412.20
Model 5007 Coverage: 6ft 147kg – $3,873.10
Model 5026 Coverage: 8ft 179kg – $4,699.20
Model 5027 Coverage: 10ft 222kg – $5,747.50
Model 5028 Coverage: 12ft 263kg – $6,774.90
Model 5029 Coverage: 15ft 332kg – $8,539.30
Drag Type – Super 1.5m (5ft) Deep Mesh Chain
Model: 5067 Coverage: 1.52m (5ft) 123kg – $2,554.20
Model: 5008 Coverage: 1.83m (6ft) 133kg – $3,084.40
Model: 5030 Coverage: 2.44m (8ft) 173kg – $4,096.40
Model: 5031 Coverage: 3.04m (10ft) 225kg – $5,243.70
Model: 5032 Coverage: 3.65m (12ft) 292kg – $6,410.80
Model: 5033 Coverage: 4.57m (15ft) 349kg – $7,876.00
Model: 5004 Coverage: 6.09m (20ft) 490kg – $12,700.60
Hoist Lift Type (Series 21) – Super 1.5m (5ft) Deep Mesh Chain
Model: 5068 Coverage: 5ft 170kg – $4,203.10
Model: 5009 Coverage: 6ft 185kg – $4,813.60
Model: 5034 Coverage: 8ft 230kg – $5,976.30
Model: 5035 Coverage: 10ft 280kg – $7,404.10
Model: 5036 Coverage: 12ft 347kg – $8,746.10
Model: 5037 Coverage: 15ft 417kg – $10,766.80
Complete Set Comprises – Front Drawbar, Tine section, Mesh Chain section (and Series 21 3-Point Linkage Hoist Frame and Lift connectors if Hoist Lift type specified.
Model Numbers 5029 and 5037 also feature a Model Number 5071 Rear Lift / Hoist extension bar.
Individual panels, chains and parts also available for sale.
*Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
