Murray Series 20 Pasture Heavy Duty Harrows 3 Ranks – 20001

Description

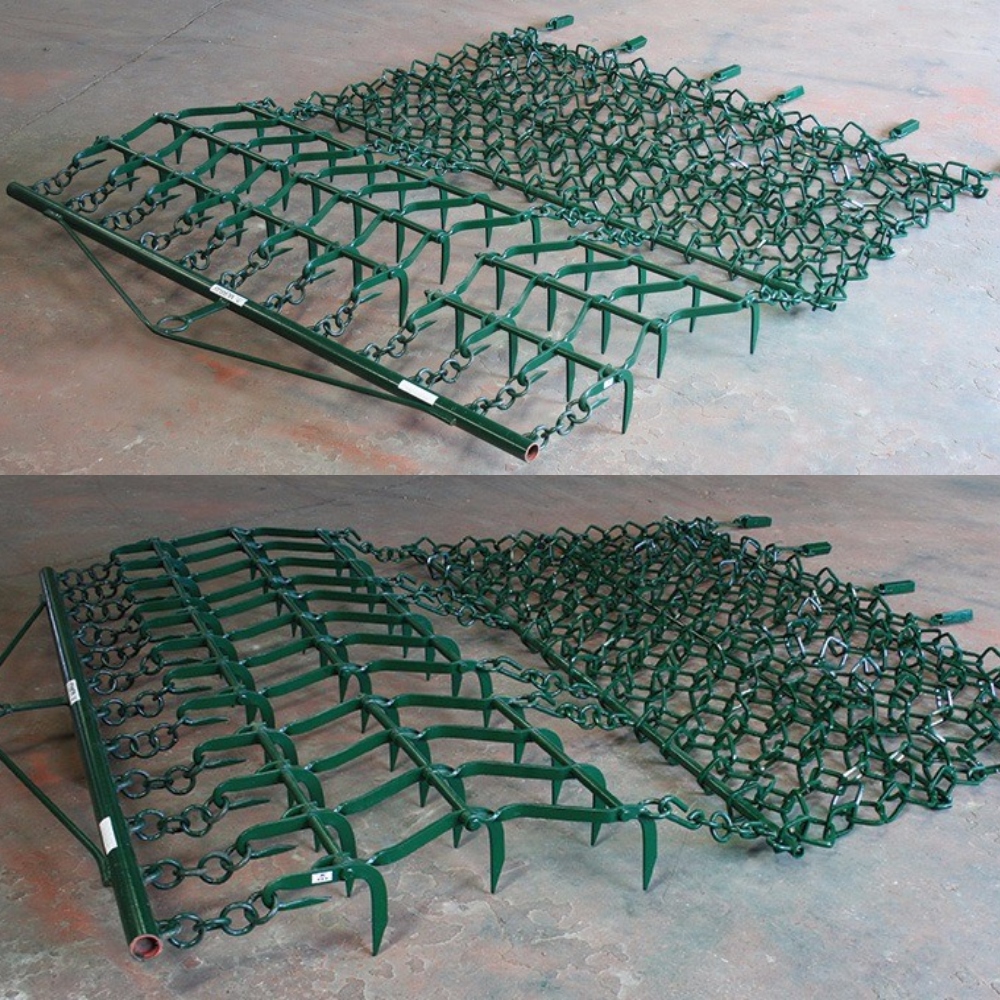

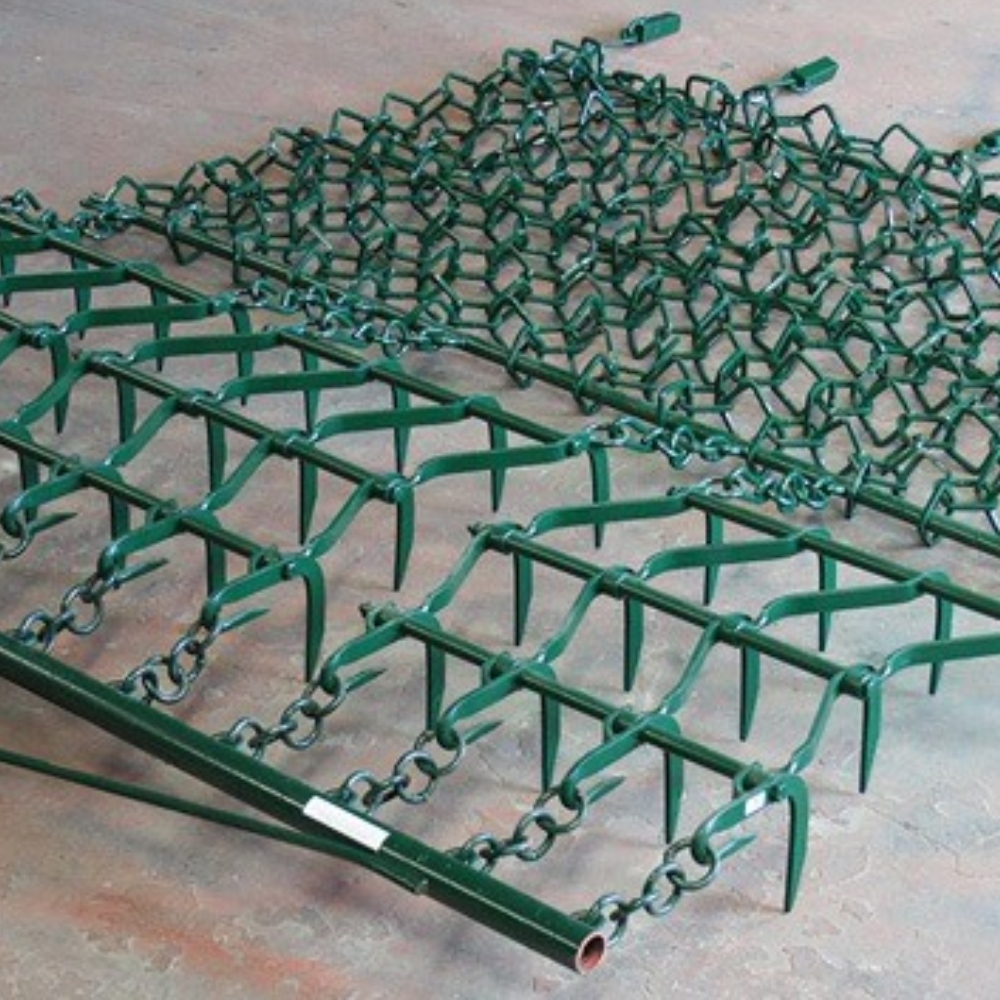

Murray Series 20 Pasture Heavy Duty Harrows 3 Ranks – 20001

Complete medium/heavy duty harrow systems available from 8ft to 17ft configurations, drag or lift type. Extreme high quality Australian product, built for our harsh conditions!

For larger field operations over 100 acres (40 hectares), where greater strength and durability are needed in a pasture harrow, the Murray Series 20 Pasture Harrow System performs above the rest. The system consists of a front drawbar, 3 rank Pasture Harrow sections and heavy steel square chain mesh together with the appropriate weights. The flexibility and strength of the Murray Pasture Harrow sections easily accommodates uneven ground and stony areas of roughly cleared country which would present difficulties for rigid tines harrows. Each harrow section has a 4-point pull which ensures true tracking and proper operation of the tine section.

The heavy duty square chain mesh breaks down and distributes animal manures and other organic matter evenly across the whole pasture. This promotes a quick response to seasonal breaks and optimum pasture growth.

The Murray Series 20 Pasture Harrow is available in four working widths between 2.6 metres (8ft 6in) and 5.1m (17ft). Each set is supplied complete with front drawbar, harrow sections and chain mesh sections including weights.

100% Australian made and owned.

Model: – 20001 – 3 sections 2.59m (8ft 6in) 152kg – 3 Rank sections and standard 0.76m Deep Mesh Chain – Drag Type

Features
* High Carbon Steel Tines and Square Chain Mesh
* Coverage 0.86m (2ft10in)
* Tine Spacing 44mm (1 3/4in)
* Tine Length 197mm (7 3/4in) approx
* Centre to Centre of Front Hooks 222mm (8 3/4in)
* 3 Ranks – 12 Tines or 4 Ranks – 16 Tines or 5 Ranks – 20 Tines
* Available in 2 chain mesh depths 0.76m (2ft6in) and 1.5m (5ft)

3 Rank sections and Standard 0.76m (2ft6in) Deep Mesh Chain – Drag Type
20001 – 3 sections, 2.59m (8ft6in) 152kg – $3,999.60
20002 – 4 sections, 3.45m (11ft4in) 230kg – $5,634.20
20003 – 5 sections, 4.31m (14ft2in) 285kg – $7,075.20
20004 – 6 sections, 5.18m (17ft) 345kg – $8,551.40

3 Rank Sections And Super 1.5m (5ft) Deep Mesh Chain – Drag Type
20005 – 3 Sections, 2.59m (8ft6in) 197kg – $5,259.10
20006 – 4 sections, 3.45m (11ft4in) 297kg – $7,437.10
20007 – 5 sections, 4.31m (14ft2in) 365kg – $9,222.40
20008 – 6 sections, 5.18m (17ft) 435kg – $11,068.20

Complete Set Comprises – Front Drag Drawbar, Tine sections (3 Rank deep), Mesh Chain section (2ft 6in or 5ft deep) (and Series 21 3-Point Linkage Hoist Frame, Front Lift Drawbar [in lieu of Front Drag Drawbar] and Rear Lift connectors if Hoist Lift type specified.

Individual panels, chains and parts also available for sale.

*Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
