Silvan EconoMax 800L Linkage Sprayer – KBD800

Description

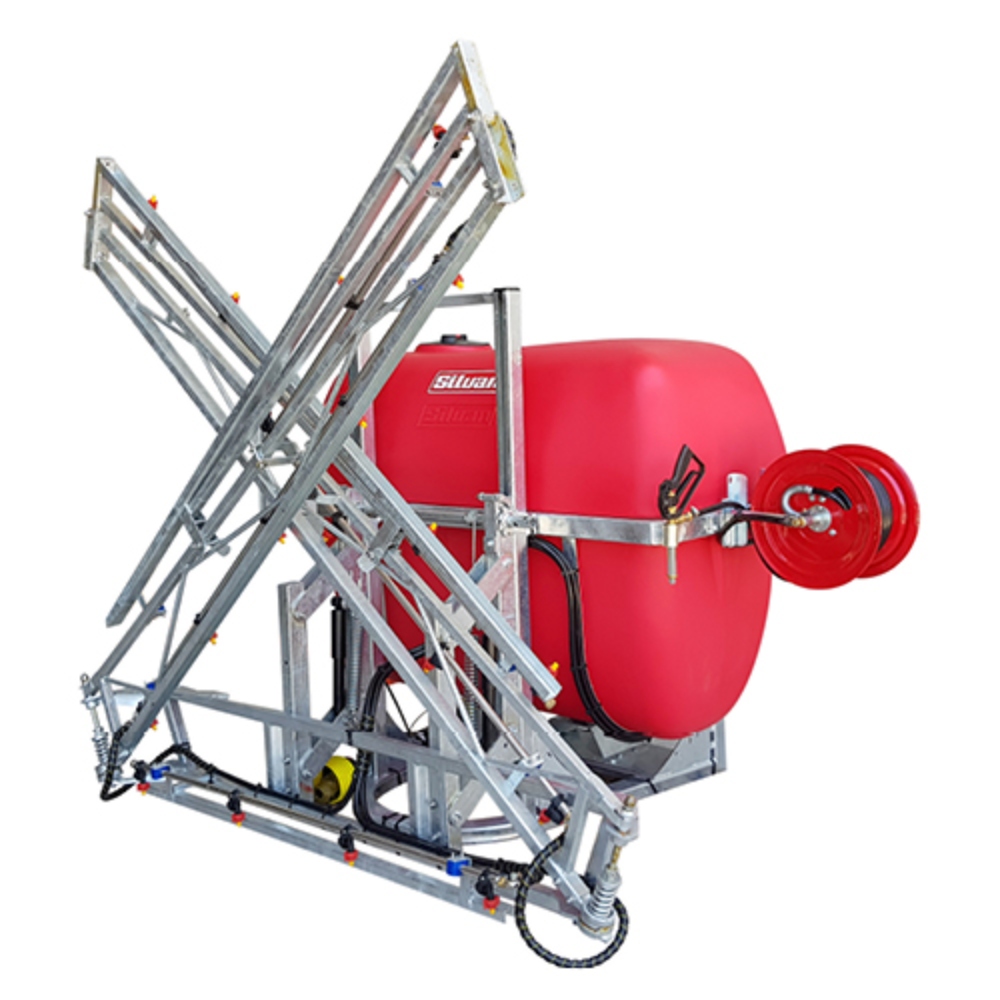

Silvan EconoMax 800L Linkage Sprayer – KBD800

Linkage Sprayer – Economax – 800ltr with BP130/20 Pump, 121L/min and 12M Fieldmaster Boom.

Model Specifications:

• Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and cast anodised aluminium body. BP130/20 Pump, 132L/min. capacity 2000kPa pressure.
• Boom: 12m Fieldmaster Boom with stainless steel spray lines, non-drip nozzle holders, fully galvanized frame, nozzle protection and spring loaded safety break back/forward. (* assembly charge applicable).
• Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacing’s.
• Controls: 1 lever, 4 outlet control valve with pressure regulator.
• Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non-spill screw-down lid with single breather.
• Frame: Fully galvanized steel. Cat I and II linkage.
• Agitation: Bypass agitation.
• Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
• Filtration: Lid strainer, suction line strainer and nozzle strainers.
• Hose Reel: Fitted with rear-mounted hose reel, 20m of 12mm hose and JetPro spray gun with trigger action pattern adjustment.
• PTO Driveshaft: Quality driveshaft with quick release pins and safety cover.

Dimensions: (with boom).

• Length: 1930mm
• Width: 2200mm
• Height: 2600mm
• Weight (DRY): 145kg

Options:

• 14L foam marker (single side).
• 16L foam marker (double side).
