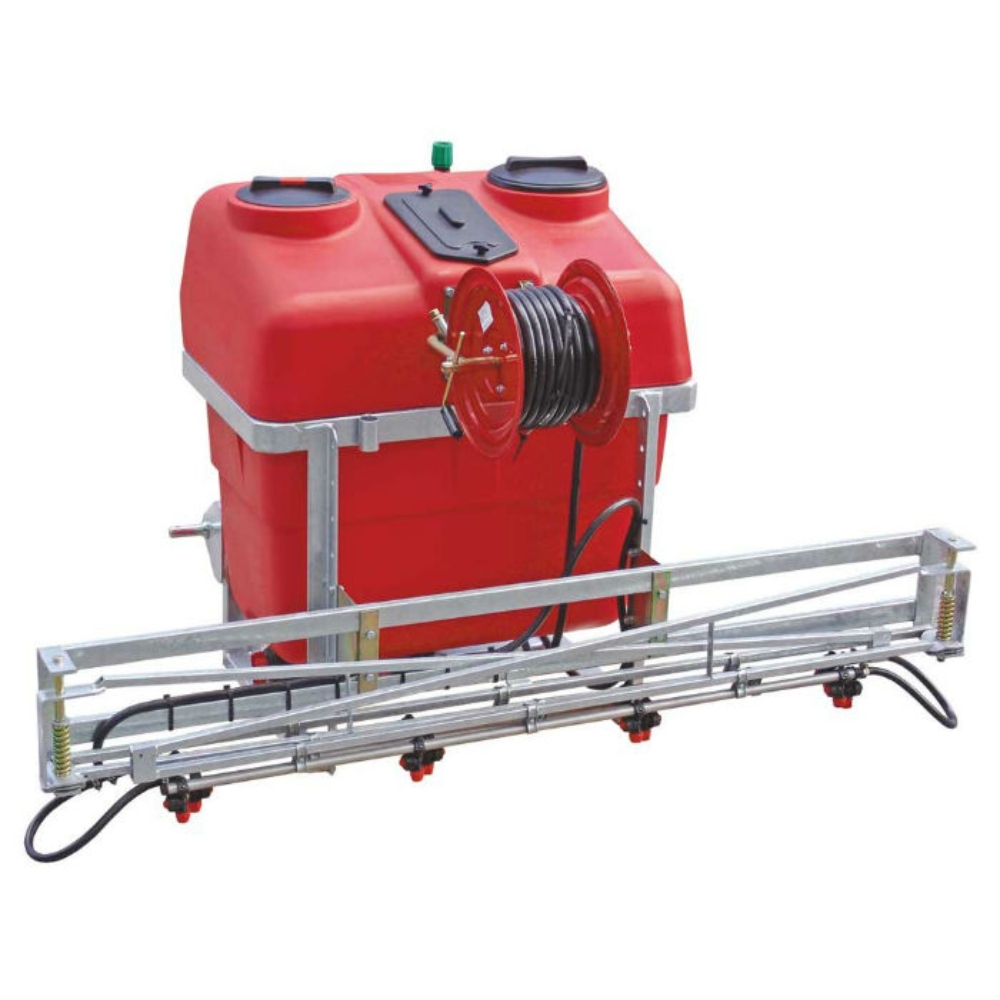

Silvan Pasturepak Linkage Sprayer 400L – BP60/20 Pump, 6m Field Boom – KBE400

Pasturepak series 400 litre Linkage sprayer with 6m Field boom, hose reel and spray gun, and BP 60/20 diaphragm pump 58L/min. Unit is part of the Super series with low profile tank, external sightline with floating ball and 15L fresh water tank and 4L toolbox. Adjustable Cat I & II hitch system to suit a wide range of TPL mounting points. New vertical boom channel for positioning the boom at the optimum height.

Stock/Ref #: KBE400 Brand: Silvan

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

$6,545.00

Need Finance
For This Asset?

Description

Silvan Pasturepak Linkage Sprayer 400L – BP60/20 Pump, 6m Field Boom – KBE400

Model Description:
Pasturepak series 400 litre Linkage sprayer with 6m Field boom, hose reel and spray gun, and BP 60/20 diaphragm pump 58L/min. Unit is part of the Super series with low profile tank, external sightline with floating ball and 15L fresh water tank and 4L toolbox. Adjustable Cat I & II hitch system to suit a wide range of TPL mounting points. New vertical boom channel for positioning the boom at the optimum height.

Model Specifications:

  • Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. BP60/20: 58 L/min. capacity 2000kPa pressure.
  • Boom: Field boom: 6m with stainless steel spray lines, non-drip nozzle holders, fully galvanized frame and spring loaded safety break back/forward.
  • Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacing.
  • Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
  • Tank: Low profile, 400l polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15l fresh water tank with closed lid and easy to handle on/off tap. 4l toolbox with polyethylene lid.
  • Frame: Fully galvanized steel, cat I and II linkage.
  • Agitation: Bypass agitation.
  • Pressure Gauge: 1 x glycerine filled gauge.
  • Filtration: Lid strainer, suction line strainer (with stop valve fitted at side of tank to enable ease of filter maintenance), and nozzle cup strainers.
  • Hose Reel: Fitted with rear-mounted hose reel, including 20m of 12mm I.D quality pressure hose and Silvan Triam 44 spray gun with convenient trigger action and spray pattern adjustment.
  • PTO Driveshaft: Quality driveshaft with quick release pins and safety cover.

Dimensions: (with boom)

  • Trailed/Linked: Linkage
  • Tank Size: 400.00l
  • Pump Size: 58.00 L/min
  • Length x Width x Height: 1050mm / 2067mm / 1200mm
  • Product Weight: 150kg

Options:

  • 14L foam marker (single side)
  • 16L foam marker (double side)

Note Boom and Hose Reel Not Fitted.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

Additional information

Weight 160 kg
Dimensions 220 × 120 × 150 cm
