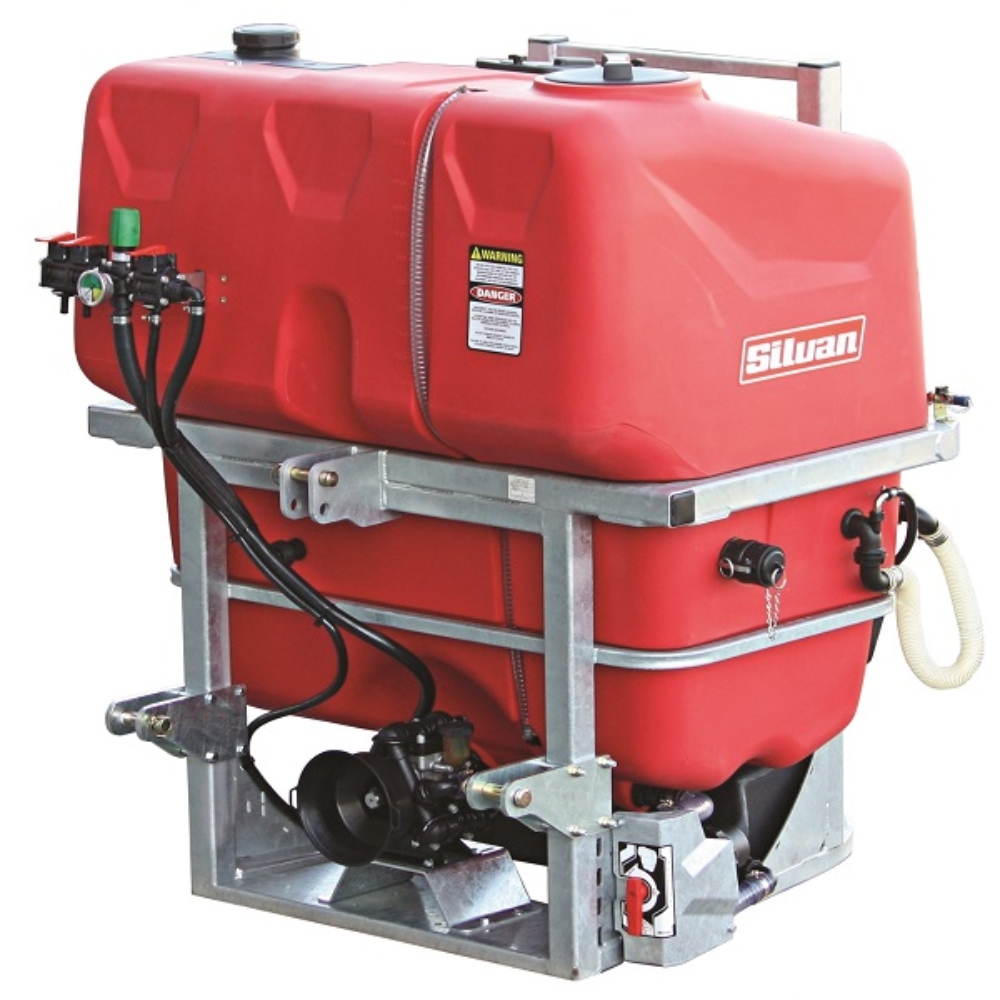

Silvan Super Linkage Sprayer 1100L – BP75/20 Pump, No Boom – K11NH-75
Silvan Super Linkage Sprayer – 1100ltr with BP75/20 Pump, 71l/min.
Click Here for Instruction Manual
Video – Silvan Super Series 3PL Sprayers
Model Specifications:
- Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP75/20: 71L/min. capacity 2000kPa pressure.
- Controls: 3 outlet manual control valve with pressure regulator.
- Tank: Low profile 1100L Polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polythylene lid.
- Frame: Galvanised steel with adjustable cat II hitch. Vertical boom channel for positioning the boom at the optimum spray height.
- Agitation: Bypass agitation.
- Chemical Induction: Venturi suction probe with detachable hose.
- Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
- Filtration: Lid strainer, suction line strainer with stop valve fitted at the side of the tank to enable ease of filter maintenance.
- PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Dimensions:
- Trailed/Linked: Linkage
- Tank Size: 1100.00 litres
- Pump Size: 71.00 L/min
- Length: 1350mm
- Width: 1395mm
- Height: 1610mm
- Product Weight: 160kg
Factory Options:
- 6m Field boom.
- 8m Field boom.
- 10m Field boom.
- 12m Fieldmaster boom with suspension.
- 6m Devil boom with hydraulic fold.
- 8m Devil boom with hydraulic fold.
- 10m Devil boom with hydraulic fold.
- 10m HD Devil boom with hydraulic fold.
- 12m HD Devil boom with hydraulic fold.
- 14m HD Devil boom with hydraulic fold.
- 15m HD Devil boom with hydraulic fold.
- Hydraulic lift, galvanised single hydraulic system – 6, 8m devil booms.
- Hydraulic lift, galvanised single hydraulic system – 10, 12, 14 & 15m devil booms.
- Hydraulic lift with airbag suspension – 10, 12, 15 & 15m HD devil booms.
- 8 Jet vine boom.
- 10 Jet vine boom.
- Undervine and mid row boom.
- Boomless nozzle mounting kit (brass nozzle not included).
- 70L flush tank kit to flush the filter, spraylines and nozzles.
- 16L foam marker (double side).
- 57L Paddock marker foam marker.
- Economy hose reel, 20m hose (12mm ID) with Triam spray gun.
- Reel tuff 12V remote reel with Turbo 400 spray gun inc. APS41 pump upgrade.
- Electric on/off control 3 section.
- Electric control 3 section with in cab pressure adjustment.
- Bravo 180S automatic rate controller.
- Silmix chemical hopper.
