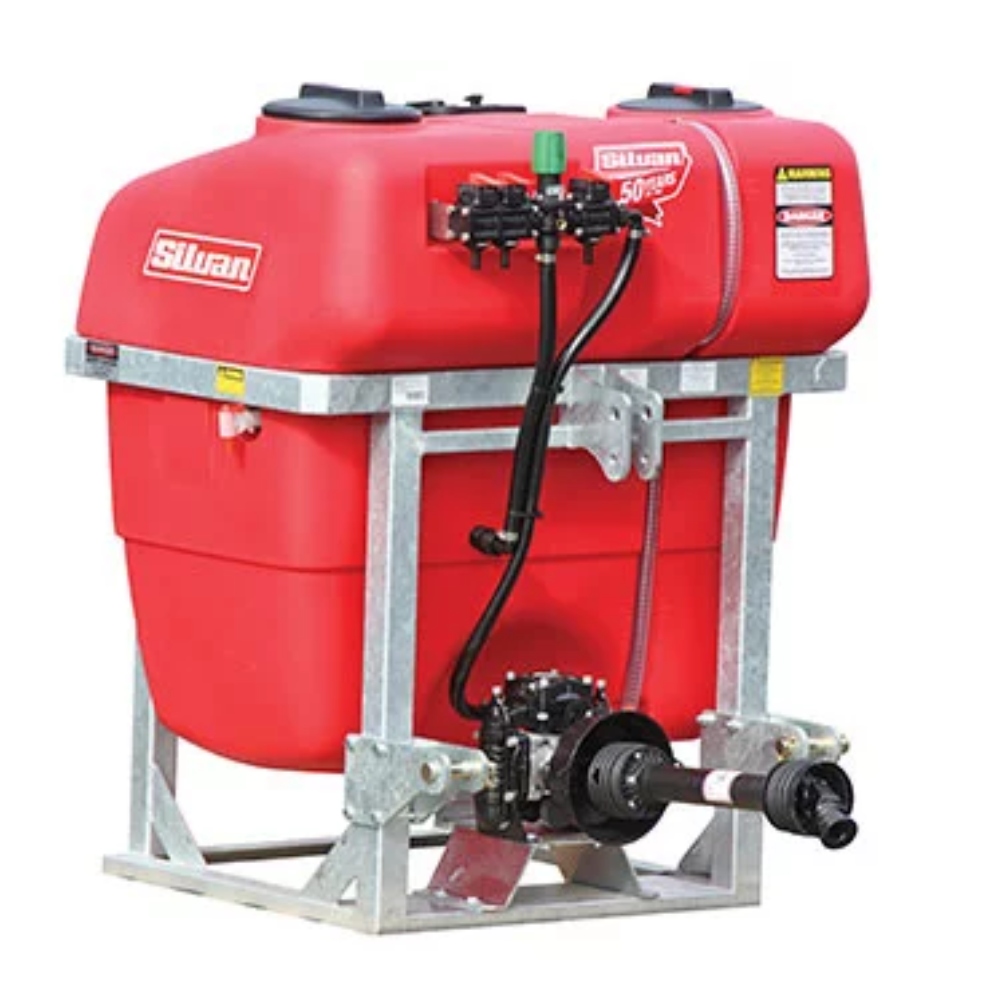

Silvan Super Linkage Sprayer 600L – BP130/20 Pump, No Boom – K06N-105

Description

Silvan Super Linkage Sprayer 600L – BP130/20 Pump, No Boom – K06N-105

Super Linkage Sprayer – 600ltr with BP130/20 Pump, 132l/min

Click Here for Instruction Manual

Video – Silvan Super Series 3PL Sprayers

Model Specifications:

• Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP130/20: 132L/min. capacity 2000kPa pressure.
• Controls: 3 outlet manual control valve with pressure regulator.
• Tank: Low profile 600L Polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polythylene lid.
• Frame: Galvanised steel with adjustable cat II hitch. Vertical boom channel for positioning the boom at the optimum spray height.
• Agitation: Bypass agitation.
• Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
• Filtration: Lid strainer, suction line strainer with stop valve fitted at the side of the tank to enable ease of filter maintenance.
• PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.

Dimensions:

• Trailed/Linked: Linkage
• Tank Size: 600.00 litres
• Pump Size: 132.00 L/min
• length: 1025mm
• Width: 1150mm
• Height: 1300mm
• Product Weight: 105kg

Options:

• 6m Field boom.
• 8m Field boom.
• 10m Field boom.
• 12m Fieldmaster boom with suspension.
• 6m Devil boom with hydraulic fold.
• 8m Devil boom with hydraulic fold.
• 10m Devil boom with hydraulic fold.
• Hydraulic lift, galvanised single hydraulic system – 6, 8m devil booms.
• Hydraulic lift, galvanised single hydraulic system – 10m devil booms.
• 8 Jet vine boom.
• 10 Jet vine boom.
• Olive Boom.
• Undervine and mid row boom.
• Boomless nozzle mounting kit (brass nozzle not included).
• 70L flush tank kit to flush the filter, spraylines and nozzles.
• 14L foam marker (single side).
• 16L foam marker (double side).
• 57L Paddock marker foam marker.
• Economy hose reel, 20m hose (12mm ID) with Triam spray gun.
• Reel tuff 12V remote reel with Turbo 400 spray gun inc. APS41 pump upgrade.
• Electric on/off control 3 section.
• Electric control 3 section with in cab pressure adjustment.
• Bravo 180S automatic rate controller.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
