Vogal Spreadmax 120 Magnesium Duster & Fertiliser Spreader – 795SX120

Designed to spread causmag, urea, grass seed and various other types of fertiliser.

Stock/Ref #: 795SX120 Brand: Vogal

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

$4,235.00

Need Finance
For This Asset?

Description

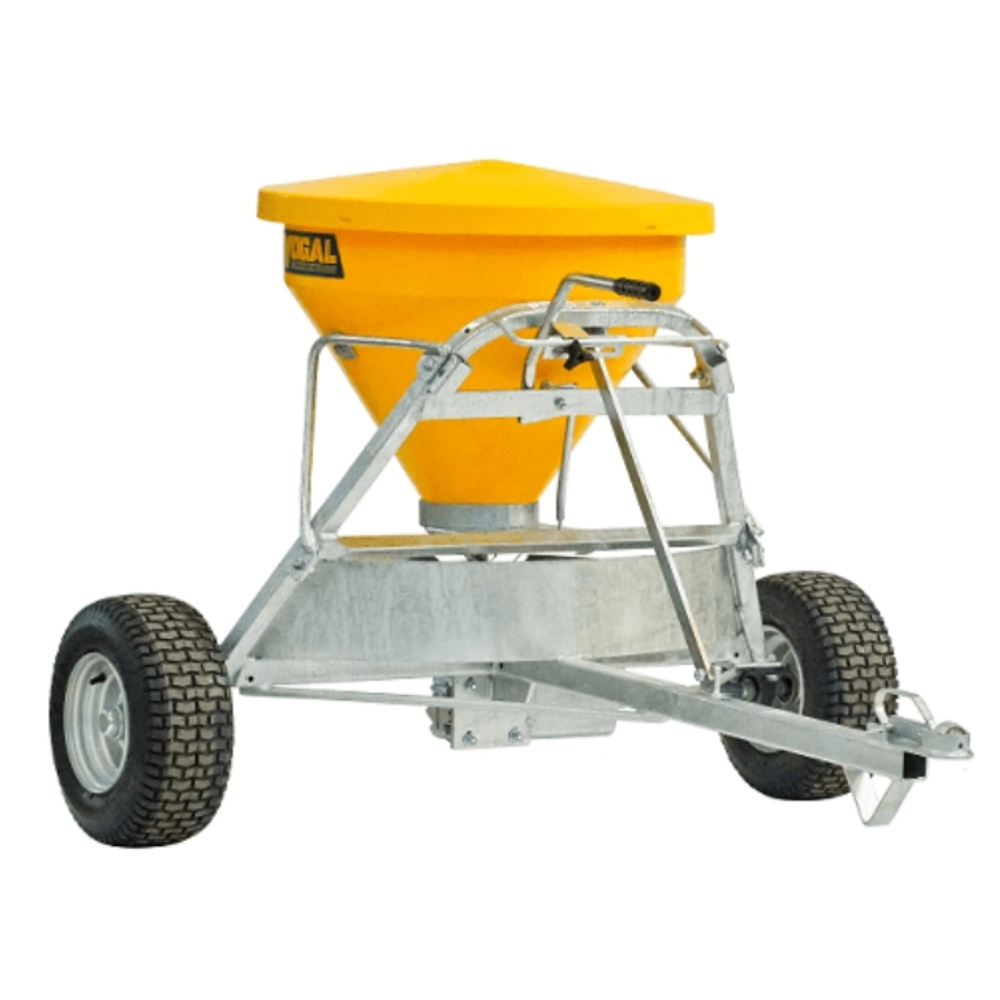

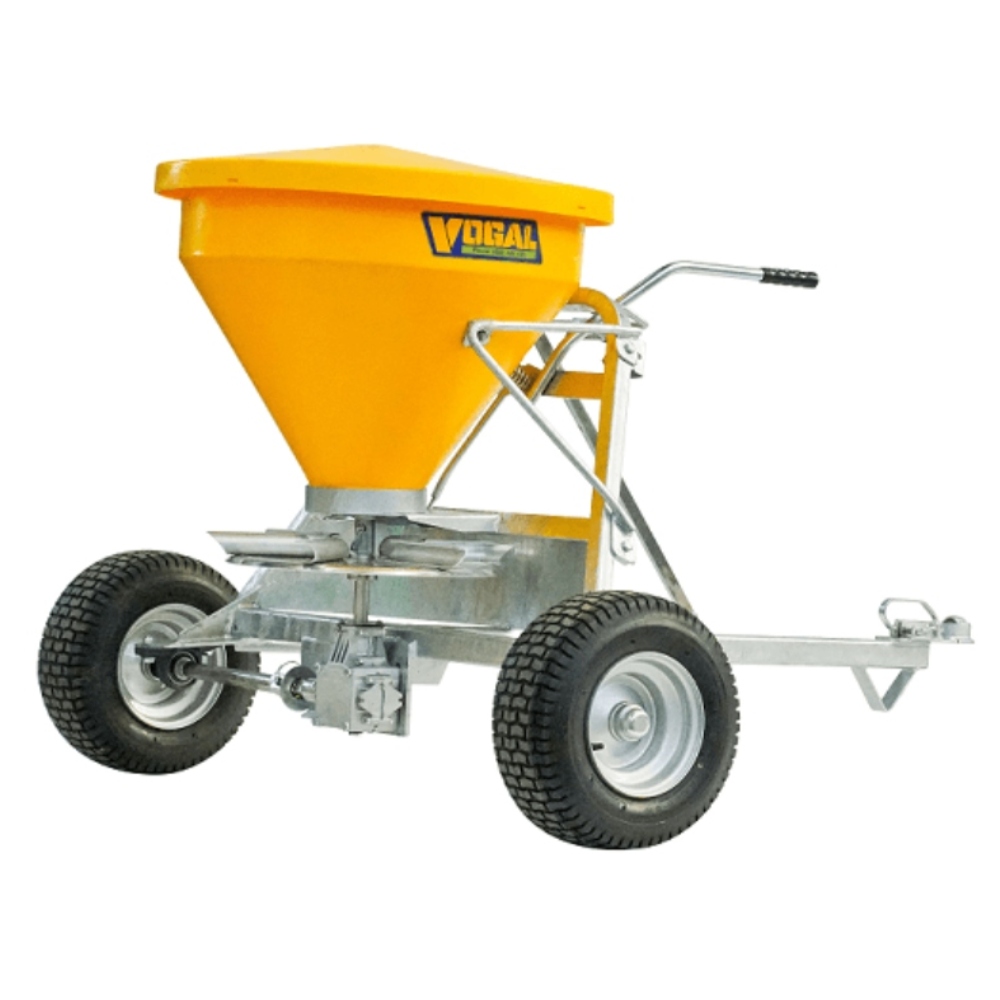

Vogal Spreadmax 120 Magnesium Duster & Fertiliser Spreader – 795SX120

Designed to spread causmag, urea, grass seed and various other types of fertiliser.

The unique drive system ensures trouble free and reliable operation, whilst the extra wide wheel base ensures operator safety and stability, particularly on hillsides.

Video – Vogal Spreaders

Features

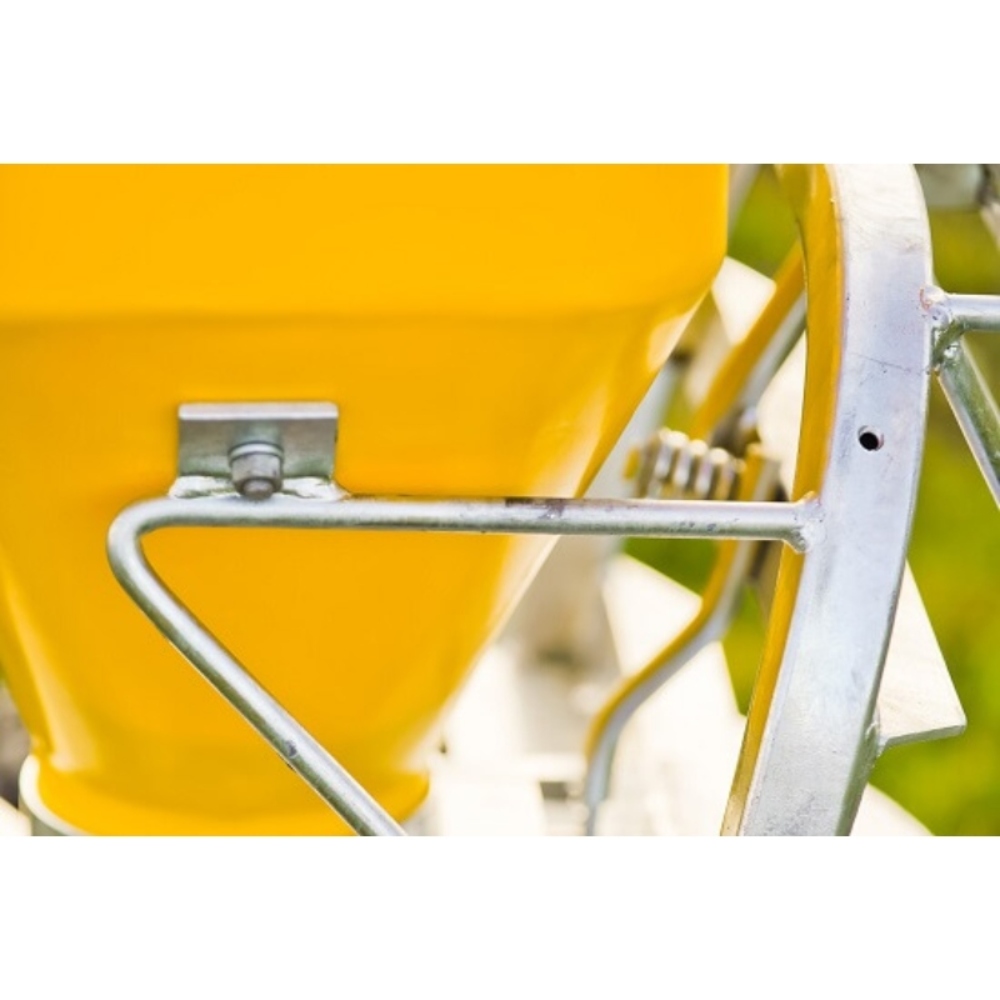

  • Vogal Spreadmax 120 hoppers are made from thick heavy duty UV resistant plastic to cope with the harsh extremes in the Australian and New Zealand environment and are braced with solid galvanised steel side arms.

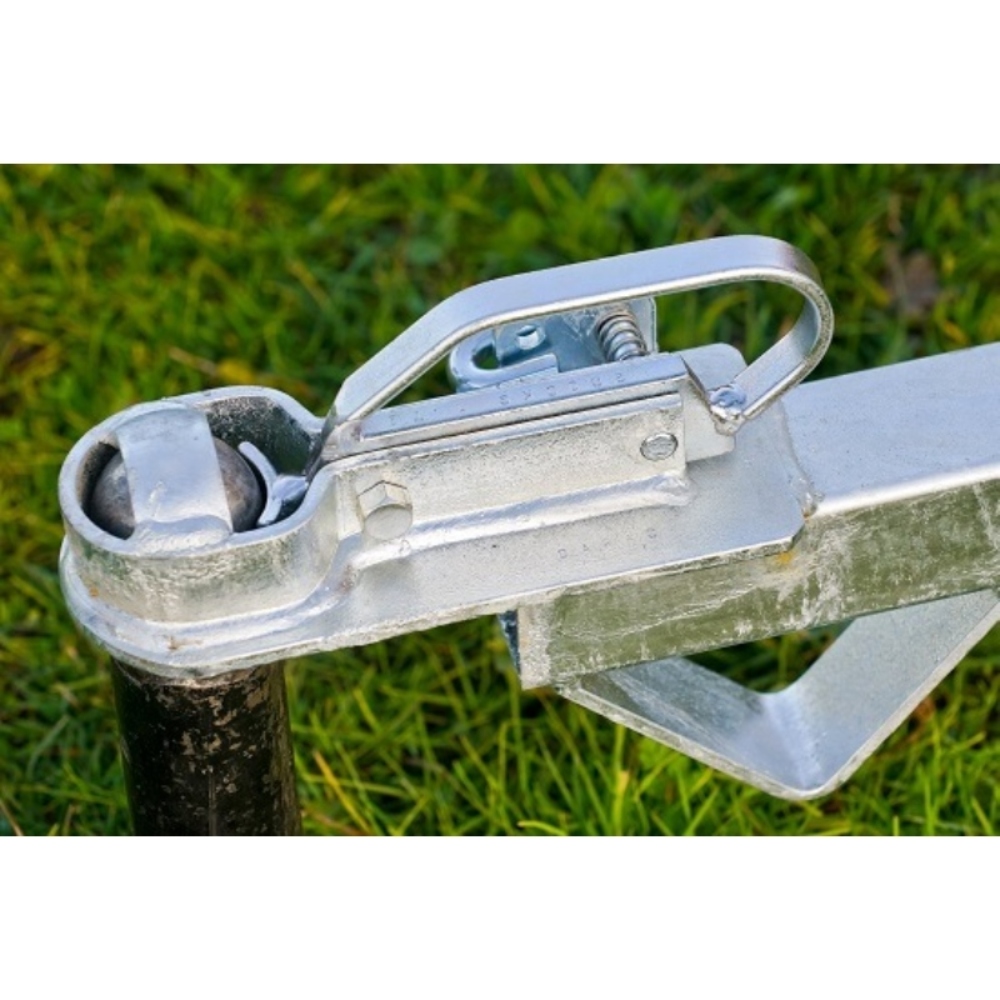

  • Featuring a heavy duty galvanised steel tow coupling, this ensures it has sufficient strength and durability to pull heavy loads in harsh conditions.
  • Six fins on the spreading disc, to ensure optimal spreading of both powdered products such as Causmag and lime flour along with standard prilled fertilisers.
  • Dual triangular apertures enable the even spreading of a vast array of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.
  • The removable agitator is secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator and enable easy cleaning of the spreaders hopper base.

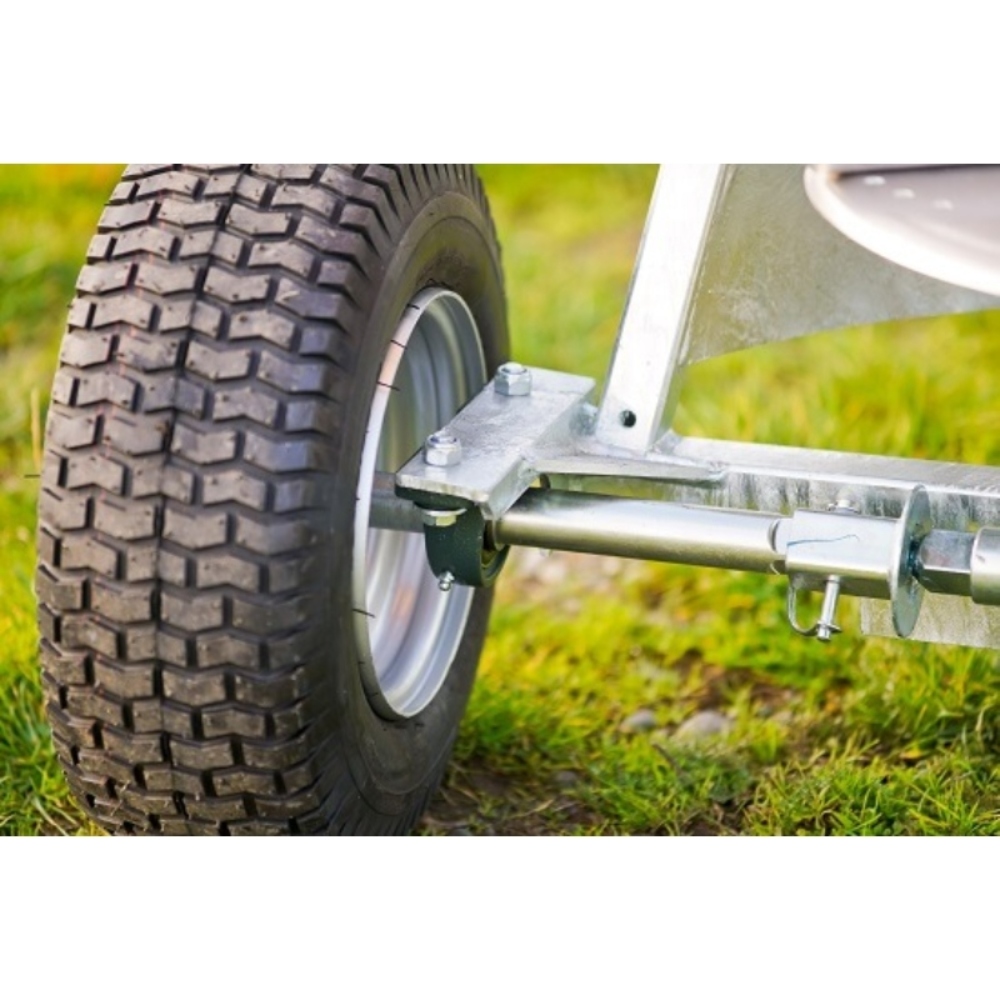

  • Heavy duty galvanised frame with extensive gusseting and bracing. The drive shaft is supported at the wheel with a high quality greaseable bearing for long life and smooth operation.

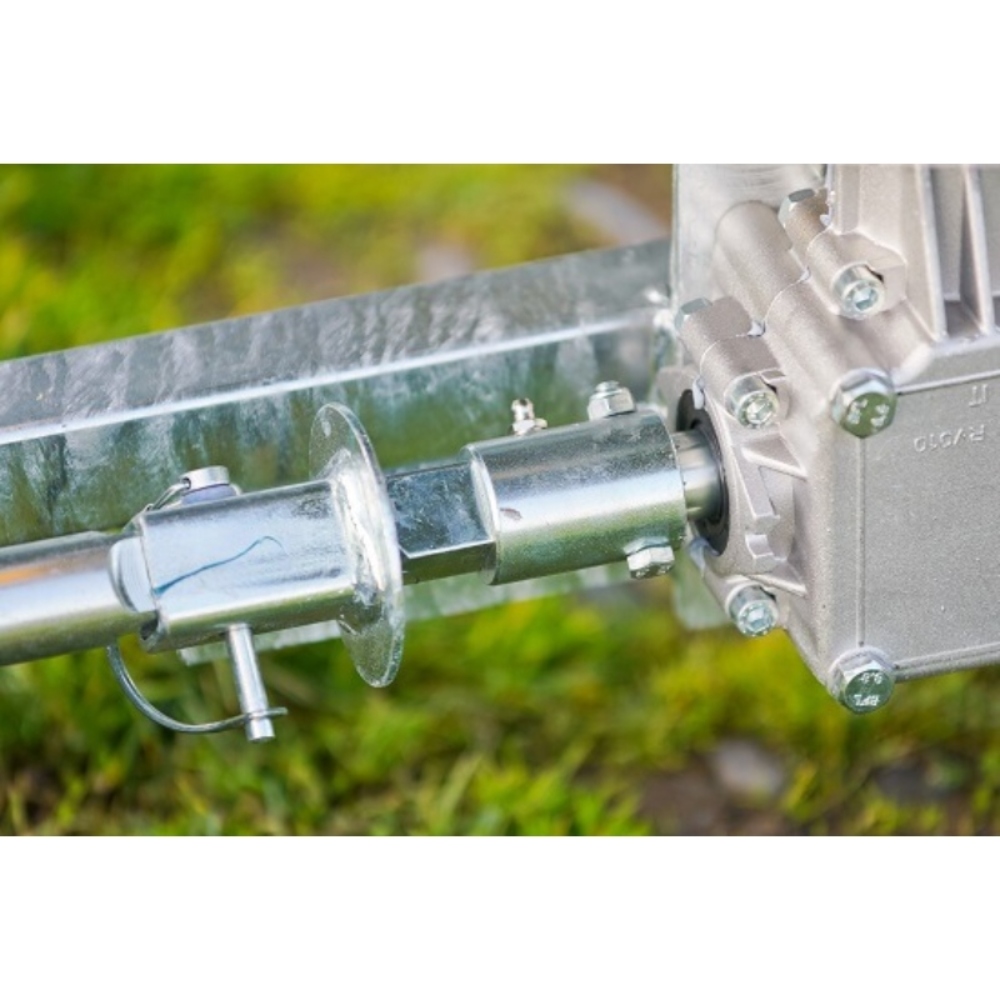

  • An easy to use Pin Lock drive system, the operator simply moves the slider to the left or right to engage or disengage. The lynch pin holds the slider in place.
  • Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox

Specifications

  • Model – 795.SX120
  • Capacity – 120L
  • Max Spread Width – Causmag: 3m. Urea: 12m.
  • Dry Weight – 83kg
  • Overall Width – 1500mm
  • Loading Height – 1090mm

Options

  • Mud Guards – These optional galvanised steel mudguards simply bolt onto the spreader frame to help keep dirt and mud off the operator while in operation.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

Additional information

Weight 500 kg
Dimensions 500 × 500 × 500 cm
