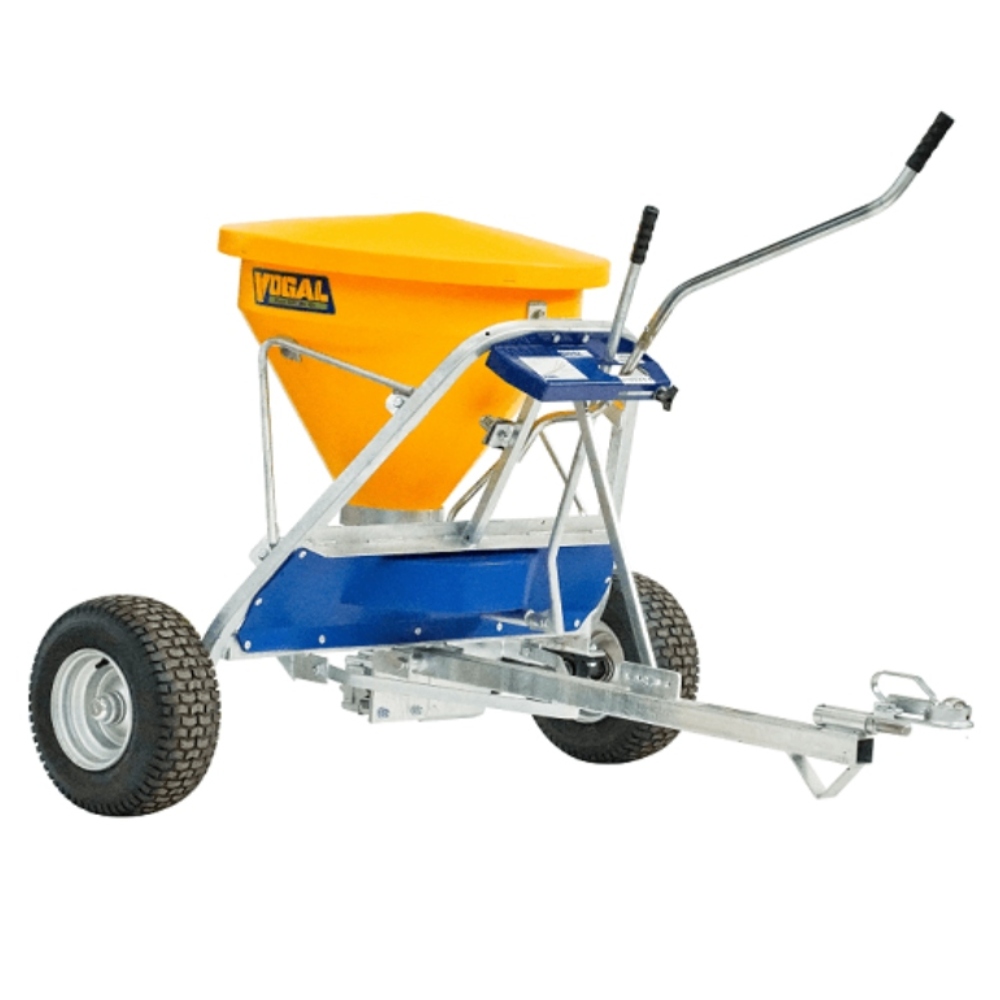

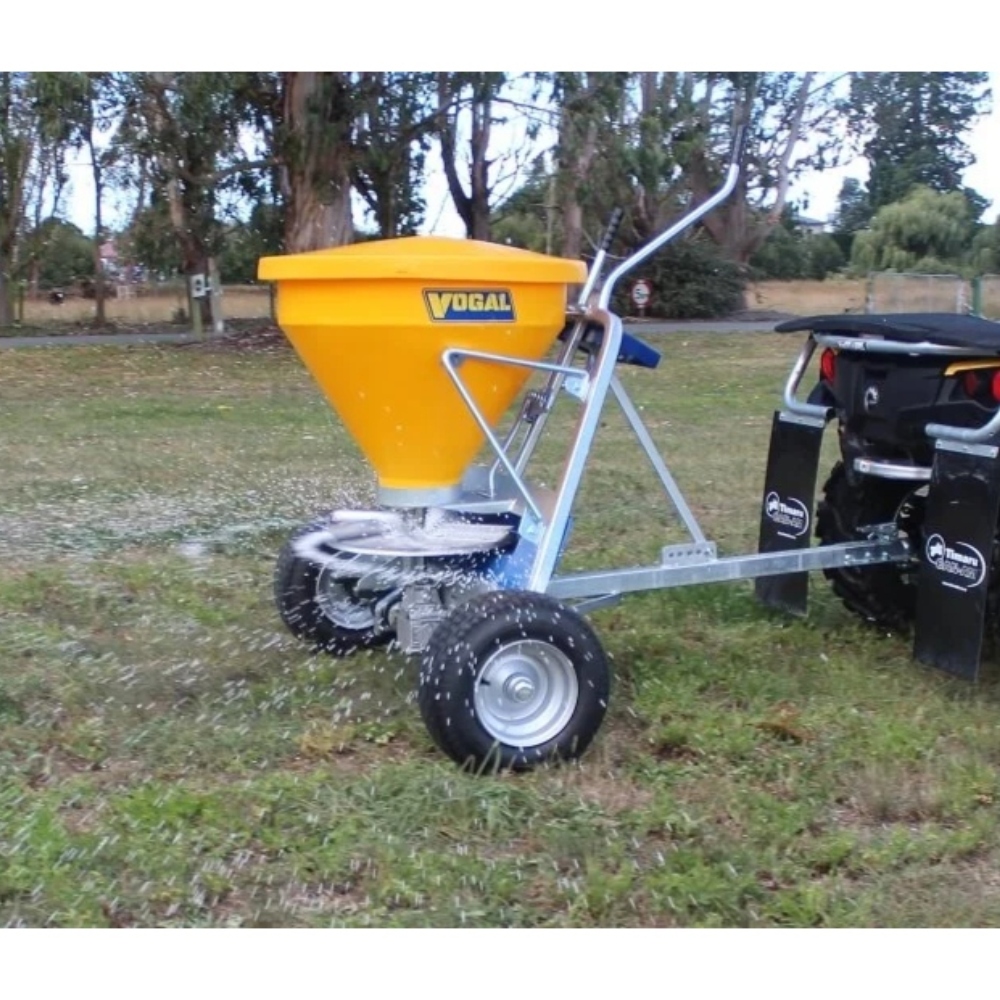

Vogal Spreadmax EX120 Fertiliser Spreader – 795EX120

Description

Vogal Spreadmax EX120 Fertiliser Spreader – 795EX120

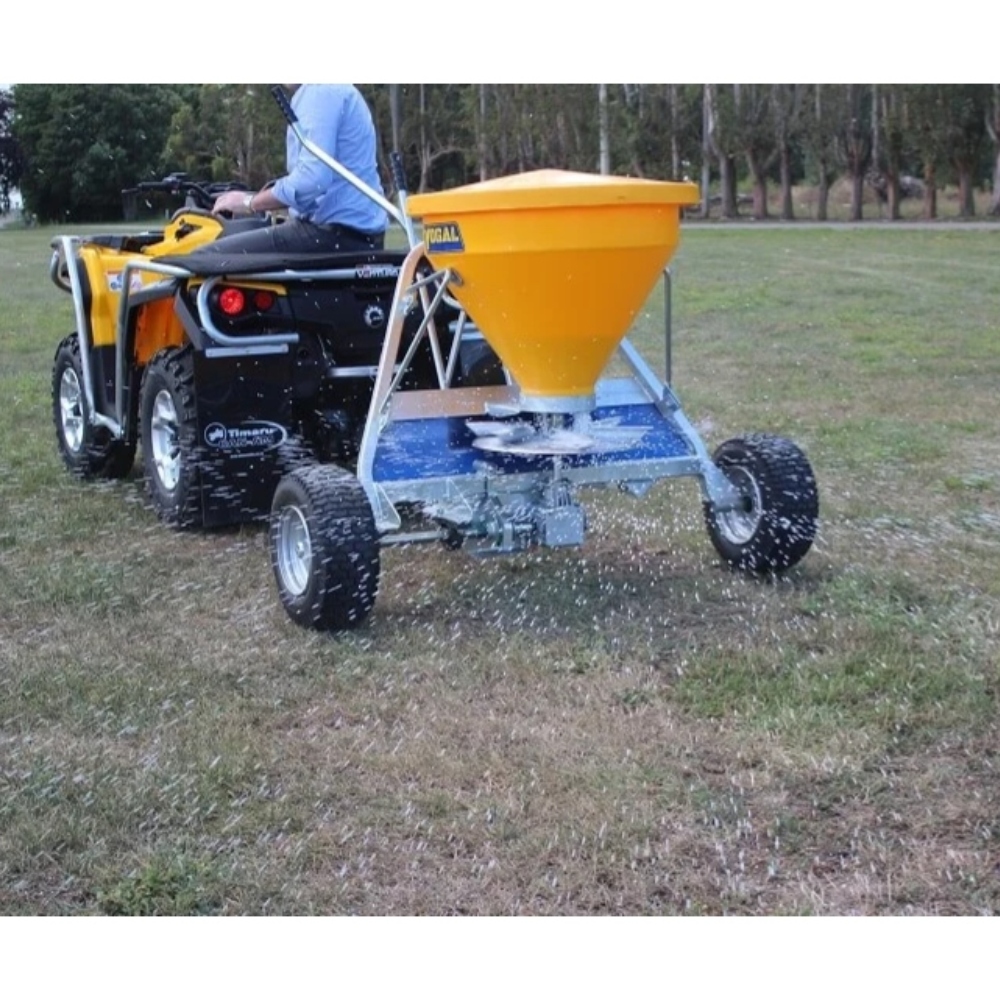

Designed to spread causmag, urea, grass seed and various other types of fertiliser,?the EX120 is the smallest quad bike spreader in the Vogal range that incorporates the easy-lock drive engagement system.

This means the drive engagement is controlled from the front of the spreader along with the shutter aperture control, via two levers. No more getting off the bike to engage the spinner disc!

Also included in the design is a double bearing on the drive wheel which reduces load on the gearbox, a wide track width, stainless steel shutter, super strong drawbar, U.V. resistant plastic hopper and lid and adjustable spinner fins are all included in this superior design.

Video – Vogal Spreaders

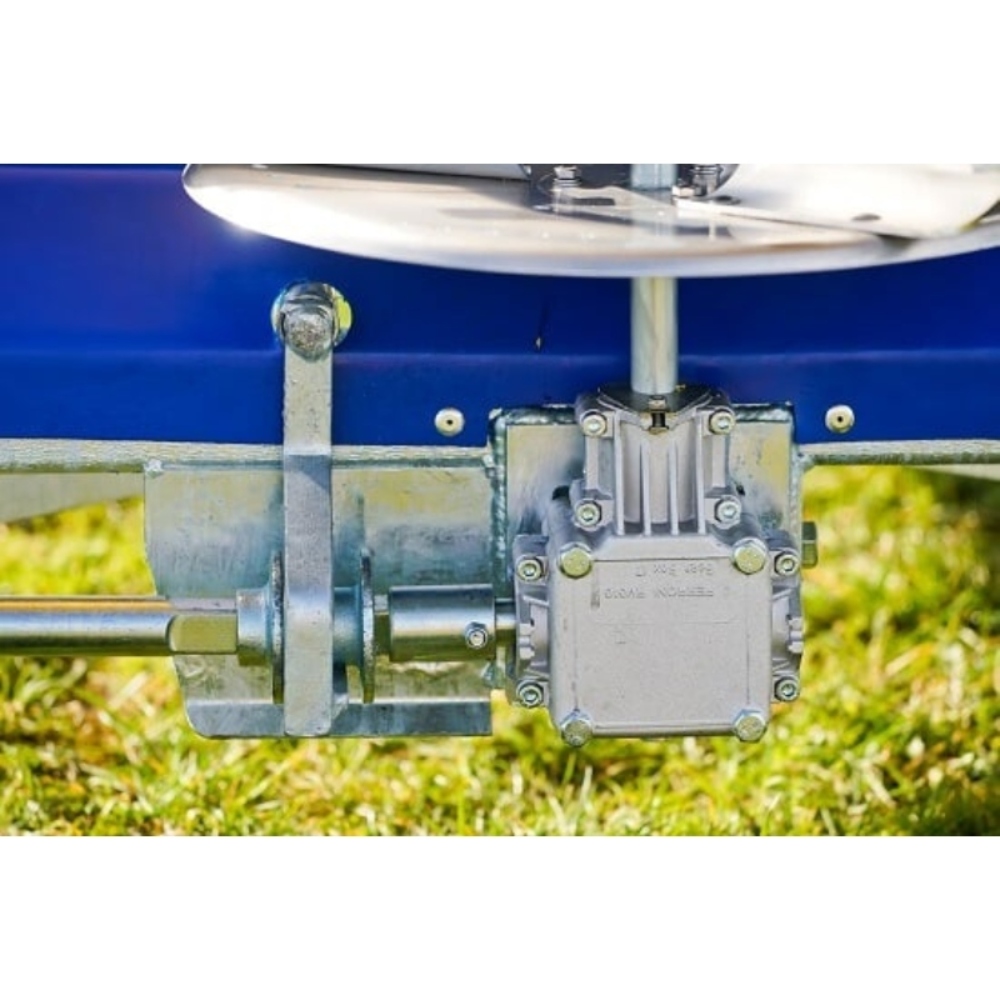

• Vogal EX120 spreaders feature the ‘Easy Lock’ drive system, this means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider.

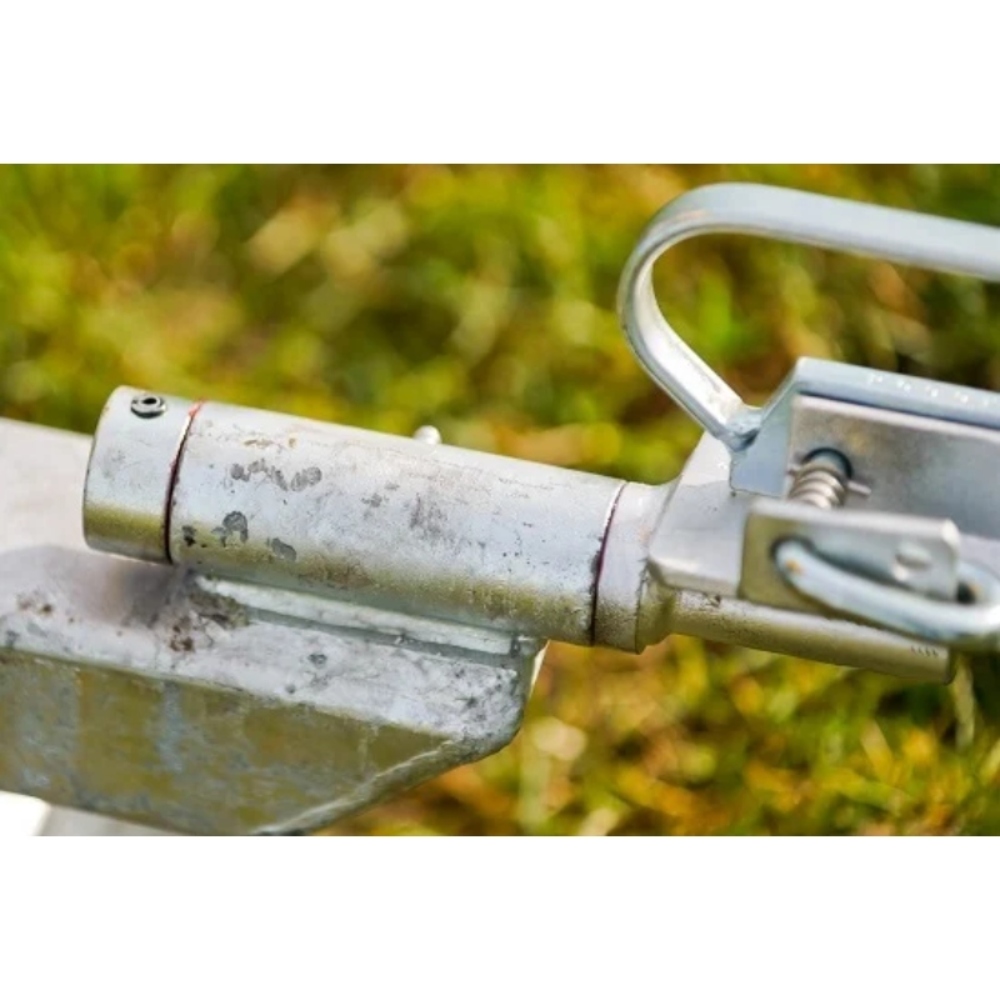

• Featuring a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independent of the bike or utv.

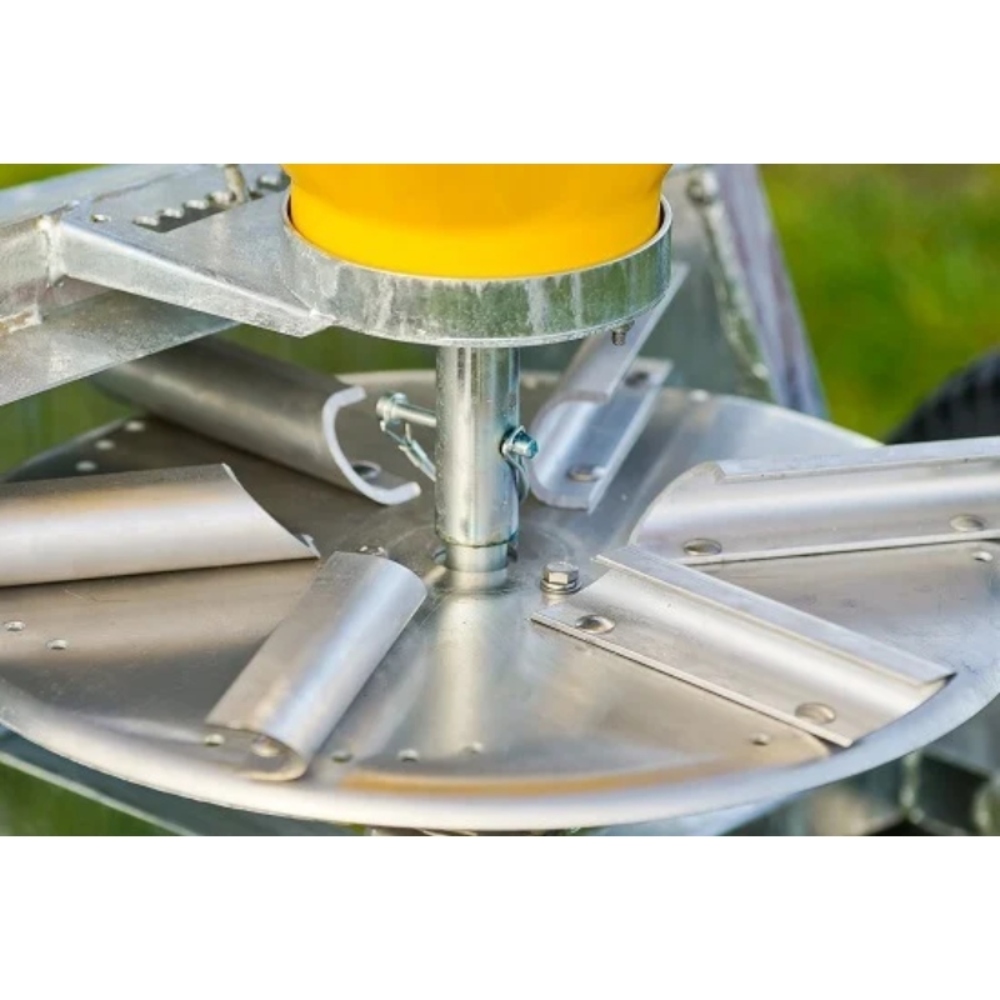

• EX120 spreader has six fins on the spreading disc to ensure optimal spreading of both powdered products such as Causmag and lime flour along with standard prilled fertilisers.

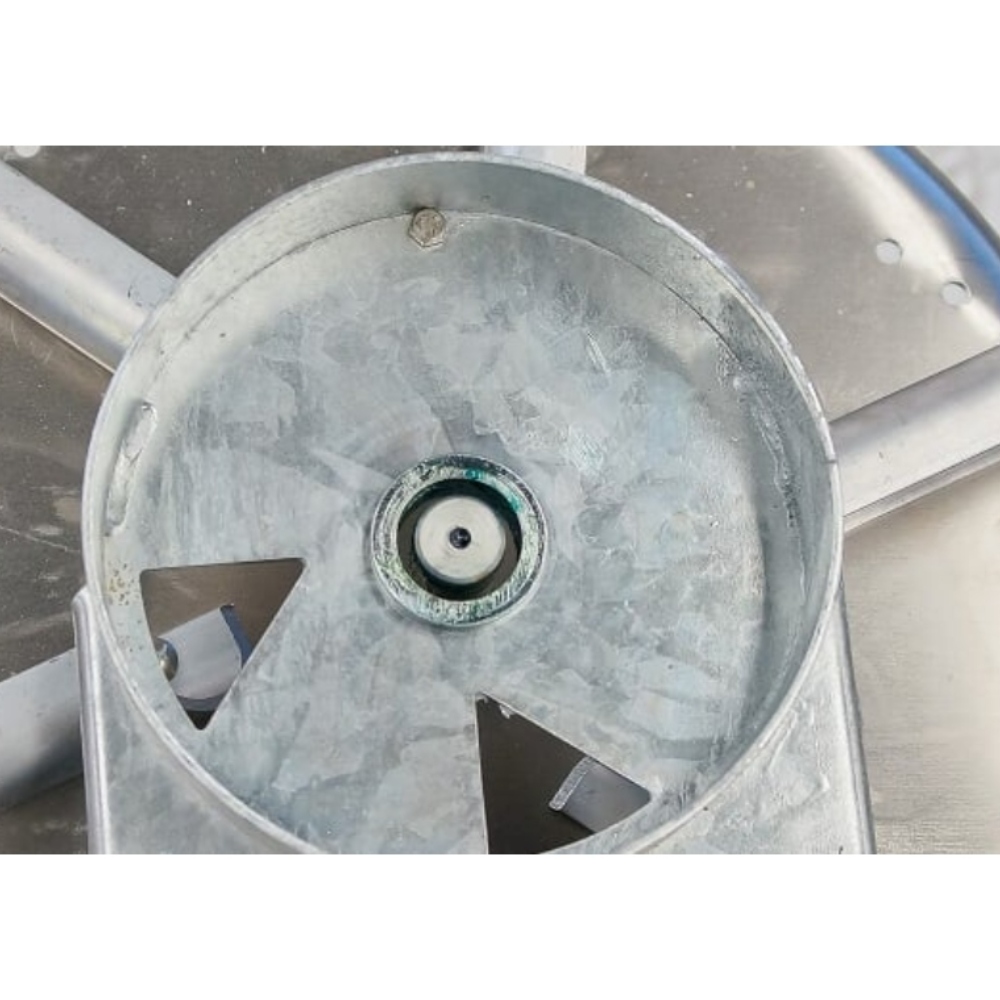

• Dual triangular apertures enable the even spreading of a vast array of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.

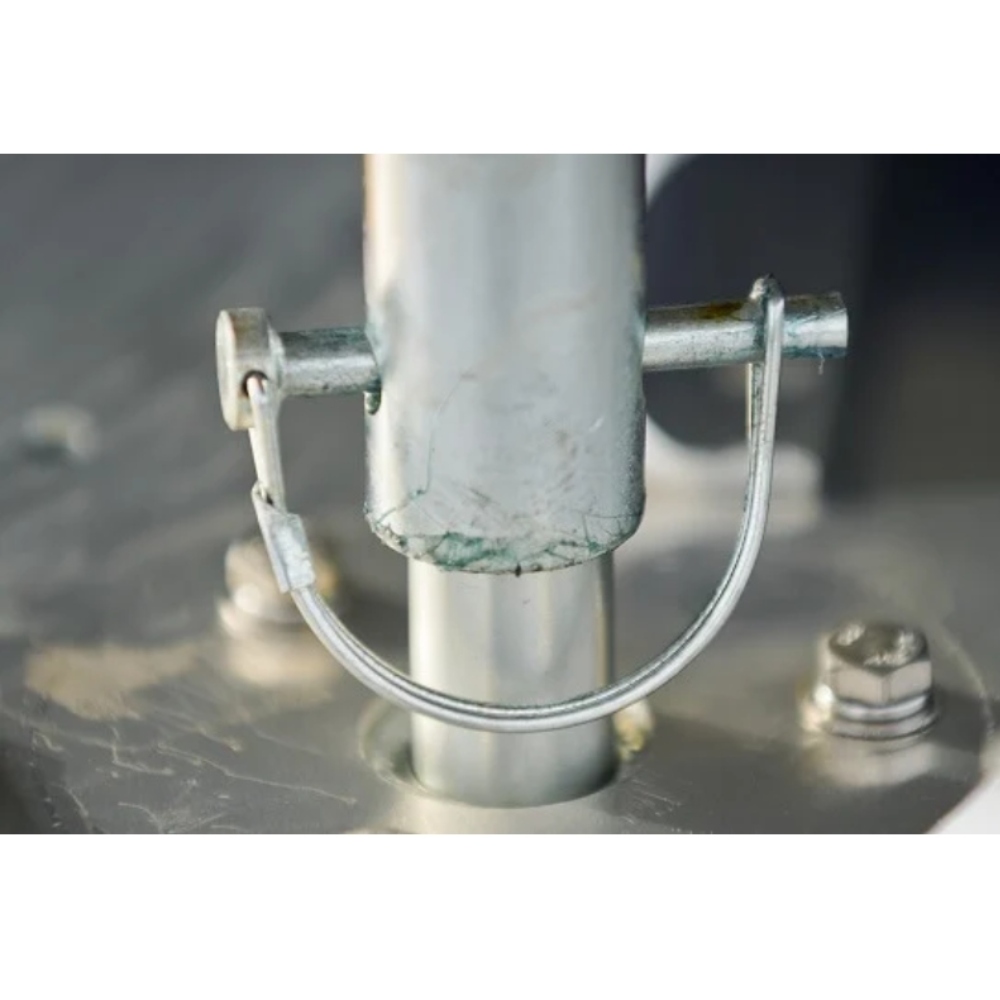

• Removable agitator that’s secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator to enable easy cleaning of the spreaders hopper base.
• Vogal EX120 spreaders feature a heavy duty galvanised frame with extensive gusseting and bracing to ensure high strength and durability for handling large loads of fertiliser on bumpy ground.

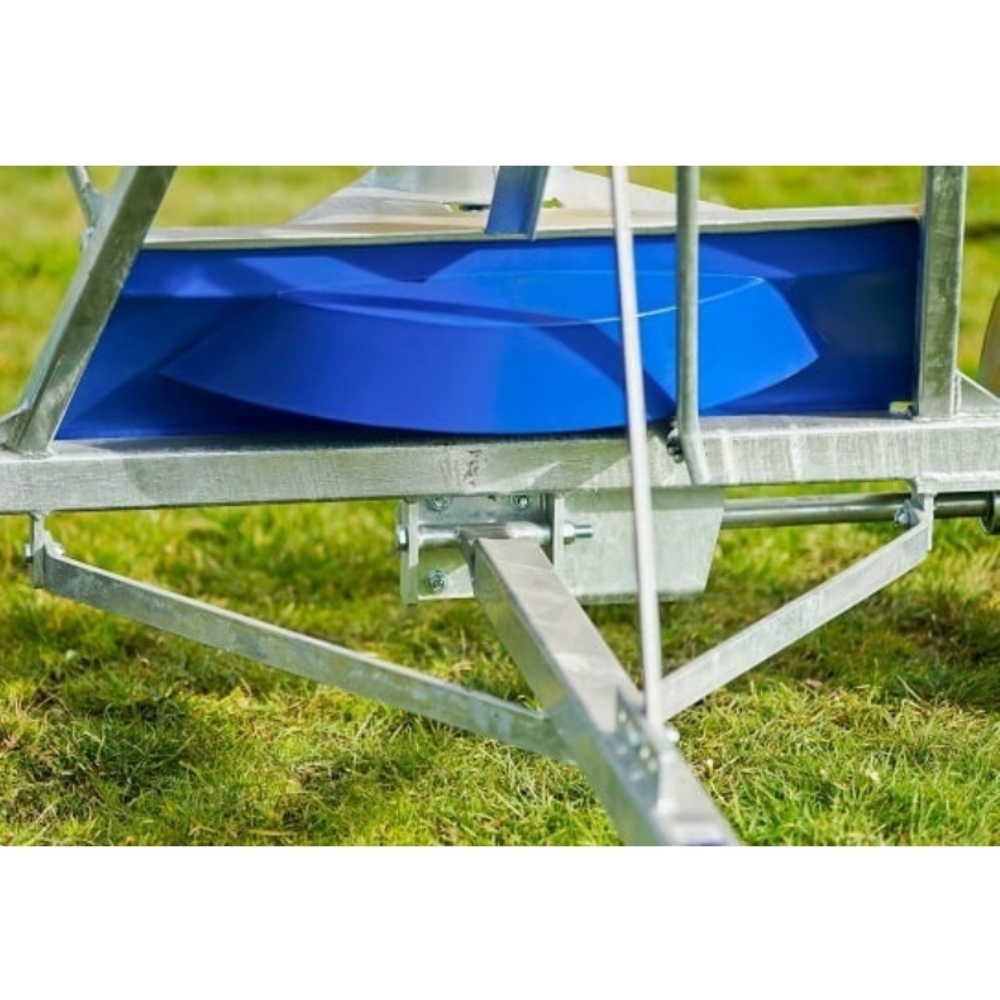

• As with other EX series spreaders, the EX120 features an adjustable drawbar to keep the spinner disc level regardless of how high the vehicle tow ball is to ensure even spreading.

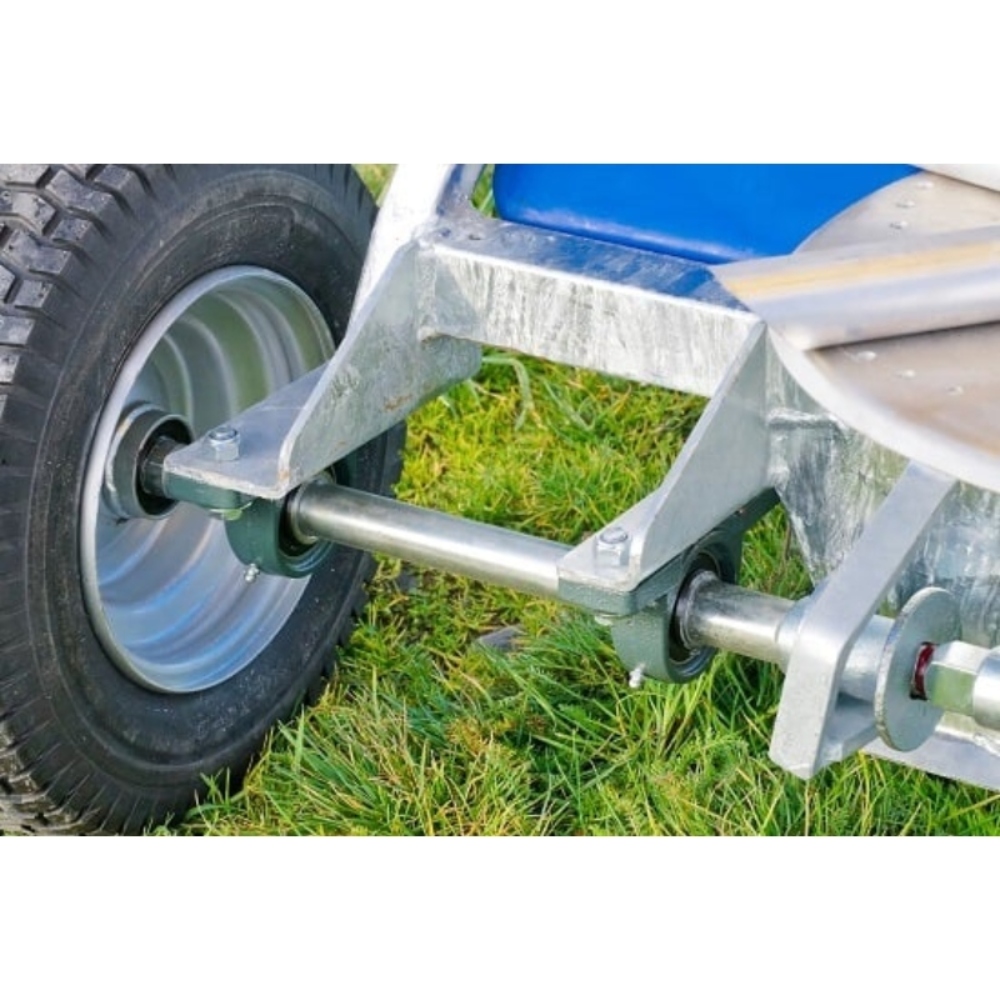

• The drive line on EX120 fertiliser spreaders features extra support along the drive shaft/ drive line via two fully greasable and sealed bearings, this reduces load on the gearbox.

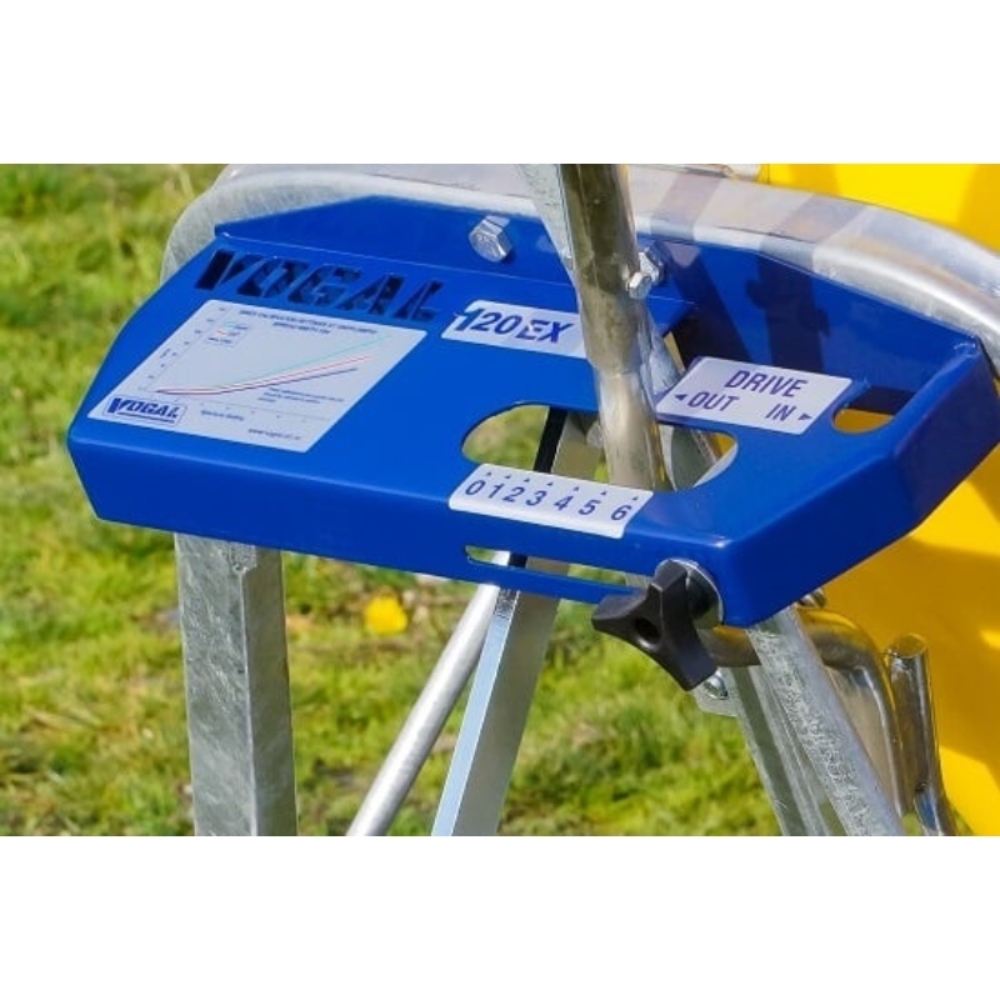

• All controls and adjustments for the EX120 spreader are located at the front in an easy to use Index and Control box. This includes a quick reference guide for spreading rates and settings along with the aperture and spinner control levers.

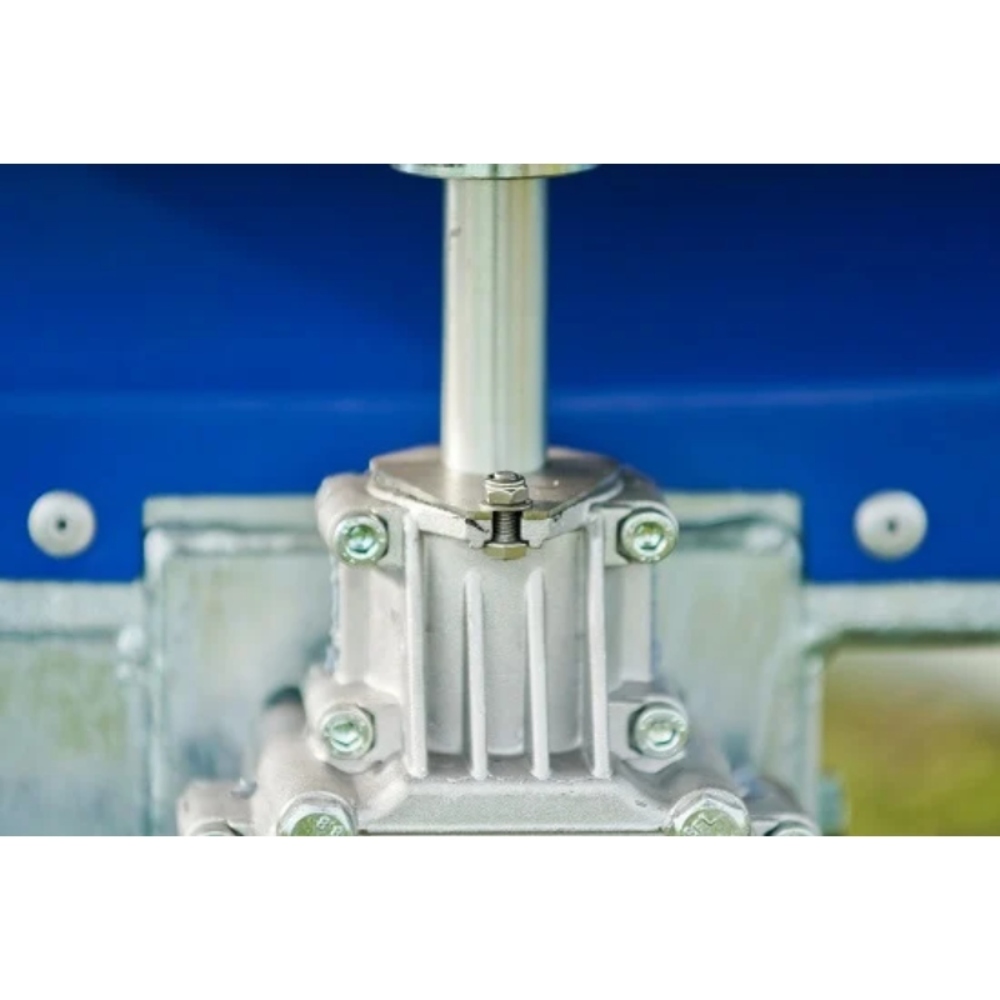

• Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox.

Specifications

• Model – 795.EX120
• Capacity – 120L
• Max Spread Width – Causmag: 3m. Urea: 12m.
• Dry Weight – 83kg
• Overall Width – 1500mm
• Loading Height – 1090mm

Options

• Mud Guards – These optional galvanised steel mudguards simply bolt onto the spreader frame to help keep dirt and mud off the operator while in operation.
• Side Chute – This side chute attachment allows the EX120 to band spread – particularly useful in orchards, vineyards and other horticultural industries where side dressing is required.
