Vogal Spreadmax TT750 Fertiliser Spreader – 795SXTT750

Description

Vogal Spreadmax TT750 Fertiliser Spreader – 795SXTT750

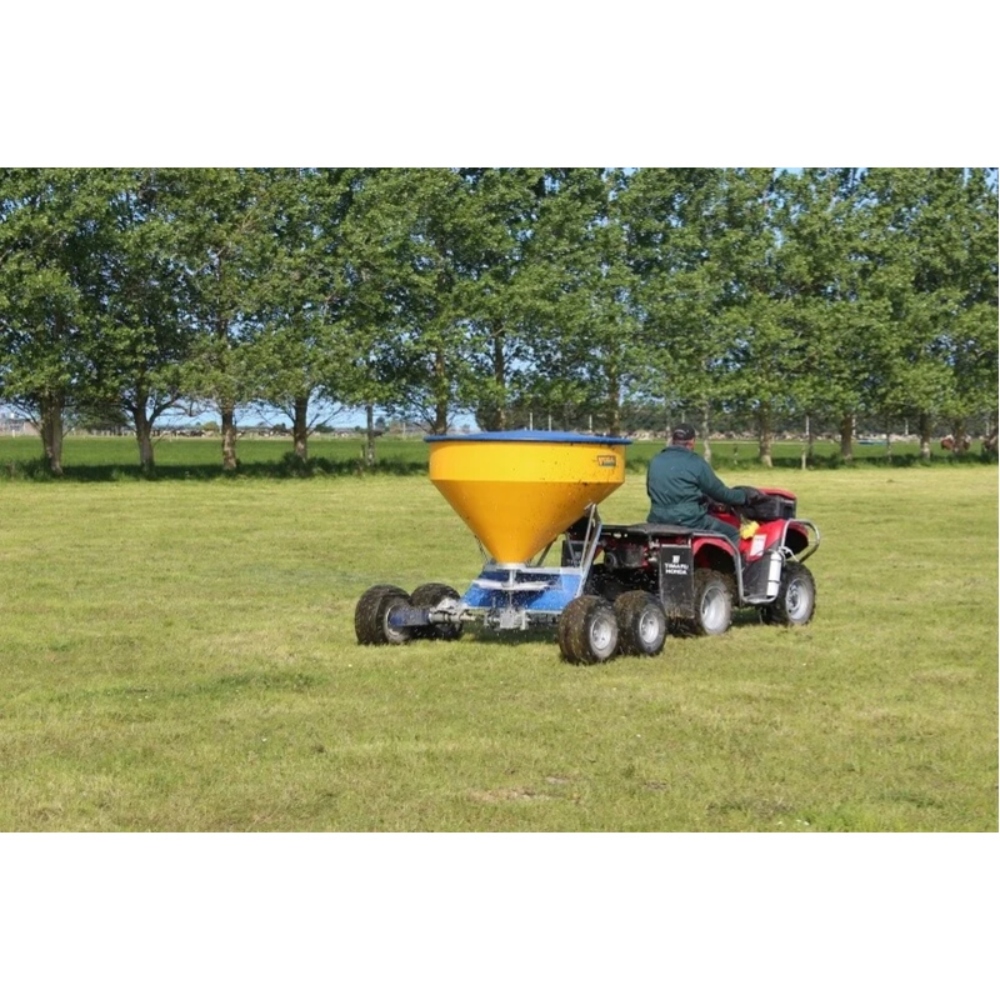

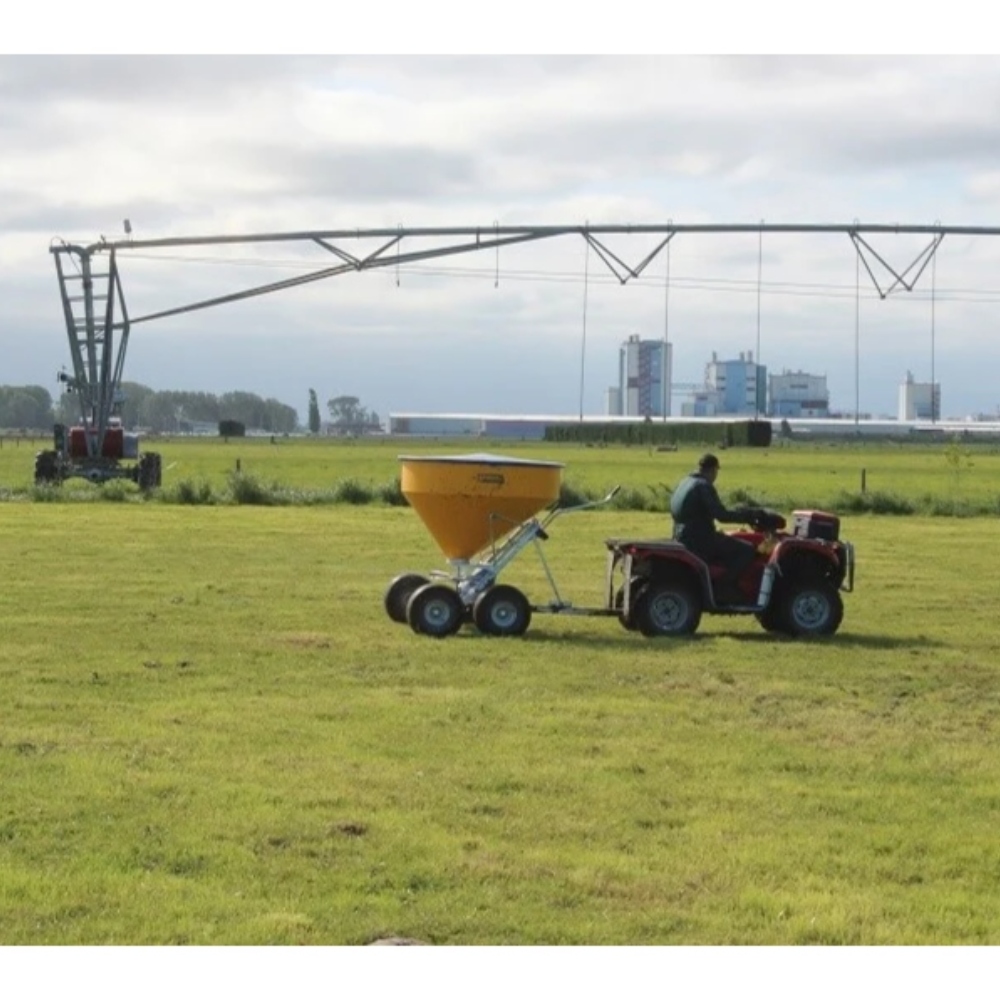

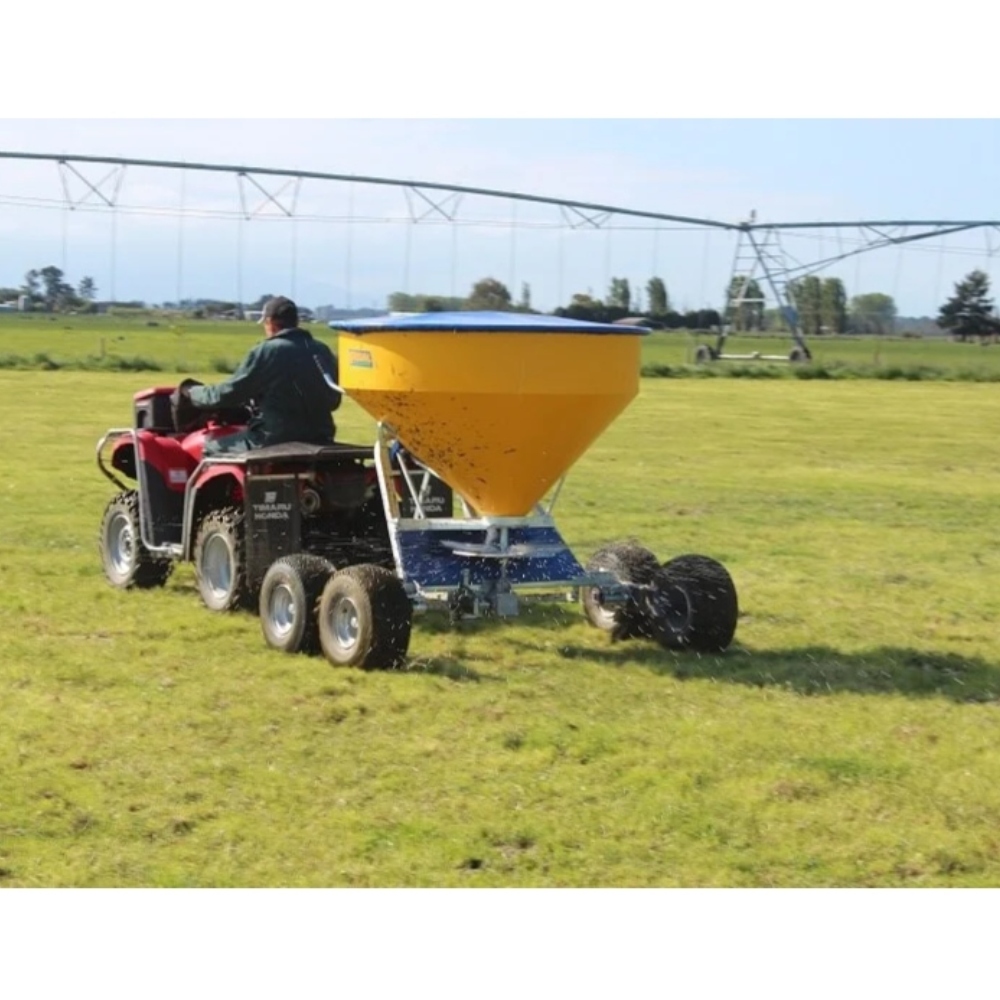

Particularly well suited to undulating, pugged or soft ground conditions,? the TT750’s four wheels and oscillating suspension absorbs bumps and eliminates the jarring effect that single axle machines give when towed over rough terrain.

Video – Vogal Spreaders

• Vogal TT750 spreaders feature the ‘Easy Lock’ drive system, this means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider.

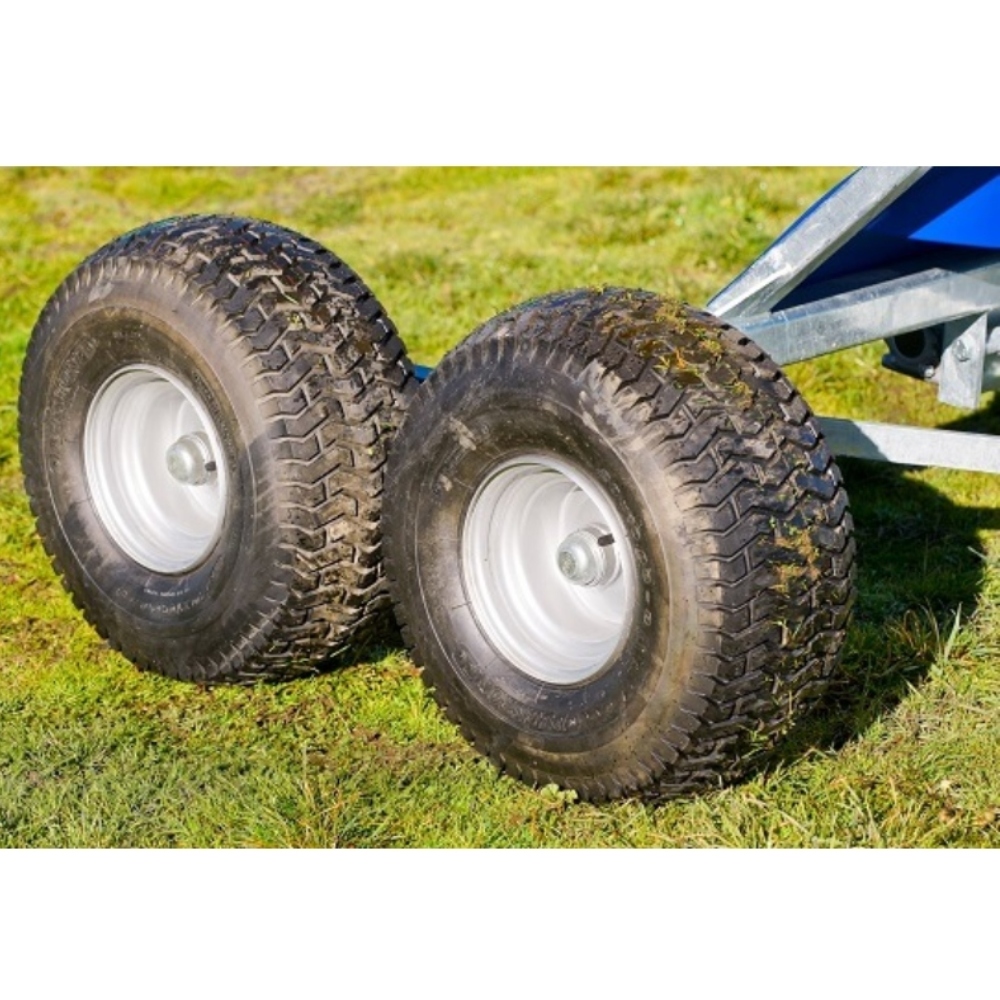

• Twin fully oscillating axle suspension absorbs bumps and eliminates jarring effects on undulating and bumpy ground. Ground pressure is also half that of a single axle model, this is helpful in pugged and soft ground.
• Features 3 spreading fins on the spinner disc, these fins are adjustable to enable fine adjustments to the spreading width and pattern.
• TT750’s feature a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independent of the bike or utv.
• A removable agitator that’s secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator and enable easy cleaning of the spreaders hopper base.
• TT750’s feature large heavy duty hoppers with a PVC cover, the PVC cover is easily removed and refitted for loading as well as having high UV resistance.
• Hoppers are made from thick heavy duty UV resistant plastic to cope with the harsh extremes in Australian and New Zealand environment and are internally braced with solid galvanised steel bars.
• A heavy duty galvanised frame with extensive gusseting and bracing to ensure high strength and durability for handling large loads of fertiliser on bumpy ground.
• Vogal spreaders feature gearbox protection. As seen here, stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox.
• Vogal TT750 fertiliser spreaders feature an adjustable drawbar to keep the spinner disc level regardless of how high the vehicle tow ball is to ensure even spreading.
• Dual triangular apertures enable the even spreading of a vast array of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.
• All controls and adjustments for the TT750 spreader are located at the front Index and Control box, including a quick reference guide for spreading rates and settings along with the aperture and spinner control levers. (EX750 Index shown).

Specifications

• Model – 795.SXTT750
• Capacity – 750L
• Max Spread Width – Urea: 15m.
• Dry Weight – 260kg
• Overall Width – 1990mm
• Loading Height – 1500mm

Options

• Side Chute – This optional side chute attachment allows the EX750 to band spread – particularly useful in orchards, vineyards and other horticultural industries where side dressing is required.
• Easy Spread Controller – The Easy Spread controller is an optional extra 12V electric actuator system enabling for quick spread rate selection and actuator control from the seat of your atv, utv or other vehicle. Simply ‘dial and go’.
• Mudguards – These optional galvanised steel mudguards simply bolt onto the spreader frame to help keep dirt and mud of the operator while in operation.
