Jacky 1600L Feed Mill Bins – JVMS1600/2

Description

Jacky 1600L Feed Mill Bins – JVMS1600/2

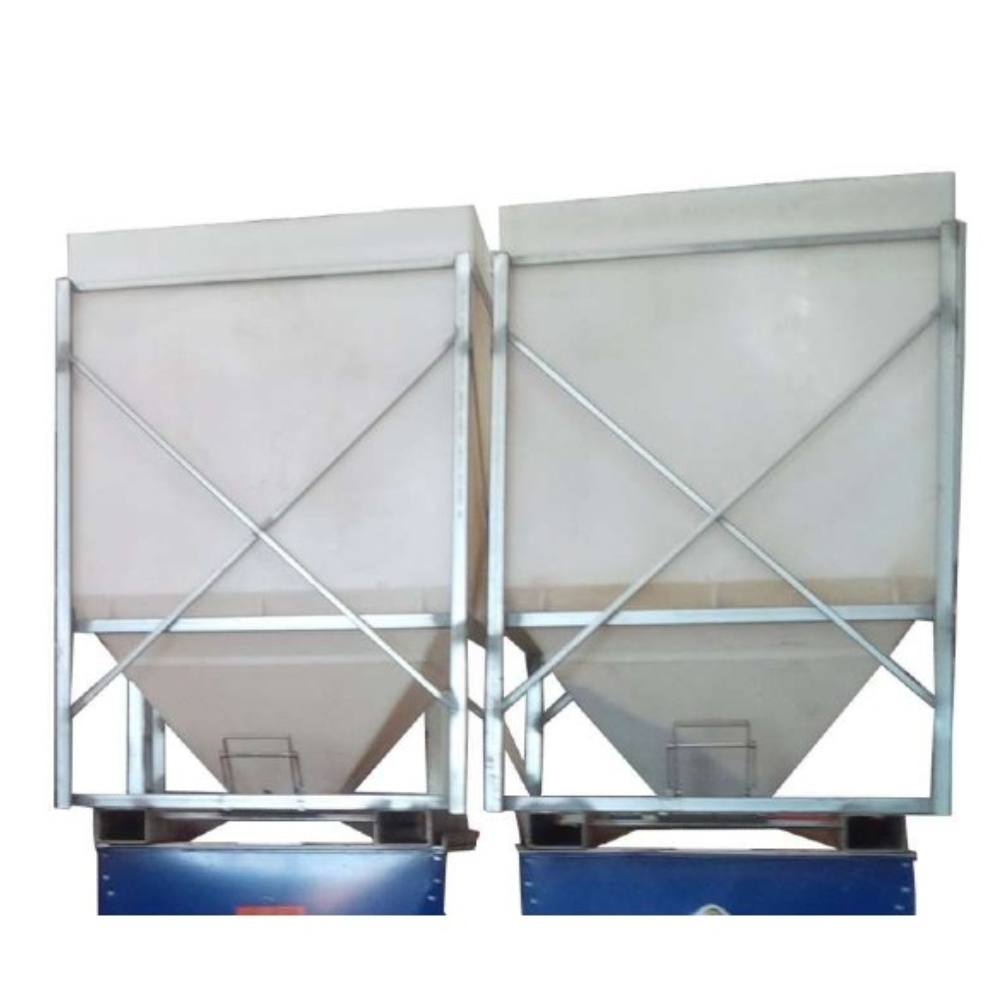

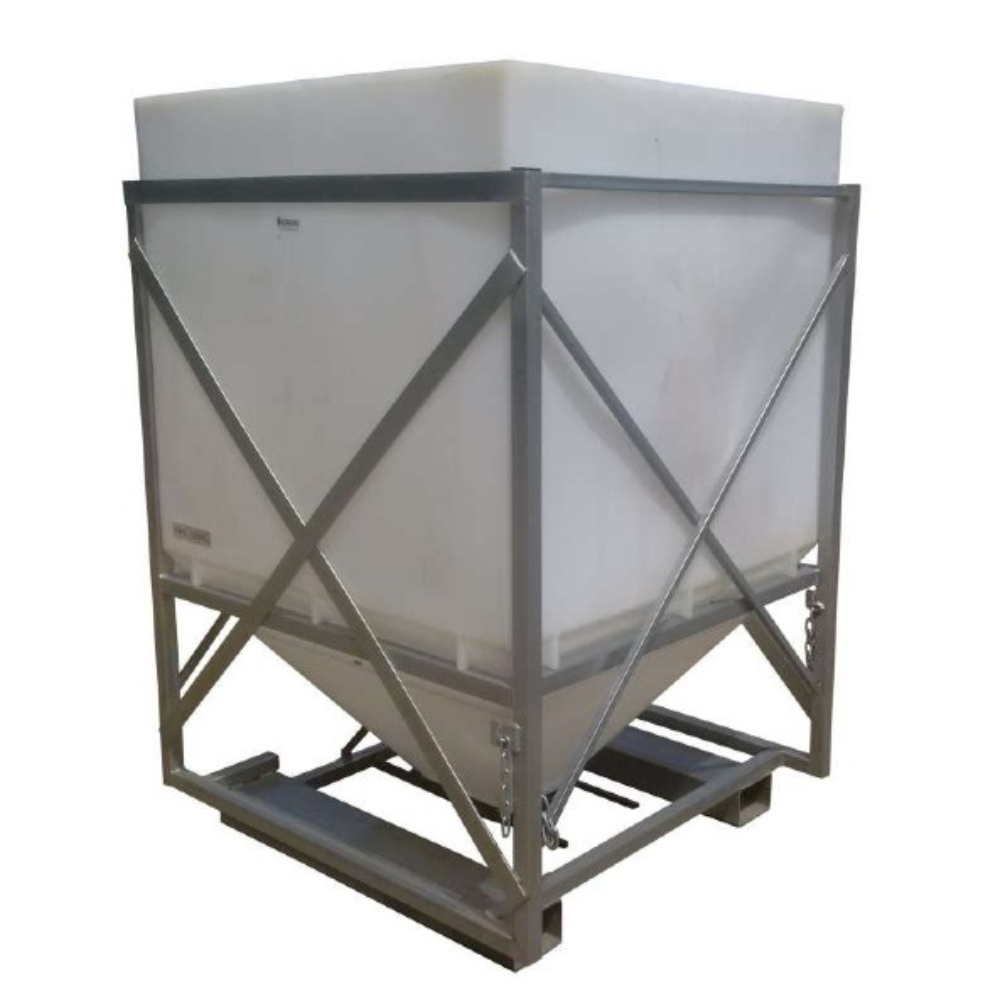

The JACKY Bin model JVMS1600/2 is purpose built to sit on top of feed milling equipment. The compact design utilizes a steep sided hopper bin with large discharge opening, to aid in free discharge of powdered products such as vitamin mixes and meat meal. The narrow steel forklifting frame is especially designed to allow these units to be positioned side by side on top of common modular feed mill equipment, so that operators have a safe, tough and easy way to store and discharge product into their milling systems.

Video – Jacky Bins Features

Features

• 1200kg Safe Working Load.
• 1600lt hopper volume.
• Narrow frame size designed for feed mills.
• Ideal for powdered products.
• Large opening for easy filling and cleaning.
• 54 degree run slope assists with complete evacuation of contents.
• All working parts are UV stabilized polyethylene or stainless steel, for longevity.
• Standard colour Natural (translucent white).
• Customizations such as serial numbers, branding etc. available please ask.

Specifications

• Length 1150mm
• Width 1210mm
• Height 1700mm
• Opening size – base 240x240mm
• Opening size – top 1015x1015mm
• Fork Pocket size 150 x 100mm
• Fork Pocket Centres 830mm
• Capacity 1600
