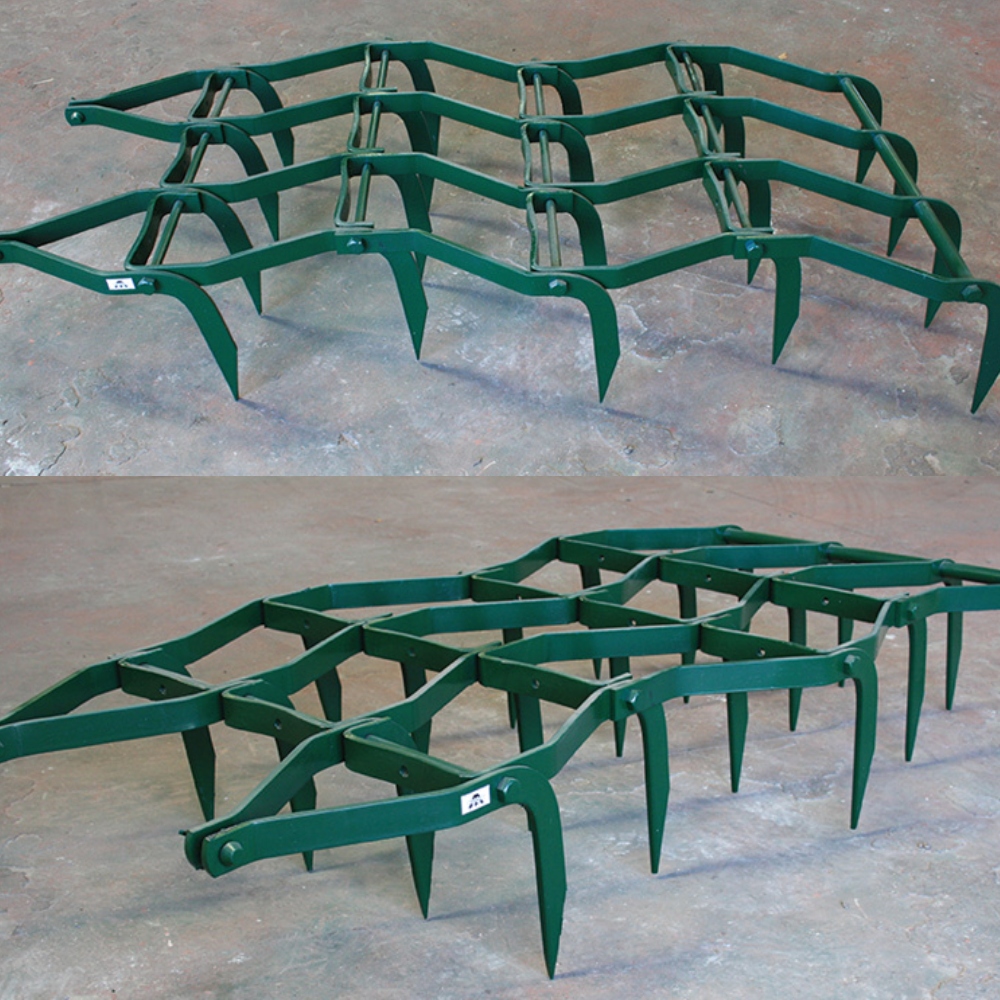

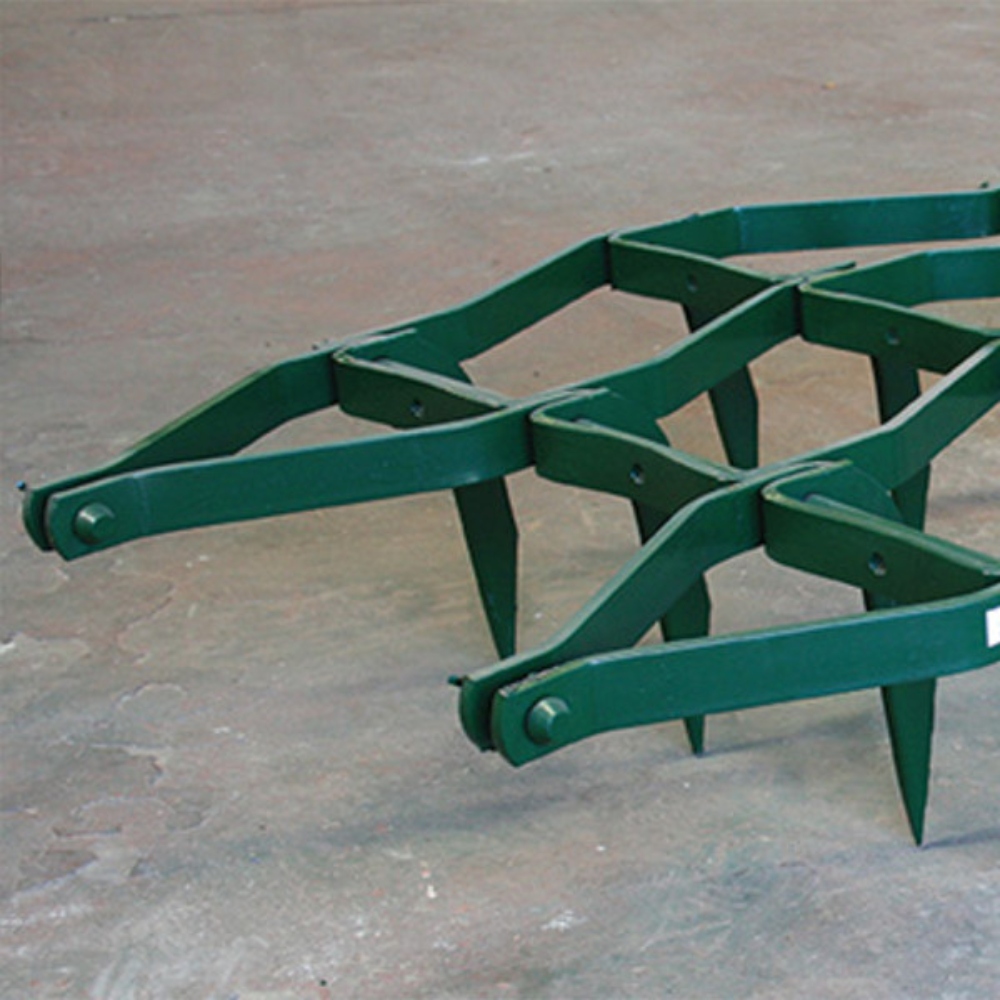

Murray Series 48 Jumbo Cultivation Stump Jump Harrows – 48103

Description

Murray Series 48 Jumbo Cultivation Stump Jump Harrows – 48103 – 3 Sections with Bar

Murray Agricultural Equipment has set the pace in tillage with the Series 48 Jumbo Cultivation Harrow a truly heavy duty Tine Harrow to meet the demands of todays’ farming practices.

The Murray Series 48 Jumbo Cultivation Harrow meets a need for a flexible, cultivation-style Harrow suitable for seedbed preparation and soil working in heavier soils. It is significantly heavier than standard Stump Jump harrows. Heavier steel components add to weight for improved penetration, greater strength and an extended working life.

Greater tine layback and wide inter-rank tine spacing give the Murray Series 48 Jumbo Cultivation Harrow a superior trash handling ability. Longer cut tines allow a greater working depth and provide a long working life. A fully interlocking tine/frame design assists in maintaining tines in the optimum vertical working position.

The Series 48 can also be used in conjunction with heavy primary tillage implements including disc harrows, to produce the basis of a finer seedbed. It is also useful for pasture establishment or renovation, and harrowing where extra weight and strength is required.

100% Australian made and owned.

Model: 48103 – Drag Type Complete Set – 3 sections with bar 2.59m (8ft 6in) 197kg: $3,688.30

Specifications:

Weight 54kg (120lb).
Coverage 0.86m (2ft 10in).
Tine Spacing 44mm (1 3/4in).
Tine length 248mm (9 3/4in) approx.
Centre to centre of Front Hooks 444mm (17 1/2in).
5 Ranks / 20 Tines.
48500 – Section only price: $904.20

Drag Type Complete Sets:

48102 – 2 sections with bar 1.72m (5ft 8in) 132kg: $2,448.60
48103 – 3 sections with bar 2.59m (8ft 6in) 197kg: $3,688.30
48104 – 4 sections with bar 3.45m (11ft 4in) 262kg: $5,046.80
48105 – 5 sections with bar 4.31m (14ft 2in) 330kg: $6,417.40
48106 – 6 sections with bar 5.18m (17ft) 404kg: $7,698.90

Drawbars Only:
48702 – 1.72m (5ft 8in) suits 2 sections 24kg: $640.20
48703 – 2.59m (8ft 6in) suits 3 sections 35kg: $975.70
48704 – 3.45m (11ft 4in) suits 4 sections 46kg: $1,430.00
48705 – 4.31m (14ft 2in) suits 5 sections 60kg: $1,896.40
48706 – 5.18m (17ft) suits 6 sections 80kg: $2,273.70

*Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
