Murray Series 35 Forged Tine Levelling Harrows 2.3m - S35-2.3m

The Series 35 is suitable for heavier clay type soils and is used after primary or secondary tillage. Available in three and four row widths allowing flexibility to build up Harrow Sections to suit the width of your primary machine.

Stock/Ref #: S35-2.3m Brand: Murrays

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

$1,074.70

Description

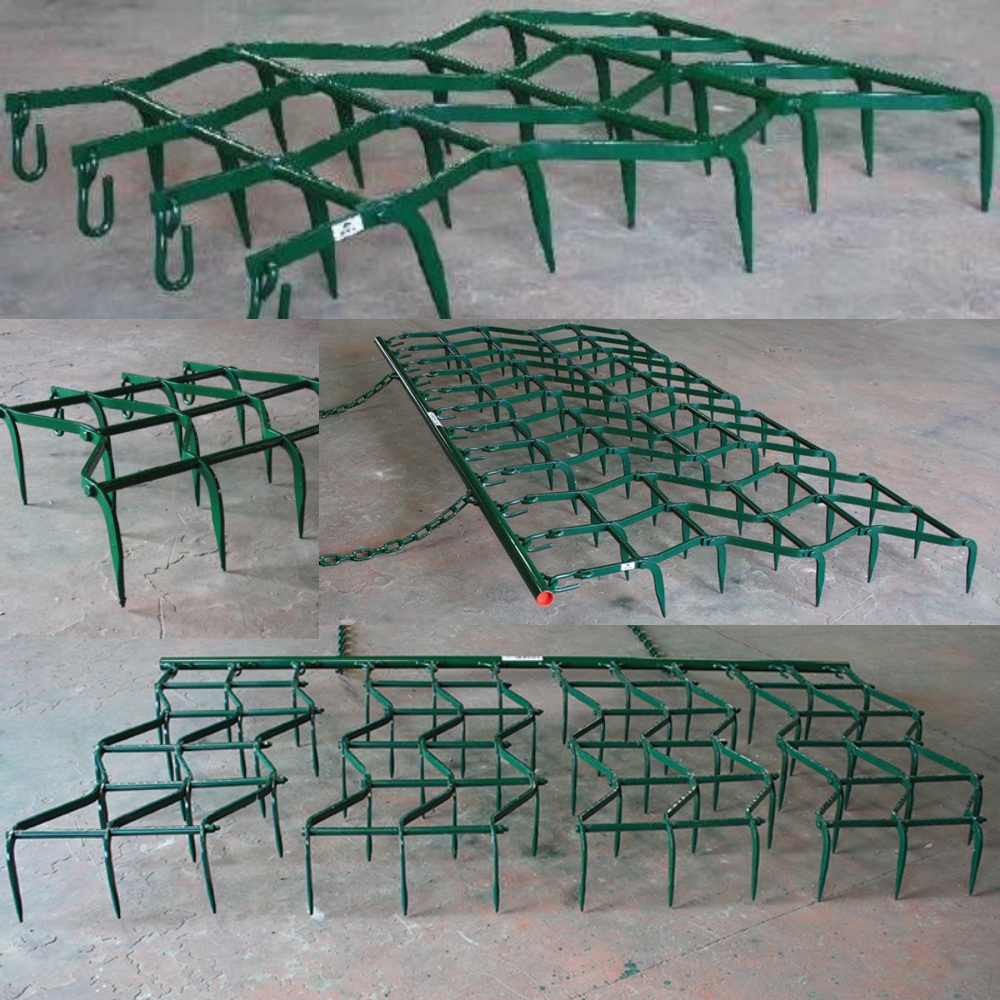

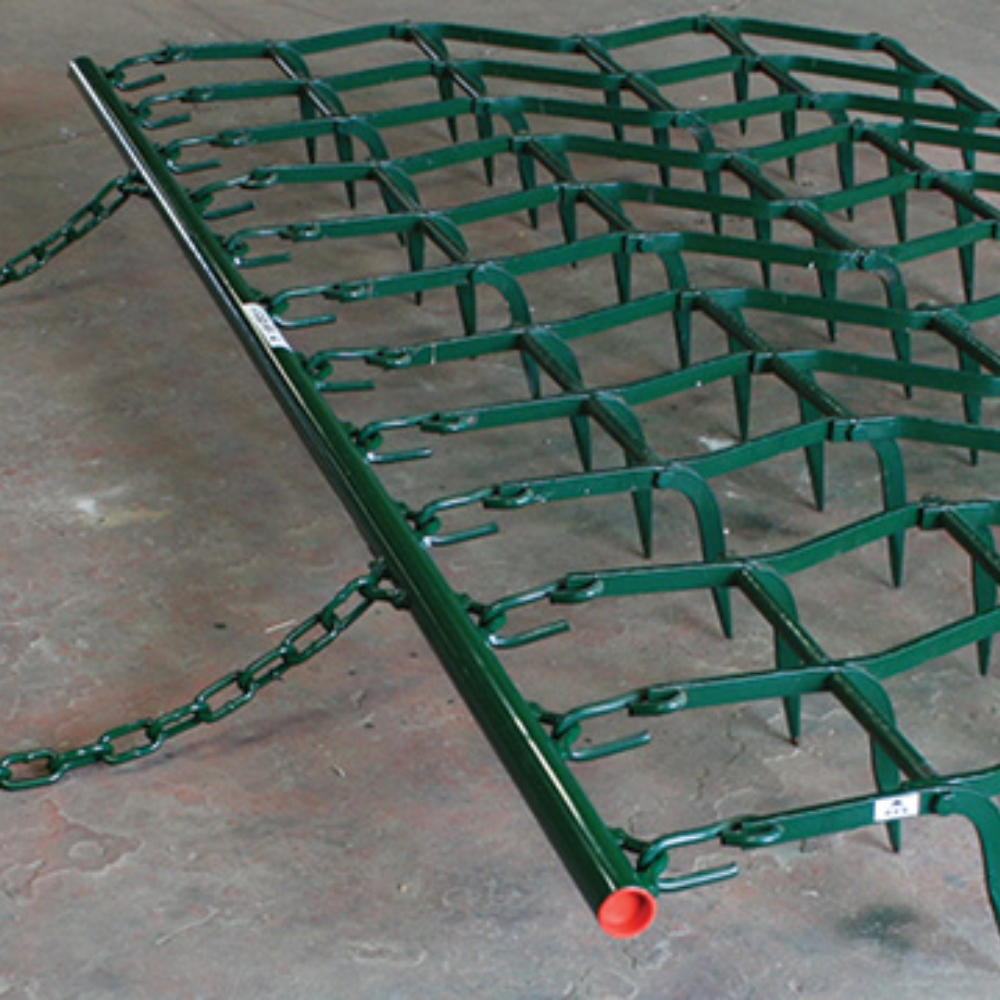

Murray Series 35 Forged Tine Levelling Harrows 2.3m – Extra Heavy Duty – S35-2.3m

If you want to level your land and need a Harrow that will stand up to the demands of todays conditions, Murrays manufacture an Extra Heavy Levelling Harrow. Built from heavier High Carbon Steel, each Tine is specially forged revealing a diamond shape designed to level your ground. Tine spacing remains the same as our standard Series 03 version.

The Series 35 is suitable for heavier clay type soils and is used after primary or secondary tillage. Available in three and four row widths allowing flexibility to build up Harrow Sections to suit the width of your primary machine.

100% Australian made and owned.

2.3m Set made up of:

35001 – 2 Sections of 9 Tine (3×3 Rank Deep)

35002 – 1 Section of 12 Tine (4×3 Rank Deep)

3074 – Heavy Duty Drawbar 10 Bar Anchors

***Components are Sold Seperately***

Extra Heavy Harrow Sections ONLY 3, 4 & 5 Rank Deep

Specifications:
Tine Spacing 76mm (3in)
Tine length 190mm (7 1/2in) approx.
Centre to Centre of Front Hooks 235mm (9 3/4in)

Features:
Forged Tine ends. Manufactured from 25 x 10mm carbon steel.

3 Rank Deep Harrow Sections
9 Tine (3 x 3 Rank Deep) Coverage 0.7m (2ft 3 1/2in)
Model 35001 11.6kg (25lb): $235.40

12 Tine (4 x 3 Rank Deep) Coverage 0.93m (3ft 3/4in)
Model 35002 15.6kg (34lb): $310.20

4 Rank Deep Harrow Sections
12 Tine (3 x 4 Rank Deep) Coverage 0.7m (2ft 3 1/2in)
Model 35003 15.6kg (34lb): $310.20

16 Tine (4 x 4 Rank Deep) Coverage 0.93m (3ft 3/4in)
Model 35004 21kg (46lb): $397.10

5 Rank Deep Harrow Sections
15 Tine (3 x 5 Rank Deep) Coverage 0.7m (2ft 3 1/2in)
Model 35005 19.5kg (43lb): $360.80

20 Tine (4 x 5 Rank Deep) Coverage 0.93m (3ft 3/4in)
Model 35006 26.5kg (58lb): $477.40

Heavy Duty Drawbars Only (Non Standard Order)
3074 – 7ft 7in – 10 bar anchors – 9kg: $293.70
3075 – 8ft 5in – 11 bar anchors – 10kg: $321.20
3076 – 9ft 2in – 12 bar anchors – 13kg: $334.40
3077 – 9ft 11in – 13 bar anchors – 14kg: $355.30
3078 – 10ft 8in – 14 bar anchors – 15kg: $383.90
3079 – 11ft 5in 16 R – 15 bar anchors – 17kg: $413.60
3080 – 12ft 2in – 16 bar anchors – 21kg: $501.60
3081 – 13ft – 17 bar anchors – 27kg: $531.30
3082 – 13ft 9in 20 R – 18 bar anchors – 29kg: $559.90
3083 – 14ft 6in – 19 bar anchors – 31kg: $628.10
3084 – 15ft 3in – 20 bar anchors – 33kg: $657.80
3085 – 16ft 24 ROW – 21 bar anchors – 34kg: $687.50
3073 – 16ft 10in 22 bar anchors – 36kg: $754.60
3086 – 18ft 4in 28 R – 24 bar anchors – 40kg: $817.30

*Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
