Silvan 600L Linkage Turbomiser with Super Cannon Head – GTM-P55DS

Description

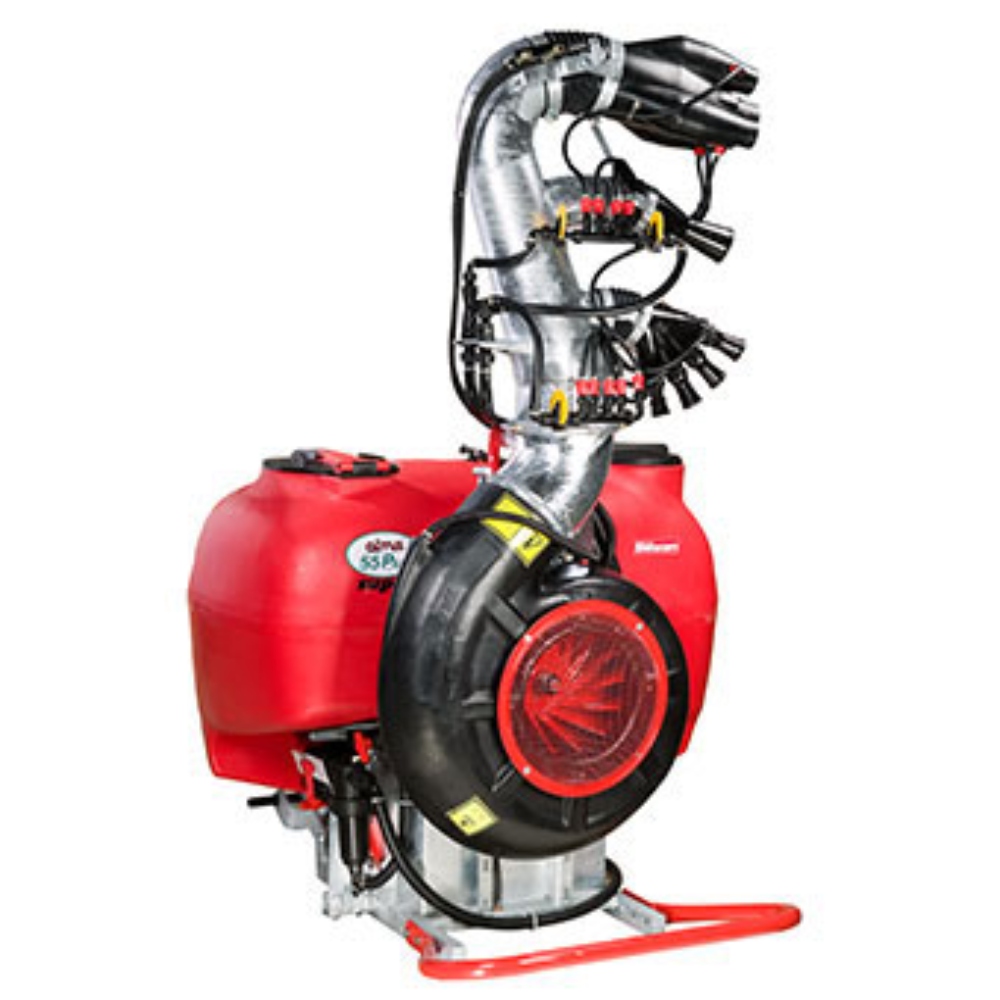

Silvan 600L Linkage Turbomiser (GTM-P55DS) with Super Cannon Head (GT55D-1)

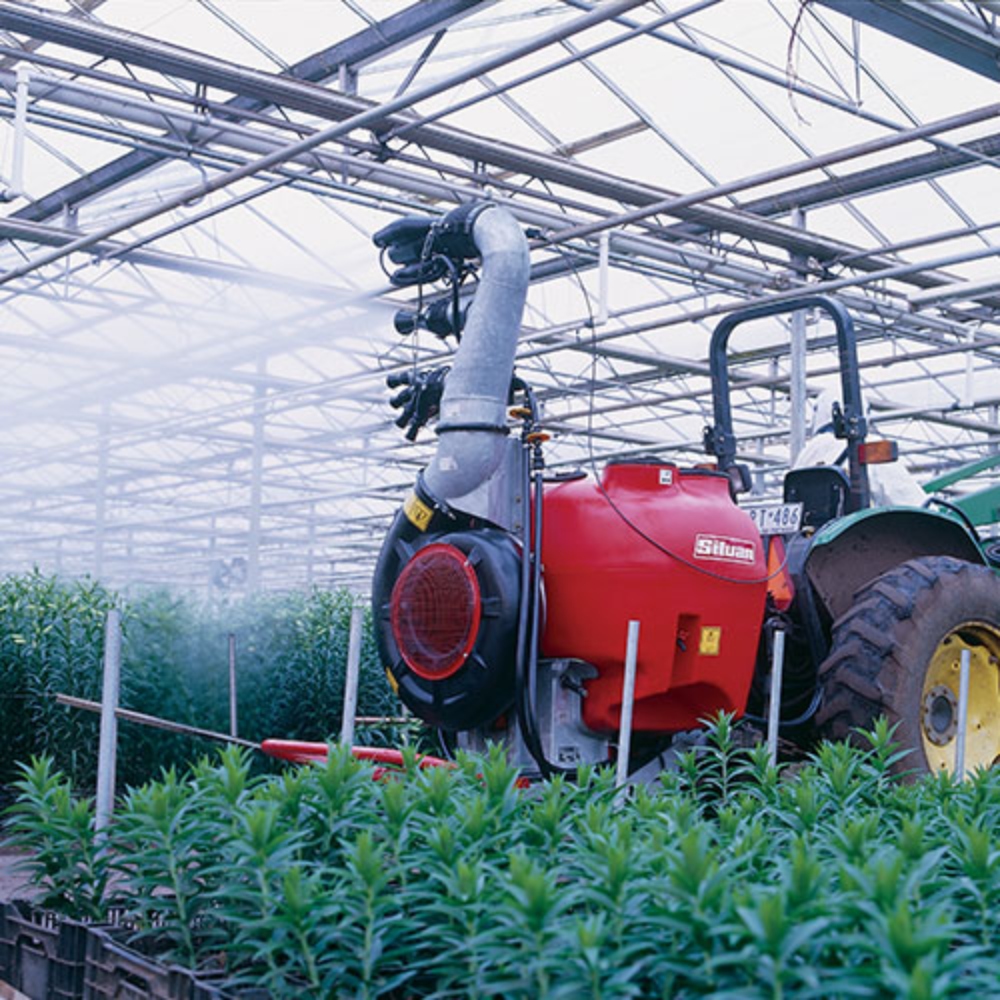

Linkage turbomiser 600 litre sprayer with a 140L/min centrifugal pump and a 550mm fan. Ideal for vineyards, orchards and greenhouses.

Click Here for Instruction Manual

Click here to see the Turbomiser

Model Specifications

• Pump – CD32 centrifugal pump, 140L/min. Constructed from toughened nylon. Stainless steel shaft & viton/ceramic seal.
• Fan Size – P55DS: 550mm dia turbine fan, 3700 rpm. Power consumed 50 kw/70hp.
• Nozzles – Air Shear
• Gearbox – Multiplication type through multi-grip, ,ulti-vee belt and pulley, over-run free wheeling hub and oil bath fan housing.
• Controls – Two sided electric on/off control valves with control box mounted in cabin. Rotary plate distribution regulators with settings and manual pressure adjustment.
• Pressure Gauge – Protected 100mm glycerine gauge fitted at front of sprayer.
• Tank – 600L Polytuff impact resistant polyethylene construction, calibrated sight line, non-spill lids, hydro chemical mixer in larger basket, lids with basket strainers, separate in-built 18L fresh water hand wash tank.
• Frame – Galvanised RHS steel construction, cat 2 linkage.
• Agitation – Bypass and pneumatic
• Filtration – Lid strainer and suction line strainer
• PTO Driveshaft – Quality Bondioli & Pavesi driveshaft with quick release pins & safety cover.
• HP Required – Minimum 70 PTO HP
• Dimensions GTM-P55DS (Less Head) LxWxH – 1100x1450x1150mm
• Weight – 250kg (Dry)

Factory Options

• Manual turntable for Super Cannon
• Hydraulic turntable for Super Cannon
