Jarrett-3.7m-Finishing-Mower-Wing-Deck-TM372

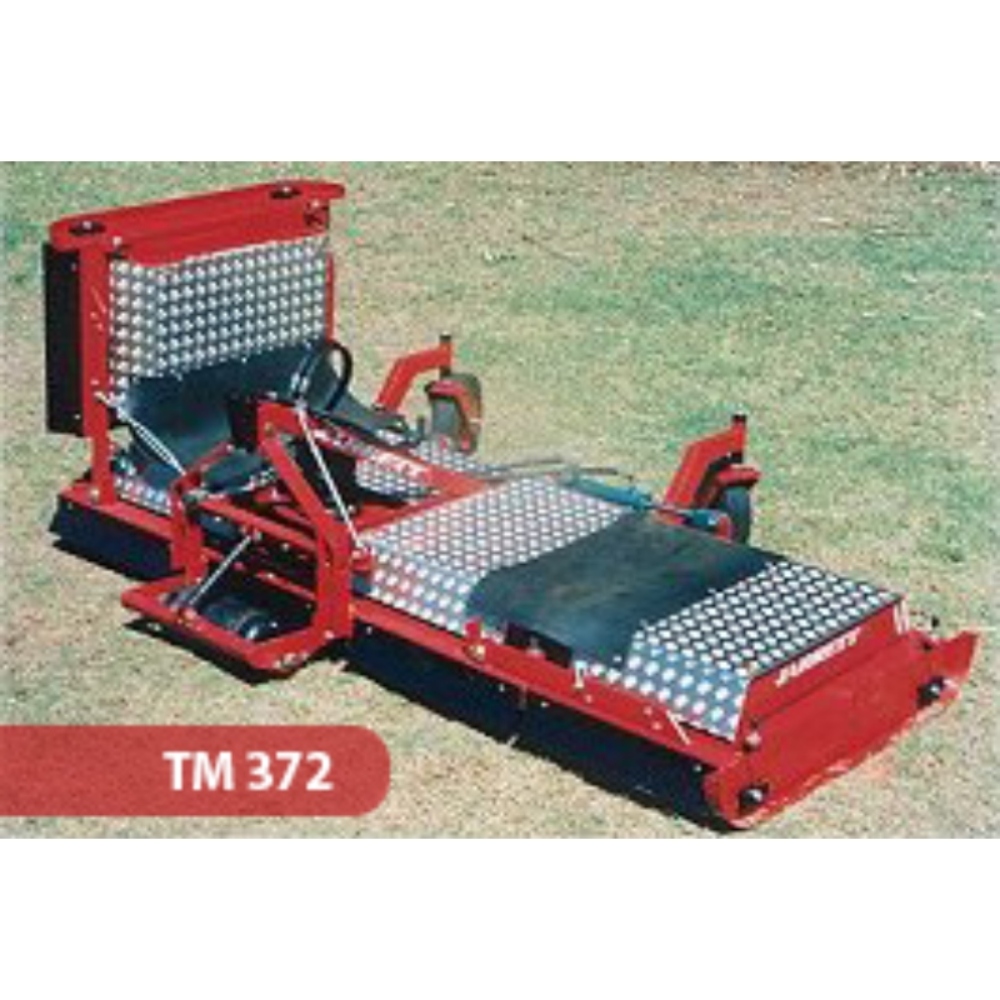

Jarrett 3.7m Finishing Mower Wing Deck – TM372

The Jarrett TM Series range from a cutting width of 1.8m (6ft) to 4.3m (14ft) and, with various blade, roller and wheel options, gives you an extremely effective, efficient and versatile finishing park mower.

Stock/Ref #: TM372 Brand: Jarrett

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

$30,657.00

Have a Question? - Enquire Here

Need Finance
For This Asset?

  • Fuss Free Finance
  • Quality Service
  • Tailored Finance Solutions
Apply Now

Description

Jarrett 3.7m Finishing Mower Wing Deck – TM372

The Jarrett TM Series range from a cutting width of 1.8m (6ft) to 4.3m (14ft) and, with various blade, roller and wheel options, gives you an extremely effective, efficient and versatile finishing park mower.

Specifications

  • Width – 3.7m
  • Weight – 950kg
  • Gearbox – 75hp
  • Min Power Required – 55hp
  • Rollers (Standard) – Full width rear and large diameter small front roller.

General Construction

  • RHS chassis fully welded and capped.
  • 8mm steel spindle mounting plates.
  • Spindle plates mounted between RHS chassis.
  • A-frame bolted to main deck.
  • Clean deck design for easy cleaning.
  • Safety covers in heavy-duty Aluminium tread plate.
  • 4-groove cast iron.
  • One pulley suits all spindles.
  • Tapered spline lock mounting to spindle shaft.
  • Machined deep groove, ?B? section belt profile.
  • Twin belt drive to each spindle.
  • Large wrap-around belt surface contact for superior grip and drive.

  • Manufactured in Australia.
  • Sealed oil bath lubrication for minimum maintenance.
  • Precision machined heavy-duty cast iron housings.
  • Internally mounted oil seals.
  • Heavy-duty 6308 ball bearings.
  • Precision machined 40mm dia ?Duraflex? shaft.
  • Tapered spline shaft for pulley and cutter beam.

  • Tapered spline lock mounting to spindle shaft.
  • Std 4mm finishing tip blades.
  • Optional 7mm pasture blades for most models.
  • Quick & easy to change blade types.
  • More flexibility for varying conditions.
  • High tip speed ensures superior cut.

  • Large diameter pulley.
  • Sealed bearings.
  • Rubber torsion block mounting for constant belt tension.

  • Twin ?B? section belts.
  • Quick & easy belt replacement.
  • Single-point tensioning (main deck).
  • Rubber torsion block tensioning (wings).

  • Solid rubber rear wheel kit.
  • Front and/or rear wing rollers.
  • Long front roller in lieu of short front roller.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
