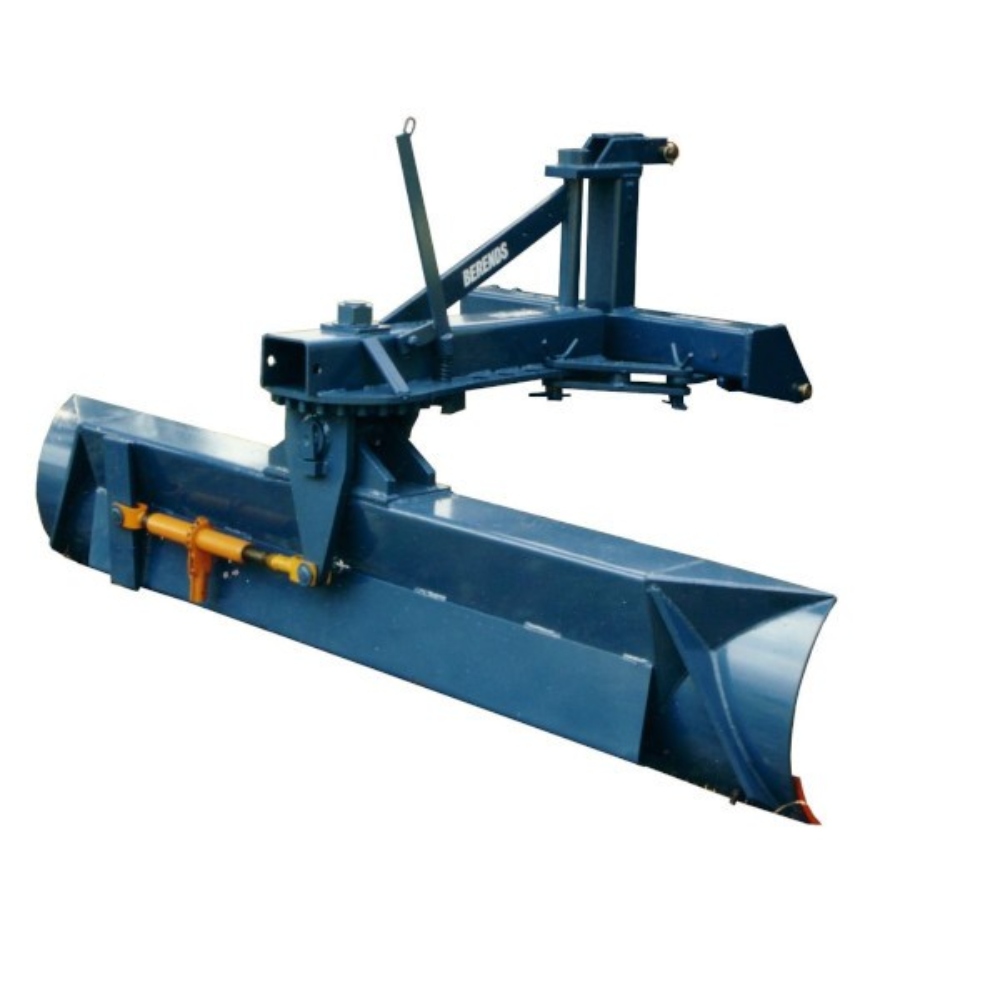

John Berends Extra Heavy Duty Grader Blades 7ft (2.1m) – 0039

Description

John Berends Extra Heavy Duty Grader Blades 7ft (2.1m) – 0039

One of the strongest mechanical grader blades on the market. You cannot buy better value!

Features:

• Fitted with high tensile 66mm main pivot pin.
• Main and tilt pivots sleeved and grease-able for ease of operation, strength and reduced wear.
• Extensive use of high tensile steels for extra strength in high stress areas.
• 24 angle positions with adjustment from tractor seat.
• Offset 3 positions to both right and left allowing blade to work outside the wheel even at an angle.
• Blade rotates 360 degrees for forwards and backwards operation.
• Easy to adjust ratchet tilt function as standard.
• By having the tilt function below the turntable, the tilt angle is allowed to remain constant even when fully offset and ensures no decrease in tilting angle if the blade is offset.
• Optional hydraulic available.
• Curved 10mm mouldboard for strong cuts at the correct angle and high clearance for greater capacity.
• Optional Holden depth wheel with either manual ratchet or hydraulic adjustment.
• Hardened reversible cutting edge.
• Over 400kg weight.
• Available in 7ft (2.1m) and 8ft (2.4m) widths.
• Suitable for tractors 60-120 HP.

Also Available:

• 0040 – 8ft Grader Blade – Extra Heavy Model.

Options:

• 0041 – EH Hydraulic tilt option – in lieu of ratchet.
• 0042 – EH Hydraulic tilt option – as spare part.
• 0026 – Wheel kit suit Hyd/EH/HD G.Blade, Manual ratchet link.
• 0027 – Wheel kit suit Hyd/EH/HD G.Blade, Hydraulic c/w Rams & Hoses.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
