Muthing MU-FM Hydro Front Mounting Flail Mower 1.4m – MU-FMHYDRO140

Rear and side multi-purpose mulcher with patented breakaway system.

Stock/Ref #: MU-FMHYDRO140 Brand: Muthing

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.


Need Finance
For This Asset?

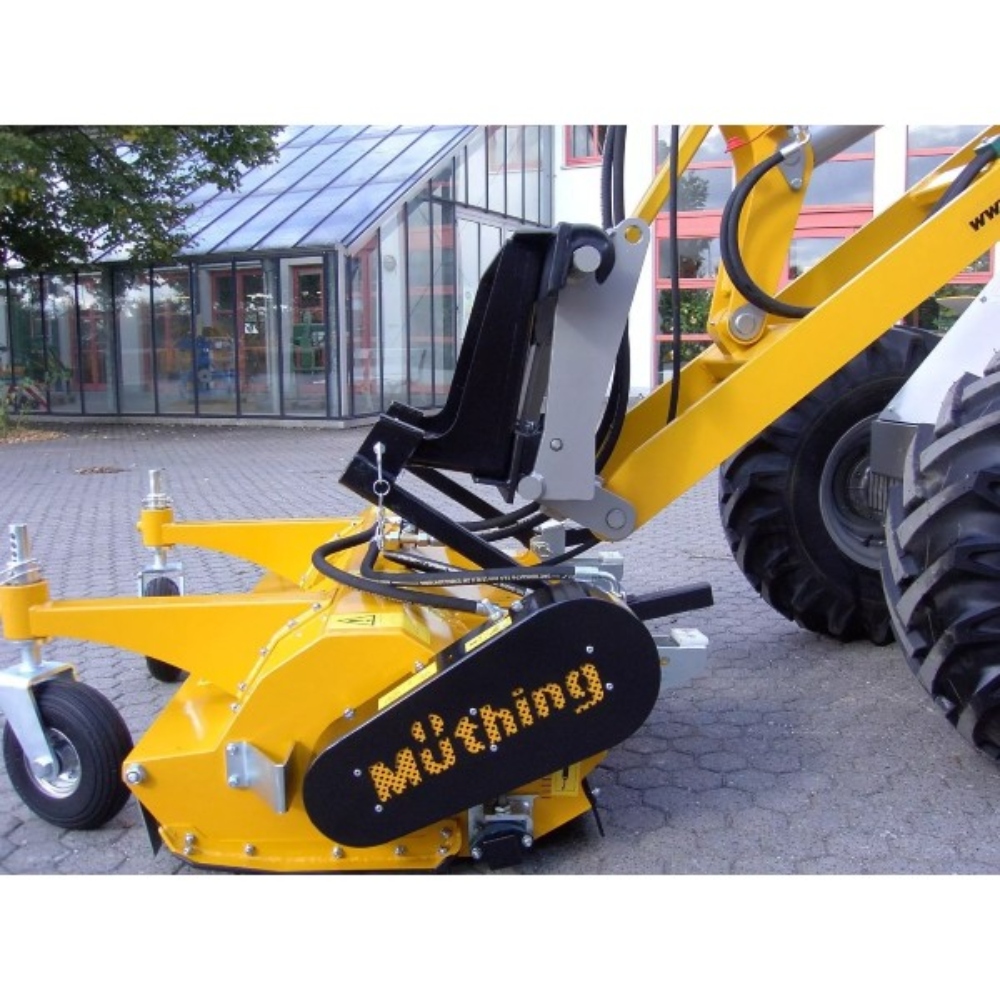

Muthing MU-FM Hydro Front Mounting Flail Mower 1.4m – MU-FMHYDRO140

Front mulcher with Hydraulic drive for yard loader and municipal vehicles. Oil volume required 40 l/min at 180bar.
For front mounting vehicles without PTO, Müthing supplies the MU-FM/Hydro flail mulcher with a powerful hydraulic motor. The basic professional model of the MU-FM/Hydro has the same build as the MU-FM. Of course, it also possesses the same impressive operating and quality advantages as the MU-FM, comparable versatility and identical optional equipment.

The drive of this mulcher requires an oil volume of 40 L per minute at a pressure of about 180 bar. This means that the MU-FM/Hydro can be used on yard loaders and special hydro traction vehicles. A large selection of mounting adapter plates for these vehicles simplifies mounting. Optionally available hydraulic control blocks facilitate mounting onto vehicles’ hydraulic systems for oil volumes in excess of 48 L/min.


  • Manufactured from High-Quality QSt/E Steel for front mounting for skid steering loaders.
  • Hydraulic drive for a volume flow from 35-55 l/min, with overrun valve.
  • Belt protection with tension measuring slot.
  • Shackle “M” Carbide flails.
  • Spiral Rotor with specially formed flail lugs to protect against damage from obstacles, bearings protected against dirt, wear and tear.
  • Patented removable shredding bar – System: “Shark fin”.
  • Roller with rounded edges to preserve the soil and turf and to carry the flail with variable height adjustment.
  • Side, wearing skids.
  • Carbide wearing skids, removable.
  • High tempered spring steel one-way protection flaps in front of the mower hood.
  • Optimised distance between the outer rotor circle and the support roller guarantees perfect contour following and even quality of cut.
  • Spreads the shredded material evenly behind the support roller.
  • Excellent Mulching Quality.
  • Hydraulic spool valves required: 1 x pressure flow, 1 x pressure less return flow (max. counter-pressure < 20 bar).
  • Hydraulic hoses without couplings.
  • Front mount swivel wheels.


  • Working width: 140cm
  • Overall width: 165cm
  • Oil Flow: 45-70 l/min
  • Weight: 217kg
  • Number of flails: 24


  • A-frame triangle Cat.0 only for front mounting.
  • Hood Wear plate (factory mounted).
  • Mounting plate for Skid Steer Loaders (connection parts to the loader not included).
  • Hydraulic side shift (1 double-acting spool valve required).
  • Second patented removable shredding bar – System: “Shark fin”.
  • Strong, height-adjustable support wheels, 360º swivel in front of the flail (Ø ca. 235 mm height and ca 80 mm wide) as shown above.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

Additional information

Weight 217 kg
Dimensions 165 cm
