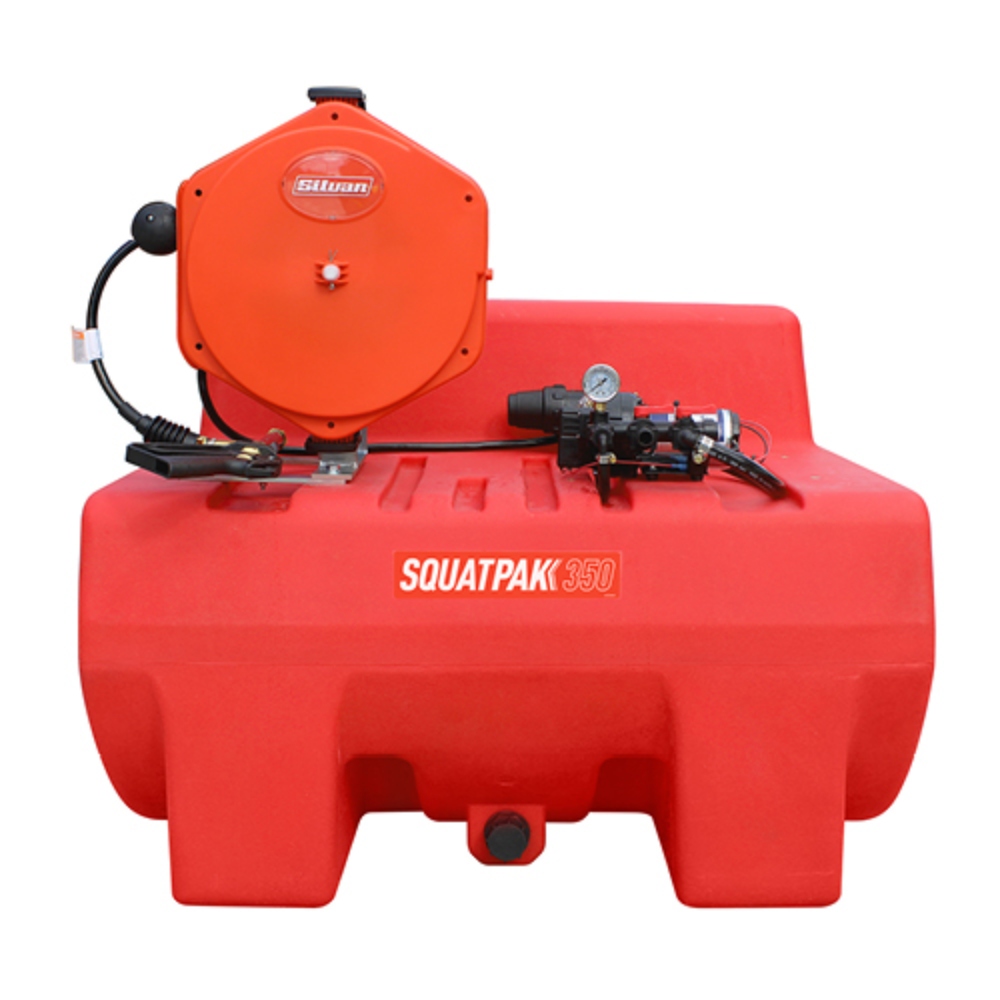

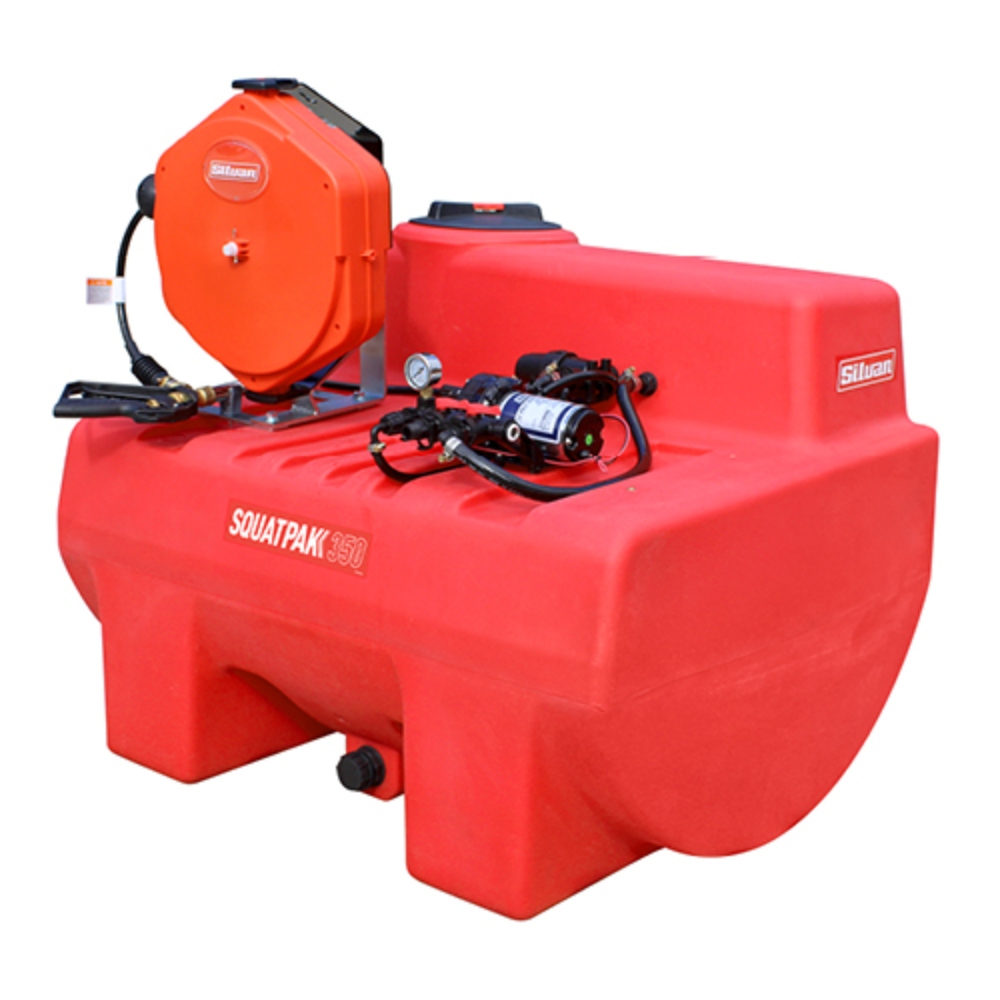

Silvan 350L Squatpak 14L/Min Pump 15m Retractable Hose Reel – TP350-S10R-2

Description

Silvan 350L Squatpak 14L/Min Pump 15m Retractable Hose Reel – TP350-S10R-2

The Squatpak 350L Sprayer is a compact and versatile spraying unit designed for UTVs, trailers, utilities, and other compact work vehicles. Ideal for fence line, roadside, and spot spraying applications, it combines reliable performance with convenient operation. Featuring a durable PolyTuff step tank with an integrated sump and twin internal baffles, the Squatpak 350L is engineered to reduce liquid surge while travelling, improving stability and ensuring consistent spraying performance. The sump design also allows for more effective tank drainage and easier cleaning after use. At the heart of the system is a dependable Aquatec 14L/min pump fitted with a versatile 3-outlet manifold. This setup provides direct connection to the hose reel, a 5D quick-connect outlet for tow-behind booms, and a pressure adjustment tap with automatic bypass agitation to keep spray mixtures thoroughly circulated. The unit comes equipped with a professional-grade JetPro spray gun and a 15-metre retractable hose reel, delivering spray distances of up to 10 metres. The automatic retractable reel eliminates the need for manual hose rewinding, making operation faster, easier, and more efficient. Compact, practical, and easy to use, the Squatpak 350L is the perfect solution for property maintenance, weed control, roadside spraying, and general agricultural applications

Features

• Tank
  • 350L Capacity UV Stabilised Polytuff tank with calibrated fill markings and front tank sump for draining.
  • Internal Twin Baffles to reduce liquid surge when travelling.
  • Bottom inserts for permanent fixing to a tray or attaching optional Forklift skids. Code 430-115,4 x M10.
  • Carry points underneath the front and rear.
  • 3 stage Filtration.
• Pump (DDP-555)
  •  Aquatec 12-volt DC electric, electric pressure sensing switch. 11 Amps max draw.
  • 14L/Min open flow, 4 Bar/60psi maximum pressure.
  • Chemical resistant Viton valves and Santo diaphragm.
  • On/Off switch and 3m of battery cable with alligator clips.
• 3 Outlet Delivery Manifold
  • 1. Connected to hose reel with pressure gauge.
  • 2. A spare outlet with 5D ½inch BSP male thread fitting to easily connect an optional Towbar Boom, with an on/off lever valve.
  • 3. Is a bypass outlet with a lever valve to adjust the pressure to the spray gun or option Towbar boom.
  • 4. Adjust the bypass lever to reduce pump pulsation.
• Hose Reel – Retractable (180J1510A)
  • 15m x 10mm ID Hose and Hose stopper.
  • Swiveling steel mount bracket.
  • Spring rewind with multi position latching.
• Spray Gun – (410-53)
  • Jetpro spray gun, adjustable from a straight stream to a conical spray pattern with lockable trigger.
  • Supplied with D8 nozzle
• Optional Forklift Channels DIY Fitment – 430-115 (Pair)
  • Bolts and washers included.
  • Can be fitted North/South or East/West.
• Optional Towbar Booms for Side By Sides
  • RP1-33 – Silvan 4m Towbar Boom.
  • RP1-35 – Silvan 4m General Purpose Towbar Boom.
  • RP1-36 – Silvan Hi Flow Boomless Nozzle Towbar Boom.

Specifications:

• Tank Size: 350 litres
• Pump Size: 14 L/min
• Max Pressure: 60
• Height/Width/Length: 980mm / 835mm / 1010mm
• Product Weight: 38 kg
