Silvan 350L Squatpak MC20/20 30m Eco Hose Reel – TP350-34-1

Description

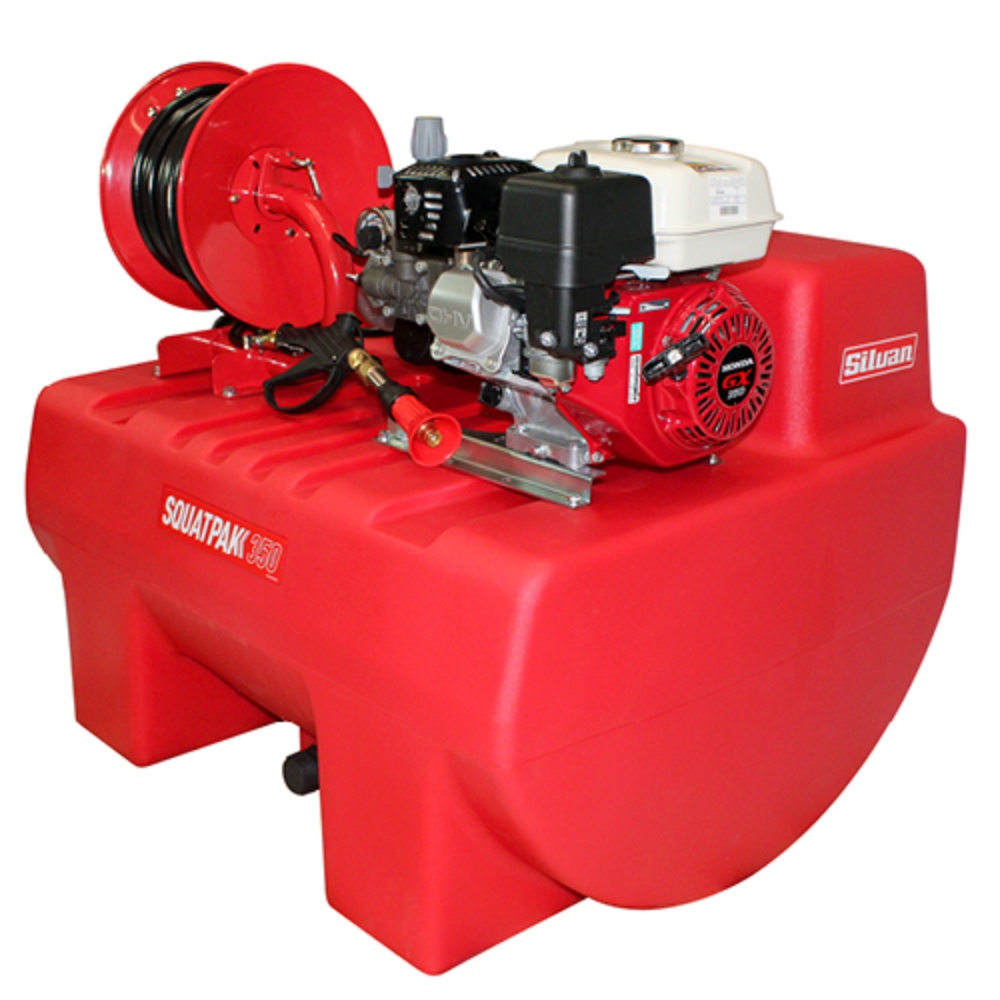

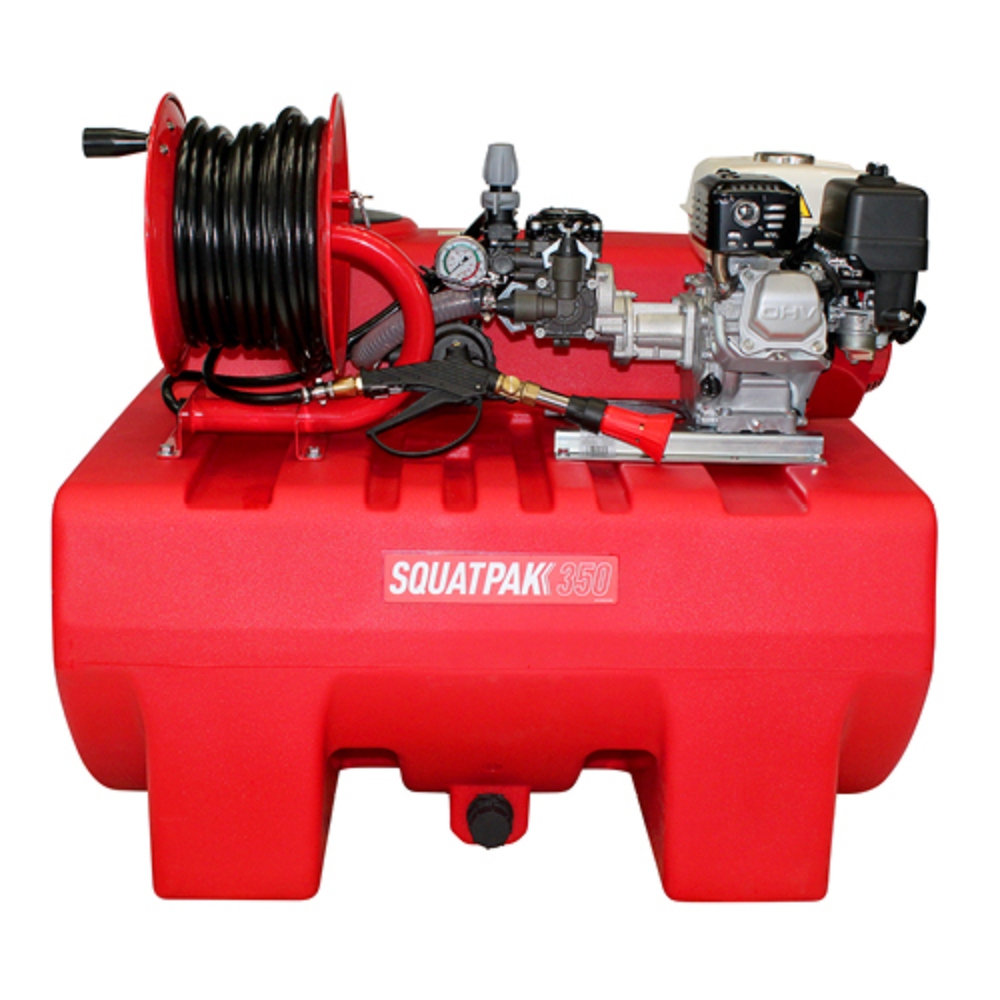

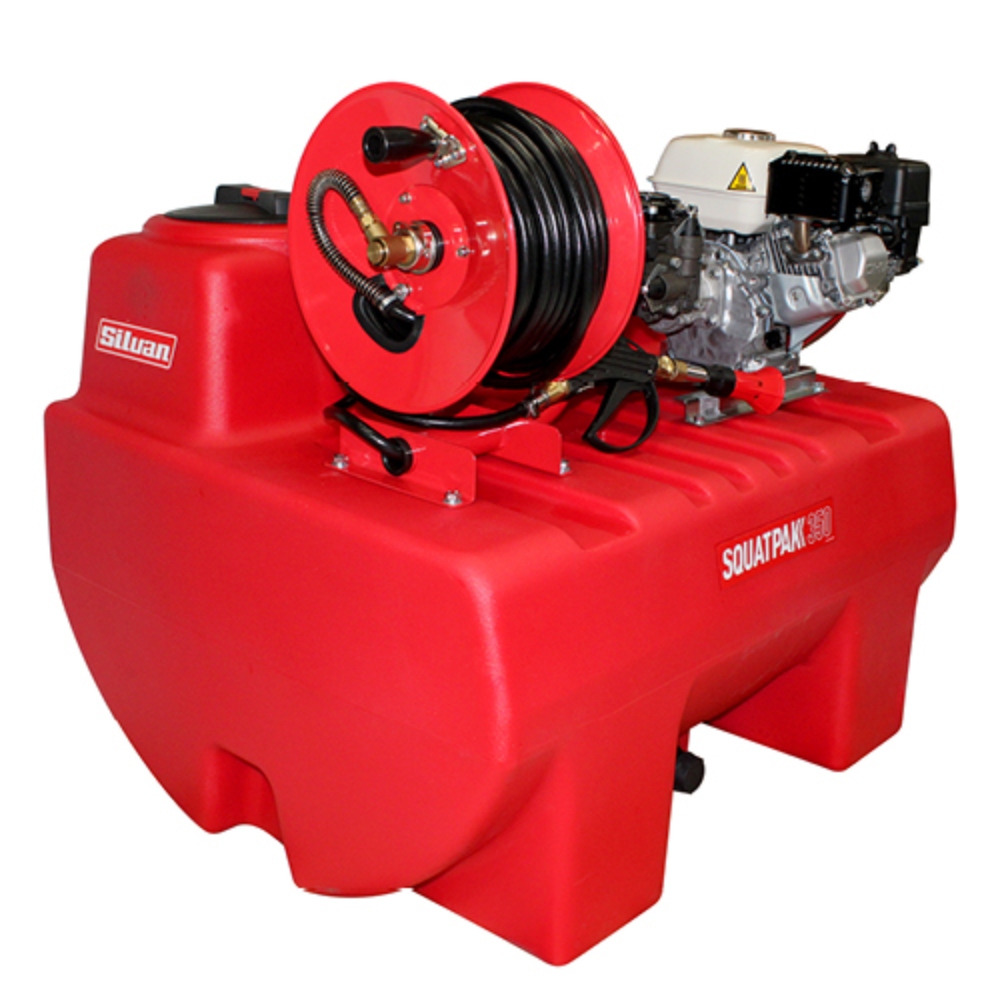

Silvan 350L Squatpak MC20/20 30m Eco Hose Reel – TP350-34-1

The SquatPak 350L Spray Unit is a compact, high-performance spraying solution designed specifically for side-by-sides, UTVs, buggies, trailers and utility vehicles. Combining a durable Polytuff step tank with a powerful GX160 engine and MC20/20 pump, it delivers the flow and pressure required for a wide range of spot spraying, fence line, roadside and boom spraying applications. The 350L tank features an integrated sump for easy draining and cleaning, along with twin internal baffles that minimise liquid surge during transport, improving stability and spraying performance across uneven terrain. Complete with a 30m Eco hose reel and atomiser spray gun, the SquatPak provides an effective spray distance of up to 15 metres. It also has the capacity to operate an 8-nozzle boom fitted with size 04 nozzles at 3 bar, making it a versatile solution for professional and rural users alike.

Features

• Tank
  • 350L Capacity UV Stabilised Polytuff tank with calibrated fill markings & front tank sump.
  • Internal Twin Baffles to reduce liquid surge when travelling.
  • Bottom inserts for permanent fixing to a tray or attaching optional Forklift skids.
• Engine
  • Honda GX160 Driven with low level oil alert with direct drive 6:1 reduction gearbox.
• Pump
  • Comet MC20/20 18.5L/min open flow capacity & 20Bar/290psi maximum pressure.
  • Silvan self-priming positive displacement oil-backed diaphragm with nitrile diaphragms and corrosion resistant, cast anodised aluminium body.
• Controls
  • Pressure regulator with pressure adjustment and automatic bypass, gauge and 2 outlets, 1 for the hose reel & 1 for an optional boom.
• Filtration
  • 2 stage Filtration, to protect the pump & minimize nozzle blockage.
  • Basket strainer under the filling lid & an easy access tank mounted suction filter.
• Hose Reel – 180G03010B
  • Powder coated metal construction.
  • Lockable hub with locking pin.
  • Supplied with 30m x 10mm ID ag hose.
• Spray Gun – 410-52
  • • Atomiser spray gun, adjustable from a straight to a conical spray and Atomiser fine mist.
  • Supplied with 1.5- & 2.0-mm ceramic nozzle.
• Optional Forklift Channels DIY Fitment – 430-115 (Pair)
  • Bolts and washers included.
  • Can be fitted North/South or East/West.
• Optional Towbar Booms for Side By Sides
  • RP1-33 – Silvan 4m Towbar Boom.
  • RP1-35 – Silvan 4m General Purpose Towbar Boom.
  • RP1-36 – Silvan Hi Flow Boomless Nozzle Towbar Boom.
  • # Note: The MC20/20 pump has sufficient flow to increase the size of nozzles in the Towbar booms, standard fitment is Yellow 02, Towbar booms (excluding the RP1-36) can use Red 04 to increase the overall flow rate.

Specifications:

• Tank Size: 350 litres
• Pump Size: 18.5 L/min
• Max Pressure: 290
• Height/Width/Length: 935mm / 835mm / 1010mm
• Product Weight: 49 kg
