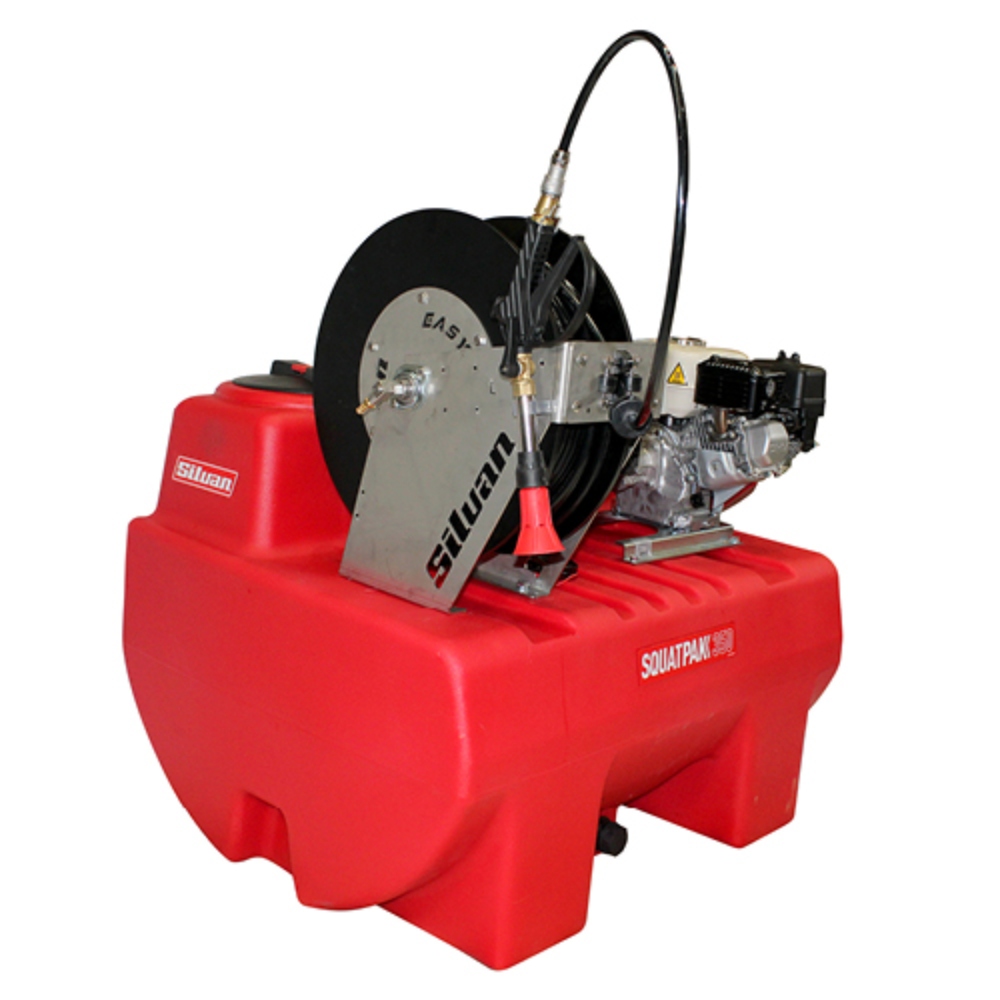

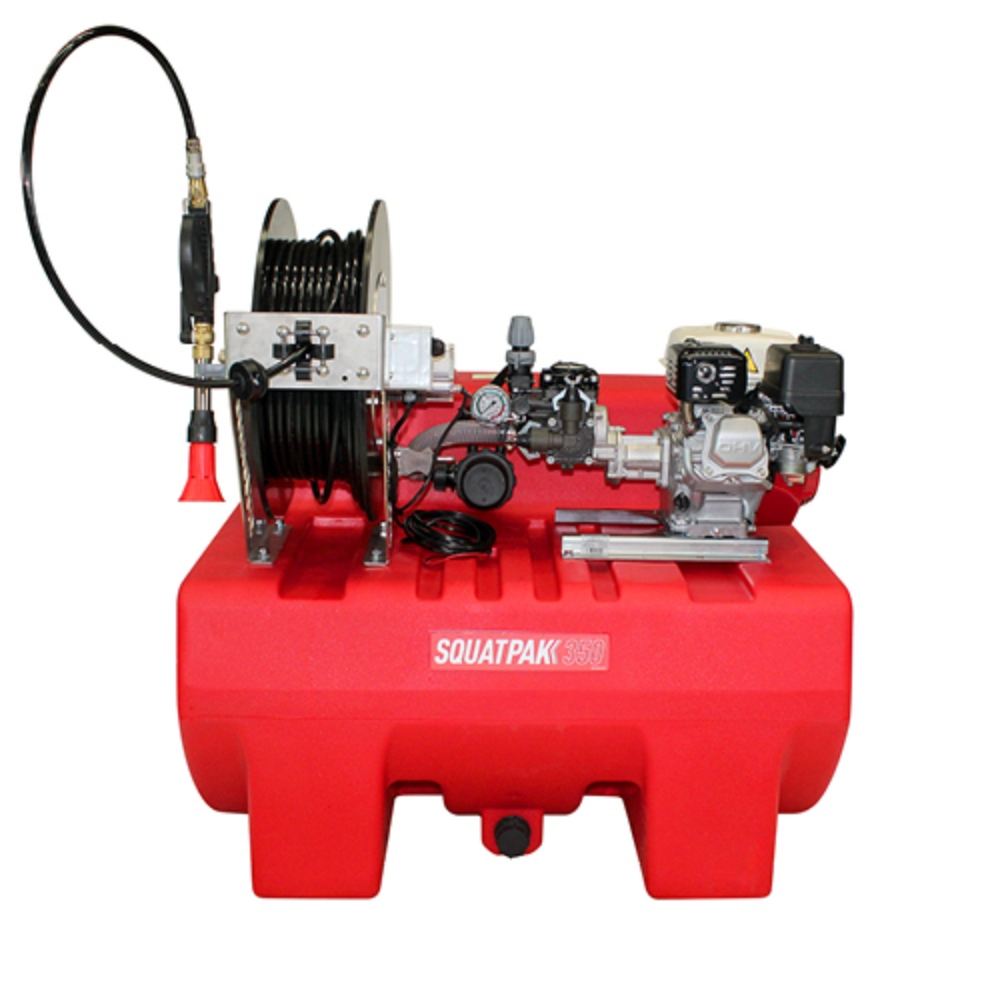

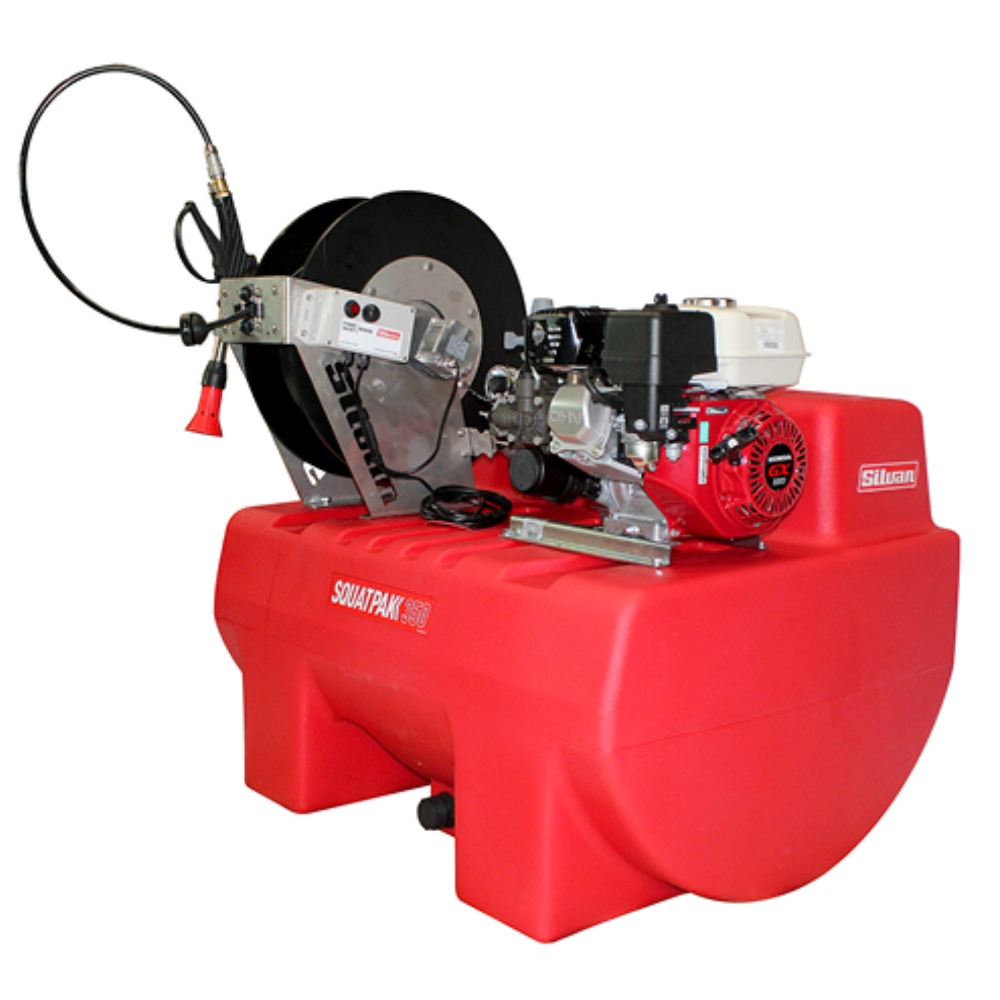

Silvan 350L Squatpak MC20/20 MK2 Easyroll 12V Hose Reel – TP350-34-3

Description

Silvan 350L Squatpak MC20/20 MK2 Easyroll 12V Hose Reel – TP350-34-3

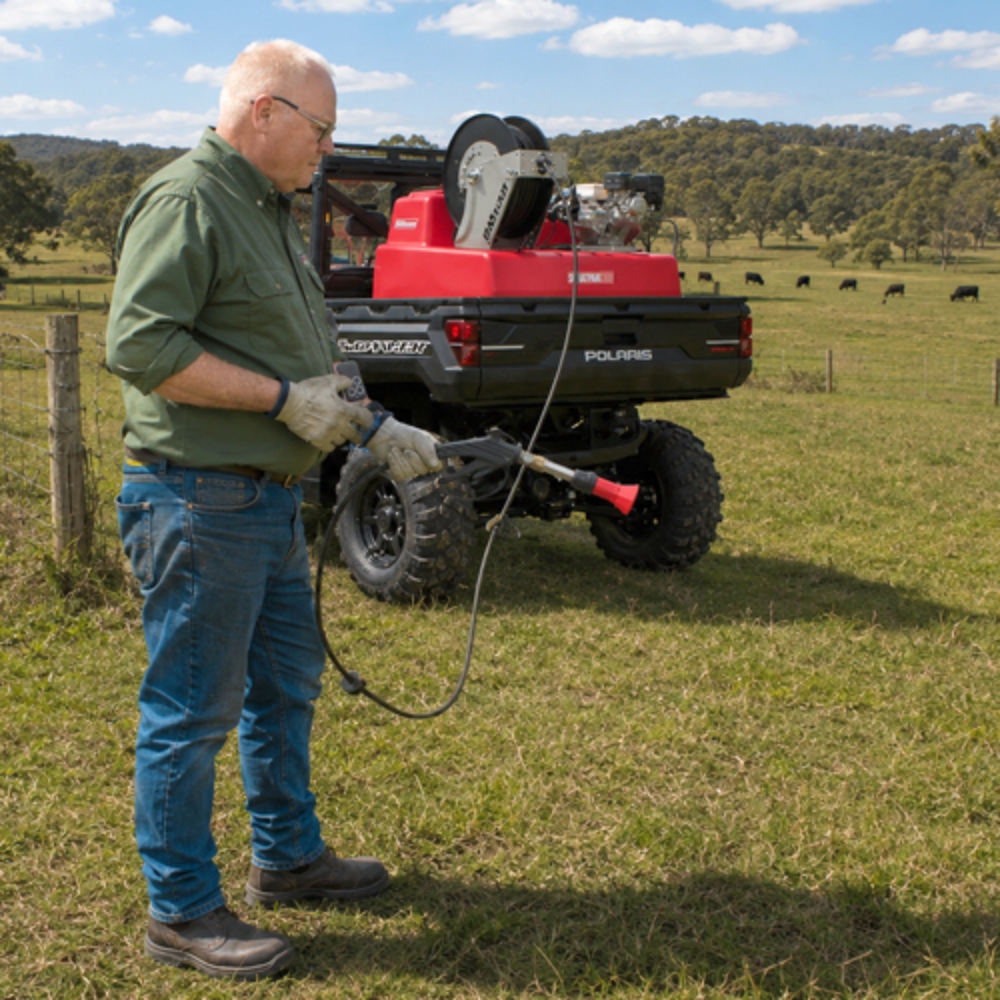

Designed for side-by-sides, utility vehicles, buggies, and compact work vehicles, the Squatpak 350 delivers powerful spraying performance in a compact and practical package. Featuring a durable 350L PolyTuff step tank with an integrated sump and twin internal baffles, the unit is engineered to minimise liquid surge during transport, improving stability and ensuring consistent spraying performance. The sump design also assists with complete draining and easier tank cleaning. Powered by a reliable Honda GX160 engine coupled with a high-performance MC20/20 pump, the Squatpak 350 provides the flow and pressure required to spray up to 15 metres and comfortably operate an 8-nozzle boom fitted with 04 nozzles at 3 bar pressure. For maximum operator convenience, the unit is fitted with a 50-metre MK2 Easyroll 12V hose reel featuring remote-controlled hose rewind. This allows effortless hose retrieval, reducing operator fatigue and increasing productivity in the field. Combining versatility, performance, and ease of use, the Squatpak 350 is the ideal spraying solution for rural properties, landscaping, weed control, and general agricultural applications.

Features

• Tank
  •  350L Capacity UV Stabilised Polytuff tank with calibrated fill markings and front tank sump for draining.
  • Internal Twin Baffles to reduce liquid surge when travelling.
  • Bottom inserts for permanent fixing to a tray or attaching optional Forklift skids.
  • Carry points underneath the front and rear.
• Engine
  • Honda GX160 Driven with low level oil alert with direct drive 6:1 reduction gearbox.
• Pump
  • Comet MC20/20 18.5L/min open flow capacity and 20Bar/290psi maximum pressure.
  • Silvan self-priming positive displacement oil-backed diaphragm with nitrile diaphragms and corrosion resistant, cast anodised aluminium body.
• Controls
  • Pressure regulator with pressure adjustment and automatic bypass, gauge and 2 outlets, 1 for the hose reel and 1 for an optional boom.
• Filtration
  • 2 stage Filtration, to protect the pump and minimize nozzle blockage.
  • Basket strainer under the filling lid and an easy access tank mounted suction filter.
• Spray Gun – 410-52
  • • Atomiser spray gun, adjustable from a straight to a conical spray and Atomiser fine mist.
  • Supplied with 1.5- and 2.0-mm ceramic nozzle.
• Optional Forklift Channels DIY Fitment – 430-115 (Pair)
  • Bolts and washers included.
  • Can be fitted North/South or East/West.
• Optional Towbar Booms for Side By Sides
  • RP1-35 – Silvan 4m General Purpose Towbar Boom.
  • RP1-36 – Silvan Hi Flow Boomless Nozzle Towbar Boom.
  • # Note: The MC20/20 pump has sufficient flow to increase the size of nozzles in the Towbar booms, standard fitment is Yellow 02, Towbar booms (excluding the RP1-36) can use Red 04 to increase the overall flow rate.

Specifications:

• Tank Size: 350 litres
• Pump Size: 18.5 L/min
• Max Pressure: 290
• Height/Width/Length: 1060mm / 835mm / 1010mm
• Product Weight: 61 kg
