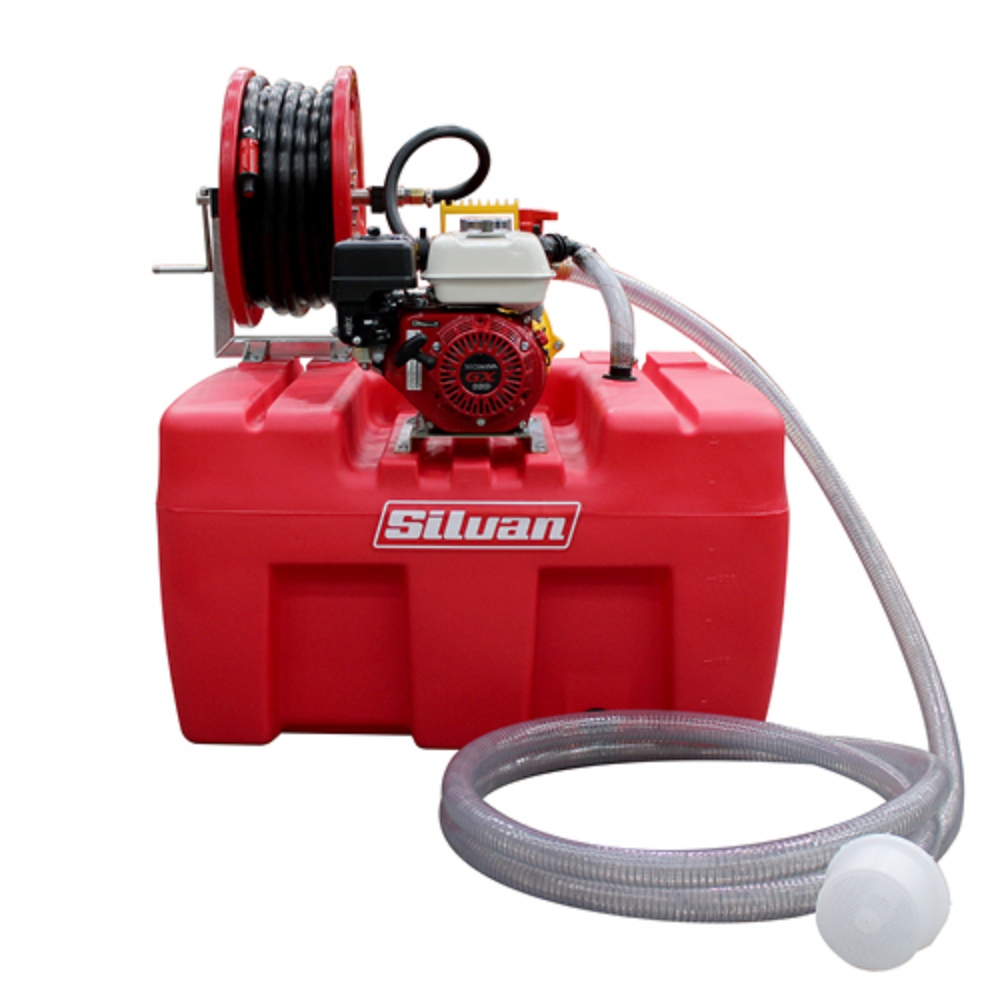

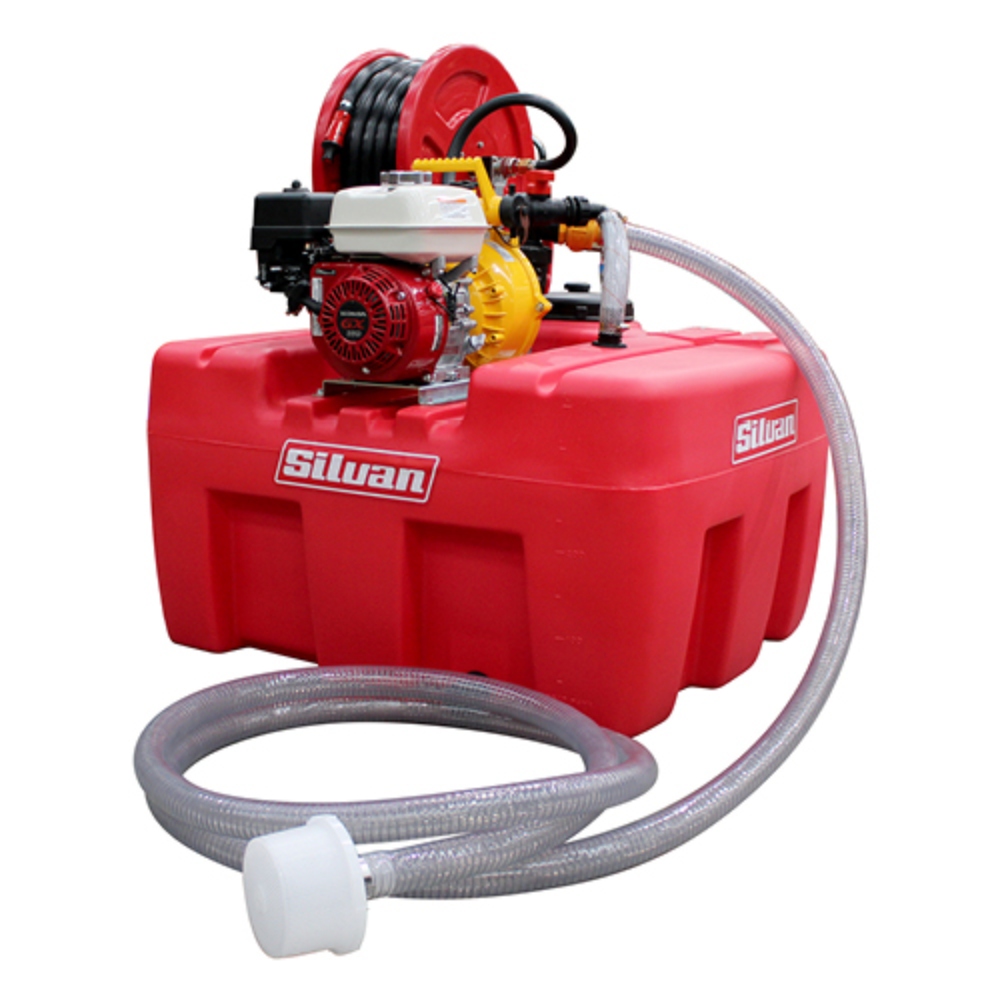

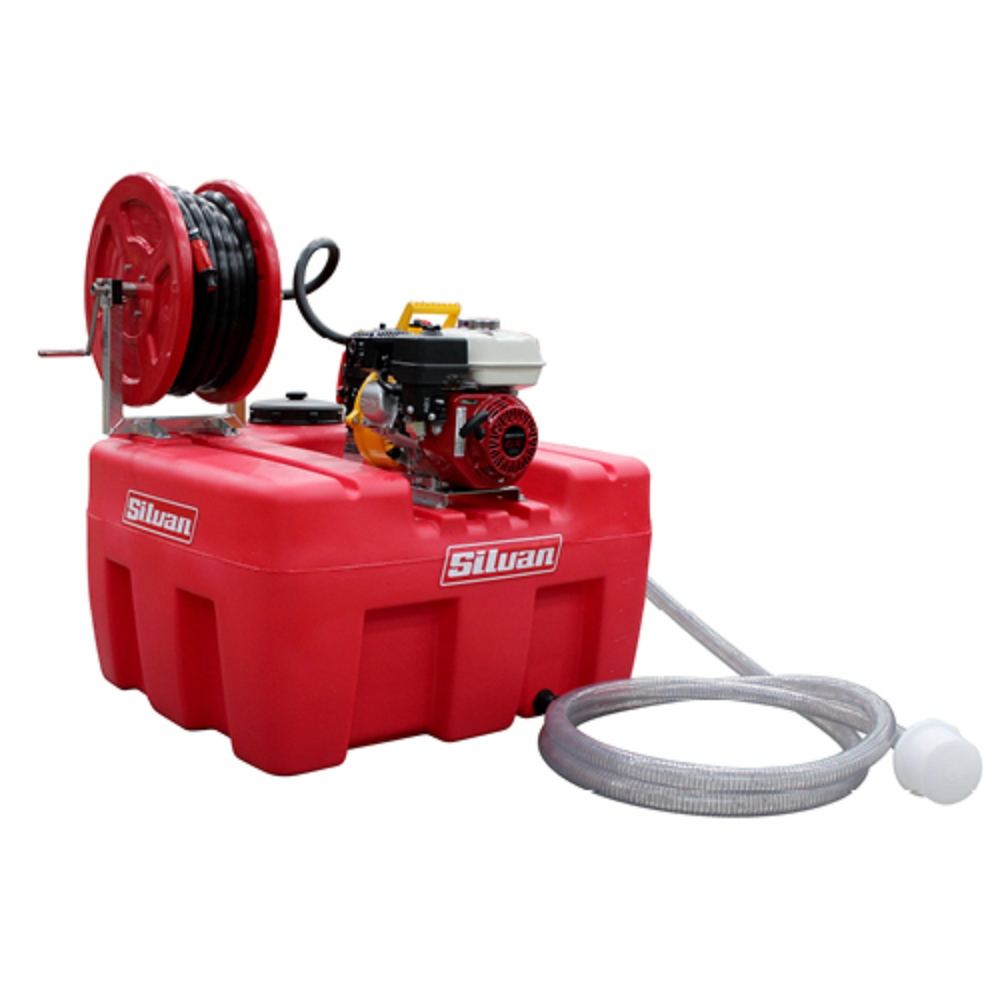

Silvan Fire Fighting Honda Davey Unit 400L, Poly Hose Reel & Fast Fill – SQF400D-FPR4

Description

Silvan Fire Fighting Honda Davey Unit 400L, Poly Hose Reel & Fast Fill – SQF400D-FPR4

A complete, factory-fitted and tested fire fighting package that’s ready to use when you need it most. Designed for performance and ease of operation, this unit features a unique baffled Polytuff tank to reduce liquid surge during transport for improved stability and control. Powered by a reliable Davey GX160 pump, it delivers strong and consistent performance. The factory-fitted fast filler allows operators to quickly refill from a dam or water source, ensuring rapid response in fire emergencies. Includes a heavy-duty poly hose reel with 30m hose for extended reach and flexibility.

Features:

• Tank
  • 400L capacity UV Stabilised Impact resistant Polytuff tank.
  • Internal baffle to reduce surge when travelling.
  • 255mm screw on lid and strainer.
  • Drain Bung for easy empty and cleaning.
• Engine
  • 4 stroke, 5.5 Hp GX160 Honda 163 (cc).
  • Manual recoil rope start .
  • Low oil protection, Oil used SAE 10W 30 (600ml).
  • Twin stage – foam prefilter with paper final element.
• Fuel Tank
  • Capacity 3.1 Litres (Unleaded).
  • Approximate fuel consumption @ full load 1.7L.
• Pumps Seals and Performance
  • Viton equipped internal seal, O-rings and gaskets.
  • Viton for improved chemical resistance.
  • Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty.
  • Direct coupled single centrifugal impeller.
  • Inlet 1 x 1.5inch. Outlet 2 x 1inch and 2 x 1.5inch. 1 x 1inch for the hose reel and 3 spare.
• Hose Reel
  • Australian-made Fire hose reel built to withstand the harshest environments.
  • Premium quality high strength galvanized steel frame which is suitable for many Fire fighter systems including the Silvan Squatpak fire fighter range.
  • Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable and built to last.
  • 1inch ID 316 stainless steel inner tube.
  • Side buffer mechanism assists in the hose reel not unwinding when travelling.
  • Swivel handle and inlet connector.
  • 30m x ¾inch ID fire fighter hose and adjustable nozzle.
  • The poly adjustable nozzle allows users to control the spray pattern (from a focused jet to a wide spray) offering versatility for different fire types and applications.
• Range
  • Horizontal 21m approx. (full stream).
  • Vertical 11m approx. (full stream).
• Dam Fill Kit (Factory Fitted)
  • 6m suction hose and filter with camlocks for easy use and storage.
  • 1 x 3-way valve fitted to the pump that changes the position of suction from the tank to using Dam fill kit.
  • 1 x Ball valve fitted to deliver water from the pump to the tank.

Specifications:

• Tank Size (L): 400
• Pump Size (L/Min): 415
• Max Pressure: 5 Bar/80 psi
• Product Weight (KG): 77
• Height / Width / Length (mm): 1235 / 1060 / 940
