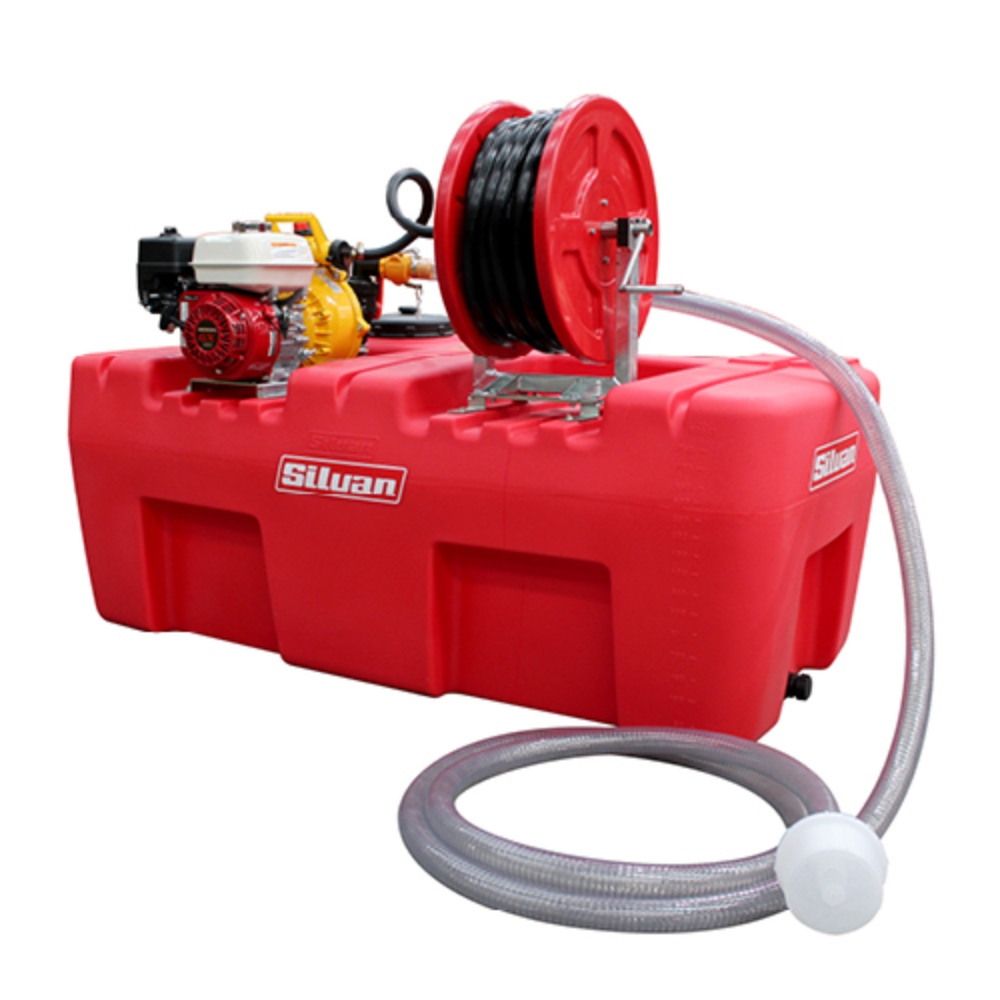

Silvan Fire Fighting Honda Davey Unit 800L, Poly Hose Reel & Fast Fill – SQF800D-FPR4

Description

Silvan Fire Fighting Honda Davey Unit 800L, Poly Hose Reel & Fast Fill – SQF800D-FPR4

Squatpak 800L Firefighter – Davey GX160 + Poly Hose Reel + Fast Fill. A complete, factory-fitted and tested fire fighting package designed for power, reliability, and ease of use. Ready to go when you are, this unit features a unique baffled Polytuff tank that reduces liquid surge during transport, providing enhanced stability and control. Equipped with a Davey GX160 pump for dependable performance, plus a factory-fitted fast filler that allows operators to quickly refill the tank from a dam or water source. The heavy-duty poly hose reel with 30m hose offers exceptional reach and durability. Built tough, corrosion resistant, and ready for any emergency.

Features:

• Tank
  • 800L capacity UV Stabilised Impact resistant Polytuff tank.
  • Twin Internal baffle to reduce surge when travelling.
  • 255mm screw on lid and strainer.
  • Drain Bung for easy empty and cleaning.
• Engine
  • 4 stroke, 6.5 Hp GX200 Honda 196 (cc).
  • Manual recoil rope start.
  • Low oil protection, Oil used SAE 10W 30 (600ml).
  • Twin stage – foam prefilter with paper final element.
• Fuel Tank
  • Capacity 3.1 Litres (Unleaded).
  • Approximate fuel consumption @ full load 1.7L.
• Pumps Seals and Performance
  • Twin stage Impeller.
  • Viton equipped internal seal, O-rings and gaskets.
  • Fitted for improved chemical resistance.
  • Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty.
  • Maximum output 400 (L/min), Max Pressure 150 (PSI).
  • Direct coupled twin centrifugal impeller.
  • Inlet 1 x 1.5inch.
  • Outlet 2 x 1inch and 2 x 1.5inch. 1 x 1inch for the hose reel and 3 spare outlets.
• Hose Reel
  • Australian-made Fire hose reel built to withstand the harshest environments.
  • Premium quality high strength galvanized steel frame which is suitable for many Fire fighter systems including the Silvan Squatpak fire fighter range.
  • Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable and built to last.
  • 1inch ID 316 stainless steel inner tube.
  • Side buffer mechanism assists in the hose reel not unwinding when travelling.
  • Swivel handle and inlet connector.
  • 30m x ¾inch ID fire fighter hose and adjustable nozzle.
  • The poly adjustable nozzle allows users to control the spray pattern (from a focused jet to a wide spray) offering versatility for different fire types and applications.
• Range
  • Horizontal 21m approx. (full stream).
  • Vertical 11m approx. (full stream).

Specifications:

• Tank Size (L): 800
• Pump Size (L/Min): 415
• Max Pressure: 80 psi
• Product Weight (Kg): 90
• Height / Width / Length (mm): 1240 / 940 / 1800
