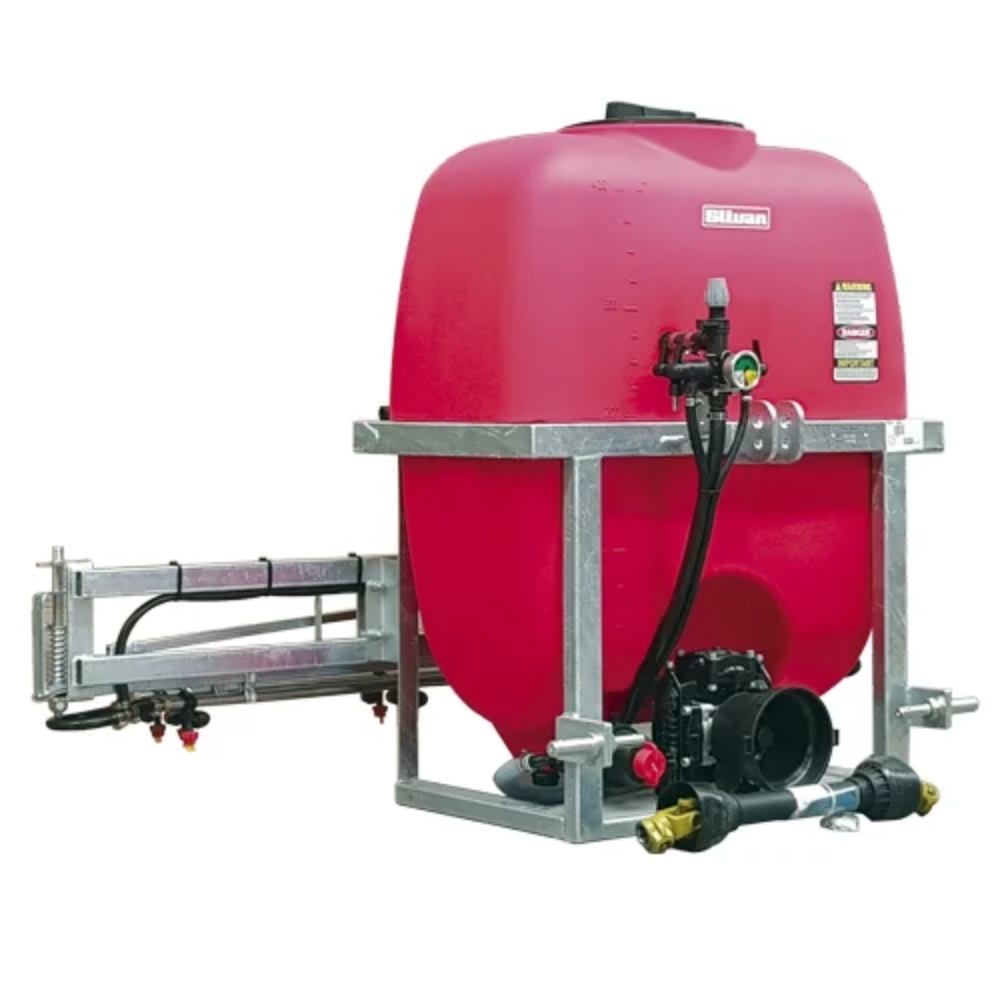

Silvan Redlink Linkage Sprayer 400L with 6m Boom – KBD400
400L Redlink Linkage Sprayer comes with BP60/20 pump, hose reel, 30m hose with Spotjet Spray Gun, and 6m Boom.
- Pump: Silvan self-priming oil backed diaphragm type with nitrile diaphragms and cast anodised aluminium body.
- Econopak boom: 6m with stainless steel spray lines, non-drip nozzle holders, fully galvanised frame and spring loaded safety break back/forward.
- Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacings.
- Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
- Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non-spill screw-down lid with single breather.
- Frame: Fully galvanised steel, cat 1 & 2 linkage.
- Agitation: Bypass agitation.
- Pressure Gauge: 0-25 Bar dual stage glycerine filled guage.
- Filtration: Lid strainer, suction line strainer and nozzle strainers.
- Hose Reel: Fitted with rear-mounted Eco hosereel, 30m of 10mm hose and Spotjet spray gun with adjustable spray nozzle.
- PTO Driveshaft: Quality driveshaft with quick release pins and safety cover.
- Dimensions (with Boom): 1200mm Long / 2060mm Wide / 1330mm High
- Weight: 121kg (Dry)
- 14L Foam marker (single side).
- 16L foam marker (double side).
