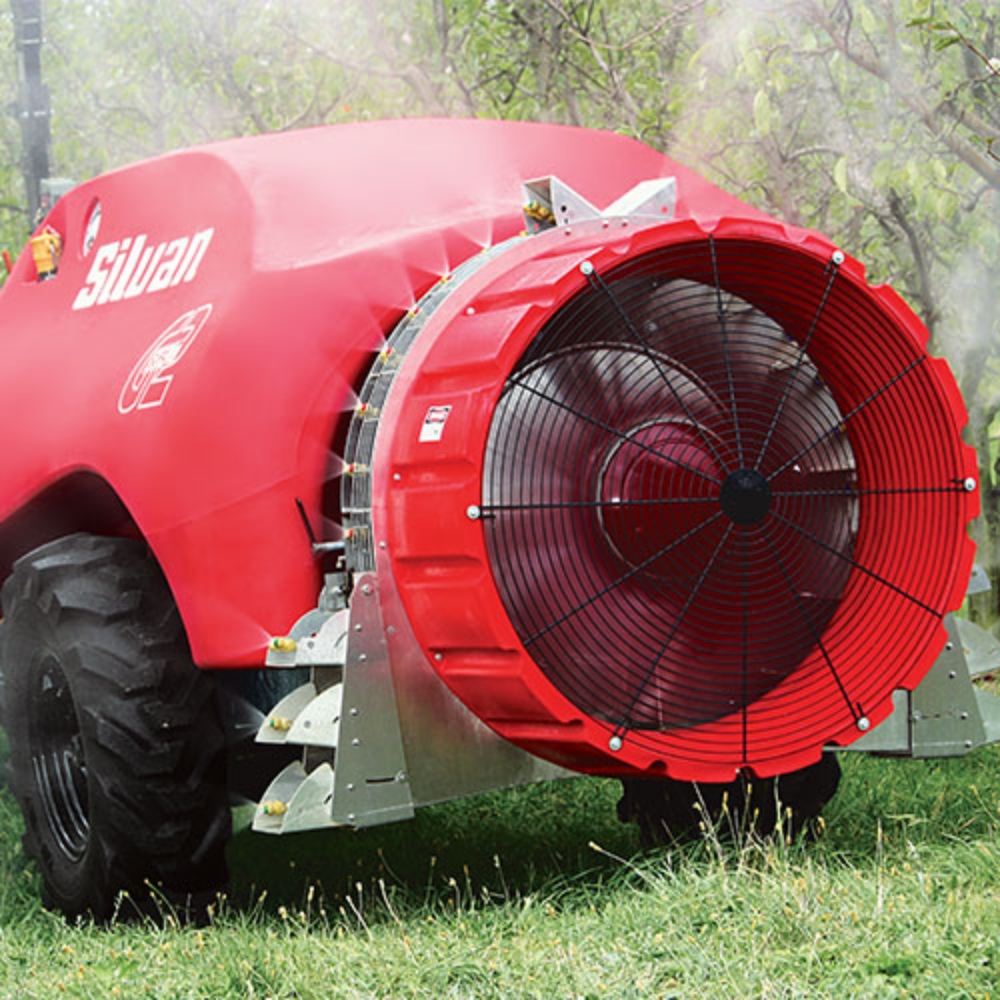

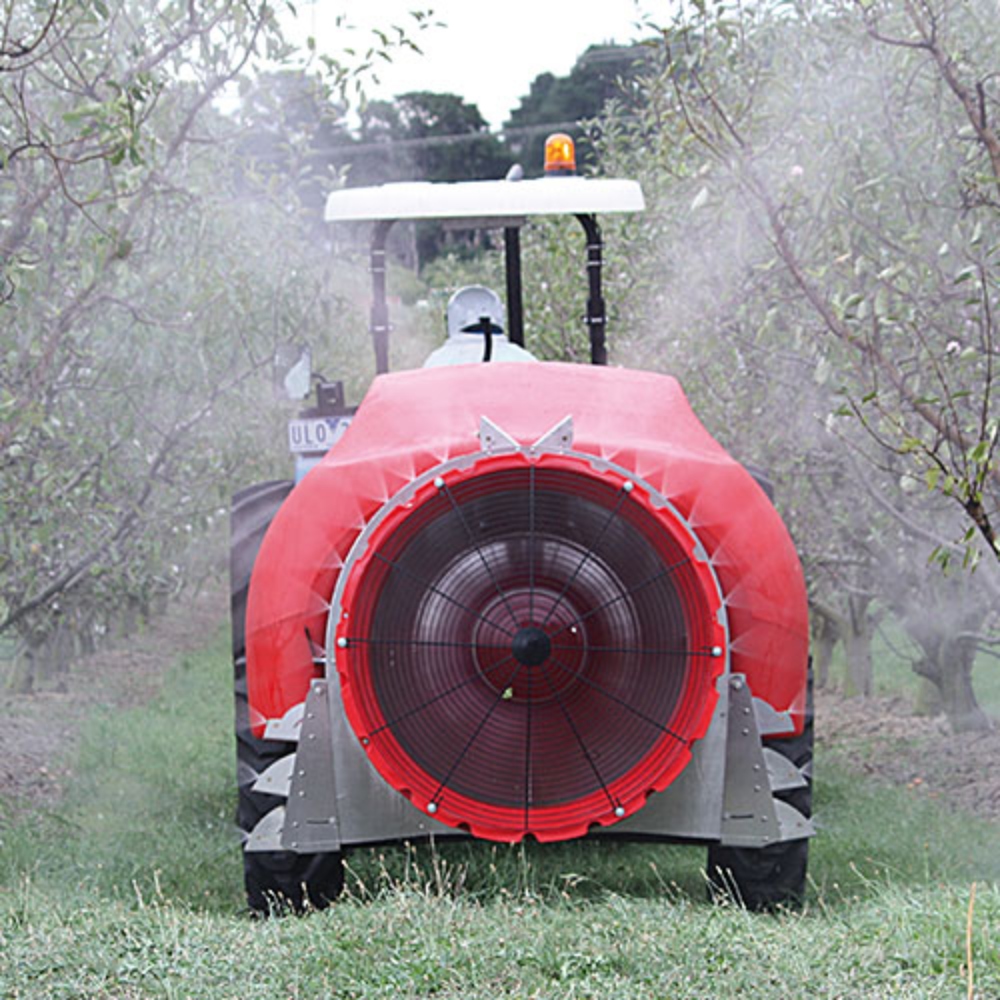

Silvan Supaflo G2 4000L Sprayer with Powerhead Fan – AB43PE2G

Next generation trailed air assist 4000 litre G2 sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft, flush tank, chemical induction hopper and Powerhead conveyor with 920mm fan. Ideal for orchards with trees up to 5 metres high.

Stock/Ref #: AB43PE2G Brand: Silvan

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

$65,989.00

Need Finance
For This Asset?

Description

Silvan Supaflo G2 4000L Sprayer with Powerhead Fan – AB43PE2G

Next generation trailed air assist 4000 litre G2 sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft, flush tank, chemical induction hopper and Powerhead conveyor with 920mm fan. Ideal for orchards with trees up to 5 metres high.

Click here to see the Supaflo Sprayer

Model Specifications:

  • Pump – Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads and manifolds. IDS1701:161L/min. Capacity, 5000kPa pressure.
  • Fan Size – 920mm axial flow type, 10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement/disengagement and protective mesh cover.
  • Nozzles – 24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl plates per side.
  • Gearbox – 2-speed with neutral position, oil-bath type.
  • Controls – 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.
  • Main Tank – Polytuff impact resistant polyethylene construction with calibrated sight line. 50mm Camlock top & bottom fill.
  • Flush Tank – 330L polytuff tank with top fill. Used to flush pump, filter, spray lines and nozzles.
  • Hand Wash Tank – 60L polytuff tank filled through cap. Tap located next to chemical mixer hopper.
  • Mixer Tank – Chemical mixer hopper with tap controls for rinse, transfer and main tank rinse. Venturi transfer back to main tank.
  • Frame – Galvanised steel, heavy duty stand & adjustable drawbar.
  • Agitation – Pump bypass plus venturi agitator.
  • Pressure Gauge – Glycerine filled gauge located on valve bank.
  • Filtration – Suction line filter, pressure filter, nozzle cup strainers.
  • Wheel Equipment – Glideflex axle with 13.0/65 – 18″ implement tyres (speed rating 30km/h).
  • PTO Driveshaft – Quality BOndioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.
  • HP Required – Minimum 80 PTO HP.
  • Dimensions, Length measured with drawbar in shortest position. (LxWxH) – 5550x1880x2020mm.
  • Weight – 1400kg Dry.

Factory Options:

  • Leaf Guard.
  • Double spray lines.
  • Bravo 180S automatic rate controller.
  • Tandem suspension axle with 11.5/80 – 15.3 tyres.
  • Flotation tyres – 558-400/60 – 22.5 (in lieu of standard).
  • IDS2001 pump, 182L/min. capacity, 5000kPa pressure.
  • IDS2600 pump, 249L/min. capacity, 5000kPa pressure.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

Additional information

Weight 1400 kg
Dimensions 555 × 188 × 202 cm
