Wiedenmann Terra Brush 1.87m – 5080041

Description

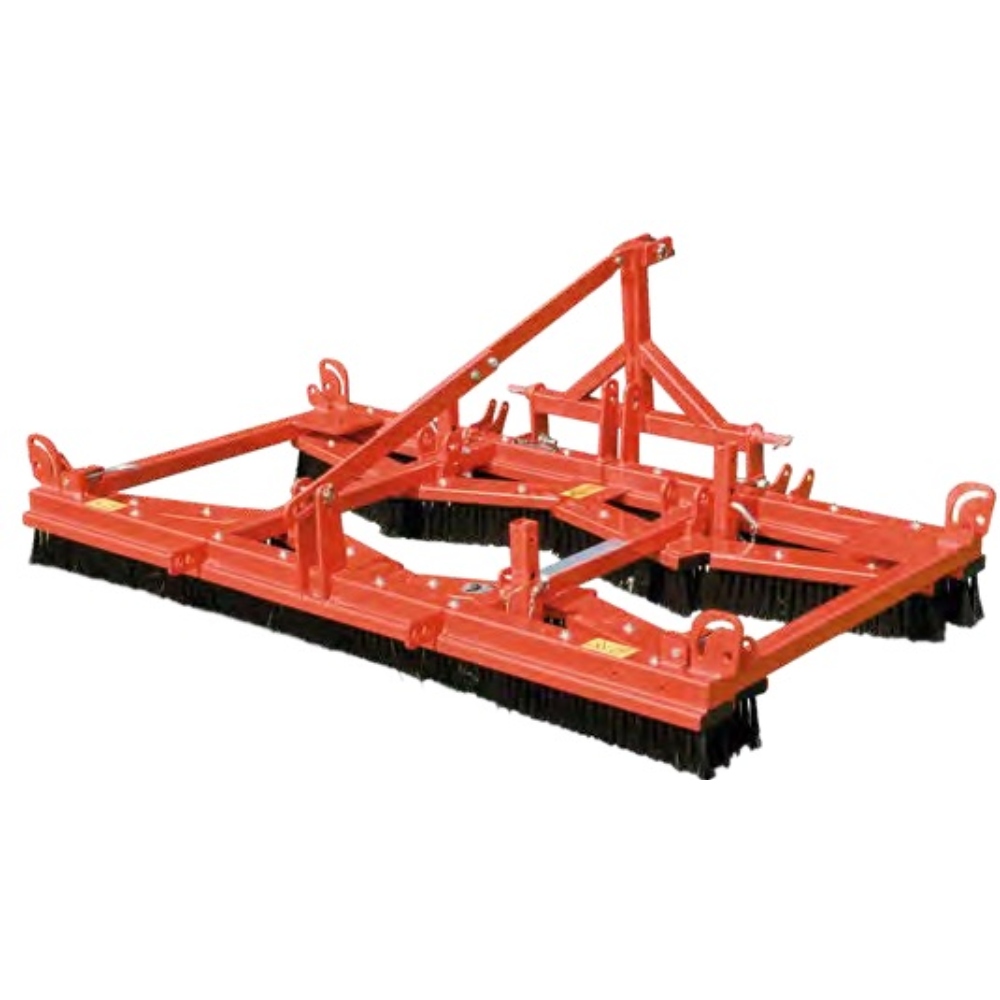

Wiedenmann Terra Brush 1.87m – 5080041

The Wiedenmann Terra Brush is a multifunctional turf maintenance machine, purpose-built for professional use on golf greens, tees, fairways, and sports fields. Designed to brush in sand,  granules, and other topdress materials, it also levels and pulverises cores, removes dew, and improves ball rollability, while reducing maintenance requirements for mowers.

Efficient Top-Dressing and Brushing: The Terra Brush ensures even distribution of sand, rubber granules, and other materials. Four rows of specialised brushes—two aligned perpendicular to the direction of travel and two in a zig-zag arrangement—guarantee uniform coverage both lengthwise and crosswise.
Flexible Working Width: The basic working width is 1.87m and can be extended to 3.80m using optional pendulous wing extensions, ensuring maximum area coverage even on undulating terrain. Wing extensions fold for compact transport to 2.34m (optional).
Durable and Interchangeable Bristles: Depending on turf requirements, soft or hard bristles can be fitted. Worn bristles can be evened out by reversing the mounting frame or drawbar, ensuring economical and uniform use.

Specifications:

• Working Width – 1.87m
• Weight – 126kg
• Tractor HP (min) – 20

Optional Extras:

• 1226510 Set of Wing Extensions – Without Brushes, Increases Working Width to 3.8m.
• 1226645 Rear 3-Point Hitch.
• 1226501 Trailer with Hitch – 12V Electric Lifting, 2 Special Wheels 16×6.5.

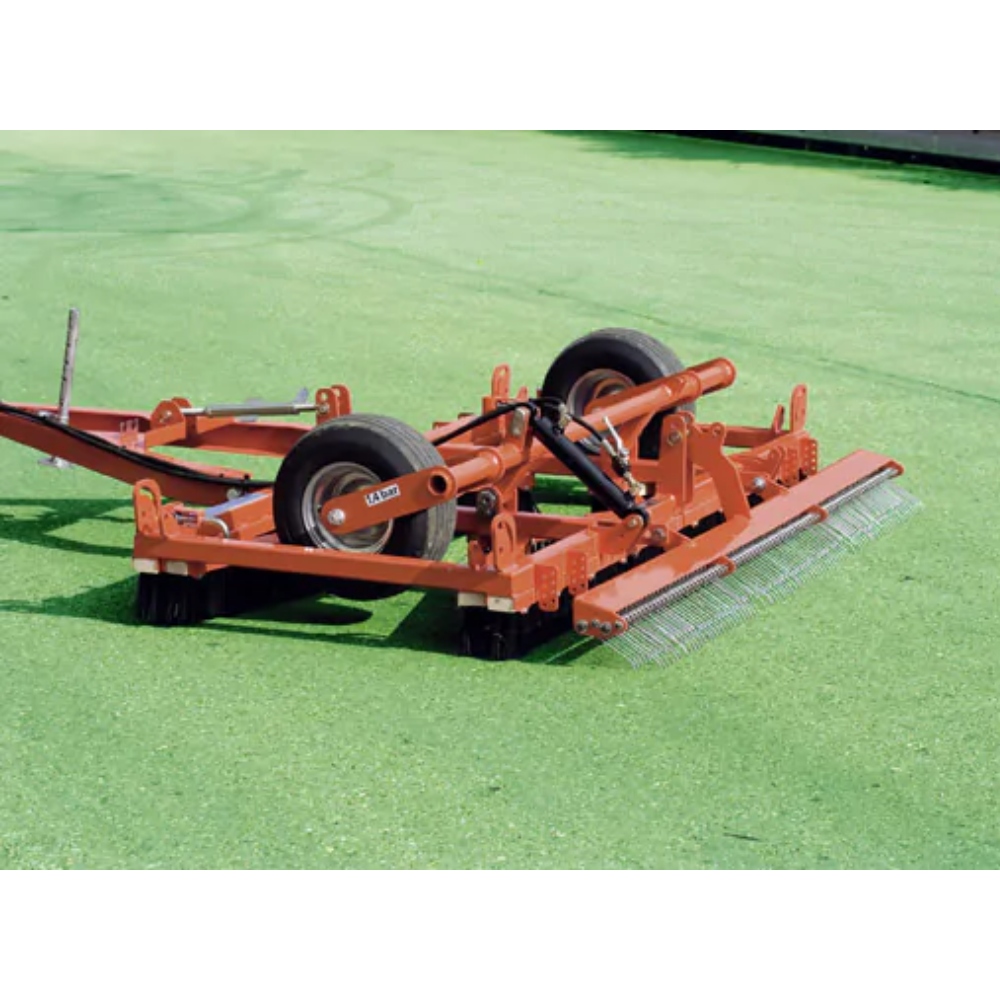

• 1226502 Trailer with Hitch – Hydraulic Lifting, 2 Special Wheels 16×6.5.
• 1226507 Yellow Brushes for Fairways and Sports Grounds.
• 1226503 Black Brushes for Greens, Tees, Fairways, and Sports Grounds.
• 1226507 Yellow Brushes for Wing Extensions – Fairways and Sports Grounds.
• 1226503 Black Brushes for Wing Extensions – Greens, Tees, Fairways, and Sports Grounds.
• 1226665 Mounting Parts for CAT ll.
• 1226505 Anti-Scalp Rollers – 2 pcs (Recommended with Wing Extensions).
• 1226401 Hydraulic Fold-Up of Wing Attachments – For Trailer with Hydraulic Lifting (1226502).
• 1226402 Hydraulic Fold-Up of Wing Attachments – For 3-Point Hitch (1226506) or Trailer with Electric Lifting (1226501).
• 1249090 Magnetic Rail – Collects Dangerous Metal Objects (e.g., Hairpins).
• 5089600 Additional Year Warranty Extension (24 Months Total).
• 5089601 Additional Year Warranty Extension for Wing Attachments (24 Months Total).
