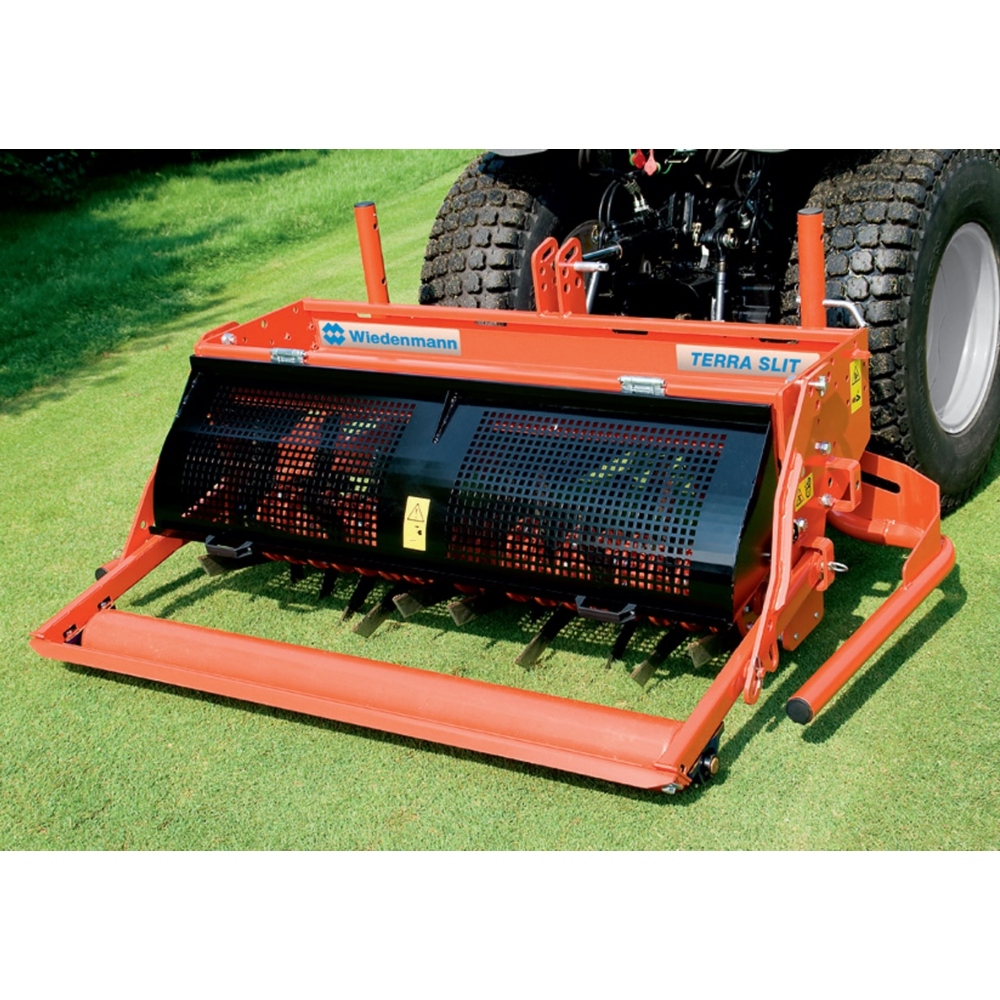

Wiedenmann Terra Slit 160 Spike Aerators – 4990040

Description

Wiedenmann Terra Slit 160 Spike Aerators – 4990040

The Wiedenmann Terra Slit 160 is a powerful and versatile deep-aeration machine, purposebuilt for professional turf care on golf courses, sports fields, and other high-performance turf areas. Designed to break up soil compaction and improve root development, it ensures healthy, resilient playing surfaces year-round.

Deep Aeration Performance: Capable of penetrating to depths of up to 20 cm, the Terra Slit effectively eliminates soil compaction, encouraging deeper root growth and improved absorption of water and nutrients.
Knife and Tine Versatility: Depending on soil conditions, the machine can be equipped with low- or high-lift knives for tailored aeration. For fine slitting up to 15 cm, specialised slitting knives are available, while hollow tines allow for dethatching and aerating up to 8 cm.
Customisable Row Spacing: The distance between tine rows can be set at 7.5cm or 15 cm, offering flexibility to meet varying turf care requirements.
High Output Efficiency: With hollow tines fitted, the Terra Slit produces up to 80 holes per square metre in a single pass, making it an ideal solution for quick and effective dethatching or surface aeration.
Weight Adjustment Options: The integrated ballast frame can be loaded with additional weights for highly compacted soils. An optional hydraulic weight transfer system (suitable for 3-point Cat. I) is available for enhanced performance.
Tractor Compatibility: The Terra Slit mounts easily to the rear 3-point linkage (Cat. I/II) and is also available in a trailed version for added flexibility.

Specifications:

• Overall Width – 1.96m
• Working Width – 1.6m
• Weight – 260kg
• Tractor HP (min) – 30

Optional Extras:

• 1202847 – Low-heave knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing.
• 1202848 – High-heave knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing.
• 1202849 – Fine slitting knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing.
• 1236579 – Disc set for mounting coring tines or slitting knives: 1 set for 150 mm spacing or 2 sets for 75 mm spacing.
• 1236640 – Coring tines Ø25 mm (160 pcs.): approx. 80 holes/m², 1 set for 150 mm spacing or 2 sets for 75 mm spacing.
• 1236650 – Slitting knives 130 mm (80 pcs.): 1 set for 150 mm spacing or 2 sets for 75 mm spacing.
• 1236660 – Triangular fine slitting knives 80 mm, sharpened (80 pcs.): 1 set for 150 mm spacing or 2 sets for 75 mm spacing.
• 1206910 – Bogey Wheel Set.
• 1222980 – Ballast weight, approx. 48 kg (maximum 3 units).
• 1232709 – Rear Roller.
• 1206793 – Overseeder.
• 1201334 – Spring Tines for Overseeder.
• 1232679 – Mounting Parts for Overseeder.
• 1236520 – Hydraulic Weight Transfer System – Unpressurized Return Line Required.
• 1206640 – Additional Heaving Rotor – Includes Flanged Bearings.
• 4999600 – Additional Year Warranty Extension (24 Months Total).
