Wiedenmann Terra Spike GXI8HD Aerators – 4230040

Description

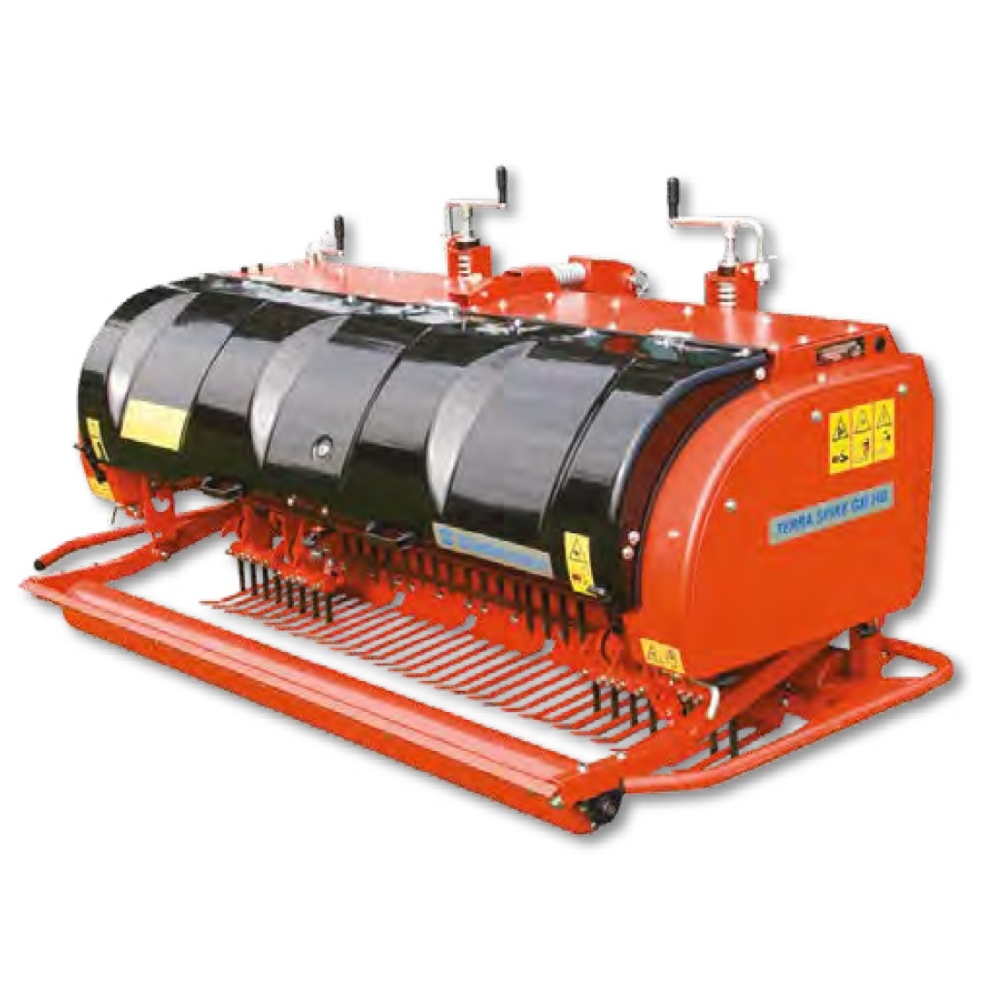

Wiedenmann Terra Spike GXI8HD Aerators – 4230040

The Wiedenmann TERRA SPIKE® GXi 8 HD is a powerful and highly productive deep-aeration machine, purpose-built for professional turf care on golf greens, tees, sandy sports fields, and other fine turf areas. Designed to remove compaction quickly and efficiently, it promotes healthier root growth, improved soil structure, and superior playing surfaces all year round.

Deep Aeration Performance: Penetrates to depths of up to 25 cm, eliminating soil compaction and enabling roots to grow deeper for enhanced water and nutrient uptake. Regular deep spiking improves drainage, reduces thatch, and increases turf stability and resilience.
High Output Efficiency: With a working speed of 3.2 km/h at 110 mm square hole spacing, the GXi 8 HD covers up to 5,600 m² per hour — reducing aeration time by up to 60% compared with conventional systems.
Low-Stress Design: Exclusive VibraStop and PowerPack damping systems minimise vibration, reducing operator fatigue and wear on the tractor for smooth, quiet operation.
Quick, Tool-Free Adjustments: The QuickSet system allows rapid, tool-free changes to working depth and tine entry angle. With an adjustment range from 90° to 65°, loosening intensity can be precisely matched to soil conditions.
Rapid Tine Changes: The QuickFit system makes tine replacement simple and fast, reducing downtime and boosting productivity.
Robust, Versatile Mounting: Designed for tractors from 26 kW (35 HP) upwards, the compact mounting ensures excellent manoeuvrability and large area coverage. PTO drive 540 RPM as standard.

Specifications:

• Overall Width – 2.27m
• Working Width – 1.8m
• Weight – 900kg
• Tractor HP (min) – 35

Standard Build Inclusions:

• Drive Type (must select one)
  • 1237022 Drive 280 RPM
  • 1237023 Drive 360 RPM
• 1222705 Set of Narrow Turf Retainers
• 1500120 Set of 12 Solid Tines 12 mm x 200 mm

Optional Extras:

• 1222704 Set of Wide Turf Retainers
• 1222910 Multi-Tine Holders for Needle Tines – 5 × 135 mm / 8 × 160 mm (8 Required)
• 1223355 Multi-Tine Holder for 6 Tines – 12 mm Mounting Diameter (8 Required; Max Tine Diameter 12 mm)
• 1223360 Multi-Tine Holder for 8 Micro-Coring Tines – 8 mm Mounting Diameter (8 Required)
• 1222526 Core Swath Board
• 1222014 Lower Link Extension
• 1222980 Ballast Weights (Approx. 45 kg)
• 1196890 Soil Probe – 1000 mm Length
• 1196895 Soil Probe – 650 mm Length
• 4239001 Buffer Kit (Replace After 3 Years/100 Operating Hours)
• 4239002 Tension Spring Kit (Replace After 3 Years/200 Operating Hours)
• 4239600 Additional Year Warranty Extension (24 Months Total)
