Wiedenmann Terra Spike XD6 Aerators – 8640045

Description

Wiedenmann Terra Spike XD6 Aerators – 8640045

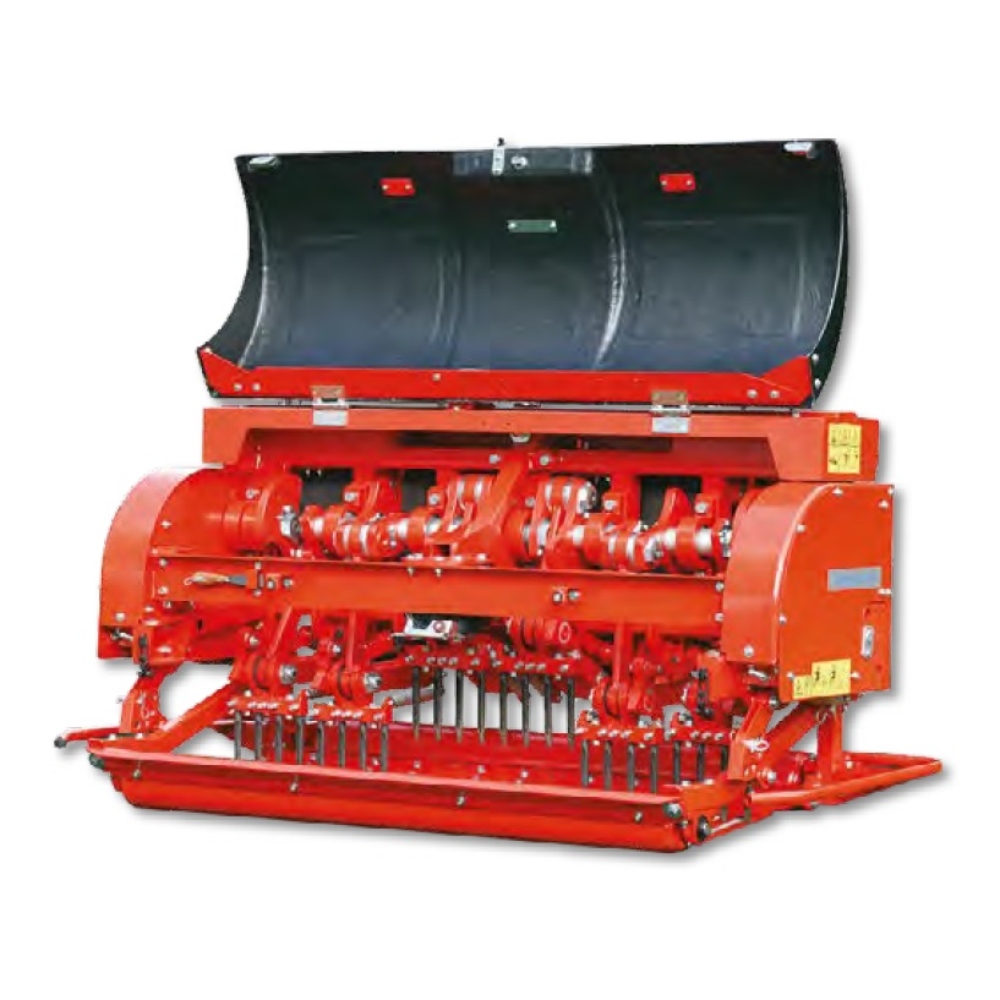

The Wiedenmann TERRA SPIKE® XD 6 is a high-performance deep-aeration machine, purpose built for professional turf care on golf courses, sports fields, and other demanding turf environments. Engineered to break up soil compaction and promote deeper root growth, it ensures healthier, stronger playing surfaces with minimal disruption to play.

Deep Aeration Performance: Capable of loosening and aerating turf to depths of up to 27.5 cm, the XD 6 enhances water infiltration, nutrient uptake, and root development for long-term turf resilience.
Unique Vibration Damping: Equipped with VibraStop and PowerPack systems, the XD 6 delivers exceptionally smooth operation, reducing stress on both the machine and the operator.
Fast, Efficient Output: With a working speed of up to 5 km/h and an area coverage of up to 5,000 m² per hour (at 130 mm square hole spacing), the XD 6 provides superior productivity while
keeping downtime to a minimum.
Simple, Tool-Free Adjustments: Working depth can be set quickly and without tools via a hand crank. For maximum convenience, an optional hydraulic depth control allows operators to adjust settings directly from the tractor cab—even during operation.
Advanced Technology: The XD 6 comes standard with VibraStop, PowerPack, TwinDrive, QuickSet, and QuickFit, giving turf professionals a powerful combination of precision, flexibility, and ease of use.

Specifications:

• Overall Width – 2.15m
• Working Width – 1.6m
• Weight – 1125kg
• Tractor HP (min) – 40

Standard Build Inclusions:

• Drive Type (must select one)
  • 1203024 Drive 345 RPM
  • 1203025 Drive 410 RPM
• 1212019 Hydraulic Depth Adjustment.
• 1203376 Set of Narrow Turf Retainers.
• 1500120 Set of 12 Solid Tines 12 mm x 200 mm

Optional Extras:

• 1203375 Set of Wide Turf Retainers.
• 1203800 Multi-Tine Holders for Needle Tines – 5 mm & 8 mm, for 8/12 Tines (6 Required).
• 1191888 Core Swath Board.
• 1212019 Hydraulic Depth Adjustment.
• 1203019 Hydraulic Rotary Brush.
• 1204980 Lower Link Extension – CAT I & II.
• 1196890 Soil Probe – 1000 mm Length.
• 1196895 Soil Probe – 650 mm Length.
• 8609001 Buffer Kit (Replace After 3 Years/100 Operating Hours).
• 8649002 Tension Spring Kit (Replace After 3 Years/200 Operating Hours).
• 8649600 Additional Year Warranty Extension (24 Months Total).
